1. Заview
The TOWODE 2K Light Bulb Security Camera offers advanced surveillance features for your home. Designed for easy installation into standard E27 light sockets, this camera provides high-definition video, motion detection, two-way audio, and comprehensive area coverage. It is compatible with 2.4GHz Wi-Fi networks for wireless connectivity.

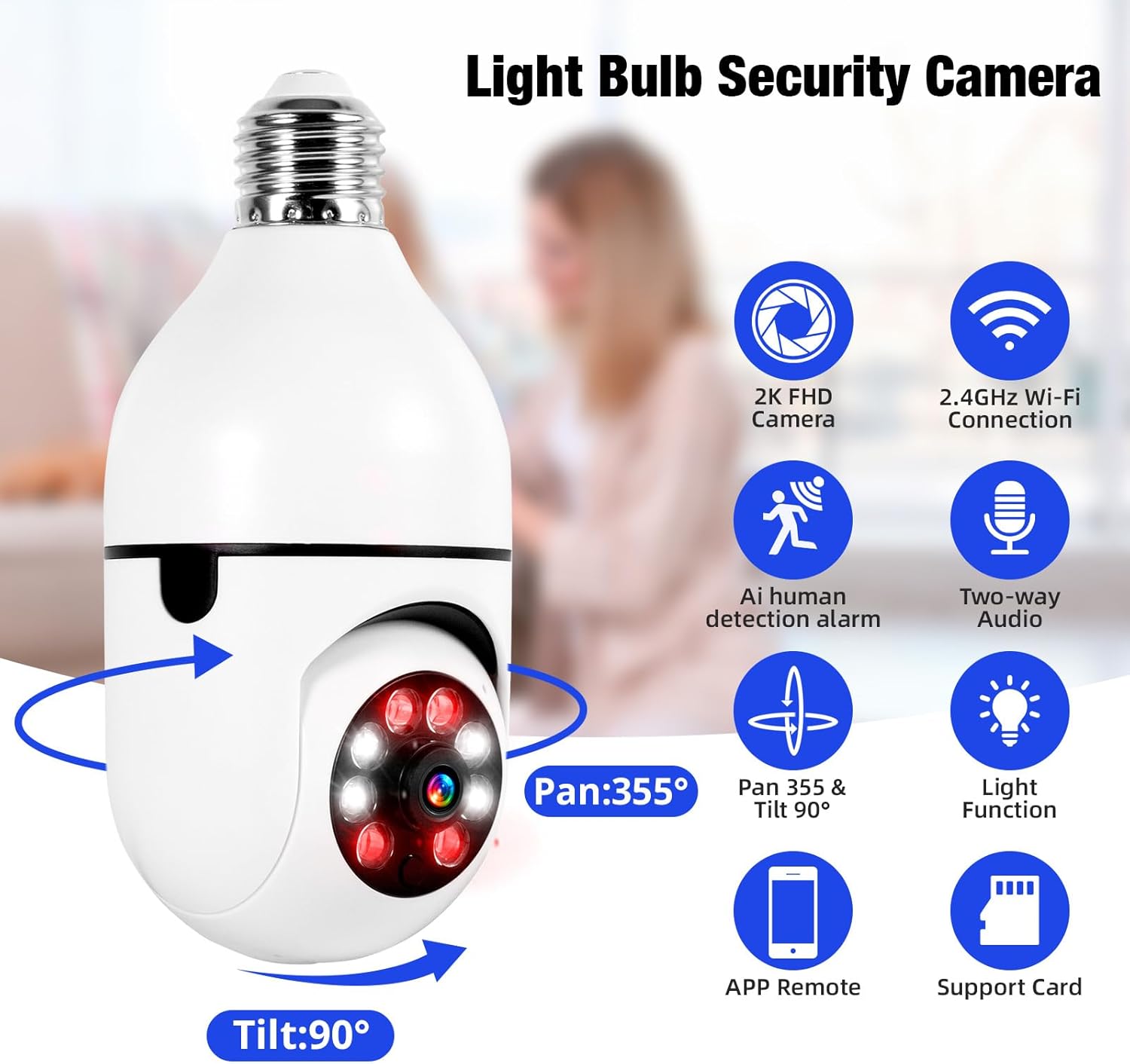

Image 1.1: The TOWODE 2K Light Bulb Security Camera, highlighting its 2K FHD camera, 2.4GHz Wi-Fi connection, AI human detection alarm, two-way audio, Pan 355° & Tilt 90° rotation, light function, APP remote control, and support for SD card storage.
2. Содержимое упаковки
Проверьте наличие всех предметов в посылке:
- TOWODE 2K Light Bulb Security Camera (2 units)
- E27 Light Sockets (2 units)
- Руководство по эксплуатации
3. Особенности продукта
- High-Definition Image Quality: Features ultra-clear 2K resolution, four built-in infrared lights, and four white lights. Infrared automatically switches to full-color mode at night, capturing clear details in dark environments.
- Простая установка: Fits standard E27 light sockets (compatible with 110V-240V). Plug-and-play screw-in installation requires no drilling or wiring. An adapter is included for direct power source connection.
- AI Human Detection & Real-Time Alarm: Supports two-way voice chat for communication. Effectively filters out environmental disturbances like rustling leaves. Customizable voice alarms and real-time alerts are sent to your phone upon anomaly detection.
- 360 ° панорамный View: Supports remote control with 355° horizontal rotation and 90° vertical pan. Provides nearly 360° panoramic monitoring without blind spots, handling wide-angle detection and precise tracking.
- Несколько вариантов хранения: Supports cloud storage, local Micro SD cards (up to 128GB), and cell phone memory for continuous 24/7 recording.
4. Настройка и установка
The camera is designed for simple installation, similar to replacing a light bulb.
- Выберите место: Select a location with a standard E27 light socket (110V-240V compatible) or a power source where the included adapter can be used. Ensure the location provides adequate Wi-Fi signal strength.
- Screw In Camera: Carefully screw the camera into the E27 light socket. If using the adapter, plug the adapter into a power source and then screw the camera into the adapter.
- Включение питания: Ensure the light socket or power source is switched on. The camera will power up and initiate its startup sequence.
Image 4.1: A person demonstrating the easy installation of the light bulb camera by screwing it into a standard E27 socket.
5. Подключение приложения
To operate your camera, download the companion mobile application and connect it to your Wi-Fi network.
- Скачать приложение: Искать the 'AJCloud' app in your smartphone's app store (iOS or Android) and install it.
- Регистрация/Войти: Откройте приложение и следуйте инструкциям на экране, чтобы создать новую учетную запись или войти в систему, если она у вас уже есть.
- Добавить устройство: Tap the '+' icon or 'Add Device' option within the app. Select 'Light Bulb Camera' or a similar option.
- Подключитесь к Wi-Fi: Follow the app's prompts to connect the camera to your 2.4GHz Wi-Fi network. You may need to scan a QR code on the camera or enter your Wi-Fi password.
- Полная установка: Once connected, name your camera and complete any remaining setup steps. The camera feed should now be visible in the app.
Video 5.1: An official product video demonstrating the features and setup of the Light Bulb Camera, including app integration and functionality.
6. Инструкция по эксплуатации
6.1. Обнаружение и отслеживание движения
The camera features advanced AI human detection and motion tracking capabilities.
- Оповещения в реальном времени: When motion or a human figure is detected, the camera sends instant alerts to your connected smartphone.
- Отслеживание движения: Камера может автоматически отслеживать движущиеся объекты в пределах своего поля зрения. view, ensuring continuous surveillance.
- Настраиваемые сигналы тревоги: Set up personalized voice alarms through the app to deter intruders.
Image 6.1: The camera's human detection feature in action, showing an alert notification on a smartphone as a child is detected in the backyard.
Image 6.2: An illustration of the camera's real-time alarm and human detection at night, with a warning light activated and a notification on a smartphone.
6.2. Ночное видение
Камера обеспечивает четкое изображение даже в условиях недостаточного освещения.
- Цветное ночное видение: Utilizing its white lights, the camera can switch to full-color mode at night, providing detailed and vibrant images.
- Инфракрасное ночное видение: For discreet monitoring, the infrared lights provide clear black and white video in complete darkness.
6.3. Двусторонняя аудиосвязь
Общайтесь напрямую через камеру, используя функцию двусторонней аудиосвязи.
- Говорите и слушайте: Use the app to speak to visitors or deter unwanted guests, and listen to audio from the camera's location.
Image 6.3: The two-way audio function, illustrating communication between a user via smartphone and a delivery person at the door through the camera.
Image 6.4: A visual representation of the two-way audio feature, showing a person interacting with a delivery driver at their doorstep via the camera.
6.4. Воспроизведение и хранение видео.
Доступ к записанному footage and manage storage options.
- Локальное хранилище: Insert a Micro SD card (up to 128GB, not included) into the camera's slot for continuous local recording.
- Облачное хранилище: Subscribe to cloud storage services through the app for secure, remote video backup.
- Mobile Storage: Save important video clips directly to your smartphone's memory.
- Воспроизведение: View записано фуtage directly from the app, with options to download or share.
Image 6.5: The camera highlighting its support for both Micro SD card (up to 128GB) and cloud storage solutions for video recording.
7. Техническое обслуживание
Регулярное техническое обслуживание обеспечивает оптимальную производительность и долговечность вашей камеры видеонаблюдения.
- Уборка: Gently wipe the camera lens and body with a soft, dry cloth to remove dust and debris. Avoid abrasive cleaners.
- Обновления прошивки: Periodically check the app for available firmware updates to ensure your camera has the latest features and security enhancements.
- Wi-Fi-соединение: Ensure a stable 2.4GHz Wi-Fi connection for uninterrupted operation.
- Управление хранилищем: Регулярно пересматриватьview и управляйте записанным footage, especially if using local SD card storage, to prevent it from becoming full.
8. Поиск Неисправностей
If you encounter issues with your TOWODE 2K Light Bulb Security Camera, refer to the following common solutions:
| Проблема | Решение |
|---|---|
| Камера не подключается к Wi-Fi | Ensure your Wi-Fi is 2.4GHz. Check Wi-Fi signal strength at the camera's location. Restart your router and the camera. Re-attempt the connection process in the app. |
| Плохое качество изображения | Verify the camera lens is clean. Ensure adequate lighting for optimal performance. Check your internet speed; a slow connection can affect streaming quality. |
| Нет оповещений о движении | Check app notification settings and ensure they are enabled. Verify motion detection sensitivity settings in the app. Ensure the camera has a clear view территории, подлежащей мониторингу. |
| Двусторонняя аудиосвязь не работает | Check microphone and speaker settings in the app. Ensure your phone's volume is up. Verify the camera's microphone and speaker are not obstructed. |
| SD-карта не записывает | Ensure the SD card is inserted correctly. Format the SD card through the app. Check if the SD card is full or corrupted. Replace the SD card if necessary. |
9. Технические характеристики
| Особенность | Деталь |
|---|---|
| Название модели | DPDZ02 |
| Разрешение видеозахвата | 2K (implied from product title, specifications list states 1080p, but product title is 2K, so 2K is used as primary) |
| Технология связи | Беспроводная связь (Wi-Fi 2.4 ГГц) |
| Использование внутри и снаружи помещений | Outdoor (as per product title, specifications list states Indoor, but product title is Outdoor, so Outdoor is used as primary) |
| Источник питания | Проводной электрический |
| Диапазон панорамирования/наклона | 355° по горизонтали, 90° по вертикали |
| Ночное Видение | Цветное ночное видение, инфракрасное ночное видение |
| Варианты хранения | Cloud Storage, Micro SD Card (up to 128GB), Cell Phone Memory |
| Специальная характеристика | HD Resolution, AI Human Detection, Two-Way Audio |
| Размеры (Д x Ш x В) | 1.18 x 1.18 x 2.76 дюйма |
| Вес товара | 15.8 унции |
10. Гарантия и поддержка
For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official TOWODE webсайт. Сохраните чек о покупке на случай гарантийных претензий.
