Goimu S1-V4 Smith Machine Home Gym Instruction Manual

1 Важная информация по безопасности

Before assembling or operating the Goimu S1-V4 Smith Machine, read and understand all instructions and warnings in this manual. Failure to follow these instructions may result in serious injury or property damage.

• Проконсультируйтесь с врачом перед началом любой программы упражнений.
• Не подпускайте детей и домашних животных к оборудованию во время его использования.
• Перед каждым использованием убедитесь, что все болты и гайки надежно затянуты.
• Разместите оборудование на плоской устойчивой поверхности.
• Не превышайте максимальную грузоподъемность, указанную для каждого компонента.
• Always use safety spotters or a trained assistant when performing heavy lifts.
• Inspect the equipment for worn or damaged parts before each workout. Do not use if damaged.

2. Продукт закончилсяview

The Goimu S1-V4 is an all-in-one home gym system designed for comprehensive strength training. It integrates a Smith machine, power cage, and cable crossover system, supporting a wide range of exercises.

Figure 2.1: Goimu S1-V4 Smith Machine, Power Cage, and Cable Crossover System with included weight bench and various attachments.

Основные характеристики:

• Прочная стальная конструкция: Supports up to 2000 lbs rackable weight capacity.
• Интегрированное проектирование: Combines Smith machine, power cage, and functional trainer.
• Versatile Cable System: Features a smooth cable crossover system with a 2:1 pulley ratio.
• Adjustable Smith Bar: Linear bearing design with 10 selectable heights and professional hook protection.
• Комплексные аксессуары: Includes over 25 attachments for varied workouts.

Figure 2.2: Labeled diagram of the Goimu S1-V4 components.

3. Содержимое упаковки

The Goimu S1-V4 Home Gym is shipped in multiple boxes. Please verify all components are present before beginning assembly.

Рисунок 3.1: Содержимое упаковки.view.

Включенные компоненты:

• S1-V4 Power Cage (shipped in 3 boxes)
• Sturdy Weight Bench (shipped in 1 box)
• 1 Т-образный стержень
• 1 V-handle
• 4 Elastic band bars
• 2 Цепи
• 1 Cable Bar
• 6 OB bushings
• 1 Triceps rope
• 1 Pull down bar
• 2 J-hooks
• 6 Counterweight racks with clamps
• 2 Small clamps

4. Инструкция по сборке

Assembly requires two people. All necessary hardware and an illustrative manual are included. Follow the step-by-step instructions provided in the separate assembly manual for detailed guidance.

Этапы Генеральной Ассамблеи:

1. Распакуйте все компоненты и сверьте их со списком содержимого упаковки.
2. Organize hardware by type and size.
3. Assemble the base frame of the power cage.
4. Attach the uprights and crossbars.
5. Install the Smith machine tracks and bar.
6. Assemble the cable crossover system, including pulleys and cables.
7. Attach all accessories such as J-hooks, safety stoppers, and weight plate holders.
8. Assemble the weight bench separately.
9. Perform a final check to ensure all connections are secure.

Figure 4.1: Goimu S1-V4 dimensions and footprint.

5. Operating the S1-V4 Home Gym

The S1-V4 offers multiple training options. Familiarize yourself with each component before use.

5.1 Smith Machine Operation

The Smith machine features a linear bearing design for smooth movement and includes professional hook protection.

• Регулировка высоты: The Smith bar offers 10 selectable height positions. Lift the bar slightly, rotate to disengage the hooks, and slide to the desired height. Rotate to engage hooks securely.
• Остановки безопасности: Position the adjustable safety stoppers below the lowest point of your intended range of motion to prevent injury.
• Весовая нагрузка: Load weight plates evenly on both sides of the Smith bar.

Figure 5.1: Smith machine attachment details.

5.2 Система кроссовера кабелей

The cable crossover system provides smooth and consistent resistance for various exercises. It features a slide rail design and stainless steel composite materials.

• Pulley Adjustment: The pulleys can be adjusted to 10 height positions along the uprights for high, mid, or low cable exercises.
• Подключение вложений: Use the included carabiners to attach handles, ropes, or bars to the cable ends.
• Весовая нагрузка: Load weight plates onto the weight horns of the cable system.

Figure 5.2: Cable crossover system in use.

5.3 Power Cage and Attachments

The power cage allows for free weight exercises with the use of J-hooks and safety stoppers. Various attachments expand exercise possibilities.

• J-Hooks and Safety Stoppers: Insert J-hooks and safety stoppers into the desired height holes on the uprights. Ensure they are fully seated and secure before placing a barbell.
• Multi-Grip Chin-Up Bar: Use the integrated chin-up bar for various grip pull-up exercises.
• Дип-бар: Attach the dip bars to the uprights at a comfortable height for chest dips.
• Крепление для противопехотной мины: Insert a barbell into the 360-degree landmine attachment for rotational exercises.

Рисунок 5.3: Examples of exercises possible with the S1-V4.

5.4 Регулируемая скамья для веса

The included weight bench offers adjustable back and seat positions for various exercises.

• Регулировка спинки: Adjust the backrest to 6 different positions (flat, incline, decline) by pulling the adjustment pin and moving the backrest to the desired angle.
• Регулировка сиденья: Adjust the seat to 4 different positions by pulling the adjustment pin and moving the seat to the desired angle.

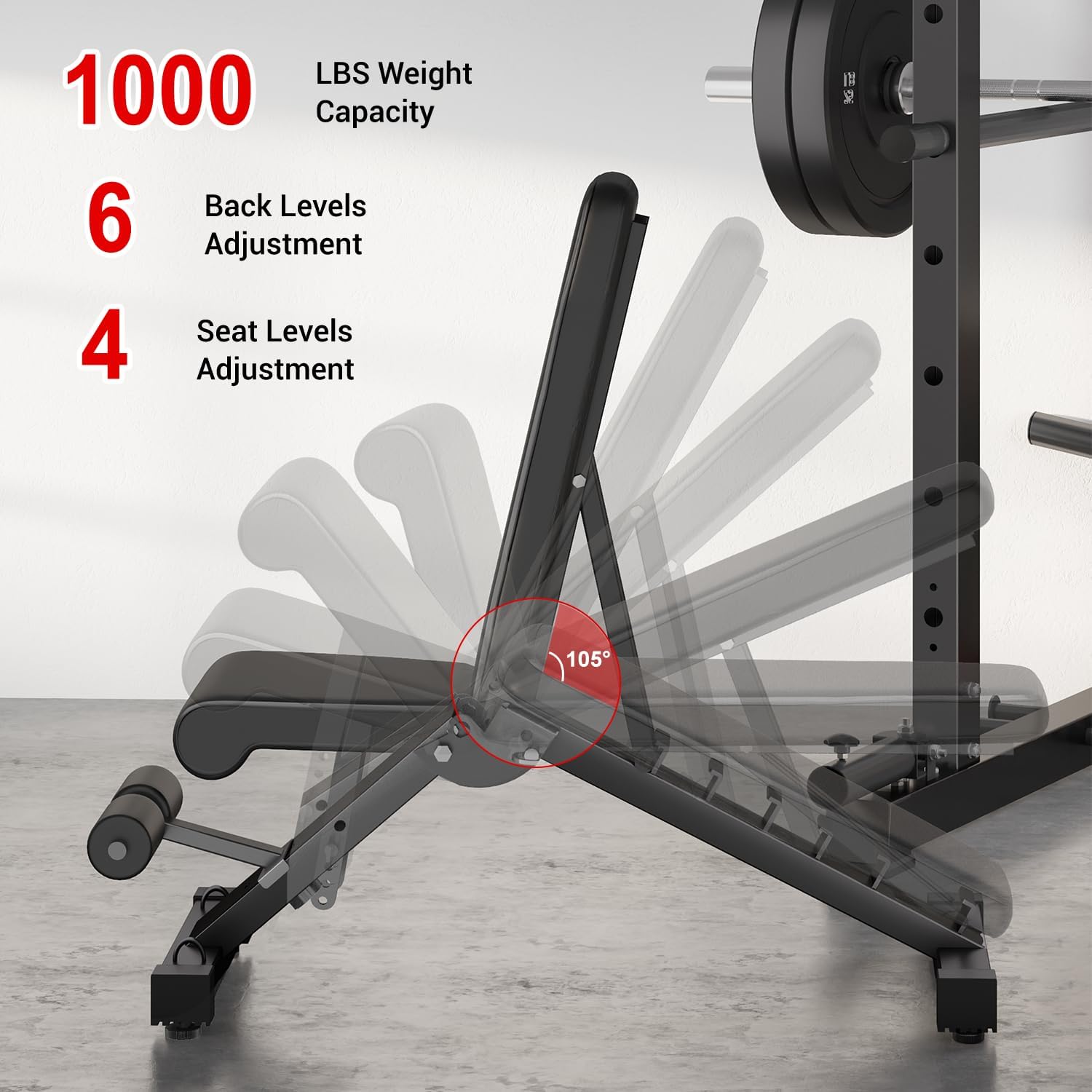

Figure 5.4: Weight bench adjustment options.

6. Техническое обслуживание

Regular maintenance ensures the longevity and safe operation of your Goimu S1-V4 Home Gym.

• Ежедневно: Протрите оборудование средствомamp ткань после каждого использования, чтобы удалить пот и пыль.
• Еженедельно: Проверьте затяжку всех болтов, гаек и соединений. Затяните все ослабленные крепежные элементы.
• Ежемесячно: Check cables and pulleys for signs of wear, fraying, or damage. Ensure smooth operation of the Smith bar and cable system. Lubricate moving parts if necessary with a silicone-based lubricant.
• Ежегодно: Conduct a thorough inspection of the entire frame for any structural damage or corrosion.

7. Поиск Неисправностей

В этом разделе рассматриваются часто задаваемые вопросы и проблемы, с которыми вы можете столкнуться.

Часто задаваемые вопросы:

• Q: Can I correct my address after purchase?
  A: Address corrections or order modifications can be processed within 24 hours of purchase. After this period, the order is with the carrier, and modifications may not be possible.
• Q: Why did I only receive one package when I'm supposed to get three?
  A: Products are shipped in multiple parcels, so delivery times may vary. Please allow a few more days for the remaining packages. For full tracking information, contact Goimu support.
• Q: What should I do if my product is faulty or damaged during shipping?
  A: If you receive a faulty or damaged product, contact Goimu support immediately. We will assist with replacing damaged parts, arranging a new package, or processing a refund.

Figure 7.1: Common customer inquiries and responses.

8. Технические характеристики продукта

Detailed specifications for the Goimu S1-V4 Smith Machine.

Figure 8.1: Performance capacities at a glance.

9. Гарантия и поддержка

Goimu stands behind the S1-V4 Smith Machine with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.

Обращение в службу поддержки:

For any concerns, questions, or warranty claims, please contact Goimu customer support. You can typically reach support through the platform where you purchased the product.

Figure 9.1: Methods to contact Goimu support.
