Outsunny 7'x 4' Metal Outdoor Storage Shed Instruction Manual

1. Введение и обзор продуктаview

This manual provides essential information for the safe assembly, operation, and maintenance of your Outsunny 7'x 4' Metal Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Outsunny 7'x 4' Outdoor Storage Shed is designed for organized outdoor living, providing generous interior space for tools, equipment, and seasonal items. Constructed with heavy-duty galvanized steel, reinforced ridged walls, and built-in air vents, this shed offers long-lasting durability with a rust-resistant finish and all-weather protection against pests, sun, rain, and snow.

Figure 1.1: Outsunny 7'x 4' Metal Outdoor Storage Shed (Light Green)

2. Информация по технике безопасности

• Сборка: It is recommended that at least 3 individuals assemble this shed. Avoid installation during windy conditions for safety.
• Подготовка места: Choose a level, stable surface for installation. Ensure adequate clearance around the shed for assembly and future access.
• Инструменты: Use appropriate tools for assembly as specified in the detailed assembly guide.
• Острые края: Metal components may have sharp edges. Wear protective gloves during assembly.
• Якорная стоянка: Securely anchor the shed to the ground to prevent wind damage. Anchoring hardware may not be included and should be purchased separately based on your ground type.
• Вентиляция: Do not block the ventilation vents. Proper airflow is essential to prevent moisture buildup.
• Грузоподъемность: Do not overload the shed. Distribute weight evenly.

3. Содержимое упаковки

Before beginning assembly, verify that all parts listed in the included detailed assembly guide are present and undamaged. If any parts are missing or damaged, contact customer support immediately. The shed includes a foundation kit; however, a suitable floorboard is not included and must be added separately.

Figure 3.1: Foundation Kit Included

The foundation kit provides a base structure. You will need to add a suitable size board on top of the foundation to create a solid floor, keeping the inner area clean and sealed.

4. Настройка и сборка

Assembly of the Outsunny storage shed requires careful attention to detail and is best performed by at least three people. Refer to the separate, detailed step-by-step assembly instructions provided with your product for specific guidance on connecting each component.

4.1 Подготовка места

• Select a flat, level, and dry area for the shed.
• Удалите с участка весь мусор, камни и растительность.
• Ensure there is enough space around the shed for assembly and future access.

4.2 Советы по проведению генеральной ассамблеи

• Organize all parts before starting.
• Do not fully tighten all screws until the entire structure is assembled and aligned.
• Use a cordless drill with appropriate settings for efficiency, but be careful not to overtighten screws.
• Pay close attention to the orientation of panels and frame pieces as indicated in the assembly guide.
• Avoid assembly during strong winds or adverse weather conditions.

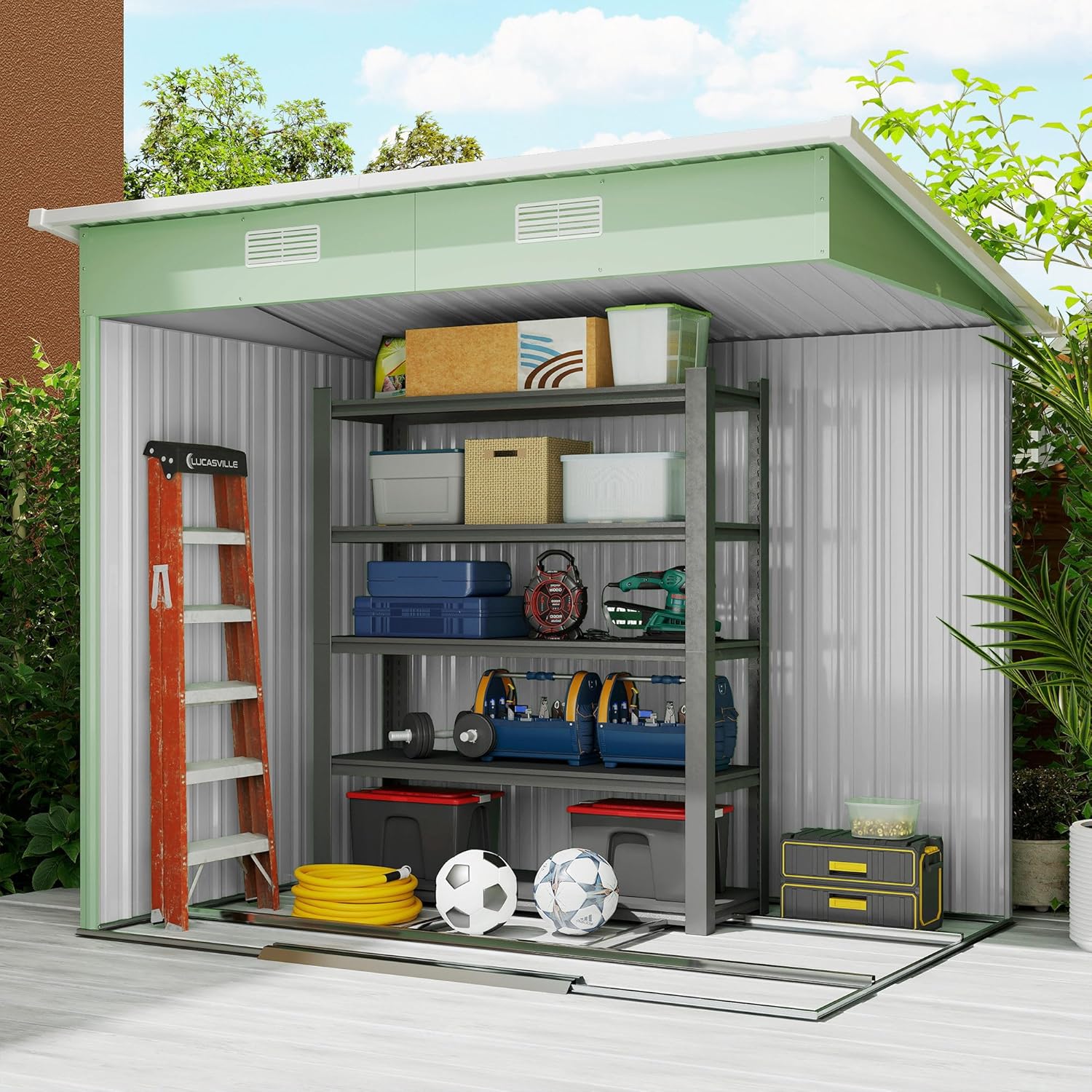

Figure 4.1: Assembled Shed Interior with Storage

5. Инструкция по эксплуатации

5.1 Двойные раздвижные двери

The shed features double sliding doors for easy access. To open, slide the doors horizontally along their tracks. Ensure the tracks are clear of debris to allow smooth operation. For added security, a padlock (not included) can be attached to the door handles.

Figure 5.1: Double Sliding Doors

5.2 Ventilation Vents

The shed is equipped with two ventilation vents located near the roofline. These vents are designed to promote airflow and prevent moisture and unpleasant odors from accumulating inside the shed. Ensure these vents remain unobstructed.

Figure 5.2: Ventilation Vents

6. Техническое обслуживание

Regular maintenance will extend the life and appearance of your Outsunny storage shed.

• Уборка: Clean the shed exterior periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Предотвращение ржавчины: Although the shed is made of rust-resistant galvanized steel, inspect for any signs of rust, especially in areas where the coating might be scratched. Touch up any affected areas with rust-inhibiting paint.
• Направляющие для дверей: Keep the sliding door tracks clean and free of dirt, leaves, or other debris to ensure smooth operation. Lubricate tracks with a silicone-based spray if doors become stiff.
• Крепеж: Периодически проверяйте все винты и болты на надежность затяжки. При необходимости подтяните.
• Вентиляция: Ensure vents are clear of obstructions to maintain proper airflow.

Figure 6.1: Galvanized Steel Shed Properties

7. Поиск Неисправностей

• Трудности со сборкой / Несовпадение отверстий: Ensure all panels are correctly oriented according to the detailed assembly guide. Do not fully tighten screws until all components are loosely fitted. If holes do not align, slightly loosen surrounding fasteners to allow for adjustment.
• Двери заедают: Check the door tracks for debris and clean them thoroughly. Apply a silicone lubricant to the tracks. Ensure the shed is installed on a level surface, as an uneven foundation can cause door misalignment.
• Утечка воды: Verify that all screws are tightened and panels are properly overlapped as per instructions. Ensure the foundation is level and that a suitable floorboard has been installed to seal the base. Check for any gaps around the roof or seams and apply appropriate sealant if necessary.
• Flimsy Structure: Ensure all fasteners are securely tightened. The shed's stability relies on the complete and correct assembly of all components.

8. Технические характеристики

Рисунок 8.1: Размеры продукта

9. Гарантия и поддержка

For product support, missing parts, or warranty inquiries, please contact Aosom Canada, the manufacturer and seller. This product is eligible for return or refund within 30 days of receipt, subject to the seller's return policy.

Производитель: Аосом Канада
Место ведения бизнеса: Маркхэм, Онтарио, Калифорния
Телефон: 1-416-792-6088
