1. Введение
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your TOSOT Cosmo Series 18,000 BTU Dual 2 Zone Mini Split Air Conditioner with Heat Pump. This system features a single outdoor unit connected to two indoor units, each designed for independent temperature control in its designated area. Please read this manual thoroughly before using the product and retain it for future reference.

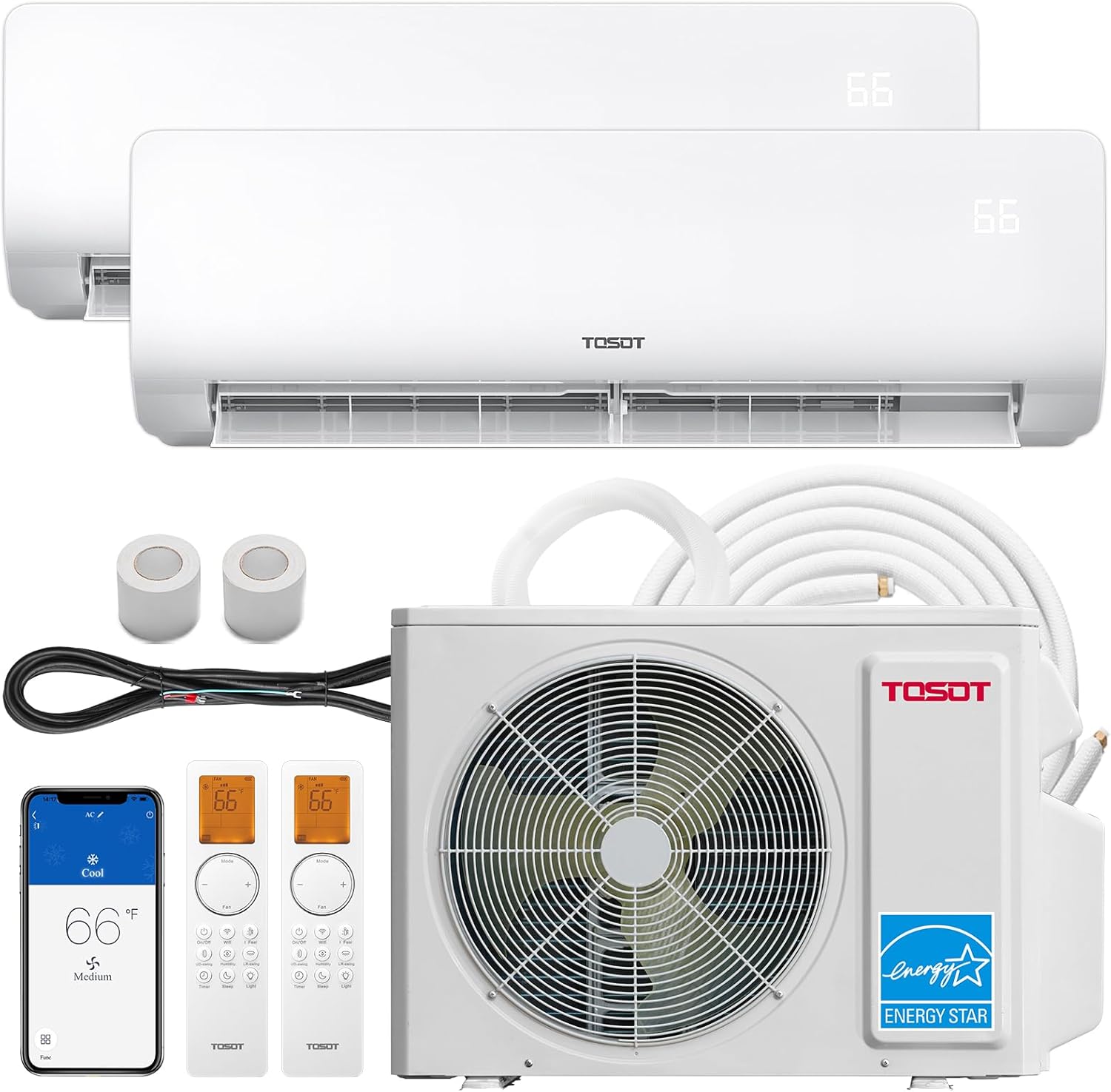

Изображение 1.1: Надview of the TOSOT 18,000 BTU Dual 2 Zone Mini Split Air Conditioner system, including two indoor units, one outdoor unit, remote controls, and copper line sets.
2. Информация по технике безопасности
Всегда соблюдайте следующие меры предосторожности, чтобы предотвратить травмы или повреждение устройства:
- Ensure the unit is installed by a qualified professional in accordance with all local and national electrical and building codes.
- Do not attempt to repair or service the unit yourself. Contact qualified service personnel.
- Перед выполнением любых работ по техническому обслуживанию или чистке отключите электропитание устройства.
- Держите детей и домашних животных подальше от наружного блока.
- Do not block the air intake or outlet of either the indoor or outdoor units.
- Use only the specified refrigerant (R-32) for this system.
3. Продукт закончилсяview
3.1 Основные характеристики
- Individual Temperature Control: Manage temperatures in two separate spaces using one 18,000 BTU outdoor unit and two 9,000 BTU indoor units. Customize temperatures from 61-86℉ and select different modes for each room.
- Энергоэффективность: Rated at 21 SEER2 and 10 HSPF2, this system is Energy Star-certified, offering potential energy cost savings.
- Extreme Weather Resilience: Features an advanced compressor, allowing operation in ambient temperatures from -22℉ to 118℉. Includes an intelligent defrost function for enhanced heating efficiency.
- Умное управление: Manage the system remotely using the Gree+ app and integrate with voice control for hands-free adjustments.
Изображение 3.1: Illustrates the multi-zone capability, where a single outdoor unit efficiently serves multiple indoor units, providing independent climate control for different rooms.
Изображение 3.2: Highlights the system's 21.0 SEER2 rating, indicating high energy efficiency and potential for up to 24% energy cost savings compared to lower SEER2 units.
Изображение 3.3: Depicts the four primary operating modes: Cooling, Heating, Dehumidifying, and Fan, demonstrating the system's versatility for year-round comfort.
Изображение 3.4: Illustrates the advanced inverter technology of the outdoor unit, capable of heating even at -13℉ and cooling even at 118℉, ensuring stable temperatures across extreme weather conditions.
Изображение 3.5: Shows the smart control capabilities, allowing users to adjust AC settings remotely via the Gree+ / TOSOT+ app and voice control.
4. Настройка и установка
The TOSOT Cosmo Series mini split system is designed for straightforward installation, eliminating the need for extensive ductwork. However, professional installation is strongly recommended to ensure proper function, safety, and warranty compliance.
4.1. Рекомендации перед установкой
- Расположение: Select appropriate locations for both indoor and outdoor units, ensuring adequate airflow and clearance.
- Источник питания: The system requires a 230V power supply. Ensure a dedicated circuit is available. The power cord is not included.
- Дренаж: Plan for proper condensate drainage from the indoor units.
4.2 Этапы установки (подробнее)view)
- Mount the indoor units securely on the wall in the desired locations.
- Install the outdoor unit on a stable, level surface, ensuring proper clearance for airflow.
- Connect the indoor and outdoor units using the provided 16.4-foot copper line set. This involves refrigerant lines and electrical wiring.
- Прокачайте трубопроводы хладагента, чтобы удалить воздух и влагу.
- Connect the electrical wiring according to the wiring diagram provided in the full installation manual.
- Perform a leak test on all refrigerant connections.
- Charge the system with the correct amount of R-32 refrigerant, if necessary.
- Test the system's operation in all modes.
Note: Your order may be shipped in multiple packages or on pallets and arrive at different times. Please arrange installation only after receiving all parts.
5. Инструкция по эксплуатации
Your TOSOT mini split system offers various modes and settings for optimal comfort. Each indoor unit can be controlled independently.
5.1 Дистанционное управление
Use the provided wireless remote controls to adjust settings for each indoor unit. Common functions include:
- Включение/выключение питания: Включает или выключает устройство.
- Выбор режима: Choose between Cool, Heat, Fan, and Dry (Dehumidifying) modes.
- Регулировка температуры: Set desired temperature within the range of 61-86℉.
- Скорость вентилятора: Отрегулируйте скорость вращения вентилятора (низкая, средняя, высокая, автоматический режим).
- Функция поворота: Control the vertical louver movement for air distribution.
- Таймер: Настройте устройство на автоматическое включение или выключение по истечении определенного периода времени.
- Спящий режим: Регулирует температуру и скорость вентилятора для комфортного сна.
5.2 Smart Control (Gree+ App / Voice Control)
The system is Wi-Fi enabled, allowing remote control via the Gree+ app on your smartphone or tablet. It also supports voice control for hands-free adjustments.
- Загрузите приложение Gree+ из магазина приложений вашего устройства.
- Follow the in-app instructions to connect your mini split system to your home Wi-Fi network.
- Once connected, you can control all functions of the indoor units from anywhere with an internet connection.
- For voice control, link the Gree+ app with your preferred smart home assistant (e.g., Google Assistant).
6. Техническое обслуживание
Regular maintenance ensures optimal performance and longevity of your TOSOT mini split system. Always disconnect power before performing maintenance.
6.1 Очистка воздушного фильтра
The indoor unit's air filters should be cleaned regularly, typically every 2-4 weeks, depending on usage and air quality.
- Откройте переднюю панель внутреннего блока.
- Снимите воздушные фильтры.
- Очистите фильтры пылесосом или промойте их теплой водой с мягким моющим средством.
- Перед повторной установкой дайте фильтрам полностью высохнуть.
6.2 Техническое обслуживание наружного блока
- Keep the area around the outdoor unit clear of debris, leaves, and obstructions.
- Periodically clean the outdoor coil with a soft brush or water hose to remove dirt and dust.
- Убедитесь, что линия слива конденсата не засорена.
6.3 Профессиональное обслуживание
It is recommended to have a qualified HVAC technician perform annual inspections and maintenance, including checking refrigerant levels, electrical connections, and overall system performance.
7. Поиск Неисправностей
Прежде чем обращаться в службу поддержки клиентов,view следующие распространенные проблемы и решения:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Устройство не включается. | No power, remote control batteries low | Check circuit breaker, replace remote batteries |
| Недостаточное охлаждение/обогрев | Dirty air filters, blocked outdoor unit, incorrect mode/temperature setting | Clean filters, clear obstructions, verify settings |
| Необычный шум | Loose parts, fan obstruction, refrigerant issues | Inspect for loose parts, clear obstructions, contact service if persistent |
| Утечка воды из внутреннего блока | Clogged drain line, improper installation | Clear drain line, contact installer if issue persists |
If troubleshooting steps do not resolve the issue, please contact TOSOT customer support.
8. Технические характеристики
| Особенность | Деталь |
|---|---|
| Бренд | ТОСОТ |
| Модельный ряд | Cosmo Series |
| Тип системы | Dual 2 Zone Mini-Split Air Conditioner with Heat Pump |
| Мощность наружного блока | 18,000 БТЕ |
| Емкость внутреннего блока | 2 x 9,000 XNUMX БТЕ |
| Мощность охлаждения | 18,000 британских термальных единиц |
| Сезонный коэффициент энергоэффективности (SEER2) | 21 |
| Сезонный коэффициент эффективности отопления (HSPF2) | 10 |
| Томtage | 230 Вольт |
| Хладагент | Р-32 |
| Уровень шума | 53 децибел (наружный блок) |
| Особые возможности | Google Assistant, WiFi Enabled |
| Outdoor Unit Dimensions (D x W x H) | 32.4 x 13.9 x 21.65 дюйма |
| Included Line Set Length | 16.4 ft Copper Line Set |
| Диапазон рабочих температур | -22℉ до 118℉ |
Изображение 8.1: Provides dimensional specifications for various TOSOT mini split indoor and outdoor units, including the 18,000 BTU outdoor unit and 9,000 BTU indoor units.
9. Гарантия и поддержка
9.1 Информация о гарантии
The TOSOT Cosmo Series Mini Split Air Conditioner comes with a Пятилетняя гарантия. Please refer to the warranty card included with your product for specific terms and conditions. Retain your proof of purchase for warranty claims.
9.2 Поддержка клиентов
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact TOSOT customer support. Contact information can typically be found on the TOSOT webсайте или в упаковочных материалах.
