Oclean X Elite 10 Electric Toothbrush User Manual

1. Введение

The Oclean X Elite 10 electric toothbrush is designed to provide a personalized and effective oral hygiene experience. Featuring a responsive touchscreen, 12-zone tracking, and multiple brushing modes, this device helps you achieve a thorough clean. This manual will guide you through the setup, operation, maintenance, and specifications of your new Oclean X Elite 10 electric toothbrush.

2. Информация по технике безопасности

• Опасность удушья: Keep the toothbrush and its small parts away from young children to prevent choking.
• Замена головки щетки: For optimal hygiene and performance, replace the toothbrush head every 3 months.
• Электробезопасность: Do not immerse the charging base in water. Ensure the charging port is dry before charging.
• Медицинские состояния: Consult your dentist before using this product if you have severe periodontal disease or have undergone oral surgery.

3. Содержимое упаковки

Проверьте комплектацию на наличие следующих предметов:

• Oclean X Elite 10 Electric Toothbrush Handle
• Oclean Brush Head(s)
• Магнитная зарядная база
• USB-кабель для зарядки
• Руководство пользователя

4. Настройка

4.1 Первоначальная зарядка

Before first use, fully charge your Oclean X Elite 10 toothbrush. A full charge takes approximately 3 hours and provides up to 40 days of battery life.

1. Connect the USB charging cable to the magnetic charging base.
2. Plug the USB cable into a compatible power adapter (not included).
3. Place the toothbrush handle onto the magnetic charging base. The screen will indicate charging status.

4.2 Прикрепление насадки-щетки

Align the brush head with the metal shaft on the toothbrush handle and push it down until it clicks into place. Ensure it is securely fastened.

4.3 Подключение приложения (необязательно)

For personalized settings and detailed brushing reports, download the Oclean app from your device's app store. The app can establish a seamless connection between brushing data and Apple Health, automatically synchronizing brushing records, creating a digital oral hygiene file, and helping users monitor long-term dental health trends.

5. Инструкция по эксплуатации

5.1 Включение/выключение питания

Нажмите кнопку питания на ручке, чтобы включить или выключить зубную щетку.

5.2 Selecting Brushing Modes

The Oclean X Elite 10 offers 4 brushing modes, which can be selected and switched via the touchscreen:

• Быстрая чистка: For a standard, efficient clean.
• Чувствительный: Бережная чистка для чувствительных зубов и десен.
• Массаж: Gently massages gums for improved circulation.
• Отбеливание: Designed to help remove surface stains.

5.3. Сенсорный интерфейс

The intuitive touchscreen allows you to navigate settings, select modes, and view brushing feedback. You can also customize wallpapers through the Oclean app.

5.4 Personalized Brushing Plan

Through the Oclean app, you can define your brushing habits and create a personalized brushing plan for day and night, optimizing your oral care routine.

5.5 Real-time Feedback and Reporting

The Oclean X Elite 10 provides real-time feedback on cleaning and evaluation for 12 dental surfaces. Utilizing WiFi direct connection technology, it offers ultra-fast response and generates a three-dimensional evaluation report after each brushing. This report includes information on coverage, cleanliness, and duration, enabling more efficient and faster analysis of oral data.

5.6 Встроенный таймер

The toothbrush features an integrated timer to ensure you brush for the dentist-recommended duration, typically 2 minutes, with quadrant reminders.

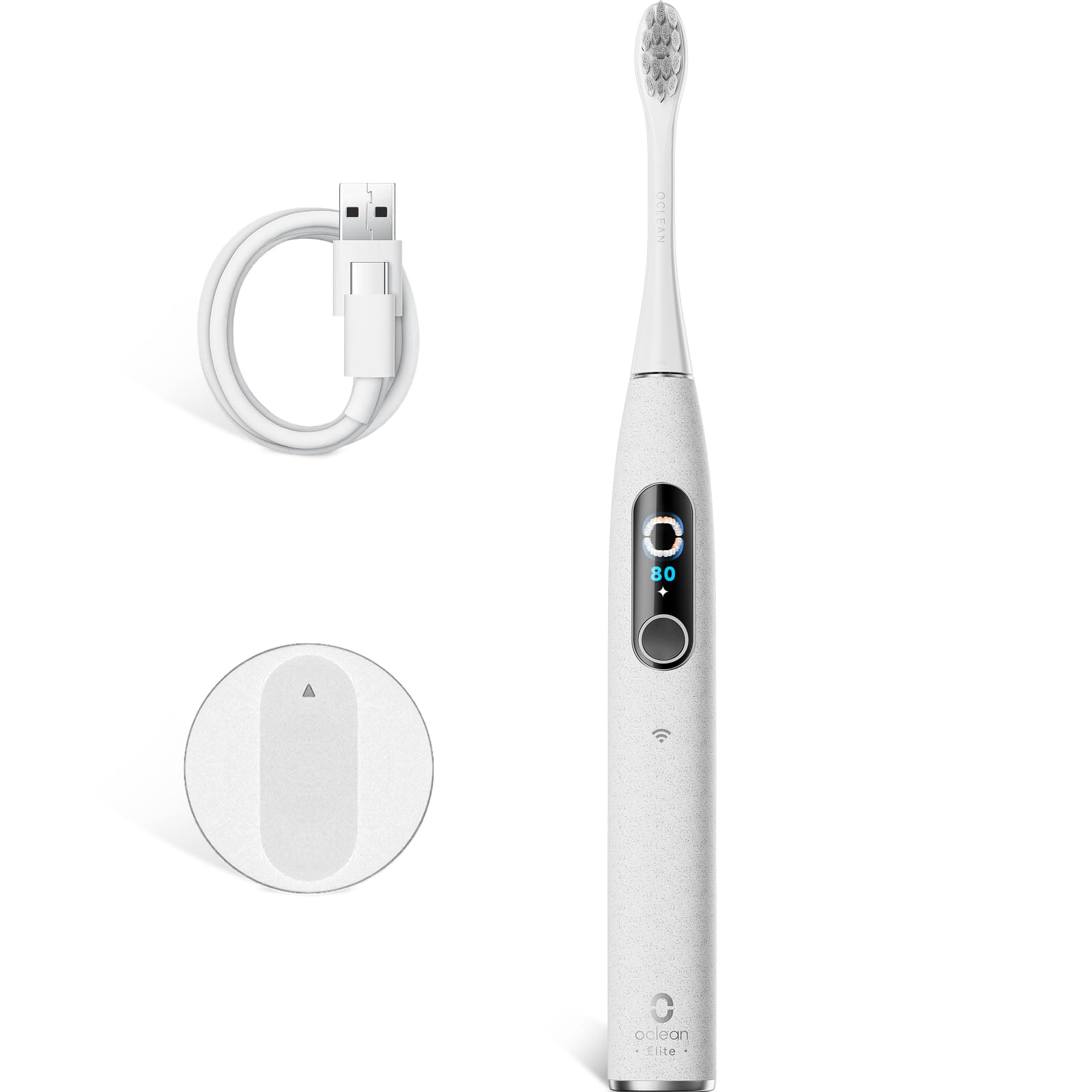

Image 1: The Oclean X Elite 10 Electric Toothbrush handle with a brush head attached, showcasing его элегантный дизайн.

6. Техническое обслуживание

6.1 Cleaning the Brush Handle

After each use, wipe the toothbrush handle with a damp cloth to remove any toothpaste residue. Do not immerse the handle in water.

6.2 Очистка щеточной головки

Rinse the brush head thoroughly under running water after every brushing session. Periodically remove the brush head and rinse the connection area.

6.3 Замена насадки-щетки

Replace your brush head every 3 months, or sooner if the bristles become frayed or worn, to maintain effective cleaning performance and hygiene.

6.4 Зарядка

Recharge the toothbrush when the battery indicator shows low power. Ensure the charging contacts on both the handle and the base are clean and dry before placing the handle on the charger.

7. Поиск Неисправностей

• Зубная щетка не включается: Ensure the toothbrush is fully charged. If it still doesn't turn on, contact customer support.
• Toothbrush does not connect to the app: Ensure Bluetooth/WiFi is enabled on your smartphone and the toothbrush is charged and within range. Restart both devices and try again.
• Сниженная мощность щетки: The battery might be low. Charge the toothbrush. If the issue persists, consider replacing the brush head.
• Проблемы с зарядкой: Ensure the charging base and toothbrush contacts are clean and dry. Try a different USB power adapter.

8. Технические характеристики

9. Гарантия и поддержка

For warranty information, product support, or to purchase replacement parts and brush heads, please visit the official Oclean website or contact Oclean customer service directly. Keep your purchase receipt as proof of purchase.
