Руководство пользователя мини-сплит-системы кондиционирования и отопления TOSOT мощностью 9,000 БТЕ

1. Продукт закончилсяview

The TOSOT 9,000 BTU Mini-Split Air Conditioner and Heating System, part of the Cosmo Series WiFi, provides efficient climate control for your space. This ductless inverter AC unit offers both cooling and heating functionalities, enhanced by smart control features and energy-saving technology.

• Умное охлаждение: Control your unit remotely with the Gree+ app and utilize voice control for hands-free adjustments.
• Efficiency Meets Savings: With a SEER2 rating of up to 22, the Cosmo series is designed to reduce energy costs.
• Advanced Compressor: Features an inverter compressor for stable temperatures, quieter operation, and energy efficiency, capable of cooling in temperatures up to 122°F and heating as low as -13°F.
• Бесшумная работа: Operates at a low noise level of 22dB to 36dB, suitable for quiet environments.

2. Настройка и установка

Proper installation is crucial for the optimal performance and longevity of your TOSOT Mini-Split system. It is highly recommended to have this unit installed by a qualified HVAC professional to ensure compliance with local codes and warranty requirements. The system includes an indoor unit, an outdoor unit, and a 16ft copper line set.

Рисунок 2.1: Болееview of the TOSOT Mini-Split system components, including indoor unit, outdoor unit, line set, remote, and app interface.

2.1 Включенные компоненты

В комплект обычно входит:

• Внутренний блок
• Наружный блок
• 16 Ft. Copper Line Set
• Дистанционное управление
• Руководство пользователя и краткое руководство
• Mounting Plate and Fixing Screws
• Drain Joint, Wall Cuff, Sealing Gum, Insulation Sleeve
• Electrical Cable and Signal Cable

Note: Units may be shipped in multiple packages and arrive at different times. Please confirm all packages are received before scheduling installation.

2.2 Размещение наружного блока

The outdoor inverter unit should be placed on a stable, level surface, such as a concrete pad, away from direct sunlight and obstructions to ensure proper airflow. Ensure adequate clearance around the unit for maintenance and operation.

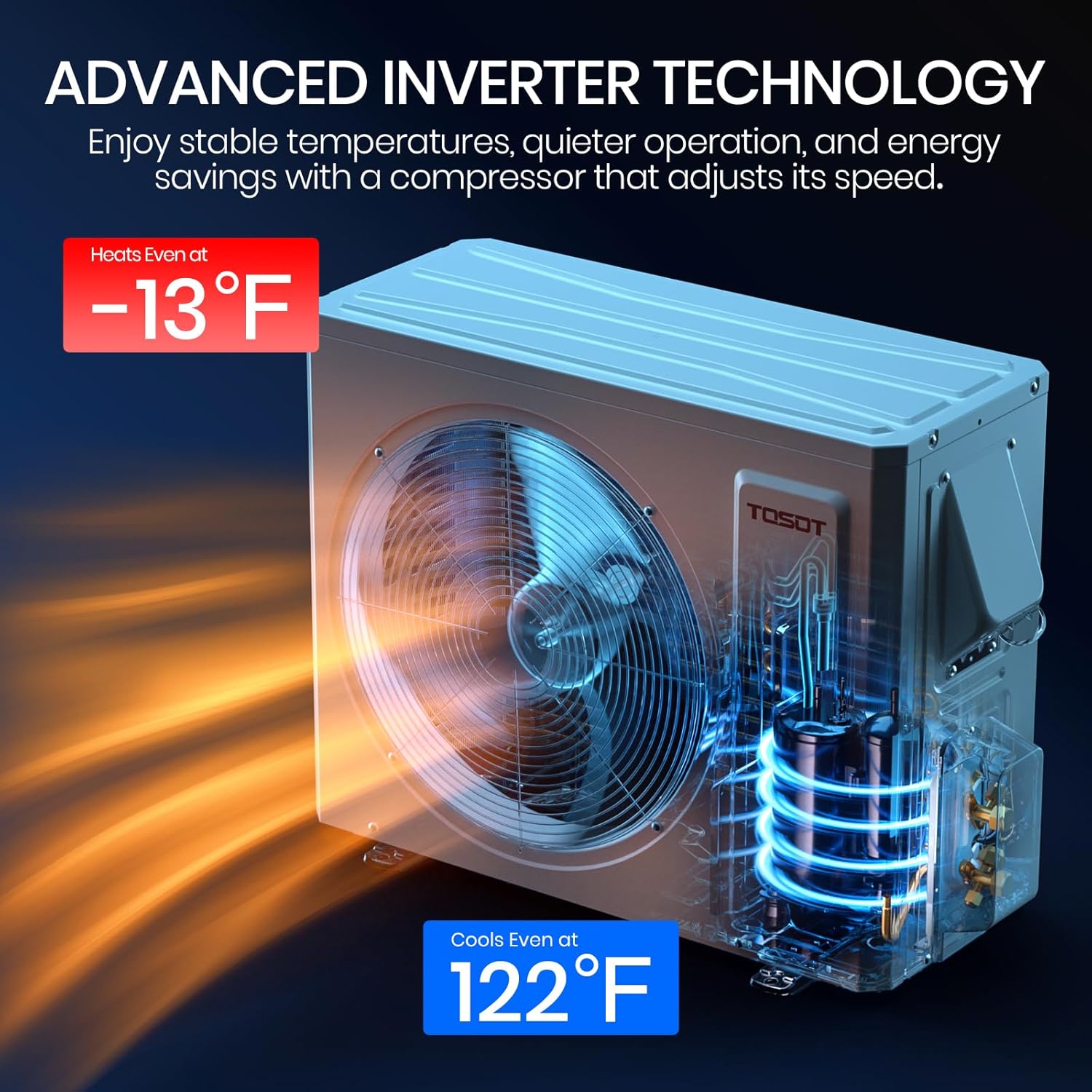

Figure 2.2: The TOSOT outdoor inverter unit, designed for energy efficiency and quiet operation.

2.3 Вопросы электропроводки

Wiring diagrams are provided in the installation manual. It is critical to follow these diagrams precisely. Incorrect wiring can lead to system malfunction or safety hazards. Some users have noted that the wiring diagram for the indoor unit in older manuals might differ from the outdoor unit's diagram; always ensure consistency between the indoor and outdoor unit wiring (e.g., L1 - S - L2 configuration).

For optimal performance and to maintain warranty, ensure all connections are secure and refrigerant lines are properly evacuated and charged by a certified technician.

2.4 Visual Guide to Components

Figure 2.3: Detailed breakdown of included components for both indoor and outdoor units, including mounting hardware, cables, and line set.

3. Инструкция по эксплуатации

Your TOSOT Mini-Split system offers various modes and control options for personalized comfort.

3.1 Функции дистанционного управления

The included remote control allows you to easily adjust settings:

• Включение/выключение питания: Включите или выключите устройство.
• Выбор режима: Switch between Cooling, Heating, Fan, Dry (Dehumidifying), and Auto modes.
• Регулировка температуры: Увеличьте или уменьшите желаемую температуру.
• Скорость вентилятора: Adjust the fan speed (e.g., Low, Medium, High, Auto).
• Качели: Control the louver direction for optimal air distribution.
• Таймер: Set a timer for automatic on/off operation.
• Спящий режим: Adjusts temperature for comfortable sleep and energy saving.
• Турбо-режим: Обеспечивает быстрое охлаждение или обогрев.

Figure 3.1: The remote control for the TOSOT Mini-Split, showing buttons for mode, temperature, fan speed, and other functions.

3.2 Smart Control (Wi-Fi Enabled)

The TOSOT Cosmo series is Wi-Fi enabled, allowing for convenient control via the Gree+ app on your smartphone or tablet. This feature also supports voice control for hands-free operation.

• Download the Gree+ app from your device's app store.
• Follow the in-app instructions to connect your unit to your home Wi-Fi network.
• Once connected, you can adjust settings, monitor status, and set schedules from anywhere.
• Integrate with compatible voice assistants for voice commands.

Figure 3.2: The TOSOT indoor unit demonstrating smart control capabilities via a smartphone app and remote control.

Режимы работы 3.3

• Охлаждение: Provides 9,100 BTU/h of cooling capacity.
• Обогрев: Provides 10,000 BTU/h of heating capacity.
• Осушение: Removes up to 40.56 Pints/day of moisture.
• Вентилятор: Offers 7 fan speeds for air circulation without temperature change.

Figure 3.3: Visual representation of the unit's four primary operating modes: cooling, heating, dehumidifying, and fan, along with their respective capacities.

4. Техническое обслуживание

Regular maintenance ensures efficient operation and extends the lifespan of your TOSOT Mini-Split system.

• Очистка фильтра: Clean the air filters in the indoor unit regularly (e.g., every 2-4 weeks, depending on usage) to maintain airflow and efficiency. Refer to the user manual for specific instructions on filter removal and cleaning.
• Очистка наружного блока: Keep the outdoor unit free from debris, leaves, and other obstructions. Periodically clean the coils with a soft brush or vacuum cleaner.
• Проверка дренажа: Ensure the condensate drain line is clear and free-flowing to prevent water leaks.
• Профессиональный осмотр: Schedule annual professional maintenance to check refrigerant levels, electrical connections, and overall system health.

5. Поиск Неисправностей

If you encounter issues with your TOSOT Mini-Split system, refer to the following common troubleshooting tips before contacting customer support.

For more detailed troubleshooting or issues requiring technical expertise, please consult the full user manual or contact TOSOT customer support.

6. Технические характеристики

7. Гарантия и поддержка

The TOSOT 9,000 BTU Mini-Split Air Conditioner and Heating System comes with a 5-Year Warranty. For specific terms and conditions, please refer to the warranty documentation included with your product.

For any questions, technical assistance, or warranty claims, please contact TOSOT Customer Support. Contact information can typically be found in your user manual or on the official TOSOT webсайт.

Durable packaging ensures your unit arrives safely. In the event of any shipping damage or missing parts, please contact your retailer or TOSOT customer support immediately.

8. Официальное видео о продукте

Watch this official product video from Sain Store (Seller) for a visual overview of the TOSOT Mini Split Air Conditioner.
