Введение
This user manual provides detailed instructions for the installation, operation, and maintenance of your LICHIFIT Bicycle Saddle Bow Mount. This mount is specifically designed to securely attach your Garmin Varia RCT716 or RCT715 rearview radar taillight to the saddle rails of your bicycle, enhancing visibility and safety during your rides.
Содержимое упаковки
Перед началом установки убедитесь, что все компоненты имеются в наличии.
- 1x Bicycle Saddle Bow Mount (includes saddle bow clip, connector, and radar taillight holder)
- 1x Safety Rope
- Screws and Hex Wrench for installation
Figure 1: All included components of the LICHIFIT Bicycle Saddle Bow Mount.
Информация по безопасности
- Ensure all screws are tightened securely to prevent the mount or radar from detaching during use.
- Always attach the provided safety rope for additional security, especially when riding on rough terrain.
- Regularly inspect the mount for any signs of wear, damage, or loose connections.
- Verify that the mounted Garmin Varia RCT716/RCT715 is not obstructed and its light and radar functions are fully operational before each ride.
Настройка и установка
Follow these steps to properly install your LICHIFIT Bicycle Saddle Bow Mount.
1. Pre-Installation Check: Saddle Bow Measurement
Before installation, measure the center distance of the two mounting points on your bicycle's saddle bow. The mount requires a center distance of 53-58 мм for proper fitment.
2. Assembling the Mount Components
The mount consists of three main parts: the saddle bow clip, the connector, and the radar taillight holder. Use the provided screws and hex wrench to assemble them.

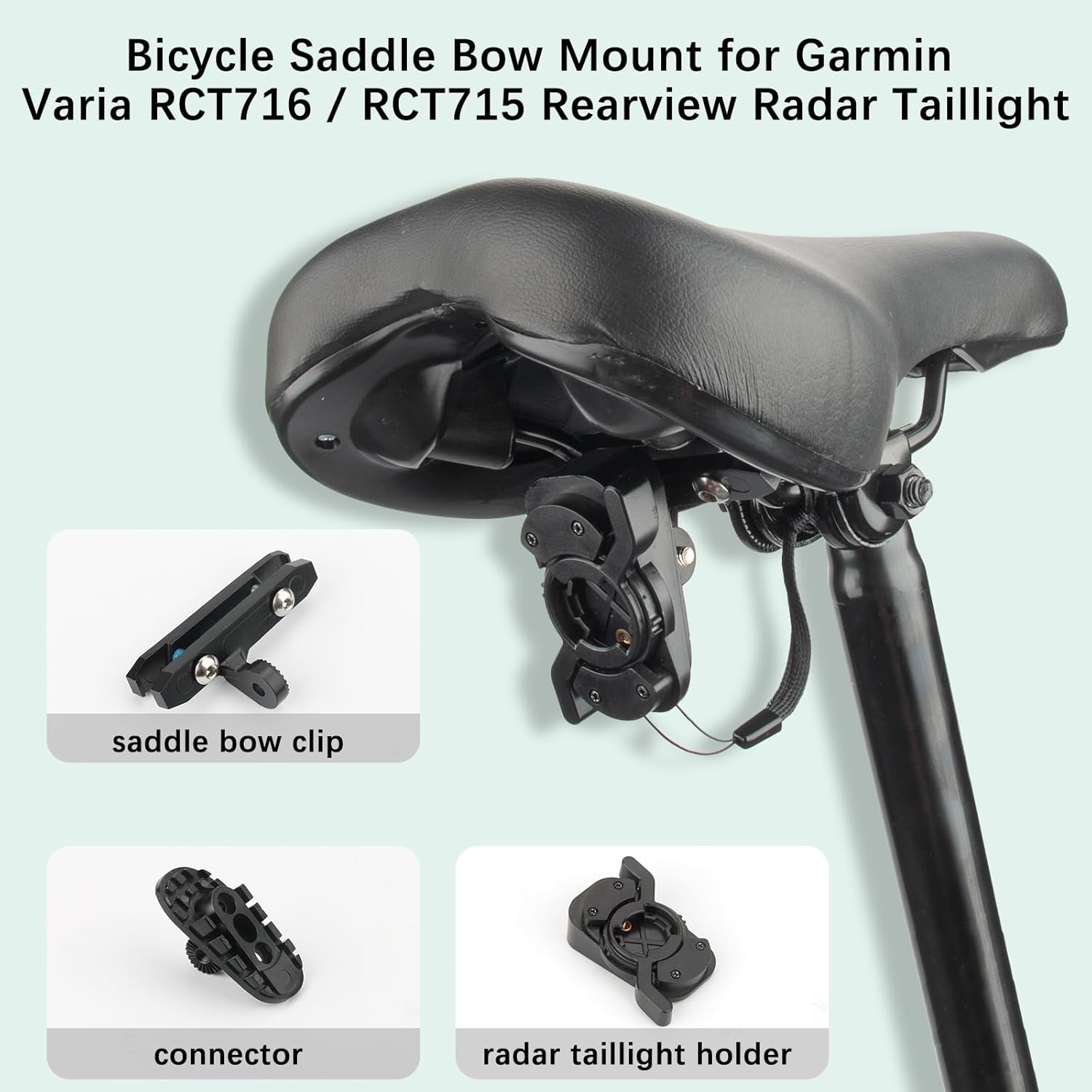

Figure 2: Individual components of the mount: saddle bow clip, connector, and radar taillight holder.
The saddle bow clip is made of high-quality A380 aluminum alloy for durability. The connector part features gears that allow for stable and adjustable angle positioning of the radar taillight.
3. Attaching the Mount to the Saddle Bow
Position the assembled saddle bow clip onto the rails of your bicycle saddle. Ensure it is centered and aligned correctly. Tighten the screws firmly using the hex wrench to secure the mount to the saddle. This design provides a firm hold, preventing loss of the radar due to unstable fixing.
Figure 3: The mount attached to the underside of a bicycle saddle.
4. Attaching the Garmin Varia RCT716 / RCT715
Slide your Garmin Varia RCT716 or RCT715 rearview radar taillight onto the radar taillight holder until it clicks securely into place. The mount is specifically designed to accommodate the larger size and weight of these Varia models, ensuring a perfect and firm fit.
Figure 4: Complete assembly of the mount with Garmin Varia attached to a bicycle saddle.
5. Installing the Safety Rope
Thread the safety rope through the designated loop on the mount and around a secure part of your bicycle frame or saddle rails. This provides double security for your rearview radar taillight, preventing loss in case of accidental detachment or impact.
Figure 5: Safety rope providing additional security for the mounted radar taillight.
Operating and Usage Benefits
The LICHIFIT saddle bow mount optimizes the performance of your Garmin Varia device.
- Enhanced Radar Detection: By mounting the radar under the bicycle saddle, it is positioned higher than on the seat post. This elevated position allows the radar to more sensibly detect approaching vehicles, providing earlier and more reliable visual and audible alerts.
- Регулировка угла: The design incorporates gears on the connection points, allowing you to freely adjust the angle of the radar taillight as needed. Once adjusted and tightened, the mount remains stable even on rough roads.
Figure 6: The mount allows for angle adjustment of the radar taillight.
Figure 7: The LICHIFIT mount in use, providing a secure and elevated position for the Garmin Varia.
Обслуживание
- Уборка: Протрите крепление с рекламойamp cloth to remove dirt and grime. Avoid using harsh chemicals that may damage the material.
- Инспекция: Periodically check all screws for tightness. Inspect the aluminum alloy components for any signs of cracks, bends, or corrosion. Ensure the safety rope is intact and not frayed.
- Хранилище: If removing the mount for extended periods, store it in a clean, dry place away from direct sunlight and extreme temperatures.
Поиск неисправностей
- Проблема: Mount feels loose or unstable after installation.
Решение: Re-check all screws and ensure they are tightened firmly using the hex wrench. Verify that the saddle bow measurement (53-58 mm) is correct for your bicycle.
- Проблема: Garmin Varia does not click securely into the holder.
Решение: Ensure you are using a Garmin Varia RCT716 or RCT715 model. Check for any debris in the holder mechanism that might prevent a secure fit. Ensure the Varia is aligned correctly before attempting to slide it in.
- Проблема: Angle adjustment does not hold position.
Решение: The connector features gears for stable adjustment. Ensure the screws connecting the components are sufficiently tightened after adjusting the angle.
Технические характеристики
| Название продукта | LICHIFIT Bicycle Saddle Bow Mount |
| Совместимые устройства | Garmin Varia RCT716, Garmin Varia RCT715 |
| Материал | High-quality A380 Aluminum Alloy (saddle bow clip) |
| Цвет | Черный |
| Вес товара | Примерно 4.2 унций (119 грамм) |
| Размеры упаковки | 4.02 x 3.15 x 1.85 дюйма (10.2 x 8.0 x 4.7 см) |
| Saddle Bow Compatibility | Center distance of mounting points: 53-58 mm |
| Особые возможности | Adjustable angle, includes safety rope, durable construction |
Гарантия и поддержка
For warranty information or technical support regarding your LICHIFIT Bicycle Saddle Bow Mount, please refer to the documentation provided with your purchase or contact the manufacturer directly. Contact details for the manufacturer (leagoods) can typically be found on the product packaging or their official webсайт.
For general inquiries or assistance, you may also refer to the product page where you purchased the item for additional resources or seller contact information.
