1. Введение
This manual provides comprehensive instructions for the installation, operation, and maintenance of your TOSOT 60,000 BTU (5 Ton) Ducted Central Air Conditioner Heat Pump System. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Важная информация по безопасности
- Требуется профессиональная установка: This system requires installation by a certified HVAC technician for optimal performance and safety. DIY installation is not recommended.
- Электробезопасность: Ensure all electrical connections comply with local codes and standards. Disconnect power before any service or maintenance.
- Обращение с хладагентом: This system uses R-32 refrigerant. Only qualified personnel should handle refrigerant.
- Read All Warnings: Pay close attention to all warning labels on the unit and throughout this manual.
2. Продукт закончилсяview
The TOSOT 60,000 BTU (5 Ton) Ducted Central Air Conditioner Heat Pump System is an inverter split system designed for efficient heating and cooling. It features advanced technology for reliable operation in various climates.
Включенные компоненты
- Наружный конденсаторный блок
- Indoor Air Handler Unit
- 50-foot Copper Line Set
- Installation Kit (includes sealing gum, wall cap, wall sleeve, tapes, and user manual)
Figure 2.1: Complete TOSOT Central Air Conditioner Heat Pump System with included components.
Видео 2.1: Оверview of the TOSOT Central Air Conditioner Heat Pump System, highlighting its main units and features.
3.Основные характеристики
3.1. UltraCool & UltraHeat Technology
This system provides efficient heating and cooling across a wide temperature range, from -22℉ to 130℉, ensuring comfort in extreme conditions.

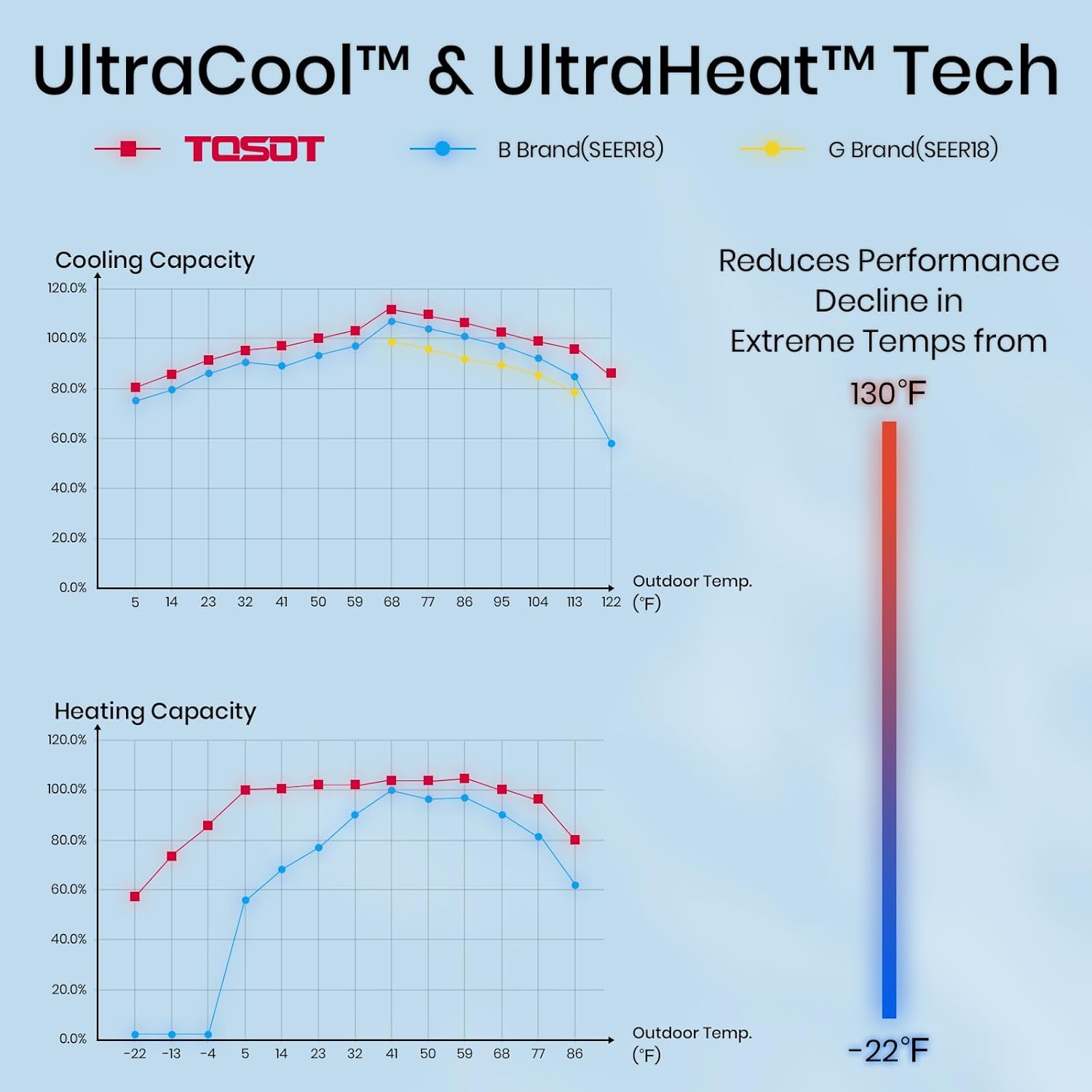

Figure 3.1: Performance capabilities of UltraCool and UltraHeat technology in varying outdoor temperatures.
3.2. Self-Developed Inverter Compressor
The system utilizes a triple-cylinder two-stage rotary compressor with enhanced vapor injection technology. This design optimizes low-temperature heating, maintaining 100% heating capacity at -5℉ and 100% cooling performance at 115℉.
Figure 3.2: Details of the DC Inverter Compressor, highlighting its efficiency and low noise operation.
Video 3.1: Demonstration of the Central AC Heat Pump with Inverter Technology, showcasing its operational benefits.
Video 3.2: Visual explanation of the Central AC Split System Heat Pump with Inverter, detailing its components and function.
3.3 Энергоэффективность
With ratings up to 18.5 SEER2 and 10.5 HSPF2, this system offers significant energy savings. Inverter technology can provide up to 30% more energy savings compared to non-inverter systems with the same SEER2 rating. It is Energy Star certified and may qualify for federal tax credits.

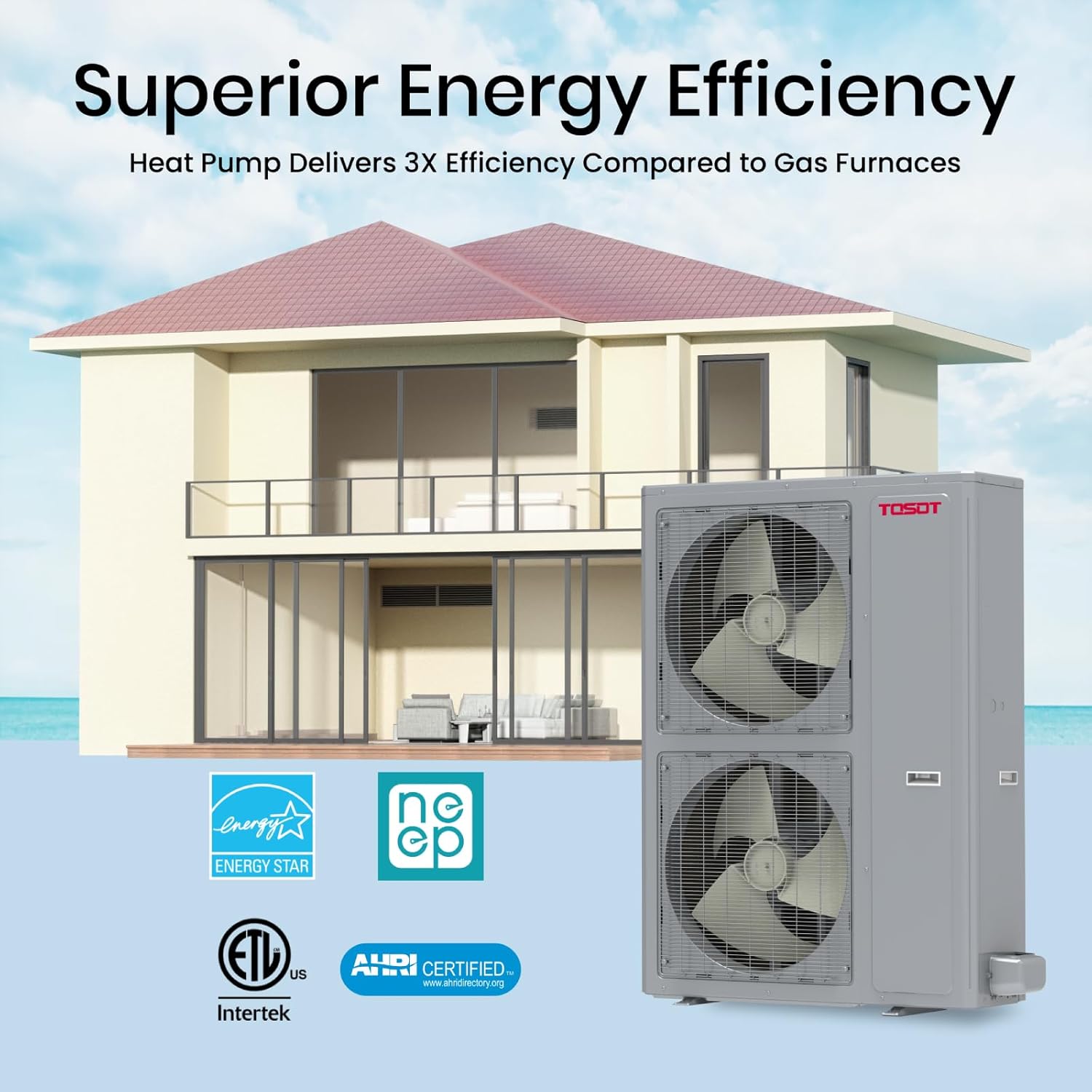

Figure 3.3: Energy Star and other certifications for the TOSOT Heat Pump System.
3.4. Upgraded Condenser Design
The slim design of the outdoor condenser unit requires less space, making it suitable for constricted areas. Its side discharge design minimizes debris accumulation and keeps noise levels below 63 dB.
Figure 3.4: Comparison of TOSOT APEX Condenser design with traditional condensers.
3.5. High Static Pressure Design
The TOSOT unitary central AC adapts to actual static pressure, making it ideal for areas requiring long-distance airflow. It offers eight adjustable fan speeds to meet the needs of various living spaces.
Figure 3.5: Benefits of the High Static Pressure Fan for optimized airflow.
3.6. Multipositional Air Handler
The indoor air handler unit can be installed horizontally or vertically, providing flexible installation options for basements, attics, and both residential and commercial spaces.
Figure 3.6: Flexible installation configurations for the indoor air handler.
4. Технические характеристики
| Особенность | Спецификация |
|---|---|
| Бренд | ТОСОТ |
| Модель | 60,00BTU-50ft |
| Емкость | 5 тонны (60,000 БТЕ) |
| Мощность охлаждения | 53,000 британских термальных единиц |
| Сезонный коэффициент энергоэффективности (SEER2) | 18.5 |
| Heating Seasonal Performance Factor (HSPF2) | 10.5 |
| Уровень шума | 63 Decibels (Outdoor Condenser) |
| Диапазон рабочих температур | -22℉ до 130℉ |
| Тип компрессора | Inverter, Triple-Cylinder Two-Stage Rotary |
| Хладагент | Р-32 |
| Томtage | 230 Вольт |
| Ватtage | 16,120 Вт |
| Outdoor Condenser Dimensions (D x W x H) | 13.4" x 35.4" x 49.6" |
| Indoor Air Handler Dimensions (D x W x H) | 21.3" x 24.8" x 52.0" |
| Вес товара | 241 фунта |
| Покрытие площади пола | До 3000 квадратных футов |
| Длина набора линий | 50 feet (Copper) |
| Сертификаты | Energy Star, ETL, AHRI Certified |
5. Настройка и установка
The TOSOT Central Air Conditioner Heat Pump System is a complex appliance that requires professional installation. Attempting to install this unit without proper certification and tools can lead to serious injury, property damage, and void the product warranty.
5.1. Предварительные рекомендации по установке
- Расположение: Choose appropriate locations for both the outdoor condenser and indoor air handler, considering airflow, noise, and accessibility for maintenance. The multipositional air handler allows for vertical or horizontal installation.
- Требования к электричеству: Ensure the electrical supply meets the 230V requirement and is properly grounded.
- Воздуховоды: Verify existing ductwork is compatible and in good condition for efficient air distribution. The high static pressure design is suitable for long-distance airflow.
- Термостат: This system is compatible with universal 24V thermostats (not included).
Figure 5.1: Universal 24V thermostat compatibility.
5.2. Professional Installation Steps (Summary)
- Mount the indoor air handler in the chosen vertical or horizontal position.
- Position the outdoor condenser unit, ensuring adequate clearance for airflow.
- Connect the 50-foot copper line set between the indoor and outdoor units.
- Perform all necessary electrical wiring connections.
- Connect the thermostat wiring.
- Evacuate the refrigerant lines and charge the system with R-32 refrigerant.
- Test the system for proper operation, including airflow and temperature control.
Figure 5.2: Professional installation is crucial for system integrity and safety.
6. Инструкция по эксплуатации
Once professionally installed, your TOSOT Heat Pump System is controlled via a compatible 24V thermostat. Refer to your thermostat's user manual for specific programming and operation details.
6.1. Основные операции
- Включение/выключение питания: Use your thermostat to turn the system on or off.
- Выбор режима: Select desired operating mode (Cool, Heat, Fan, Auto) on your thermostat.
- Установка температуры: Отрегулируйте желаемую температуру с помощью регуляторов термостата.
6.2. Регулировка скорости вентилятора
The system features eight adjustable fan speeds. Your installer can configure these settings to optimize airflow and comfort for your specific ductwork and living space. Consult your installer or thermostat manual for how to adjust fan speeds if accessible to the user.
7. Техническое обслуживание
Regular maintenance is essential to ensure the longevity and efficient operation of your TOSOT Heat Pump System. It is recommended to schedule annual professional maintenance.
7.1. Замена фильтра
Regularly check and replace the air filter in your indoor air handler. A dirty filter restricts airflow and reduces efficiency. The recommended filter size is 20x23 inches, though some documentation may incorrectly state 20x20 inches. Verify the actual size of your installed filter.
7.2. Outdoor Condenser Cleaning
Keep the area around the outdoor condenser unit clear of debris, leaves, and vegetation to ensure proper airflow. The side discharge design helps minimize accumulation, but periodic inspection is still advised.
7.3. Профессиональное обслуживание
Schedule annual maintenance with a certified HVAC technician. This includes checking refrigerant levels, inspecting electrical components, cleaning coils, and verifying overall system performance.
8. Поиск Неисправностей
If you experience issues with your system, perform the following basic checks before contacting a service technician:
- Нет питания: Check the circuit breaker for the unit. Ensure the thermostat is set to the desired mode and temperature.
- Недостаточное охлаждение/обогрев: Verify the thermostat settings. Check if the air filter is clean. Ensure outdoor unit is free of obstructions.
- Необычные шумы: Minor operational noises are normal. If you hear loud or unusual sounds, contact a technician.
- Утечки воды: Проверьте дренажную трубу для конденсата на наличие засоров.
For any persistent issues or complex problems, contact a certified HVAC technician for diagnosis and repair.
9. Гарантия и поддержка
9.1. Информация о гарантии
The TOSOT 60,000 BTU Ducted Central Air Conditioner Heat Pump System comes with a Пятилетняя гарантия. Please retain your proof of purchase and installation records for warranty claims. The warranty covers defects in materials and workmanship under normal use and service.
For specific terms and conditions of the warranty, refer to the warranty card included with your product or contact TOSOT customer support.
9.2. Поддержка клиентов
For technical assistance, troubleshooting, or warranty inquiries, please contact TOSOT customer support:
- Webсайт: [Insert TOSOT Support Web[Сайт здесь]
- Телефон: [Insert TOSOT Support Phone Number Here]
- Электронная почта: [Insert TOSOT Support Email Here]
When contacting support, please have your model number (60,00BTU-50ft) and date of purchase readily available.
