1. Введение
Thank you for choosing the SUPERLEX 42CM Multifunctional Electric Pan. This versatile 1500W electric pan is designed to simplify your cooking experience, offering a wide range of functions including steaming, boiling, frying, grilling, and hot pot preparation. Its non-stick coating ensures easy food release and quick cleaning, while the adjustable temperature control provides precision for various culinary tasks. This manual provides essential information for safe and efficient use of your appliance.

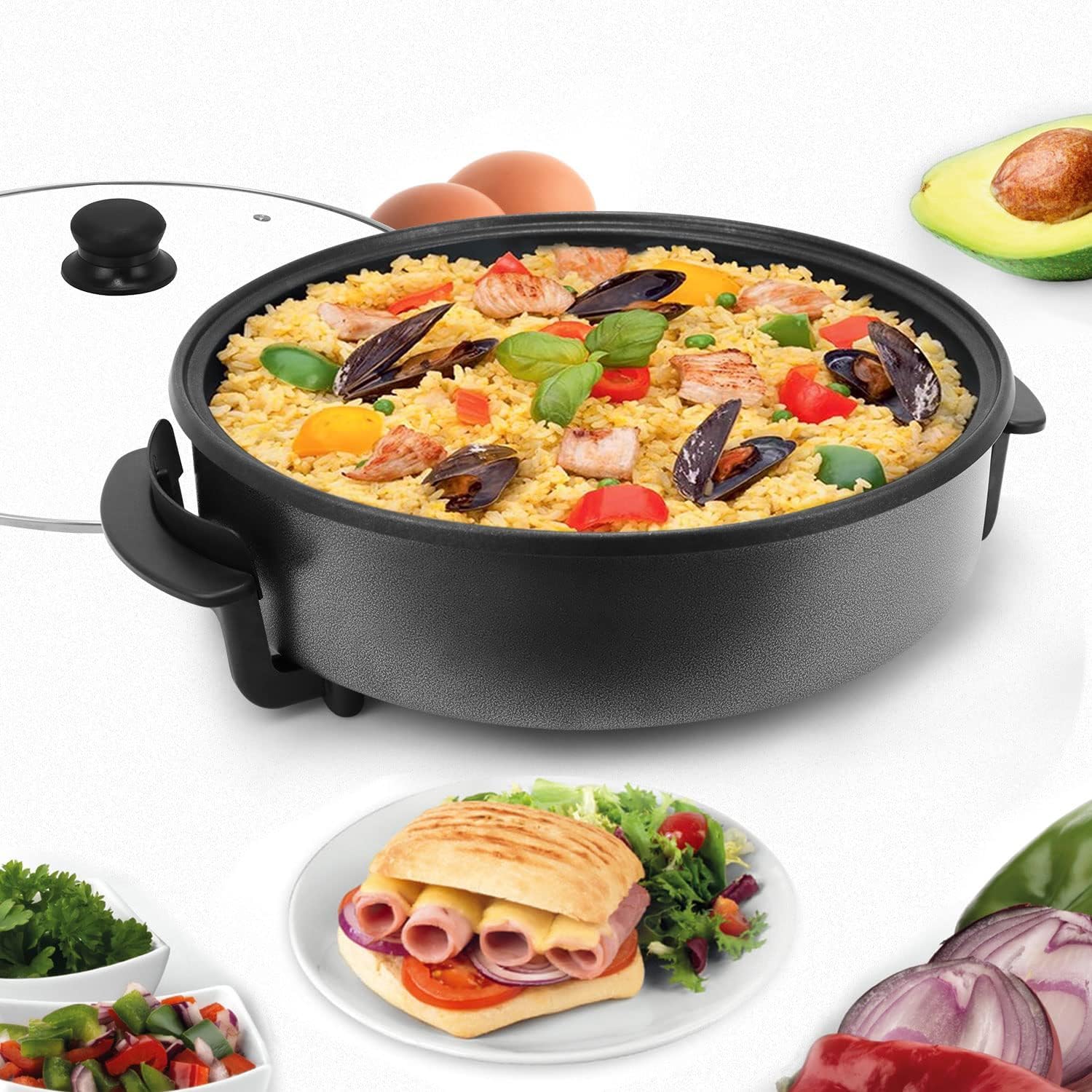

Image 1: The SUPERLEX 42CM Multifunctional Electric Pan with its transparent glass lid.
2. Инструкции по технике безопасности
Перед использованием прибора внимательно прочтите все инструкции по технике безопасности. Несоблюдение этих инструкций может привести к поражению электрическим током, возгоранию или серьёзной травме.
- Всегда проверяйте громкостьtagПеред подключением убедитесь, что напряжение, указанное на приборе, соответствует местной электросети.
- Do not immerse the pan body, power cord, or thermostat in water or any other liquid.
- Храните прибор в недоступном для детей и домашних животных месте.
- Always unplug the appliance from the power outlet when not in use, before cleaning, and before assembling or disassembling parts.
- Не используйте прибор с поврежденным шнуром или вилкой, а также если прибор неисправен или поврежден каким-либо образом. Обратитесь в службу поддержки клиентов за помощью.
- Use the appliance on a stable, heat-resistant surface, away from flammable materials.
- Не прикасайтесь к горячим поверхностям. Используйте ручки или ручки.
- Avoid using metal utensils on the non-stick surface to prevent scratching.
- Ensure the thermostat is properly inserted before use and removed before cleaning.
- Этот прибор предназначен только для домашнего использования. Не используйте на открытом воздухе.
3. Компоненты продукта
The SUPERLEX Multifunctional Electric Pan consists of the following main components:
- Electric Pan Body: The main cooking vessel with non-stick coating and integrated handles.
- Крышка из закаленного стекла: Transparent lid with a cool-touch knob for monitoring cooking.
- Removable Thermostat with Power Cord: Controls the heating element and temperature settings.

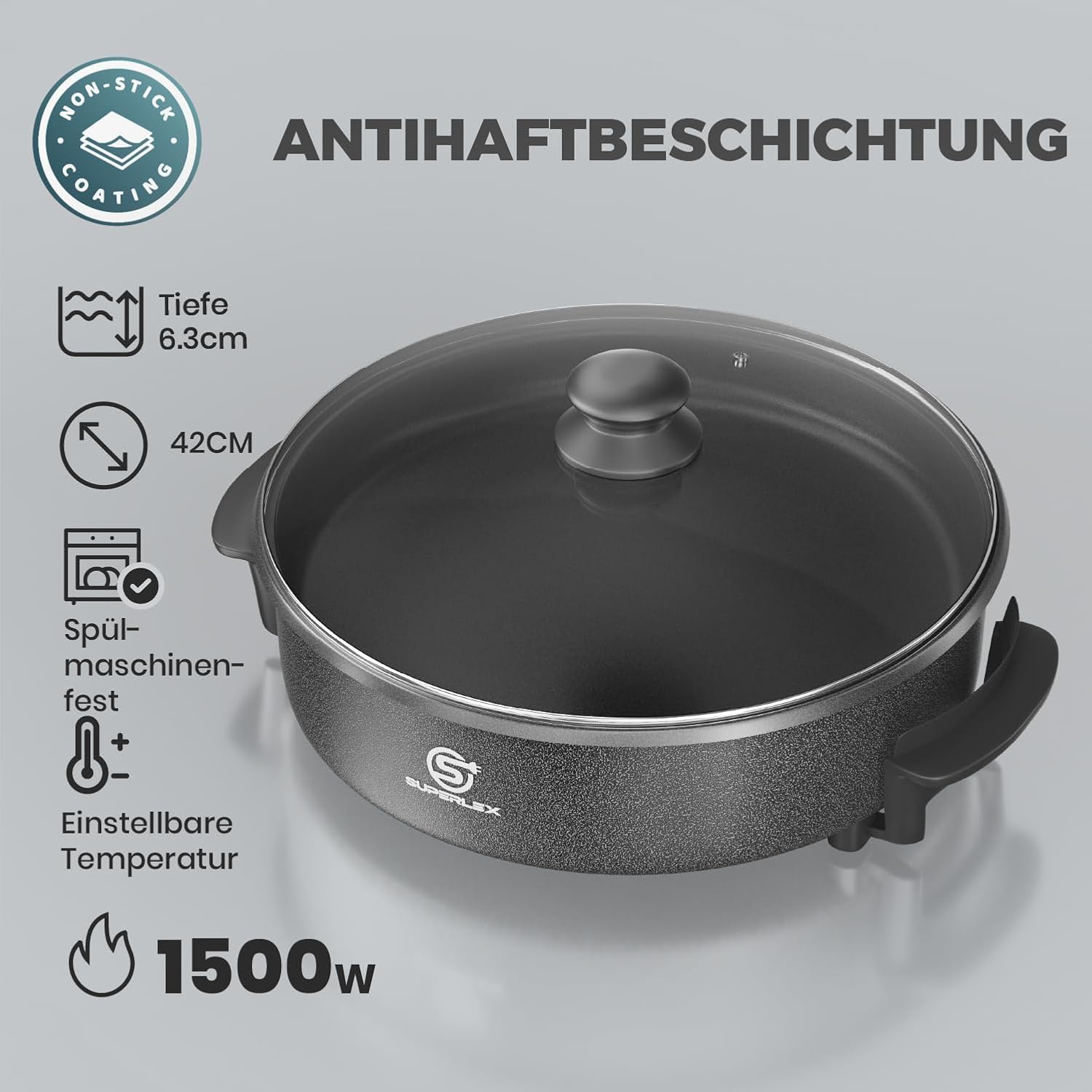

Изображение 2: оконченоview of the electric pan, highlighting its non-stick coating, 6.3cm depth, 42cm diameter, 1500W power, and adjustable temperature.
4. Настройка
Перед первым использованием выполните следующие действия:
- Распаковать: Carefully remove all packaging materials and inspect the pan for any damage.
- Чистый: Wash the pan body and glass lid with warm, soapy water. Rinse thoroughly and dry completely. Do NOT immerse the thermostat or power cord in water.
- Позиция: Place the electric pan on a stable, flat, and heat-resistant surface. Ensure there is adequate ventilation around the appliance.
- Подключите термостат: Insert the removable thermostat firmly into the receptacle on the side of the pan. Ensure it clicks securely into place.
- Включение питания: Подключите шнур питания к заземленной электрической розетке напряжением 220 В.

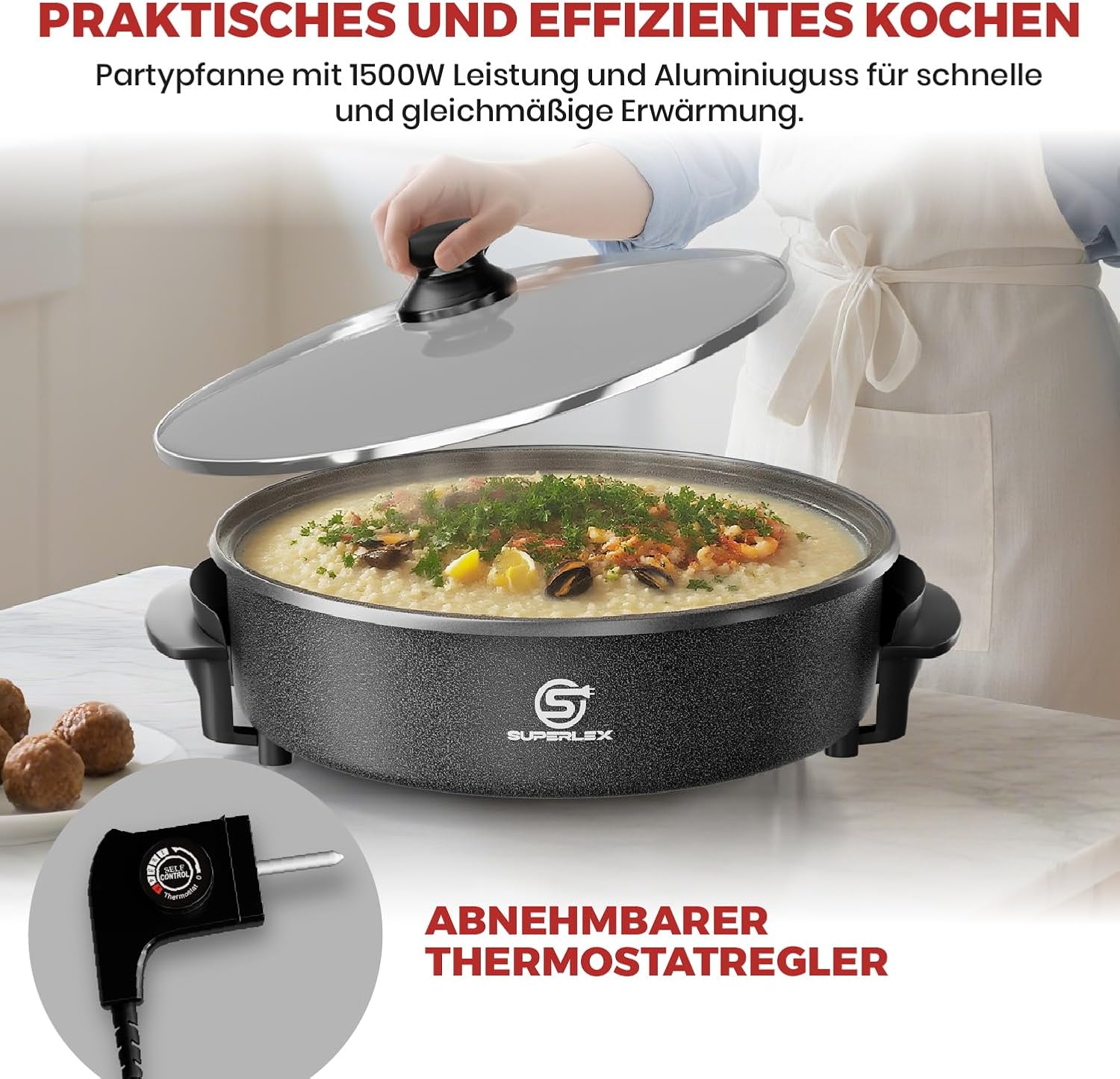

Image 3: The electric pan with its removable thermostat controller, ready for use.
5. Инструкция по эксплуатации
5.1 Контроль температуры
The pan features a 5-level rotary thermostat for precise temperature adjustment, ranging from 100 °C to 240 °C. Turn the knob to select your desired heat setting:
- Уровень 1-2 (Низкий): Ideal for keeping food warm or slow simmering.
- Уровень 3 (средний): Suitable for gentle frying, sautéing, or boiling.
- Уровень 4-5 (Высокий): Perfect for searing, deep frying, or rapid boiling.
Изображение 4: Подробно view of the 5-level adjustable thermostat for precise temperature control.
5.2 функций приготовления
This multifunctional pan supports various cooking methods:
- Frying/Sautéing: Add a small amount of oil, preheat to desired temperature (Level 3-4), then add ingredients.
- Boiling/Simmering: Fill with water or broth, bring to a boil (Level 5), then reduce heat to simmer (Level 1-2).
- Приготовление на гриле: Preheat to high temperature (Level 4-5) for grilling meats or vegetables.
- Горячий горшок: Ideal for communal cooking. Fill with broth, bring to a boil, and maintain temperature (Level 2-3) while cooking ingredients.
- Приготовление на пару: (Requires a separate steaming rack, not included). Add water to the pan, place rack with food, cover with lid, and heat.
Image 5: The electric pan used for cooking a meal of shrimp and rice, demonstrating its versatility.
Image 6: A visual guide showcasing various dishes that can be prepared, including fried seafood risotto, pasta, and creamy mushroom soup.
6. Чистка и обслуживание
Proper cleaning and maintenance will extend the life of your electric pan.
- Остывать: Перед мытьём всегда давайте сковороде полностью остыть.
- Отключить: Disconnect the thermostat and power cord from the pan and the electrical outlet.
- Clean Pan Body: The non-stick cooking surface can be easily cleaned with warm, soapy water and a soft sponge or cloth. For stubborn food residue, soak the pan in warm water for a few minutes before cleaning. Rinse thoroughly and dry completely.
- Чистая крышка: The tempered glass lid can be washed with warm, soapy water and is generally dishwasher-safe.
- Clean Thermostat: Wipe the thermostat with a damp cloth. Do NOT immerse it in water. Ensure it is completely dry before storing or next use.
- Хранилище: Store the clean, dry pan and its components in a safe, dry place.
Важный: The non-stick coating allows for healthier cooking with less oil and ensures easy food release. To preserve the non-stick properties, avoid using abrasive cleaners, metal scouring pads, or sharp metal utensils.
Image 7: The electric pan in use, demonstrating its non-stick surface for cooking salmon with minimal oil, making cleaning easier.
7. Поиск Неисправностей
If you encounter issues with your electric pan, refer to the table below for common problems and solutions.
| Проблема | Возможная причина | Решение |
|---|---|---|
| Pan does not heat up. | Not plugged in; thermostat not properly inserted; power outlet malfunction. | Ensure power cord is securely plugged into a working outlet. Check if the thermostat is fully inserted into the pan's receptacle. Test the outlet with another appliance. |
| Еда прилипает к сковороде. | Insufficient oil; pan not preheated; damaged non-stick coating. | Use a small amount of cooking oil. Allow the pan to preheat to the desired temperature before adding food. Avoid using metal utensils that can damage the coating. |
| Pan overheats or burns food. | Temperature setting too high; thermostat malfunction. | Adjust the temperature knob to a lower setting. If the issue persists, the thermostat may be faulty; discontinue use and contact customer support. |
| Power trips circuit breaker. | Overload on circuit; faulty appliance. | Убедитесь, что нет других источников высокого давления.tage appliances are on the same circuit. If the problem continues, discontinue use and contact customer support as the appliance may be faulty. |
8. Технические характеристики
| Особенность | Спецификация |
|---|---|
| Бренд | СУПЕРЛЕКС |
| Модель | 42CM Multifunctional Electric Pan |
| Цвет | Черный |
| Размеры продукта (Д x Ш x В) | Approx. 30 x 32 x 7 cm (Cooking Surface); Overall Diameter: 42CM |
| Объем | 9.6 литра |
| Власть | 1500 Вт |
| Томtage | 220 Вольт |
| Материал | Металл, закаленное стекло |
| Функция автоматического отключения | Да |
| Функции | Temperature Control, Glass Lid, Versatile Cooking, Powerful 1500W, Non-stick Surface |
| Вес товара | 4 Килограмма |
| ASIN | B0CLTTY9WD |
9. Гарантия и поддержка
Specific warranty information for this product is not provided in the available data. For details regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.
