Введение
Welcome to your new JadeAudio JW1 Open Ear Headphones. These headphones are designed for comfort, versatility, and high-quality audio, perfect for active lifestyles and everyday use. This manual will guide you through the setup, operation, and maintenance of your JW1 headphones.
The JadeAudio JW1 Open Ear Headphones and their compact charging case.
Основные характеристики
- Open, Non-In-Ear Design: Comfortable for long periods of wear without discomfort, allowing you to stay aware of your surroundings.
- All-Around Versatility: Suitable for outdoor exercise, work, studies, leisure, and entertainment.
- Bluetooth 5.3 Ensures faster, more stable connections with greater efficiency for seamless audio.
- Удобное сенсорное управление: One-handed control for music playback, calls, and voice assistant.
- Water and Sweat-Resistant (IPX5): No worries about water and sweat, even during intense activities.
Официальная видеопрезентация продуктаasing the JadeAudio JW1 Open Ear Headphones.
Что в коробке?
Your JadeAudio JW1 package includes the following items:
- JW1 Open Ear Headphones (Left and Right)
- Зарядный футляр
- USB-кабель для зарядки
The JW1 headphones neatly stored within their charging case.
Настраивать
Зарядка наушников
Before first use, fully charge your JW1 headphones and charging case.
- Place the headphones into their respective slots in the charging case.
- Подключите USB-кабель для зарядки к зарядному порту на чехле и к совместимому источнику питания USB.
- The indicator light on the case will show the charging status. A full charge for the case takes approximately 6 hours. The headphones will charge automatically when placed in the case.
The JW1 charging case, ready for connection to a power source.
Сопряжение с устройством
The JW1 headphones utilize advanced Bluetooth 5.3 technology for fast and stable connections.
- Ensure the headphones are charged and removed from the charging case. They will automatically enter pairing mode, indicated by a flashing light.
- On your device (smartphone, tablet, laptop, etc.), go to the Bluetooth settings menu and turn Bluetooth on.
- Искать "JW1" in the list of available devices and select it to connect.
- Once successfully connected, you will hear an audio prompt, and the indicator light on the headphones will change to a steady light or turn off, depending on the model.
Diagram illustrating the Bluetooth 5.3 connectivity of the JW1 headphones.
Operating Your JW1 Headphones
Ношение наушников
The JW1 features an open-ear, non-in-ear design for maximum comfort and situational awareness.
- Аккуратно наденьте заушный крючок на верхнюю часть уха.
- Position the speaker unit so it rests comfortably near your ear canal, without entering it.
- Adjust the headphones for a secure and comfortable fit. The ergonomic design ensures stability even during active movement.

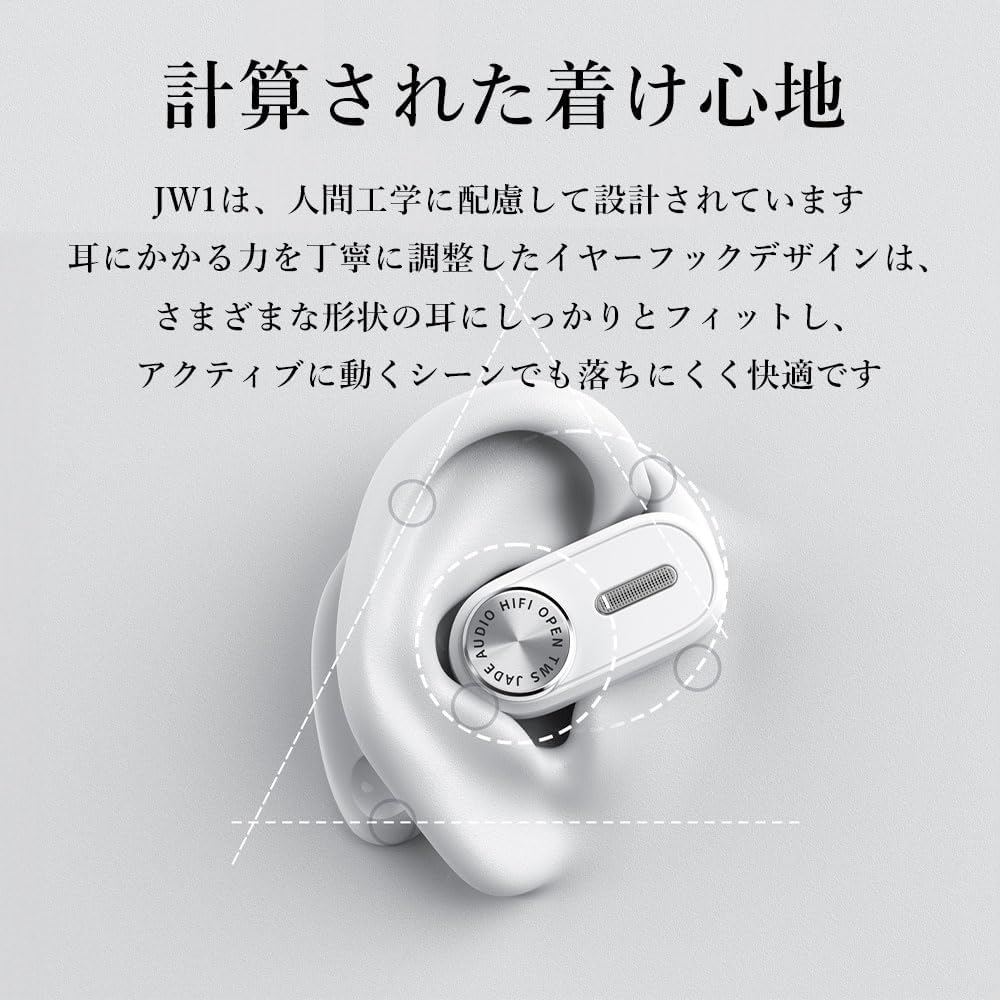

Visual guide for correctly wearing the JW1 Open Ear Headphones.
Сенсорное управление
Both the left and right earbud units are equipped with touch controls for convenient operation. Refer to the table below for specific functions:
| Действие | Контроль |
|---|---|
| Воспроизведение / пауза / ответ / завершение вызова | Двойное нажатие |
| Предыдущий трек | Тройное нажатие на левый наушник |
| Следующий трек | Правый наушник тройным нажатием |
| Активировать голосового помощника | Четыре крана |
| Включить питание | Длительное нажатие 5 секунды |
Illustration of the touch control area on the JW1 headphones.
Техническое обслуживание и уход
Устойчивость к воде и поту
The JW1 headphones are designed with IPX5 water and sweat resistance, making them ideal for active use. To ensure longevity:
- After intense workouts or exposure to water, always wipe the headphones dry with a soft, clean cloth.
- Ensure the charging contacts on both the headphones and the case are completely dry before placing the headphones back into the charging case. Moisture on contacts can cause damage.
- Note: The sound tube, ventilation holes, microphone, and the charging case itself are not IPX5 rated and should be protected from direct water exposure.
The JW1 headphones are designed to withstand splashes and sweat.
Уборка
Use a dry, soft, lint-free cloth to clean the headphones and charging case. Avoid using abrasive materials, solvents, or harsh chemicals, as these may damage the product's finish or internal components.
Поиск неисправностей
If you encounter any issues with your JW1 headphones, please refer to the following common problems and solutions:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Нет звука | Headphones not connected; Low battery; Device volume too low | Ensure headphones are paired; Charge headphones; Increase volume on device and headphones |
| Невозможно выполнить сопряжение | Headphones out of range; Already connected to another device; Pairing mode not active | Move device closer; Disconnect from other devices; Place headphones in case then remove to re-enter pairing mode |
| Прерывистое соединение | Bluetooth interference; Device too far; Obstructions between device and headphones | Move away from other wireless devices; Reduce distance to device; Ensure clear line of sight |
| Сенсорное управление не реагирует. | Dirty sensor; Software glitch | Clean the touch sensor area; Place headphones in case and remove to restart them |
| Проблема с зарядкой | Dirty charging contacts; Faulty charging cable or adapter | Clean charging contacts with a dry cotton swab; Try a different USB cable and power adapter |
Технические характеристики
| Особенность | Деталь |
|---|---|
| Название модели | JW1 |
| Бренд | JadeAudio |
| Технология связи | Беспроводная связь (Bluetooth) |
| Версия Bluetooth | 5.3 |
| Расположение ушей | Открытое ухо |
| Форм-фактор | Открытое ухо |
| Тип аудиодрайвера | Динамический драйвер |
| Диапазон частот | 20 Гц - 20 000 Гц |
| Время работы батареи (наушники) | До 6 часов работы от одной зарядки |
| Общее время воспроизведения (с кейсом) | До 18 часов |
| Время зарядки (кейс) | Приблизительно 6 часа |
| Уровень водонепроницаемости | Водонепроницаемость (IPX5) |
| Метод контроля | Трогать |
| Материал | Silicone or TPE (Thermoplastic Elastomer) |
| Вес товара | 7.4 унции |
| Размеры упаковки | 6.81 x 5.2 x 1.97 дюйма |
| Производитель | JadeAudio |
| Страна происхождения | Китай |
Гарантия и поддержка
For detailed warranty information, technical support, or service inquiries regarding your JadeAudio JW1 Open Ear Headphones, please refer to the warranty card or documentation included with your purchase. You may also visit the official JadeAudio webсайт для получения самых актуальных ресурсов поддержки и контактной информации.
