LG F4WR6011A0W 11kg AI Direct Drive Washing Machine User Manual

1. Введение

This manual provides essential information for the safe and efficient operation of your LG F4WR6011A0W 11kg AI Direct Drive washing machine. Please read it thoroughly before using the appliance and keep it for future reference. This washing machine features advanced technologies such as AI Direct Drive for fabric care, TurboWash 360 for quick and efficient washing, and Steam+ for enhanced hygiene.

2. Информация по технике безопасности

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury to persons. Keep children away from the appliance. Do not allow children to play on or in the appliance. Ensure the power cord is not damaged. Do not install the washing machine in areas exposed to freezing temperatures. Always unplug the appliance before cleaning or performing maintenance. Do not wash items that have been contaminated with flammable substances.

3. Продукт закончилсяview

3.1 Основные характеристики

• Прямой привод ИИ: Использует искусственный интеллект для определения характеристик ткани и веса загрузки, оптимизируя режимы стирки для снижения износа ткани до 10%.
• ТурбоВаш 360: Provides a fast wash cycle, completing a full load in 39 minutes while saving up to 28% electricity. Four spray nozzles cover the drum 360 degrees.
• Steam+: Reduces 99.9% of viruses, bacteria, and allergens, offering maximum hygiene and wrinkle reduction.
• Wi-Fi ThinQ App: Allows remote control, monitoring, and downloading of additional wash programs, including a microplastic reduction program.
• Прочная конструкция: Features stainless steel lifters for enhanced hygiene (99% anti-bacterial) and durability, along with a scratch-resistant tempered glass door.
• Интеллектуальная диагностическая система: Transmits incidence data to technical service via your mobile device, saving time and effort for troubleshooting.

3.2 Компоненты

Ознакомьтесь с основными частями вашей стиральной машины:

Передний view of the LG F4WR6011A0W washing machine, showcasinпанель управления, дозатор моющего средства и главная дверь.

The washing machine with its door open, revealing the drum interior.

Close-up of the detergent dispenser tray, showing compartments for pre-wash, main wash, and softener.

Интерьер view of the stainless steel drum with lifters, designed for effective washing and fabric care.

4. Настройка и установка

4.1 Распаковка и размещение

Carefully remove all packaging materials. Ensure the washing machine is placed on a firm, level surface. Adjust the leveling feet to prevent vibration and noise during operation. Maintain adequate space around the machine for ventilation and service access.

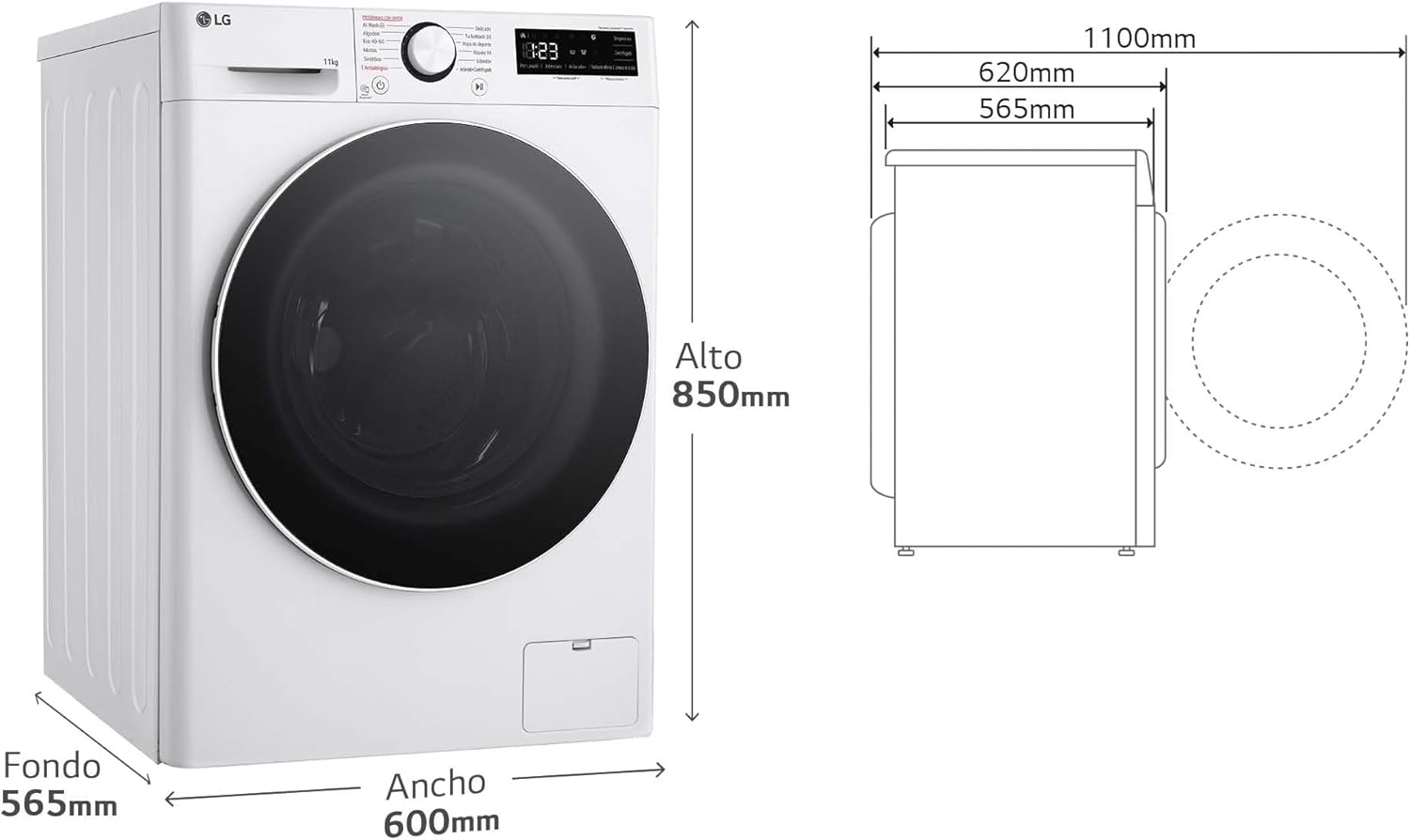

Diagram illustrating the dimensions of the washing machine: 850mm height, 600mm width, and 565mm depth.

4.2 Подключения к водопроводу и канализации

Connect the water inlet hoses to the hot and cold water taps. Ensure connections are tight to prevent leaks. Position the drain hose securely into a standpipe or laundry tub, ensuring it is not kinked or blocked.

4.3 Электрическое подключение

Подключите шнур питания к заземленной электрической розетке. Не используйте удлинители или адаптеры. Убедитесь, что напряжение соответствует норме.tagЭлектропитание и частота соответствуют характеристикам вашего прибора.

5. Инструкция по эксплуатации

5.1 Панель управления оконченаview

Close-up of the control panel, featuring the program selector dial, digital display, and various function buttons.

The control panel consists of a program selector dial, a digital display, and touch buttons for various functions such as temperature, spin speed, and special options.

5.2 Загрузка белья

Откройте дверцу и загрузите бельё в барабан. Не перегружайте машину; убедитесь, что в ней достаточно места для свободного падения белья. Плотно закройте дверцу.

A person loading clothes into the washing machine drum.

5.3 Добавление моющего средства и кондиционера

Выдвиньте лоток для моющего средства. Добавьте необходимое количество моющего средства в основное отделение для стирки, а кондиционер для белья — в соответствующее отделение. Аккуратно закройте лоток.

5.4 Выбор программы стирки

Turn the program selector dial to choose the desired wash program (e.g., Cotton, Eco 40-60, Mixed, Synthetics, Delicates, TurboWash 39, AI Wash). The digital display will show the estimated cycle time and default settings.

5.5 Использование специальных функций

• AI DD: This function automatically detects fabric type and load weight to optimize washing motions.
• ТурбоВаш 360: Select this option for a faster, efficient wash cycle.
• Steam+: Activate this for enhanced hygiene and wrinkle care.
• Wi-Fi ThinQ: Connect your washing machine to the LG ThinQ app for remote control and additional program downloads.

Visual explanation of AI Direct Drive technology, showing how it detects fabric and load to optimize washing.

Image depicting TurboWash 360 technology, highlighting a 39-minute wash time.

Illustration of Steam+ technology, showing its effectiveness against viruses and bacteria.

5.6 Запуск цикла стирки

Нажмите кнопку «Старт/Пауза», чтобы начать выбранный цикл стирки.

6. Техническое обслуживание

6.1 Очистка дозатора моющего средства

Regularly clean the detergent dispenser drawer to prevent residue buildup. Remove the drawer, rinse it under running water, and use a brush if necessary. Dry thoroughly before reinserting.

6.2 Очистка барабана

Run a 'Tub Clean' cycle periodically to maintain drum hygiene and prevent odors. Refer to the control panel for specific instructions on activating this cycle.

6.3 Очистка сливного фильтра

The drain filter should be cleaned regularly to ensure proper drainage. Locate the filter access panel at the bottom front of the machine, open it, and carefully remove the filter. Clean any lint or debris and reinsert it securely.

6.4 Уход за внешним видом

Протрите внешнюю поверхность стиральной машины мягкой тряпкой.amp Ткань. Избегайте использования абразивных чистящих средств и растворителей, которые могут повредить покрытие.

7. Поиск Неисправностей

If you encounter any issues with your washing machine, refer to the following common problems and solutions:

• Машина не запускается: Check if the power cord is securely plugged in, the door is fully closed, and the water supply taps are open.
• Утечка воды: Ensure all hose connections are tight and the drain hose is properly installed. Check the drain filter for blockages.
• Необычный шум или вибрация: Убедитесь, что машина установлена ​​ровно и все транспортировочные болты сняты. Убедитесь, что груз сбалансирован внутри барабана.
• Плохие результаты стирки: Check detergent dosage, water temperature, and selected wash program. Avoid overloading.

7.1 Интеллектуальная диагностика

For more complex issues, utilize the Smart Diagnosis feature. Bring your mobile phone close to the washing machine, and it will transmit diagnostic information to LG service, helping to identify and resolve problems efficiently.

Illustration of the Smart Diagnosis system, showing a phone interacting with the washing machine to transmit data.

8. Технические характеристики

9. Гарантия и поддержка

9.1 Гарантия на двигатель

This LG washing machine features a lifetime warranty on the motor. This coverage extends for 30 years on the part itself (3 years legal warranty + 27 years commercial warranty). This warranty specifically covers the cost of the part; additional expenses are the responsibility of the customer. The coverage provided exceeds the average lifespan of the product (11 years, according to an independent study). For more information, please visit https://tuserviciolg.com/promociones/garantiadeporvida.

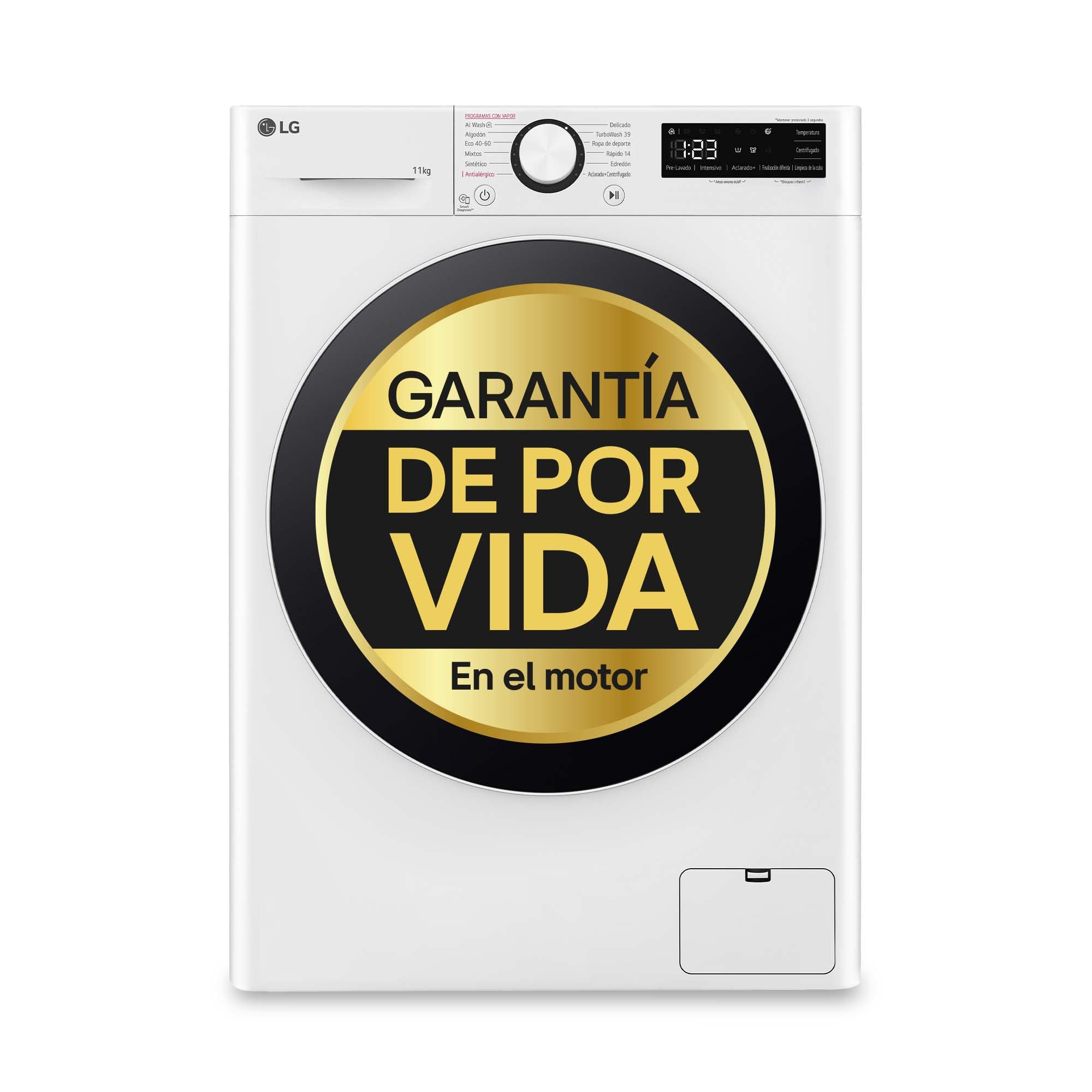

Image highlighting the lifetime warranty on the LG washing machine motor.

9.2 Поддержка клиентов

For further assistance, technical support, or warranty claims, please contact LG Customer Service. Refer to your product documentation or the official LG webсайт для получения контактной информации, специфичной для вашего региона.
