Введение
The CRAFTSMAN CMXCESM253 is a versatile 6-in-1 device designed for battery charging, maintaining, engine starting, desulfation, battery testing, and alternator testing. This fully automatic unit is compatible with 6V and 12V batteries, including standard, AGM, gel, and deep-cycle types, making it suitable for a wide range of vehicles such as cars, SUVs, trucks, power sports, and marine applications.
This manual provides detailed instructions for safe and effective use of your CRAFTSMAN CMXCESM253. Please read it thoroughly before operation.
Продукт болееview
Image: The CRAFTSMAN CMXCESM253 unit highlighting its 6-in-1 functionalities: Battery Charger, Battery Maintainer, Engine Starter, Desulfator, Battery Tester, and Alternator Tester.
The CMXCESM253 integrates multiple functions to ensure optimal battery health and vehicle readiness:
- Зарядное устройство: Provides 6-amp к 2-amp 12V charging and 2-amp 6V charging.
- Устройство для поддержания заряда батареи: Smart trickle charge mode prevents overcharging and maintains battery health over extended periods.
- Стартер двигателя: Delivers 100-amp engine starting power for quick boosts.
- Desulfator: Advanced desulfation mode helps recondition batteries and extend their lifespan.
- Тестер аккумуляторов: Built-in tester to check battery charge level and overall health.
- Alternator Tester: Helps diagnose electrical problems related to the vehicle's alternator.
Image: Diagram of the CRAFTSMAN CMXCESM253 unit with key components labeled, including the digital display, start/stop button, LED indicators, color-coded clamps, and AC power cord.
The unit features a digital display, LED indicators, and push-button controls for user-friendly operation. It also includes wrap cleats for convenient cord storage and a 6-foot power cord with booster cables.
Что в коробке?
Upon unpacking your CRAFTSMAN CMXCESM253, ensure all components are present:
- (1) CRAFTSMAN CMXCESM253 Fully Automatic Battery Charger and Engine Starter
- (1) Руководство пользователя (данный документ)
Информация по безопасности
При работе с электрооборудованием всегда уделяйте первостепенное внимание безопасности. Перед использованием ознакомьтесь со всеми предупреждениями и инструкциями по технике безопасности и усвойте их.
- Защита от обратной полярности: The unit is equipped with reverse hook-up protection, preventing operation if the clamps are accidentally reversed. However, always double-check connections.
- Обеспечьте достаточную вентиляцию при зарядке аккумуляторов.
- Держите устройство подальше от легковоспламеняющихся материалов.
- Не подвергайте зарядное устройство воздействию дождя или чрезмерной влажности.
- Всегда носите соответствующие средства индивидуальной защиты, такие как защитные очки и перчатки.
Настройка и подключение
Follow these steps to set up and connect your CRAFTSMAN CMXCESM253:
- Подготовьте аккумулятор: Убедитесь, что клеммы аккумулятора чистые и не имеют следов коррозии.
- Подключите Clamps:
- Подключите КРАСНЫЙ положительный (+) clamp к положительной (+) клемме аккумулятора.
- Подключите ЧЕРНЫЙ отрицательный (-) клamp к отрицательной (-) клемме аккумуляторной батареи.
- Примечание: The unit features reverse polarity protection. If clamps are reversed, the charger will not operate.
- Подключите зарядное устройство: Connect the AC power cord to a standard 120V AC outlet. The unit must be plugged in during use.
- Select Battery Type (if applicable): Use the control buttons to select the appropriate battery type (Standard, AGM, Gel, Deep-Cycle) if your unit requires manual selection. The CMXCESM253 is fully automatic and will detect voltage, but some modes may require selection.
Image: A person connecting the red positive clamp to a car battery terminal, demonstrating the proper connection procedure.
Image: A quick start guide showing the steps: Connect the Clamps to the Battery, Plug the Charger into a 120V AC Outlet, Use the Rate Selection Button to Choose Engine Start, Press the Start Button, Crank the Engine.
Инструкция по эксплуатации
Зарядка аккумулятора
The CMXCESM253 is fully automatic. Once connected and powered, it will detect the battery's voltagе и отрегулируйте amperage rate and charge. Multi-stage charging ensures optimal and safe charging.
- Follow the "Setup and Connection" steps.
- The unit's digital display and LED indicators will show the charging status.
- Once fully charged, the unit will automatically switch to maintenance mode.
Engine Starting (Boost Mode)
For a quick boost to start an engine:
- Ensure the charger is properly connected to the battery and plugged into a 120V AC outlet.
- Use the rate selection button (if available on your model) to choose the "Engine Start" mode.
- Press the "Start" button on the unit.
- Attempt to crank the engine.
- If the engine does not start, wait a few minutes before trying again to allow the battery to recover.
Image: A person operating the CRAFTSMAN CMXCESM253 unit while working on a car engine, demonstrating its use in an automotive setting.
Battery and Alternator Testing
The built-in tester provides quick diagnostics:
- Connect the unit to the battery as described in "Setup and Connection".
- The digital display will show the battery's charge level.
- Refer to the user interface for specific instructions on initiating an alternator test, which helps diagnose issues with your vehicle's charging system.
Обслуживание
Proper maintenance ensures the longevity and performance of your CRAFTSMAN CMXCESM253 and your batteries.
- Battery Maintainer Mode: For long-term storage of vehicles or batteries (e.g., boats, scooters during off-season), connect the charger and allow it to enter "Charged/Maintaining" mode. This smart trickle charge will keep the battery at optimal health without overcharging.
- Desulfation Mode: The advanced desulfation mode helps recondition older or deeply discharged batteries. Follow the unit's display or manual for initiating this process.
- Уборка: Keep the unit clean and free of dust and debris. Use a dry cloth for cleaning.
- Хранилище: Store the charger in a cool, dry place when not in use. Utilize the wrap cleats for organized cord storage.
Поиск неисправностей
If you encounter issues with your CRAFTSMAN CMXCESM253, refer to the following common problems and solutions:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Зарядное устройство не включается. | Отсутствует питание в розетке переменного тока; плохое соединение. | Check AC outlet with another device; ensure power cord is securely plugged in. |
| "Reversed" indicator is lit. | Аккумулятор clampПодключены в обратной полярности. | Отключить кл.amps and reconnect RED to positive (+), BLACK to negative (-). |
| Аккумулятор не заряжается. | Плохое соединение; глубоко разряженная батарея; неисправная батарея. | Убедитесь, что clamps are securely attached; allow more time for deeply discharged batteries; test battery health with the built-in tester or a separate device. |
| Engine Start mode not working. | Insufficient battery charge; vehicle electrical issue. | Ensure battery is sufficiently charged; use the alternator tester to check vehicle's charging system. |
If problems persist after attempting these solutions, contact CRAFTSMAN customer support.
Технические характеристики

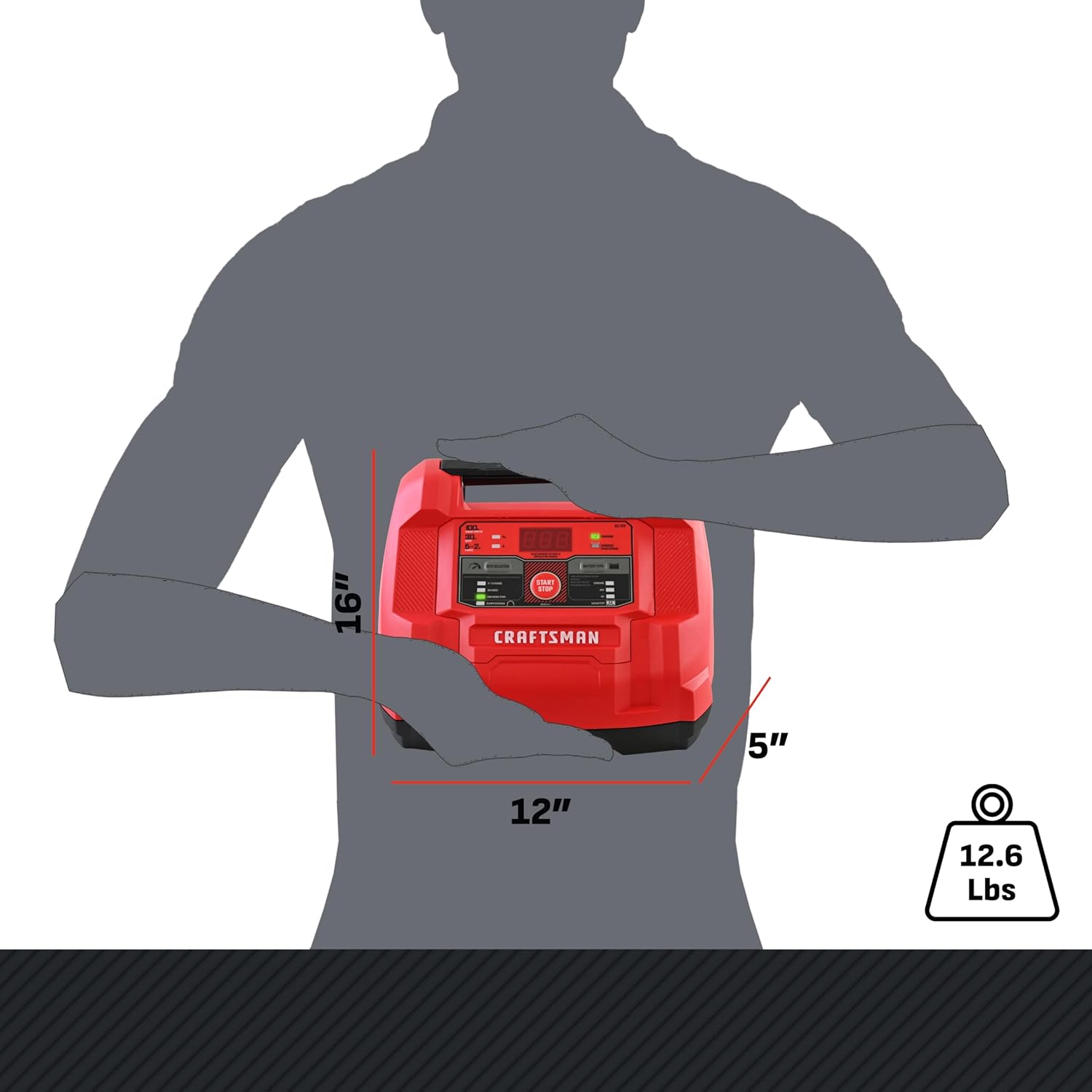

Image: Visual representation of the CRAFTSMAN CMXCESM253 unit with its approximate dimensions (12"D x 16"W x 5"H) and weight (12.6 lbs) indicated.
| Особенность | Деталь |
|---|---|
| Номер модели | CMXCESM253 |
| Vol входtage | 120 В переменного тока |
| Выход Voltage | 6 В / 12 В постоянного тока |
| Запуск двигателя Ampярость | 100 Amps |
| Ускоренный заряд Ampярость | 12-amp к 30-amp |
| Charging/Maintaining Ampярость | 6-amp к 2-amp (12V), 2-amp (6V) |
| Совместимые типы аккумуляторов | Standard, AGM, Gel, Deep-Cycle |
| Размеры продукта | 12"Д x 16"Ш x 5"В |
| Вес товара | 12.65 фунта |
| Длина кабеля | 6-foot power cord and booster cables |
Image: A compatibility chart showing various vehicle types (Motorcycle, Snowmobile, Lawn Mower, Personal Watercraft, ATV, Vintage Car, Car, Tractor, SUV, Boat, RV, Truck) that are compatible with the CRAFTSMAN CMXCESM253 for charging and maintaining.
Официальное видео о продукте
Видео: Официальный продуктview video for the CRAFTSMAN CMXCESM253, demonstrating its features and usage.
Гарантия и поддержка
The CRAFTSMAN CMXCESM253 is backed by a Ограниченная гарантия сроком на 1 года. This warranty covers defects in material or workmanship. Proof of purchase is required for warranty claims. The warranty is not transferable.
Image: A banner indicating the CRAFTSMAN 1-Year Limited Warranty, emphasizing the brand's commitment to quality.
For detailed warranty information or technical support, please visit the official CRAFTSMAN webсайте или обратитесь в их отдел обслуживания клиентов.
