Andoer Mini Ball Head Tripod Head Instruction Manual

1. Введение

This manual provides instructions for the proper setup, operation, and maintenance of your Andoer Mini Ball Head Tripod Head. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

2. Продукт закончилсяview

2.1 Особенности

• Top 1/4 inch screw for attaching cameras, video lights, flashes, microphones, or video monitors.
• Bottom 1/4 inch screw hole for installation on tripods, selfie sticks, or other mounts.
• Side locking button for 90° tilt adjustment and 360° rotation.
• Non-slip rubber ring on the top surface to protect attached devices from scratches and ensure stability.
• Constructed from aluminum alloy with anti-oxidation treatment for durability and portability.

2.2 Компоненты

The Andoer Mini Ball Head consists of the following main components:

1. Top 1/4 Inch Screw: For mounting your device.
2. Non-slip Rubber Ring: Located on the top plate, beneath the 1/4 inch screw.
3. Шаровой шарнир: Позволяет гибко регулировать угол наклона.
4. Ручка блокировки: Secures the ball joint in position for tilt and rotation.
5. Основная часть: The central aluminum alloy housing.
6. Bottom 1/4 Inch Screw Hole: For attaching the ball head to a support.

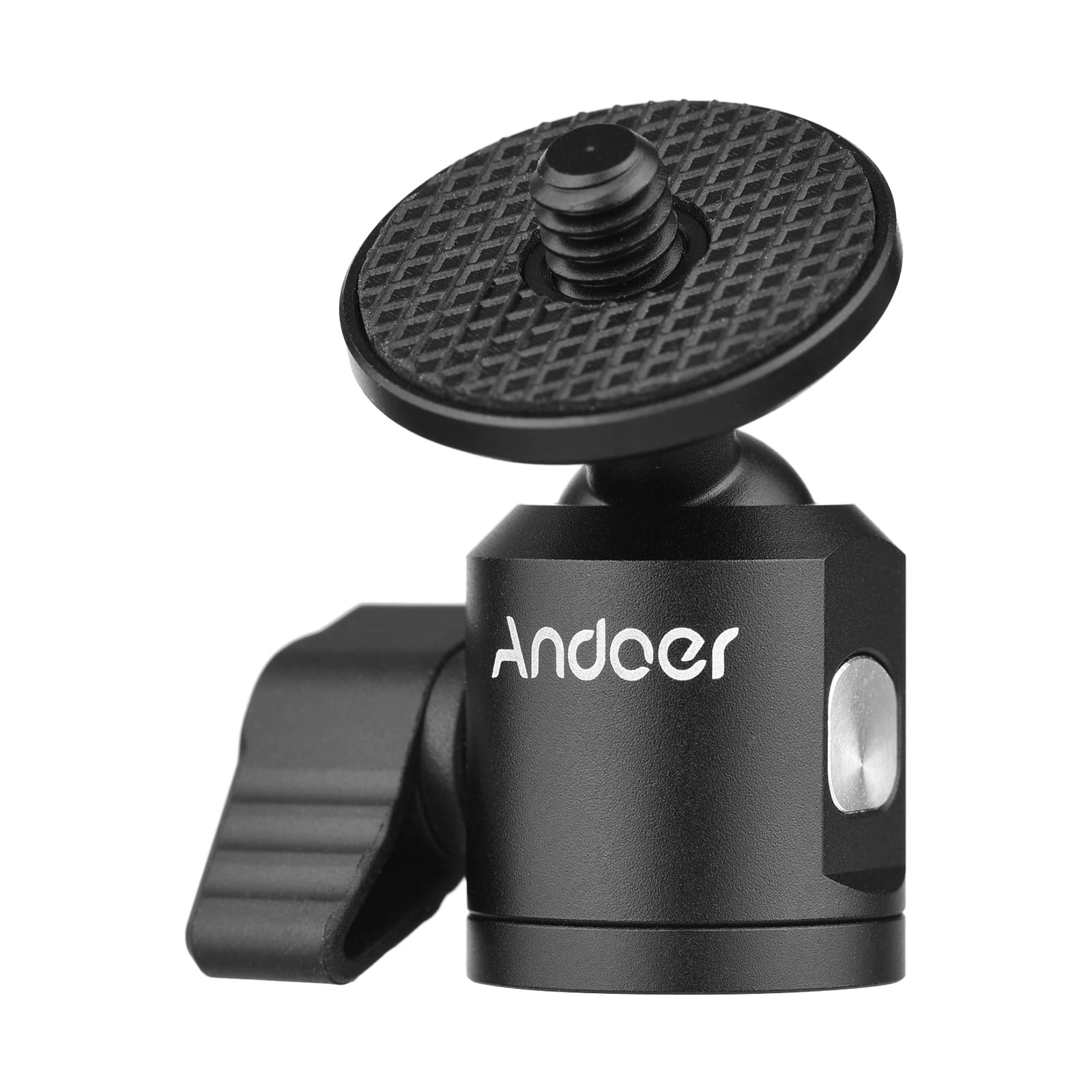

Figure 1: Key connection points of the Andoer Mini Ball Head, illustrating the top 1/4 inch screw and the bottom 1/4 inch screw hole.

3. Настройка

3.1 Attaching to a Support

To attach the ball head to a tripod, monopod, or other compatible mount:

1. Locate the 1/4 inch screw on your support device.
2. Align the bottom 1/4 inch screw hole of the Andoer Mini Ball Head with the screw on your support.
3. Rotate the ball head clockwise onto the support's screw until it is securely fastened. Do not overtighten.

Figure 2: The Andoer Mini Ball Head ready for attachment to a support device.

3.2 Подключение устройства

To attach your camera, video light, or other device to the ball head:

1. Ensure the locking knob on the ball head is tightened to prevent accidental movement during attachment.
2. Locate the 1/4 inch screw hole on the bottom of your device.
3. Align your device's screw hole with the top 1/4 inch screw of the ball head.
4. Rotate your device clockwise onto the ball head's screw until it is securely fastened. The non-slip rubber ring will help protect your device and provide a stable connection.

Figure 3: The top 1/4 inch screw for mounting a device.

4. Инструкция по эксплуатации

4.1 Adjusting Tilt and Rotation

The ball head allows for flexible positioning of your attached device:

1. Loosen the Locking Knob: Gently turn the side locking knob counter-clockwise to loosen the ball joint.
2. Отрегулируйте угол: Position your device to the desired tilt (up to 90°) or rotate it horizontally (360°).
3. Безопасное положение: Once the desired angle is achieved, turn the locking knob clockwise to tighten and secure the ball joint. Ensure it is firm enough to hold your device's weight without slipping.

Figure 4: The locking knob for angle adjustment.

5. Техническое обслуживание

• Уборка: Wipe the ball head with a soft, dry cloth. For stubborn dirt, a slightly damp Можно использовать ткань, которую следует немедленно высушить. Избегайте использования абразивных чистящих средств и растворителей.
• Хранилище: Store the ball head in a dry, cool place away from direct sunlight and extreme temperatures.
• Инспекция: Периодически проверяйте надежность затяжки всех винтов и соединений.

6. Поиск Неисправностей

• Проскальзывание устройства: If your device is slipping after tightening the locking knob, ensure the knob is fully tightened. Verify that the combined weight of your device and any accessories does not exceed the ball head's maximum weight recommendation.
• Сложность регулировки угла: If the ball joint is stiff, ensure the locking knob is sufficiently loosened. Do not force adjustments.
• Ослабленные соединения: Always ensure both the top 1/4 inch screw connection to your device and the bottom 1/4 inch screw hole connection to your support are securely tightened before use. Avoid excessive force when tightening, as this can damage threads.
