1. Введение
The Ideal Standard Ceratherm T100 Shower System (Model A7542AA) is a high-quality, wall-mounted thermostatic shower system designed for comfort, safety, and durability. This manual provides essential information to ensure correct installation, efficient operation, and proper maintenance of your shower system.
2. Информация по технике безопасности
- Always ensure the main water supply is turned off before attempting any installation, maintenance, or repair work.
- The system features a Холодное тело function, which keeps the tap body from becoming excessively hot, enhancing user safety.
- Встроенный температурный режим заблокирован на уровне 40 градусов Цельсия. provides anti-scald protection, preventing accidental setting of dangerously high temperatures.
- Ensure all connections are properly sealed to prevent leaks and water damage.
- Если вы не уверены в каких-либо этапах установки, ее должен выполнять квалифицированный специалист.
3. Содержимое упаковки
Перед началом установки убедитесь, что все компоненты присутствуют:
- Ceratherm T100 Surface-Mounted Shower System unit
- Hand shower (stick type)
- Idealflex Shower hose (1750 mm length)
- Swivelling shower head (1 function, rain jet type)
- Adjustable shower holder
- Two square metal rosettes (65 x 65 mm)
- Mounting hardware and fixings
4. Настройка и установка
The Ceratherm T100 Shower System is designed for wall-mounted, surface installation using S-connectors. Follow these general steps for installation:
- Подготовьте место для установки: Ensure the water supply pipes are correctly positioned and spaced for the S-connectors. Turn off the main water supply.
- Установите S-разъемы: Attach the S-connectors to the wall water outlets. Ensure they are level and correctly spaced (connection dimensions 137-163 mm).
- Mount the Shower System: Secure the main shower system unit onto the S-connectors. The unit has a projection of 382 mm from the wall.
- Прикрепите розетки: Place the two square metal rosettes (65 x 65 mm) over the S-connectors to cover the wall connections.
- Install Shower Rail: Mount the shower rail to the wall, ensuring it is vertical and securely fastened using the provided fixings.
- Attach Shower Head and Hand Shower: Connect the swivelling shower head to the top of the rail and the Idealflex shower hose (1750 mm) to the main unit and the stick hand shower. Place the hand shower in its adjustable holder.
- Проверьте на наличие утечек: Медленно откройте главный водопровод и проверьте все соединения на наличие протечек.
Figure 1: Technical drawing with dimensions for installation. Note the 1/2 inch connection for the shower hose and the 137-163 mm connection spacing for the main unit.

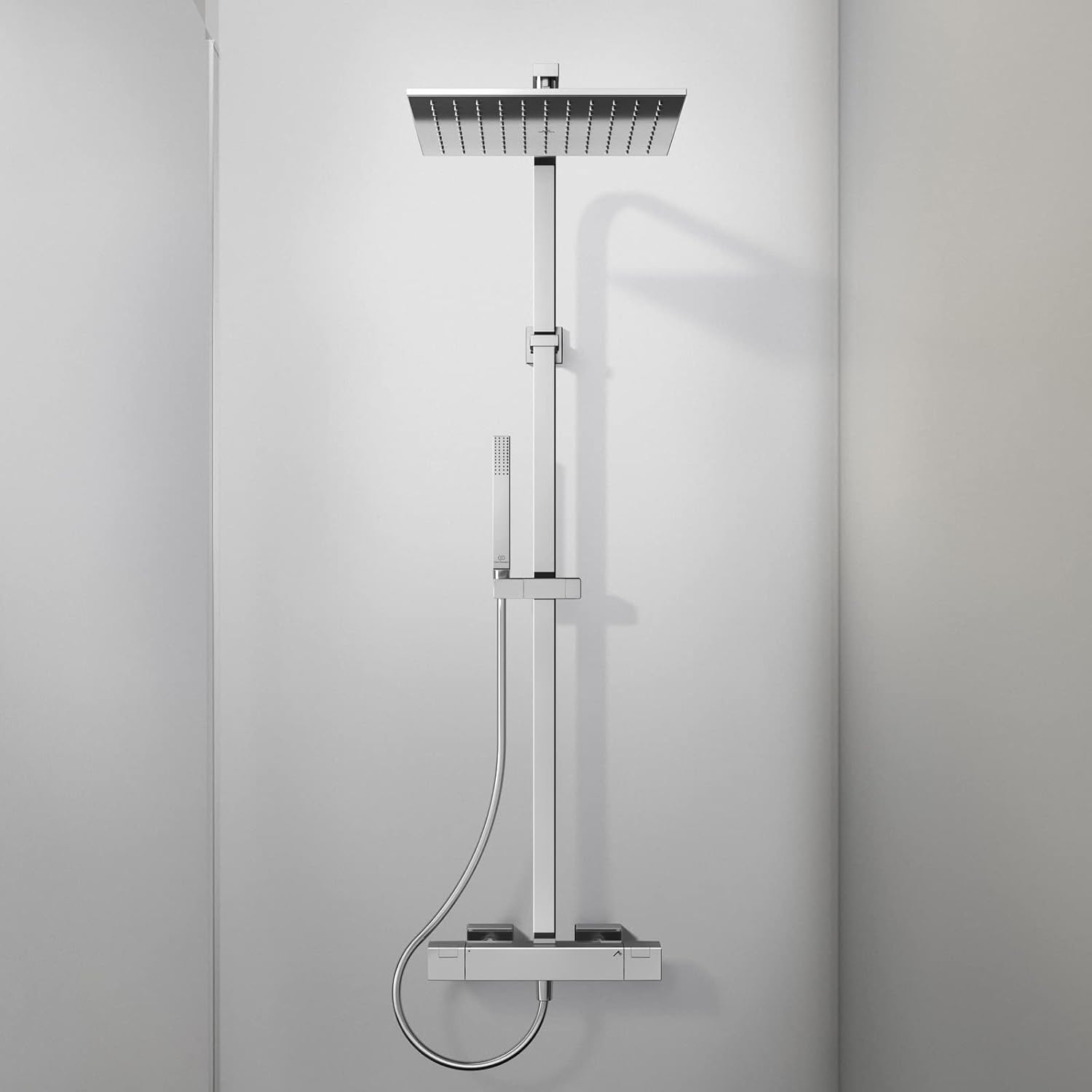

Рисунок 2: Передняя часть view of the Ceratherm T100 Shower System, showing the main unit, shower rail, hand shower, and overhead shower head.
5. Инструкция по эксплуатации
Your Ceratherm T100 Shower System is designed for intuitive use:
- Контроль расхода воды: The system features two metal handles. One handle controls the water flow rate.
- Контроль температуры: The other handle is for thermostatic temperature control. Rotate it to adjust the water temperature. Red and blue markings indicate hot and cold directions. The temperature lock at 40 degrees Celsius prevents accidental scalding.
- ЭКО-функция: The water-saving position (ECO) can be activated to reduce water consumption without significant loss of comfort.
- Diverter Unit: A switch unit with shut-off allows you to easily divert water flow between the overhead shower head and the hand shower.
- Душевая лейка: The main shower head provides a single rain jet type and is swivelling for adjustable coverage. It has a flow rate of 12 litres/min.
- Ручной душ: The stick-type hand shower has a flow rate of 8 litres/min (at 3 bar) and is held in an adjustable shower holder with a rotary knob.
Figure 3: Close-up of the thermostatic mixer unit, showing the temperature control and diverter handles.
6. Техническое обслуживание
Regular maintenance ensures the longevity and optimal performance of your shower system:
- Уборка: The system features an Легко чистить surface. Clean regularly with a soft cloth and mild, non-abrasive soap and water. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the chrome finish.
- Limescale Prevention: The anti-limescale function helps reduce mineral buildup. For areas with hard water, periodic cleaning of the shower head nozzles and hand shower with a descaling solution (following product instructions) may be beneficial.
- Обслуживание картриджа: The FirmaFlow cartridge is designed for durability. If you experience persistent temperature fluctuations or flow issues, consult a professional for cartridge inspection or replacement.
7. Поиск Неисправностей
Если у вас возникли проблемы с душевой системой, рассмотрите следующие распространенные решения:
- Низкий расход воды:
- Проверьте, полностью ли открыт основной водопровод.
- Inspect shower head and hand shower nozzles for limescale buildup or blockages. Clean as necessary.
- Ensure the ECO function is not inadvertently activated if full flow is desired.
- Непостоянная температура воды:
- Verify that both hot and cold water supplies are adequately pressurized.
- Ensure the thermostatic control is set correctly and not stuck at the 40-degree safety lock if higher temperatures are desired.
- If the issue persists, the thermostatic cartridge may require professional inspection or calibration.
- Утечки:
- Tighten all visible connections, ensuring not to overtighten.
- Check the condition of all rubber seals and O-rings. Replace if worn or damaged.
- If leaks originate from within the unit, professional service is recommended.
8. Технические характеристики
| Особенность | Спецификация |
|---|---|
| Бренд | Идеальный стандарт |
| Номер модели | А7542АА |
| Цвет | Хром |
| Материал | Brass (body), Metal (handles) |
| Тип отделки | Хром |
| Количество ручек | 2 |
| Вес товара | 5.7 килограммов (12.54 фунта) |
| Тип крепления | Wall Mount, Surface-mounted |
| Проекция | 382 мм |
| Rosette Size (W x H) | 65 х 65 мм |
| Длина душевого шланга | 1750 мм |
| Hand Shower Flow (at 3 bar) | 8 л / мин |
| Shower Head Flow | 12 litres/min (rain jet type) |
| Temperature Resistance (continuous) | 80 градуса по Цельсию |
| Temperature Resistance (peak) | 95 градуса по Цельсию |
| Noise Behaviour | DIN 4109 Group 1 |
| Функции безопасности | Cool Body, Temperature Lock at 40°C, DVGW Intrinsically Safe, Reverse Current Fuse |
9. Информация о гарантии
The Ideal Standard Ceratherm T100 Shower System (Model A7542AA) comes with an EU Spare Part Availability Duration of 10 года. For detailed warranty terms and conditions, please refer to the specific warranty documentation provided with your purchase. Keep your proof of purchase for any warranty claims.
10 Поддержка
For technical assistance, spare parts, or further inquiries regarding your Ideal Standard Ceratherm T100 Shower System, please contact Ideal Standard customer service. You can find up-to-date contact information and support resources on the official Ideal Standard webсайт: www.idealstandard.com.
