1. Введение
This instruction manual provides essential information for the proper installation, operation, and maintenance of the ALLIANCE LAUNDRY SYSTEMS Elbi Valve Diaphragm Kit, model G582P3. This kit is a genuine OEM replacement part designed for use in various laundry systems, including Cissell, Huebsch, IPSO, Speed Queen, Unimac, and Primus washers. It replaces part numbers G581P3 and F8425201. Please read this manual thoroughly before proceeding with any installation or maintenance.
2. Информация по технике безопасности
Во избежание травм или повреждения оборудования всегда соблюдайте следующие меры предосторожности:
- Отключить питание: Before beginning any work, ensure the laundry appliance is completely disconnected from its power source.
- Отключите подачу воды: Shut off the main water supply to the appliance to prevent water leakage.
- Используйте защитную одежду: Always wear appropriate personal protective equipment, such as safety glasses and gloves, to protect against potential hazards.
- Проконсультируйтесь со специалистом: Если вы не уверены в каком-либо шаге, проконсультируйтесь с квалифицированным специалистом.
- Обращаться с осторожностью: The diaphragm is a delicate component; avoid puncturing or tearing it during handling and installation.
3. Содержимое упаковки
The ALLIANCE LAUNDRY SYSTEMS Elbi Valve Diaphragm Kit (G582P3) typically includes the following components:
- 1x Elbi Valve Diaphragm (G582P3)

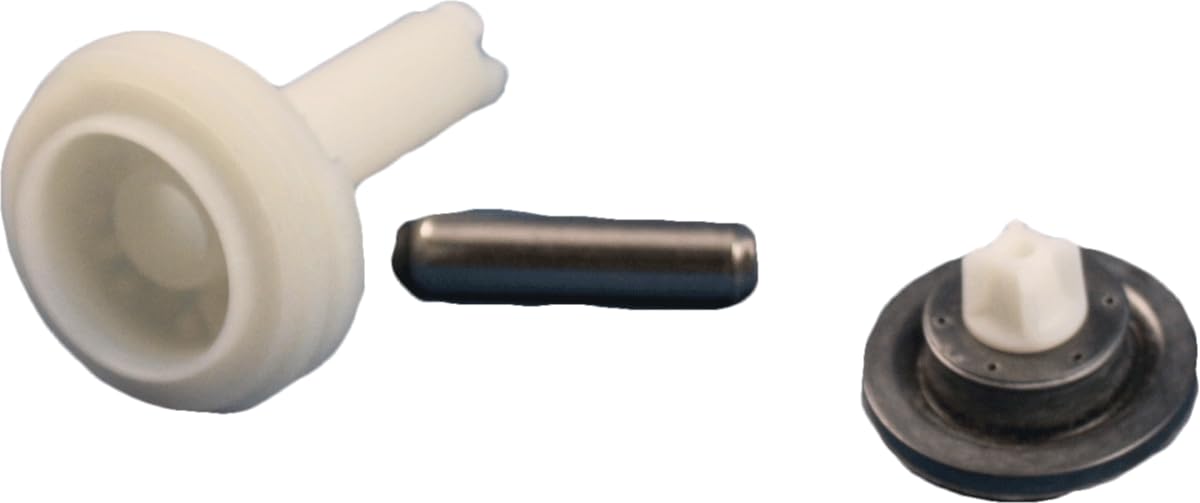

Figure 1: The ALLIANCE LAUNDRY SYSTEMS Elbi Valve Diaphragm Kit (G582P3). This image shows the replacement diaphragm, which is a crucial component for regulating water flow in laundry system valves.
4. Настройка и установка
Follow these steps carefully to replace the Elbi valve diaphragm:
- Подготовьте прибор: Ensure the laundry appliance is turned off, unplugged from the power outlet, and the water supply to the appliance is completely shut off.
- Locate the Elbi Valve: Identify the Elbi valve within your laundry system. Its location may vary depending on the specific appliance model.
- Слейте остатки воды: If possible, drain any residual water from the valve or connected hoses to minimize spillage during disassembly.
- Disassemble the Valve: Carefully unfasten the screws or clips holding the valve housing together. Note the orientation of all components as you disassemble them.
- Удалите старую диафрагму: Gently remove the old, worn, or damaged diaphragm from its seating. Inspect the valve interior for any debris or mineral buildup and clean if necessary.
- Установите новую диафрагму: Position the new G582P3 diaphragm into the valve housing. Ensure it is seated correctly and oriented precisely as the old one was. Improper seating can lead to leaks or malfunction.
- Reassemble the Valve: Carefully reassemble the valve housing, ensuring all screws or clips are securely fastened. Do not overtighten.
- Restore Services: Slowly turn the water supply back on and check for any leaks around the valve. Once confirmed leak-free, restore power to the appliance.
- Тестовая операция: Run a short cycle on the appliance to confirm proper water flow and valve operation.
5. Операция
The Elbi valve diaphragm is a critical component that regulates the flow of water into the laundry appliance. When installed correctly, it flexes to open and close water passages in response to pressure changes or solenoid activation, ensuring precise water delivery for various wash cycles. The diaphragm's integrity is essential for preventing leaks and maintaining efficient water control.
6. Техническое обслуживание
Regular inspection and timely replacement of the diaphragm are crucial for the longevity and proper functioning of your laundry system's Elbi valve:
- Периодическая проверка: Periodically inspect the valve area for any signs of water leakage, which could indicate a failing diaphragm.
- Diaphragm Condition: If disassembling the valve for other maintenance, visually inspect the diaphragm for cracks, tears, hardening, or excessive wear.
- Частота замены: The lifespan of a diaphragm can vary based on water quality, usage frequency, and operating conditions. Replace the diaphragm if any signs of degradation are observed or if the valve begins to malfunction.
- Уборка: Ensure the valve's internal components are free from mineral deposits or debris that could impede diaphragm movement.
7. Поиск Неисправностей
If you encounter issues after replacing the diaphragm, refer to the table below:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Water Leakage from Valve |
|
|
| No Water Flow / Restricted Flow |
|
|
| Valve Not Closing Properly |
|
|
8. Технические характеристики
- Номер детали: G582P3
- Производитель: Альянс Прачечные Системы
- Вес товара: Примерно 1.28 унции
- Размеры упаковки: Приблизительно 11.85 х 6.45 х 1.4 дюйма
- Совместимость: Fits Cissell, Huebsch, IPSO, Speed Queen, Unimac, Primus, Alliance Laundry Systems Washers.
- Заменяет номера деталей: G581P3, F8425201
9. Гарантия и поддержка
