Введение
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler Daya 54-inch LED Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Daya 54-inch ceiling fan features an LED light diffused through Satin Etched Cased Opal Glass, encased by a decorative cage. Its Satin Black finish offers a modern industrial and coastal aesthetic. The fan includes a variable blade pitch for efficient air movement and an integrated LED module to illuminate your room.

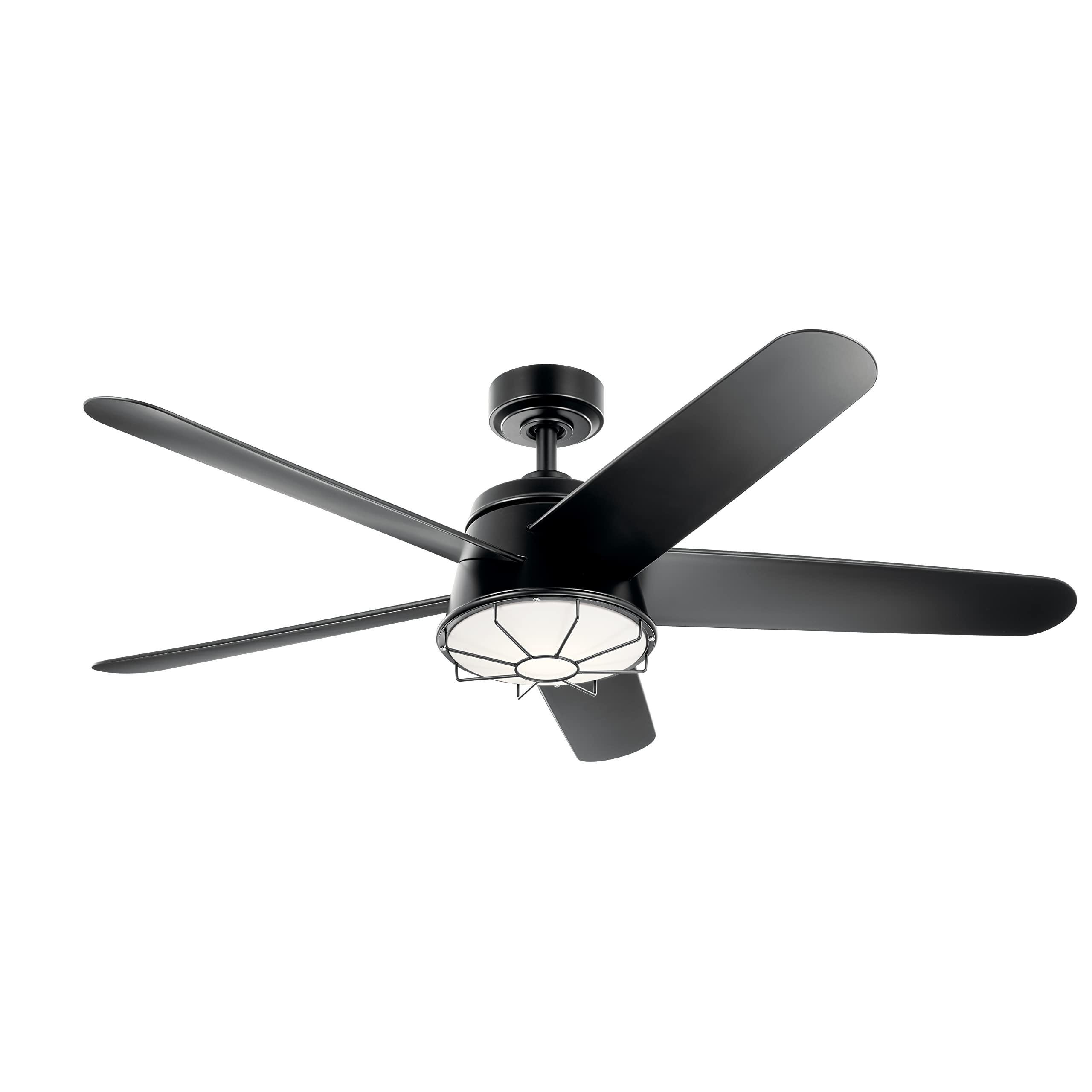

Изображение: общее view of the Kichler Daya 54-inch LED Ceiling Fan, showcasing its Satin Black finish and integrated LED light with an etched cased opal glass diffuser.
Информация по безопасности
WARNING: To reduce the risk of fire, electric shock, or personal injury, always turn off power at the main circuit breaker or fuse box before beginning installation or performing any maintenance.
- Вся электропроводка должна соответствовать национальным и местным электротехническим нормам. Если вы не знакомы с электромонтажными работами, обратитесь к квалифицированному электрику.
- Убедитесь, что место установки имеет прочную конструкцию и способно выдержать вес вентилятора (приблизительно 25.2 фунтов).
- Не используйте вентилятор с поврежденными лопастями или корпусом.
- Во время работы вентилятора держите руки, одежду и другие предметы подальше от лопастей.
- Этот вентилятор предназначен только для использования внутри помещений.
For detailed safety instructions, refer to the complete installation guide provided with your product.
Содержимое упаковки
Перед началом установки убедитесь, что все компоненты присутствуют:
- (5) 54-inch ABS fan blades
- (1) 172mm x 20mm AC motor
- (1) Монтажный комплект
- (1) Hanger System
- (1) 4.5 inch Down rod
- (1) LED module with Etched Cased Opal Glass
- (1) 65K Wall Control System-Full Function
Изображение: Крупный план view of the Kichler Daya fan blades, highlighting their satin black finish and durable ABS material.
Технические характеристики
| Особенность | Деталь |
|---|---|
| Бренд | Кихлер |
| Название модели | Дайя |
| Номер модели товара | 310072СБК |
| Цвет | Черный атлас |
| Конструкция электрического вентилятора | Потолочные вентиляторы |
| Источник питания | AC |
| Стиль | Традиционный |
| Размеры продукта | 54"Д x 54"Ш x 15.5"В |
| Тип комнаты | Гостиная |
| Специальная характеристика | Тяжелая работа |
| Рекомендуемое использование | Циркуляция воздуха |
| Ватtage | 23 Вт |
| Томtage | 120 Вольт |
| Вес товара | 25.2 фунта |
| Использование внутри и снаружи помещений | В помещении |
| Спецификация соответствует | Включено в список UL |
| Метод контроля | Remote (via 65K Wall Control System) |
| Эффективность | Высокая энергоэффективность |
| Количество уровней мощности | 3 |
| Тип двигателя | AC Индукция |
| Тип лампочки | ВЕЛ |
| Световой поток | 2200 Люмен |
Настройка (Установка)
Installation of a ceiling fan requires electrical knowledge and adherence to safety standards. Kichler recommends professional installation for optimal safety and performance.
Общая установка завершенаview:
- Подготовьте место установки: Ensure power is disconnected at the circuit breaker. Confirm the ceiling junction box is securely mounted and capable of supporting the fan's weight.
- Mount the Hanger Bracket: Attach the hanger bracket to the ceiling junction box using appropriate hardware.
- Соберите штангу и двигатель: Secure the downrod to the fan motor assembly.
- Подключите вентилятор: Подключите электрические провода вентилятора к бытовой электропроводке в соответствии со схемой подключения, приведенной в полной инструкции по эксплуатации.
- Прикрепите лопасти вентилятора: Надежно прикрепите пять лопастей вентилятора к корпусу двигателя.
- Установите комплект освещения: Connect and install the LED module with the Etched Cased Opal Glass.
- Install the Wall Control: Wire and install the 65K Wall Control System according to its specific instructions.
For detailed, step-by-step installation instructions, including wiring diagrams and specific hardware requirements, please refer to the comprehensive installation manual included with your Kichler Daya Ceiling Fan. Failure to follow these instructions can result in electric shock, fire, or personal injury.
Изображение: подробное view of the Kichler Daya fan's central light fixture, showing the etched cased opal glass diffuser and the surrounding decorative cage.
Инструкция по эксплуатации
Your Kichler Daya Ceiling Fan is controlled by the included 65K Wall Control System, which offers full functionality for fan speed and light operation.
Работа вентилятора:
- The fan features three distinct speed settings: Low, Medium, and High.
- Use the fan speed buttons on the wall control to cycle through the desired speed or turn the fan off.
- The variable blade pitch is designed to optimize air movement across all speeds.
Легкая операция:
- The integrated LED light can be turned On or Off using the dedicated light button on the wall control.
- The LED module provides 2200 lumens of ambient light.
Refer to the 65K Wall Control System manual for specific button functions and advanced features.
Обслуживание
Regular maintenance ensures the longevity and optimal performance of your Kichler Daya Ceiling Fan.
- Уборка: Dust the fan blades and motor housing periodically with a soft, lint-free cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Очистка стекла: The Etched Cased Opal Glass can be cleaned with a mild glass cleaner and a soft cloth. Ensure the light is off and cool before cleaning.
- Проверка лезвия: Periodically check the fan blades for any signs of damage or warping. The durable plastic blades are designed to resist warping in moisture.
- Затяжка крепежа: Annually, check all screws and fasteners on the fan and mounting hardware to ensure they are secure.
CAUTION: Always disconnect power to the fan at the circuit breaker before cleaning or performing any maintenance.
Поиск неисправностей
If you experience issues with your Kichler Daya Ceiling Fan, consult the following common troubleshooting steps:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Вентилятор не запускается | No power to the fan; loose wire connections; incorrect wall control settings. | Check circuit breaker/fuses. Ensure all wire connections are secure. Verify wall control is set to ON and desired speed. |
| Свет не работает | Loose wire connections; faulty LED module; incorrect wall control settings. | Check wire connections to the light kit. Ensure wall control light button is pressed. If issues persist, contact Kichler support for LED module replacement. |
| Покачивание вентилятора | Неплотно закрепленные лопасти или крепежные элементы; несбалансированные лопасти. | Ensure all blade screws and mounting hardware are tight. Use a balancing kit (not included) if necessary. |
| Шумная работа | Ослабленные винты; проблемы с двигателем; лезвия сталкиваются с препятствием. | Check all screws for tightness. Ensure no obstructions are in the fan's path. If motor noise persists, contact Kichler support. |
If these steps do not resolve the issue, please contact Kichler customer support or a qualified electrician.
Гарантия и поддержка
Your Kichler Daya 54-inch LED Ceiling Fan is backed by a Ограниченная пожизненная гарантия. Данная гарантия распространяется на дефекты материалов и изготовления при нормальном использовании и обслуживании.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Kichler Customer Support:
- Webсайт: www.kichler.com
- Телефон: Refer to the Kichler webсайт региональных контактных телефонов.
- Please have your model number (310072SBK) and date of purchase available when contacting support.
