1. Введение
Thank you for choosing the GoHawk RE9-X Motorcycle/UTV Bluetooth Speaker System. This manual provides essential information for the proper installation, operation, and maintenance of your new speaker system. Please read this manual thoroughly before use to ensure optimal performance and safety.
Image 1.1: GoHawk RE9-X Speaker System Overview
The GoHawk RE9-X is a waterproof speaker system designed for motorcycles, ATVs, UTVs, 4-wheelers, Go-Karts, and Golf Karts. It features Bluetooth wireless connectivity, an integrated LED light strip, AUX-in, FM radio, and a USB port for MP3 playback.
2. Информация по технике безопасности
- Always ensure the speaker system is securely mounted to prevent detachment during vehicle operation.
- Verify all wiring connections are correct and insulated to avoid electrical shorts or damage.
- Do not operate the speaker system at excessively high volumes that may impair your ability to hear traffic or emergency signals.
- This product is designed for 12V DC power systems only. Connecting to other voltagИсточники могут причинить вред.
- While the unit is waterproof, avoid submerging it in water or exposing it to high-pressure water jets.
3. Содержимое упаковки
Проверьте комплектацию на наличие следующих предметов:
- 1 x Speaker Stereo Main Unit
- 2 х крепления Clamps
- 1 x силовой жгут
- 1 x Руководство пользователя (этот документ)
4. Особенности
The GoHawk RE9-X speaker system offers a range of features for an enhanced audio experience:
- Беспроводная связь Bluetooth: Stream audio from compatible devices.
- 24 White LEDs Strip: Integrated lighting feature, controllable with one click.
- Порт USB 2.0: Поддерживает MP3 file playback from USB drives.
- ДОПОЛНИТЕЛЬНЫЙ ВХОД: 3.5-мм аудиовход для проводного подключения.
- FM-радио: Встроенный радиотюнер.
- Display with Clock: Digital display for information and time.
- Водонепроницаемый дизайн: Advanced protection against water exposure.
- Алюминиевый корпус: Durable and satin-finished construction.
- Innovative Mounting: Ball stub design with 360-degree swivel for flexible installation.

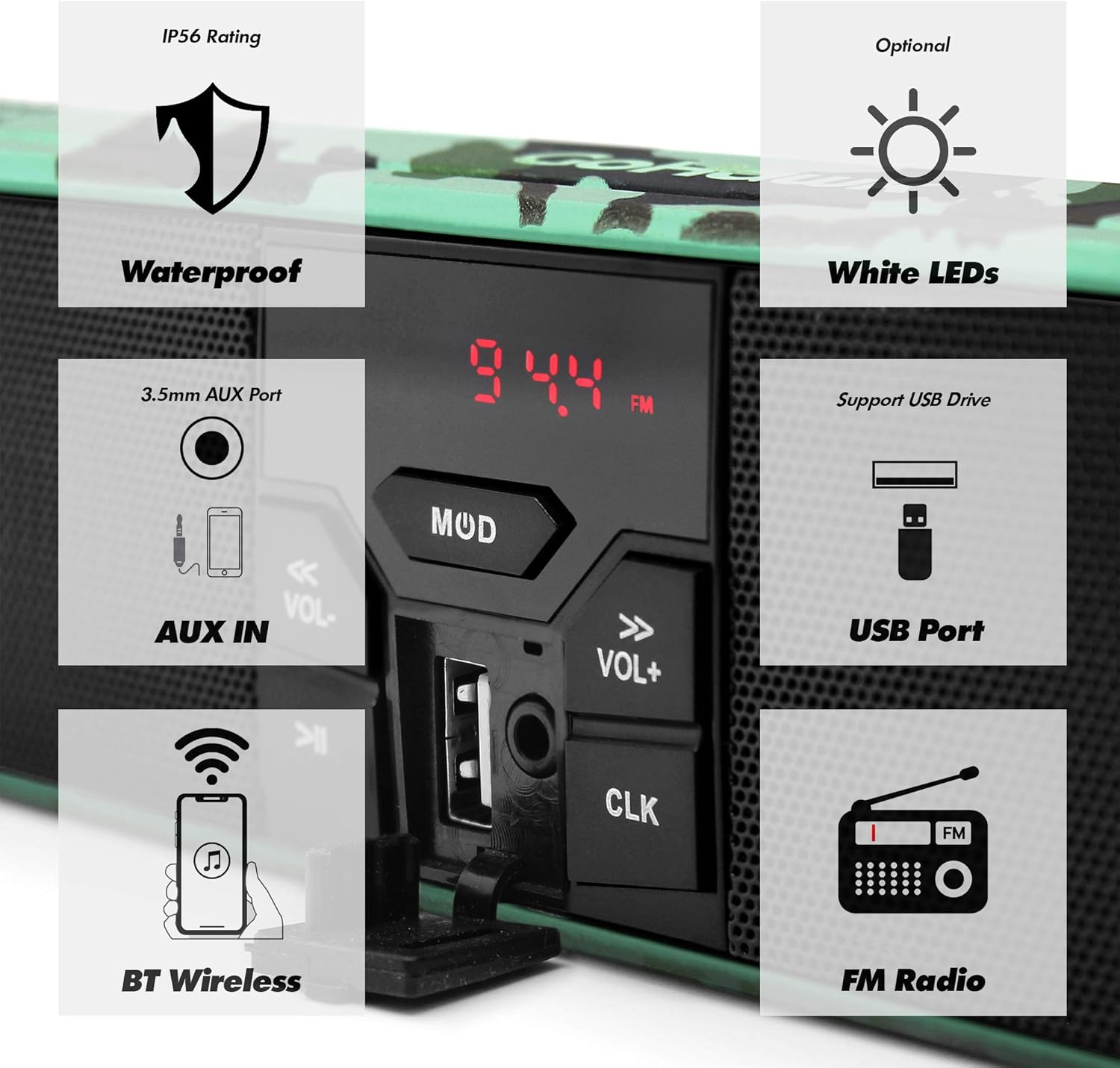

Image 4.1: Key Features of the RE9-X System
5. Установка и настройка
5.1 Handlebar Clearance Measurement
Before installation, measure your handlebar's center clearance. The RE9-X model has an overall width of 18-1/4 inches. If your clearance is smaller, consider the RE8 model (16-3/4 inches overall width).

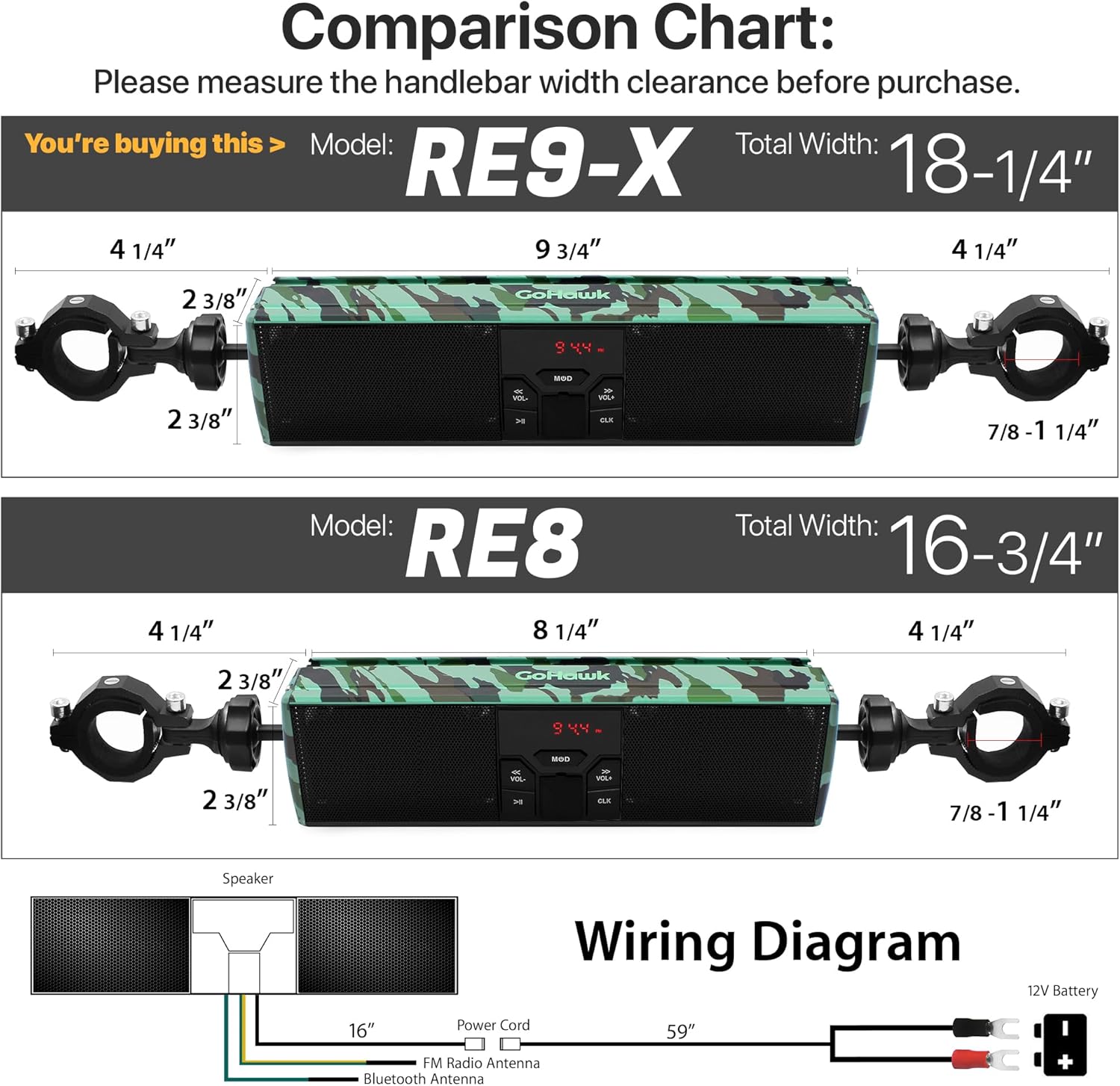

Image 5.1: Handlebar Clearance Comparison and Wiring Diagram
5.2 Монтаж акустической системы
- Прикрепите монтажный зажимamps to your vehicle's handlebar. The clamps support handlebar sizes from 7/8 inch to 1 1/4 inches.
- Secure the speaker unit to the mounting clamps using the ball stub design. This allows for 360-degree swivel adjustment to achieve the desired angle.
- Ensure all mounting bolts are tightened securely to prevent movement during operation.

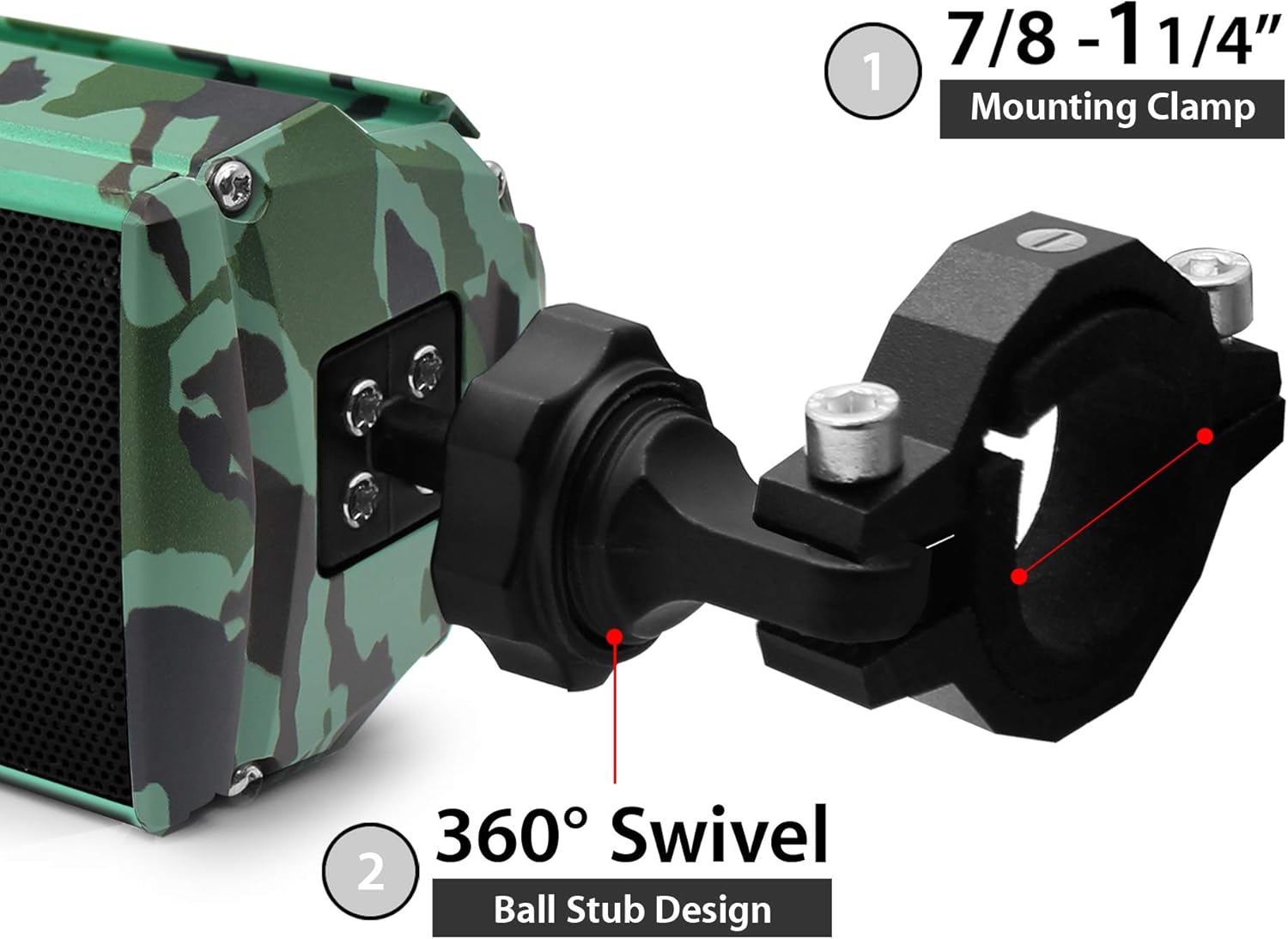

Image 5.2: Mounting Clamp and Swivel Mechanism
5.3 Подключение проводки
The system includes a 59-inch battery cable harness with ring terminal connectors for direct connection to your 12V DC battery.
- Connect the red wire of the power harness to the positive (+) terminal of your 12V battery.
- Connect the black wire of the power harness to the negative (-) terminal of your 12V battery.
- Ensure all connections are tight and properly insulated to prevent short circuits.
- Route the wiring safely, away from moving parts or heat sources, and secure it with cable ties if necessary.
Image 5.3: Power Harness Wiring Diagram
Image 5.4: Speaker System Mounted on Handlebar
6. Операция
6.1 Включение/выключение питания
Нажмите МОД кнопка для включения или выключения устройства.
6.2 Выбор режима
Нажмите МОД button repeatedly to cycle through available modes: Bluetooth, FM Radio, AUX-IN, USB.
6.3 Регулятор громкости
Используйте ГРОМКОСТЬ+ и VOL- кнопки для регулировки уровня громкости.
6.4 Сопряжение по Bluetooth
- Switch the speaker system to Bluetooth mode. The display will indicate pairing readiness.
- На своем мобильном устройстве включите Bluetooth и выполните поиск доступных устройств.
- Select "GoHawk RE9-X" (or similar name) from the list to pair.
- Once paired, you can stream audio wirelessly. The wireless transmission range is typically over 15 meters.
6.5 Работа FM-радио
- Switch the speaker system to FM Radio mode.
- Используйте Предыдущий трек и Следующий трек buttons (often labeled with arrows) to scan for radio stations.
- The display will show the current frequency (e.g., 94.4 FM).
6.6 Воспроизведение через USB
- Вставьте USB-накопитель с MP3-файлами. files в порт USB.
- Switch the speaker system to USB mode.
- Система автоматически начнет воспроизведение MP3-файлов. fileс. Использовать Предыдущий трек и Следующий трек кнопки для навигации по трекам.
6.7 AUX-IN Usage
Connect an external audio device (e.g., MP3 player) to the 3.5mm AUX-IN port using a standard audio cable. Switch the speaker system to AUX-IN mode to play audio from the connected device.
6.8 светодиодные ленты
The integrated 24 white LED strip can be turned on or off with a single click of the dedicated LED button (often indicated by an arrow icon).
Image 6.1: Illuminated LED Strip
6.9 Дисплей часов
The digital display also functions as a clock. Refer to the specific button on your unit (often labeled КЛК) for setting the time.
7. Техническое обслуживание
- Уборка: Используйте мягкий, damp cloth to clean the speaker unit. Avoid harsh chemicals or abrasive cleaners.
- Водонепроницаемый уход: Although waterproof, ensure all ports (USB, AUX-IN) are covered when not in use to maintain water resistance.
- Проверка связи: Periodically check all wiring connections for corrosion or looseness, especially after riding in wet conditions.
- Монтаж безопасности: Regularly inspect the mounting clamps and bolts to ensure they remain tight and secure.

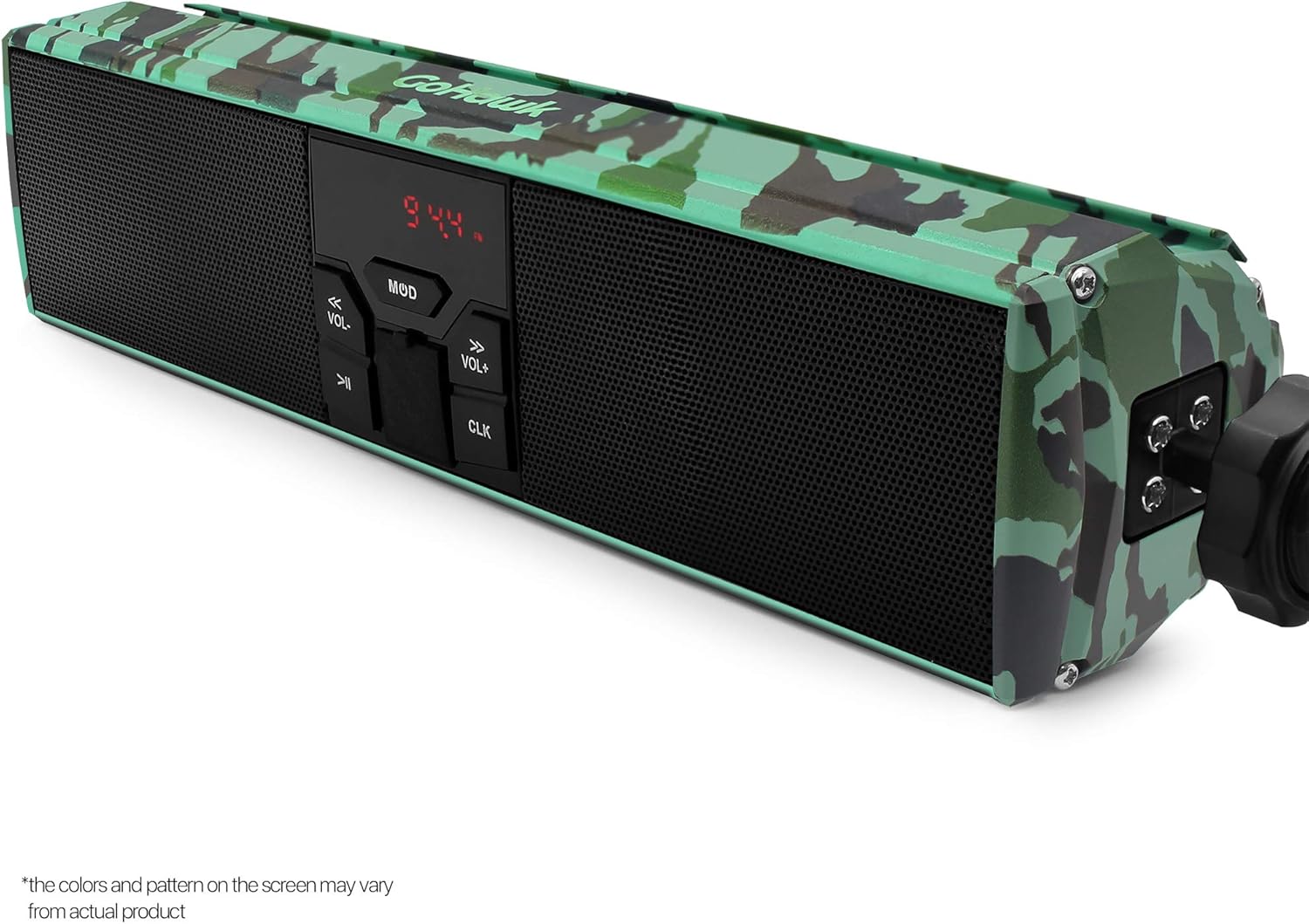

Image 7.1: Aluminum Housing with Camo Green Finish
8. Поиск Неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Нет электричества | Плохое соединение в цепи питания, перегоревший предохранитель, низкий уровень заряда батареи.tage. | Check power harness connections. Verify battery voltage. Inspect vehicle's fuse box. |
| Нет звука | Volume too low, incorrect mode, device not paired (Bluetooth), faulty cable (AUX). | Increase volume. Select correct input mode. Re-pair Bluetooth device. Check AUX cable. |
| Bluetooth не подключается | Динамик не находится в режиме сопряжения, устройство находится слишком далеко, возникают помехи. | Ensure speaker is in Bluetooth mode. Move device closer. Restart both devices. |
| Плохой прием FM | Weak signal, interference, antenna obstruction. | Relocate vehicle for better signal. Scan for stronger stations. |
| Проблемы с воспроизведением через USB | Неподдерживаемый file format, corrupted USB drive, drive not properly inserted. | Гарантировать files are MP3 format. Try a different USB drive. Reinsert USB drive. |
9. Технические характеристики
| Особенность | Спецификация |
|---|---|
| Модель | RE9-Х |
| Номинальный объемtage | 12 В постоянного тока |
| Максимальная входная мощность | 12W x 2 |
| Номинальное сопротивление | 4 - 8 Ом |
| Версия Bluetooth | 4.0 |
| Диапазон беспроводной передачи | > 15m (49.21 feet) |
| Диапазон частот | 20Hz - 20KHz |
| FM Обложка | 87.5 - 108 МГц |
| Чувствительность FM | ≤37дБ |
| Искажение FM | ≤0.5% |
| FM-сигнал/шум | ≥40дБ |
| AUX-IN | 3.5-мм разъем |
| Поддержка USB | USB-накопитель в формате MP3 |
| Speaker Width (Body) | 9-3/4 дюйма. |
| Speaker Width (Overall) | 18-1/4 дюйма. |
| Руль Clamp Размер | 7/8 to 1-1/4 in. |
| Материал | Алюминий |
| Уровень водонепроницаемости | Водонепроницаемый |
10. Информация о гарантии
This GoHawk product comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your purchase or contact GoHawk customer support.
11. Поддержка клиентов
If you encounter any issues or have questions regarding your GoHawk RE9-X speaker system that are not covered in this manual, please contact GoHawk customer support for assistance. Contact information can typically be found on the product packaging or the official GoHawk webсайт.
