Введение
This instruction manual provides essential information for the proper installation, operation, and maintenance of your Ideal Standard A862288NU Metering Valve Hot/Cold Cartridge. Please read this manual thoroughly before installation and retain it for future reference.
The Ideal Standard A862288NU is designed for use in specific self-closing shower applications. It is important to note that this cartridge is нет suitable for Avin 21 self-closing taps.
Информация по безопасности
- Перед установкой или обслуживанием всегда перекрывайте подачу воды.
- Если вы не уверены в какой-либо части процесса установки, проконсультируйтесь с квалифицированным сантехником.
- Use appropriate tools and wear personal protective equipment (PPE) such as gloves and eye protection.
- Убедитесь, что все соединения надежно закреплены и водонепроницаемы, чтобы предотвратить протечки.
Продукт болееview
The A862288NU is a replacement metering valve cartridge for hot/cold water applications. It is primarily constructed from brass with internal components designed for durability and precise water flow control.

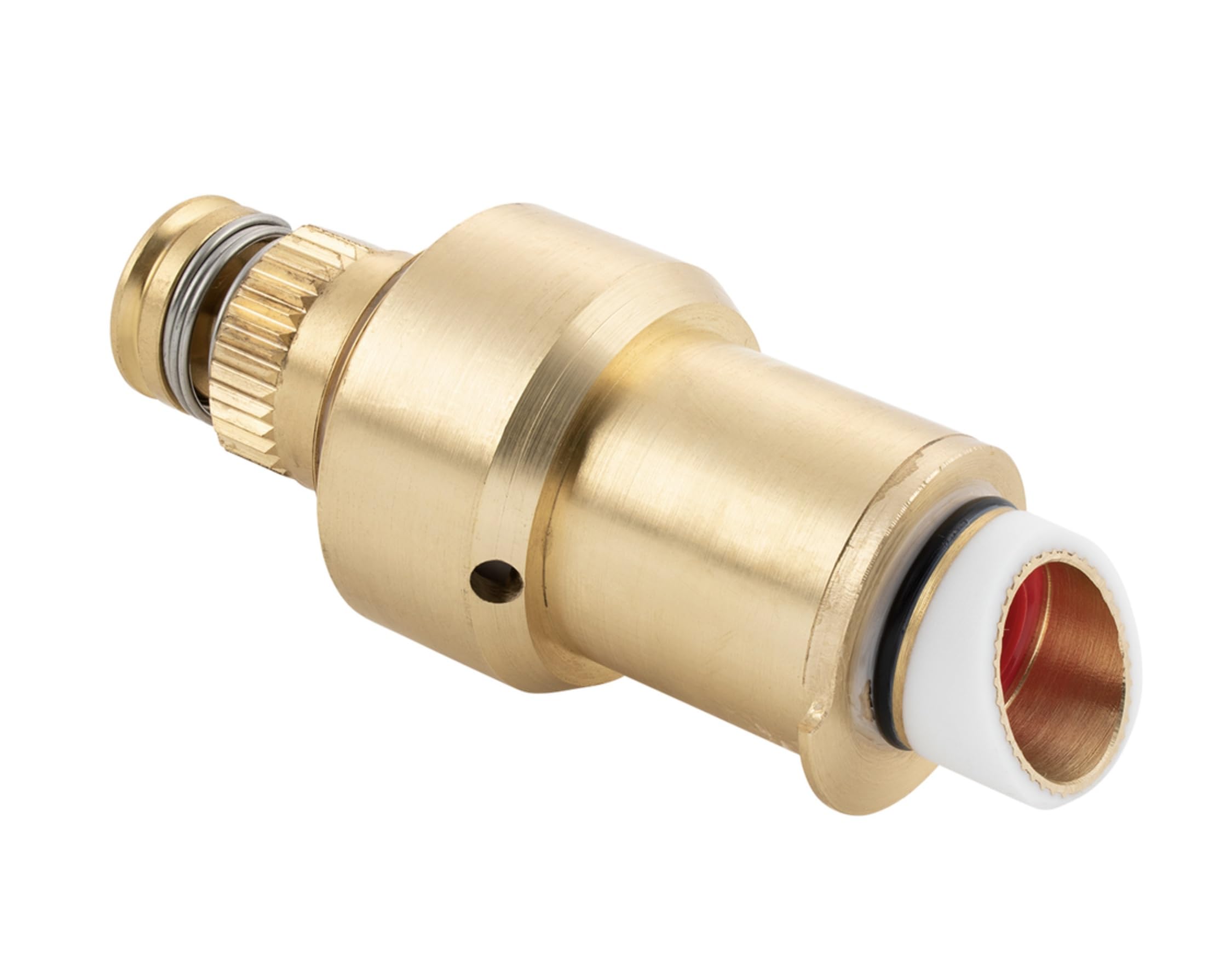

Рисунок 1: Ideal Standard A862288NU Metering Valve Hot/Cold Cartridge. This image shows the brass cartridge with a white plastic tip on one end and a spring mechanism on the other, indicating its internal valve function.
Настройка и установка
- Подготовка: Turn off the main water supply to the fixture where the cartridge will be installed. Drain any remaining water from the pipes.
- Получите доступ к картриджу: Depending on your specific shower unit (e.g., Avon 21 self-closing shower), you will need to remove the handle, trim, and any retaining nuts or screws to access the existing cartridge. Refer to your shower unit's specific instructions for disassembly.
- Удалите старый картридж: Carefully extract the old metering valve cartridge. Note its orientation for correct installation of the new one.
- Установите новый картридж: Insert the Ideal Standard A862288NU cartridge into the valve body, ensuring it is seated correctly and oriented as the old one was.
- Безопасный картридж: Re-install any retaining nuts, screws, or clips that hold the cartridge in place. Do not overtighten.
- Сборка приспособления: Reattach the trim and handle components.
- Тест: Slowly turn the main water supply back on. Check for any leaks around the newly installed cartridge. Operate the shower to ensure proper function and water flow.
Важное примечание: This cartridge is specifically designed for Avon 21 self-closing showers. It is нет compatible with Avin 21 self-closing taps.
Инструкция по эксплуатации
Once installed, the metering valve cartridge controls the flow duration of water in your self-closing shower. When the shower is activated (e.g., by pressing a button or lever), the cartridge allows a measured amount of water to flow before automatically shutting off. The duration of flow is pre-set by the design of the metering valve.
- Активация: Press or activate the shower control.
- Расход воды: Water will flow for a pre-determined period.
- Автоматическое отключение: The cartridge will automatically close the water flow after the cycle completes.
Обслуживание
The Ideal Standard A862288NU metering valve cartridge is designed for long-term reliability. Regular maintenance is generally not required for the cartridge itself, beyond ensuring proper installation and checking for leaks.
- Проверка на герметичность: Periodically inspect the shower unit for any signs of water leaks around the cartridge area. Address any leaks promptly.
- Уборка: Clean the exterior of the shower fixture according to the manufacturer's instructions for the shower unit. Avoid harsh chemicals that could damage seals or finishes.
- Качество воды: In areas with hard water, mineral deposits can sometimes affect valve performance over time. If you experience inconsistent flow or premature shut-off, the cartridge may need inspection or replacement.
Поиск неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Water continues to flow after activation cycle. | Faulty cartridge seal or internal mechanism. | Replace the metering valve cartridge. |
| Отсутствие или очень слабый напор воды. |
|
|
| Water leaks from around the cartridge area. |
|
|
Технические характеристики
- Номер модели: A862288NU
- Номер детали: A862288NU
- Производитель: Идеальный стандарт
- Вес товара: Примерно 10.2 унций (289 грамм)
- Совместимость: Suitable for Avon 21 self-closing showers. Нет for Avin 21 self-closing taps.
- Материал: Brass (main body)
Информация о гарантии
For specific warranty details regarding the Ideal Standard A862288NU metering valve cartridge, please refer to the warranty documentation provided with your original Ideal Standard product or visit the official Ideal Standard webУсловия гарантии обычно распространяются на производственные дефекты при нормальных условиях эксплуатации.
Поддержка и контакты
If you require further assistance or have questions not covered in this manual, please contact Ideal Standard customer support. You can typically find contact information on the official Ideal Standard webсайт или через вашего розничного продавца продукции.
For technical support or to purchase replacement parts, please visit: www.idealstandard.com
