1. Введение
This manual provides detailed instructions for the installation, operation, and maintenance of your NewAir 15" Outdoor Beverage Refrigerator, Model NOF090SS00. This appliance is designed for outdoor use, featuring weatherproof stainless steel construction and a 90-can capacity, suitable for both built-in and freestanding applications. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation.
Figure 1.1: NewAir 15" Outdoor Beverage Refrigerator (Model NOF090SS00)
Figure 1.2: Key features for outdoor use, including temperature maintenance, rust resistance, and portability.
2. Информация по технике безопасности
Ваша безопасность и безопасность других очень важны. Мы предоставили много важных сообщений по безопасности в этом руководстве и на вашем устройстве. Всегда читайте и соблюдайте все сообщения по безопасности.
- Электробезопасность: Убедитесь, что прибор подключен к надежно заземленной розетке. Не используйте удлинители или незаземленные адаптеры.
- Вентиляция: Maintain adequate clearance around the appliance for proper ventilation, especially if built-in. Blocked vents can lead to overheating and reduced performance.
- Использование вне помещений: This appliance is designed for outdoor use and is constructed with weatherproof materials. However, avoid direct exposure to extreme weather conditions if possible, and ensure the electrical outlet is suitable for outdoor environments.
- Безопасность детей: Do not allow children to play with or inside the appliance. Proper supervision is necessary when the appliance is used near children.
- Легковоспламеняющиеся материалы: Не храните и не используйте бензин или другие легковоспламеняющиеся пары и жидкости вблизи этого или любого другого прибора.
- Обслуживание: All servicing should be performed by a qualified service technician.
3. Настройка и установка
Unpack your refrigerator and prepare it for use by following these steps.
3.1 Распаковка
- Удалите все упаковочные материалы, включая пенопласт и клейкую ленту.
- Inspect the refrigerator for any shipping damage. Report any damage to the retailer immediately.
- Keep packaging materials until you are satisfied with the product's condition.
3.2 Местоположение и размещение
The NewAir NOF090SS00 is designed for both freestanding and built-in applications.
- Отдельностоящая установка: Place the unit on a flat, stable surface. The integrated easy-glide casters allow for convenient repositioning. Ensure there is adequate space around the unit for air circulation.
- Встроенная установка: The refrigerator features flushed hinges and a recessed kickplate, making it suitable for installation into a standard 15-inch counter opening. Ensure proper ventilation is maintained around the compressor area.
Figure 3.1: The refrigerator can be used as a portable freestanding unit or built into outdoor cabinetry.

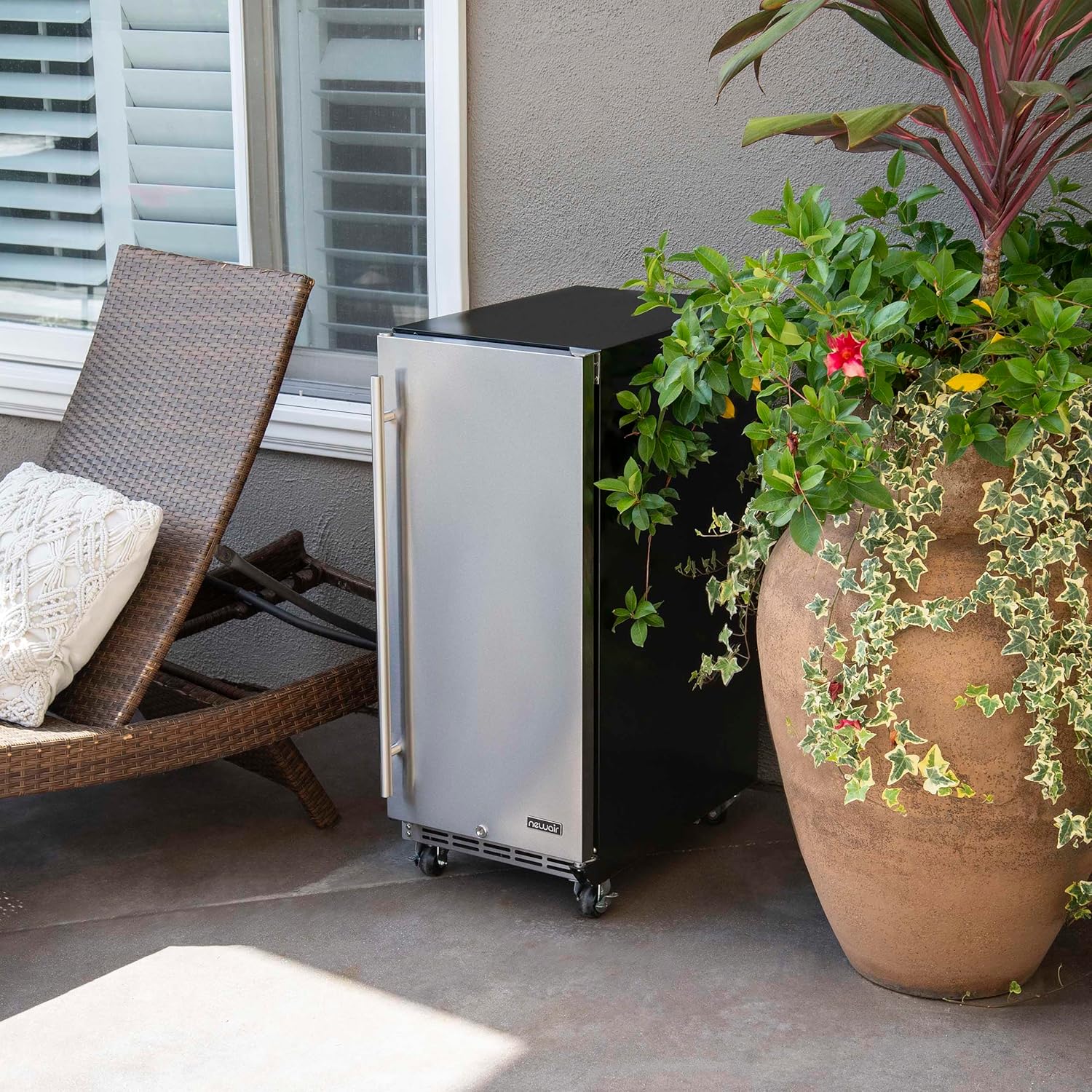

Рисунок 3.2: Example of freestanding placement on a patio.
Рисунок 3.3: Example of built-in placement in an outdoor kitchen.
Figure 3.4: Easy-glide casters for mobility.
3.3 Прокачка
It is important for the refrigerator to be level to function properly. Adjust the leveling feet (if applicable, or ensure casters are locked) to ensure the unit is stable and level.
3.4 Электрическое подключение
Before plugging in the appliance, allow it to stand upright for at least 24 hours. This allows the refrigerant to settle. Connect the refrigerator to a dedicated, grounded 120 Volt, 60 Hz AC outlet. Do not use an extension cord.
4. Инструкция по эксплуатации
Familiarize yourself with the controls and features of your NewAir beverage refrigerator.
4.1 Контроль температуры
The refrigerator features a digital temperature control panel located inside the unit.
Figure 4.1: Digital Temperature Control Panel.
- Используйте + и - buttons to adjust the desired temperature. The temperature can be set as low as 32°F (0°C).
- Цифровой дисплей показывает текущую внутреннюю температуру.
4.2 Внутреннее светодиодное освещение
The refrigerator is equipped with an internal LED light that automatically illuminates when the door is opened, and turns off when the door is closed. There may also be a manual light button on the control panel.
4.3 Auto-Closing Door
The appliance features an auto-closing door mechanism to ensure the door is not accidentally left ajar, helping to maintain internal temperature and energy efficiency.
Figure 4.2: Auto-closing door feature.
4.4 Adjustable Shelves and Capacity
The refrigerator includes adjustable wire shelves, allowing you to customize the internal storage space to accommodate various sizes of beverages and food items. The unit has a capacity of up to 90 standard 12 fl. oz. cans.
Рисунок 4.3: Интерьер view шоуcasing can capacity.
Figure 4.4: Flexible storage for cans and bottles.

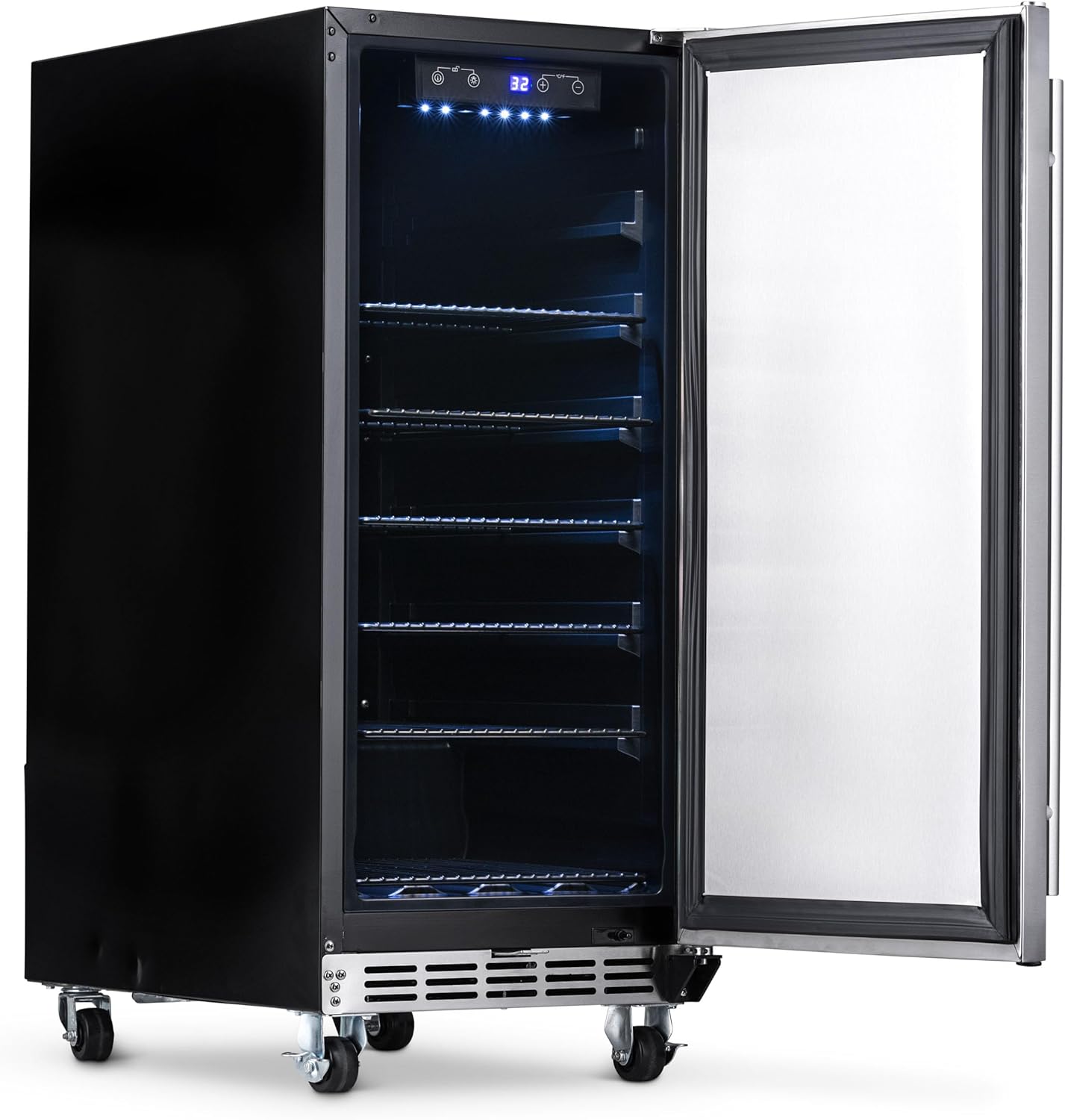

Figure 4.5: Interior with shelves removed, demonstrating adjustability.
4.5 Дверной замок
The refrigerator is equipped with a door lock for security. Use the provided keys to lock and unlock the door.
Figure 4.6: Door lock and keys.
5. Техническое обслуживание
Regular maintenance helps ensure the longevity and optimal performance of your refrigerator.
5.1 Очистка
- Интерьер: Unplug the unit before cleaning. Use a soft cloth and a mild, non-abrasive cleaner to wipe down the interior surfaces and shelves. Rinse with clean water and dry thoroughly.
- Экстерьер: Clean the stainless steel exterior with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners or scouring pads that can scratch the surface.
- Прокладка двери: Regularly clean the door gasket to ensure a tight seal. A dirty or damaged gasket can lead to poor cooling performance.
5.2 Размораживание
This appliance features an automatic defrost system. Frost buildup on the evaporator will melt during the off-cycle of the compressor and drain into a drip tray where it evaporates.
6. Поиск Неисправностей
Прежде чем обращаться в службу поддержки клиентов, ознакомьтесь со следующим руководством по устранению распространенных проблем.
| Проблема | Возможная причина | Решение |
|---|---|---|
| Холодильник не работает. | На блок не подается питание. | Проверьте, надежно ли вставлен шнур питания в исправную розетку. Проверьте автоматический выключатель. |
| Температура недостаточно низкая. | Door not closed properly; excessive door openings; warm items placed inside; poor ventilation; ambient temperature too high. | Ensure door is fully closed. Reduce frequency of door openings. Allow warm items to cool before placing inside. Ensure adequate clearance for ventilation. Unit is designed for outdoor use, but extreme heat can affect performance. |
| Устройство издает необычные звуки. | Нормальные рабочие звуки (компрессор, вентилятор); агрегат установлен неровно. | Some sounds are normal. Ensure the unit is level to prevent rattling. |
| Door handle is loose or difficult to install. | Неправильная установка или ослабленные винты. | Refer to the assembly instructions for the handle. Ensure all screws are tightened properly. Do not overtighten. |
7. Технические характеристики
Technical specifications for the NewAir 15" Outdoor Beverage Refrigerator.
| Спецификация | Ценить |
|---|---|
| Название бренда | НьюЭйр |
| Информация о модели | NOF090SS00 |
| Вес товара | 61.8 фунта |
| Размеры продукта | 23.25 x 15 x 36 дюйма (Д x Ш x В) |
| Емкость | 3.2 Liters (90 Can Capacity) |
| Годовое потребление энергии | 250 киловатт-часов в год |
| Тип установки | Встраиваемый / Отдельностоящий |
| Форм-фактор | Компактный |
| Особые возможности | Auto-Closing Door, Easy Glide Casters, Weatherproof Stainless Steel |
| Цвет | Нержавеющая сталь |
| Консоль управления | Manual (Digital Display) |
| Томtage | 120 Вольт |
| Ватtage | 85 Вт |
| Полки | 4 проволочные полки |
| Система размораживания | Автоматический |
| Дверные петли | Верно |
| Сертификация | ETL/cETL |
| Включенные компоненты | Колеса |
Рисунок 7.1: Размеры изделия.
8. Гарантия и поддержка клиентов
NewAir stands behind the quality of its products.
- Гарантия: На данный товар распространяется 1-летняя гарантия производителя с даты покупки. Для предъявления гарантийных претензий сохраните чек.
- Возврат: The product is eligible for 30-day hassle-free product returns.
- Служба поддержки клиентов: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official NewAir webсайте или обратитесь в их отдел обслуживания клиентов.
Figure 8.1: Warranty and Return Information.
