1. Введение
The Taylor Pro Dual Digital Kitchen Timer is designed for precise timing in various kitchen tasks. This versatile timer features two independent countdown timers (T1 and T2), a stopwatch function, and a 24-hour clock display. Its dual functionality allows for simultaneous tracking of different cooking times, making it an essential tool for busy kitchens. The timer is equipped with a large LCD display for easy readability, distinct alarms for each timer, and multiple placement options for convenience.
2. Настройка
2.1. Установка аккумулятора
The timer requires one (1) AAA battery (not included). To install the battery:
- Найдите отсек для батареек на задней панели таймера.
- Откройте крышку батарейного отсека.
- Вставьте одну батарейку типа AAA, соблюдая полярность (+/-).
- Плотно закройте крышку батарейного отсека.
Note: If the display does not light up or appears dim, ensure the battery is correctly inserted or replace it with a fresh one.
2.2. Варианты размещения
Таймер предлагает гибкие варианты размещения:
- Flip-Out Stand: Extend the integrated stand on the back of the timer to place it upright on any flat surface, such as a countertop or table.

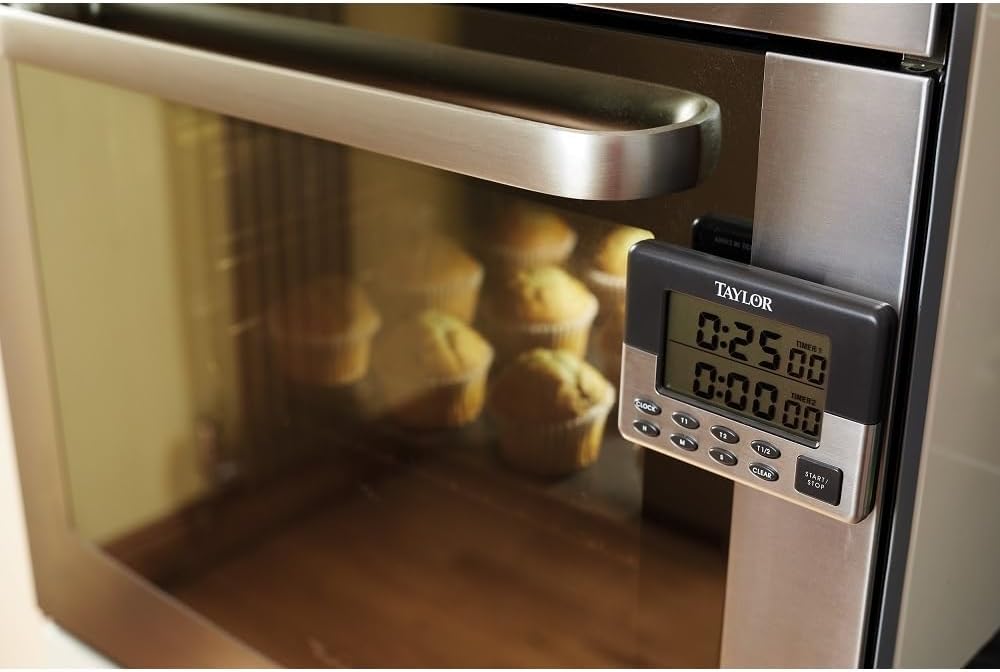

- Магнитная спинка: The timer features a magnetic back, allowing it to be securely attached to metallic surfaces like refrigerators or oven doors for easy visibility.
3. Инструкция по эксплуатации
3.1. Установка часов
When not in timer mode, the top display shows the current time. To set the clock:
- Press the 'CLOCK' button to enter clock setting mode.
- Use the 'H' (Hour) and 'M' (Minute) buttons to adjust the time.
- Press 'CLOCK' again to confirm and exit setting mode.
3.2. Setting Countdown Timers (T1 and T2)
The timer features two independent countdown timers, T1 and T2, each capable of timing up to 23 hours and 59 minutes. Each timer has a distinct alarm sound.
- Выберите таймер: Press 'T1' to set the first timer or 'T2' to set the second timer. The selected timer's display will flash.
- Установить время: Use the 'H' (Hour), 'M' (Minute), and 'S' (Second) buttons to set the desired countdown duration.
- Стартовый таймер: Press the 'START/STOP' button to begin the countdown.
- Пауза / Возобновить: Press 'START/STOP' again to pause or resume the countdown.
- Очистить таймер: To clear a set timer, press the 'CLEAR' button while the timer is paused or stopped. To clear both timers simultaneously, press 'T1/2 CLEAR'.
- Тревога: When a timer reaches zero, it will sound a distinct alarm. Press 'START/STOP' to silence the alarm.
3.3. Функция секундомера
The timer can also function as a stopwatch to count up from zero.
- Ensure both T1 and T2 are cleared (displaying 0:00:00).
- Press the 'START/STOP' button. The timer will begin counting up from 0:00:00.
- Press 'START/STOP' again to pause or resume the stopwatch.
- Press 'CLEAR' to reset the stopwatch to zero.
3.4. Memory Recall Function
The timer includes a memory recall function to quickly access previously set times. Consult the specific instructions on the back of the device or the full manual for detailed steps on how to save and recall custom timer settings.
4. Техническое обслуживание
4.1. Уборка
To clean the timer, simply wipe it with a damp cloth. Do not immerse the timer in water or use abrasive cleaners, as this may damage the device.
4.2. Замена батареи
When the display becomes dim or the timer functions erratically, it is time to replace the AAA battery. Follow the battery installation steps in Section 2.1.
5. Поиск Неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Timer not working or display is blank/dim. | Incorrectly installed or depleted battery. | Reinsert the AAA battery, ensuring correct polarity. If the issue persists, replace with a new battery. |
| Magnet detaches from the timer. | Adhesive failure. | Reattach the magnet using a strong adhesive suitable for plastic and metal. |
| Loud chirp sound with each button press. | This is a normal operational characteristic of the timer. | No action required. This sound indicates button presses are registered. |
6. Технические характеристики
- Номер модели: TYPTIM100DUAL
- Бренд: Тейлор
- Цвет: Серый/Серебристый
- Материал: Пластик, Нержавеющая сталь
- Размеры продукта: 1"D x 4"W x 3"H (approximately 10.5 x 8 x 3 cm)
- Источник питания: 1 батарейка типа ААА (не входит в комплект)
- Maximum Countdown: 23 часа, 59 минут
- Функции: Dual Timers (T1, T2), Stopwatch, 24-Hour Clock, Magnetic Back, Flip-Out Stand, Memory Recall
- Вес товара: 2.82 унции
7. Гарантия и поддержка
7.1. Информация о гарантии
The Taylor Pro Dual Digital Kitchen Timer comes with a 5-летняя гарантия, ensuring reliability and quality. Please retain your proof of purchase for warranty claims.
7.2. Поддержка клиентов
For further assistance, technical support, or warranty inquiries, please visit the official Taylor webили обратитесь в службу поддержки клиентов. Контактная информация обычно указана на упаковке продукта или на сайте производителя. webсайт.
