Введение
W-образныйampler Terraform is a multi-modulation guitar effects pedal designed to provide a wide range of modulation effects in a compact unit. It features 11 distinct effect blocks, stereo and mono routing options, MIDI control, and expression pedal integration. This manual provides detailed instructions for setting up, operating, and maintaining your Terraform pedal.
Настраивать
Требования к питанию
The Terraform pedal requires a 9-18V DC power supply, center negative, with a minimum current draw of 100mA. Ensure your power supply meets these specifications to prevent damage and ensure optimal performance.
Связи
The pedal offers versatile connectivity options for integration into various guitar rigs.

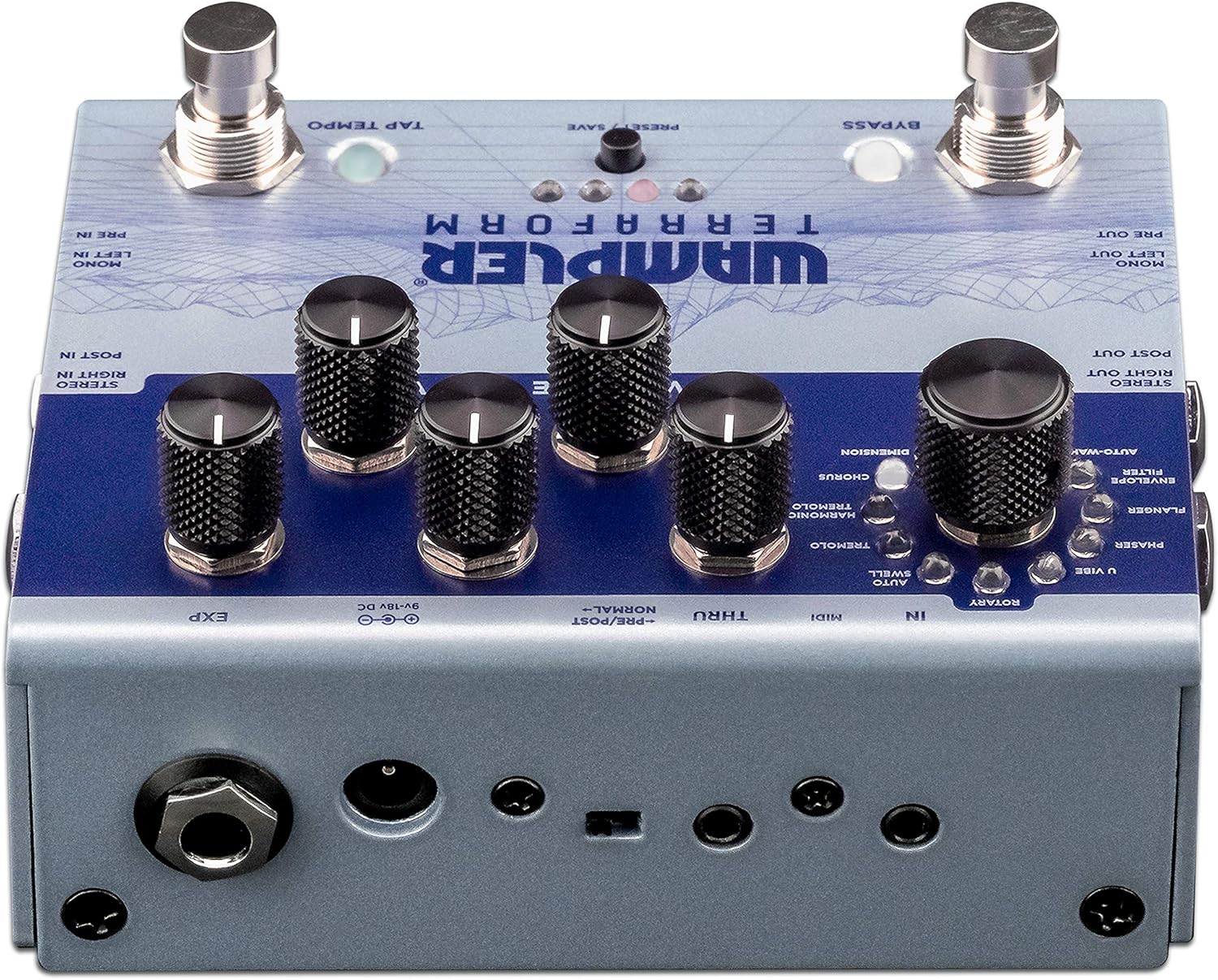

Figure 1: Rear panel connections of the Wampler Terraform pedal.
- Power Input (9-18V DC): Connect your compatible power supply here.
- Mono Left In / Pre In: Standard mono input for your guitar signal.
- Mono Left Out / Pre Out: Standard mono output.
- Stereo Right In / Post In: Input for stereo operation or for effects placed after drive pedals.
- Stereo Right Out / Post Out: Output for stereo operation.
- MIDI In/Thru: Connect MIDI devices for control and synchronization. The pedal includes 3.5mm to 5-pin DIN adapters.
- EXP (Expression Pedal): Connect an expression pedal for real-time control over various parameters.
Начальное включение
After connecting power and your instrument, the pedal will power on. The LEDs will illuminate, indicating its current state and selected preset.
Инструкция по эксплуатации
The Terraform pedal features a user-friendly interface with dedicated knobs and footswitches for intuitive control.
Рисунок 2: Болееview Wampler Terraform pedal controls.
Управление
- Ручка выбора эффекта: This large knob allows you to choose between the 11 available modulation effects. The effects include: Dimension, Chorus, Harmonic Tremolo, Tremolo, AutoSwell, Rotary, U-Vibe, Phaser, Flanger, Envelope Filter, and AutoWah.
- Rate Knob: Регулирует скорость или интенсивность выбранного эффекта модуляции.
- Ручка глубины: Controls the intensity or depth of the modulation.
- Blend Knob: Mixes the wet (effected) signal with the dry (unaffected) signal.
- Variable Knob: This control's function changes depending on the selected effect, offering additional parameter adjustment specific to each modulation type.
- Ручка регулировки громкости: Регулирует общий уровень громкости педали.
Figure 3: Detail of the effect selection knob.
Figure 4: Detail of the Rate, Depth, and Blend control knobs.
Ножные переключатели
- Байпасный ножной переключатель: Включает или выключает эффект.
- Tap Tempo Footswitch: Allows you to tap in the desired tempo for time-based effects.
Предустановки
The Terraform pedal can store up to 8 presets. These presets can be recalled via the front panel button, the footswitches, or through MIDI commands. Refer to the full manual for detailed instructions on saving and recalling presets.
Expression Pedal Functionality
An external expression pedal can be connected to control any of the five main control parameters (Rate, Depth, Blend, Variable, Volume). You can also set the heel and toe points for precise control over the parameter range.
Stereo and Mono Routing
The pedal supports both mono and full stereo operation. Additionally, it allows for splitting the mono signal to route certain effects before your drive pedals or amplifier gain, while other effects follow in your amplifier's effects loop.
MIDI контроль
The Terraform pedal is fully MIDI mappable, allowing for external control of parameters, preset changes, and synchronization with other MIDI-enabled gear.
Обслуживание
Уборка
To clean the pedal, use a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and internal components.
Power Supply Care
Always use a regulated power supply that matches the pedal's voltage and current requirements. Consider using a power surge protector to safeguard your equipment from electrical fluctuations and ground noise.
Хранилище
Store the pedal in a dry environment, away from extreme temperatures and direct sunlight, when not in use.
Поиск неисправностей
Нет звука или прерывистый звук
- Check all cable connections (input, output, power) to ensure they are secure.
- Убедитесь, что источник питания правильно подключен и обеспечивает указанную мощность.tagе и ток.
- Убедитесь, что ваш прибор и ampУсилители работают исправно.
- Check the pedal's bypass status.
Unwanted Noise or Hum
- Ensure you are using a high-quality, isolated power supply.
- Проверьте наличие земляных петель в вашей сигнальной цепи.
- Проверьте с разными кабелями.
Pedal Not Responding to Controls
- Verify the pedal is powered on.
- If using MIDI, ensure MIDI connections are correct and the pedal is receiving the expected commands.
- If using an expression pedal, ensure it is properly connected and calibrated.
If issues persist, consult the Wampler support resources or contact customer service.
Технические характеристики
| Особенность | Деталь |
|---|---|
| Бренд | Wampлер |
| Название модели | Терраформировать |
| Номер модели | WAMTERRAFORM |
| Размеры продукта (Д x Ш x В) | 7" x 6" x 4" |
| Вес товара | 1.41 фунта |
| Томtage | 9-18 Volts DC (Center Negative) |
| Ampярость | 100 миллиampс (минимум) |
| Эффекты аудиовыхода | Dimension, Chorus, Harmonic Tremolo, Tremolo, AutoSwell, Rotary, U-Vibe, Phaser, Flanger, Envelope Filter, AutoWah |
| Тип управления | Ручка, ножной переключатель |
| Источник питания | Источник постоянного тока |
| аппаратный интерфейс | 1/4-inch Audio, 3.5mm MIDI, Expression Pedal |
| Формат сигнала | Аналоговый |
Гарантия и поддержка
Информация о гарантии
W-образныйampler Terraform Multi-Modulation Guitar Effects Pedal comes with a Гарантия 5 год covering parts and labor from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Поддержка клиентов
For technical assistance, troubleshooting, or warranty service, please visit the official Wampлер website or contact their customer support team. Detailed contact information can typically be found on the Wampлер webсайте или в упаковочных материалах.
