1. Введение
This instruction manual provides essential information for the safe and effective use of your LEXIVON Magnetic Swivel Spark Plug Socket (Model LX-122). This tool is designed for the removal and installation of spark plugs in various vehicles, offering enhanced flexibility and secure handling.
Перед использованием изделия внимательно прочтите данное руководство и сохраните его для дальнейшего использования.
2.Основные характеристики
- Магнитное удержание: Features a strong magnetic core to securely hold spark plugs, preventing drops and damage during installation and removal.
- 360-Degree Swivel Joint: Provides maximum flexibility for accessing spark plugs in confined or hard-to-reach engine compartments.
- Прочная конструкция: Manufactured from hardened Chrome Vanadium (Cr-V) steel alloy for superior torque strength and long-lasting performance.
- Коррозионная стойкость: Fully polished, mirror chrome finish resists corrosion and is easy to clean. The knurled grip prevents slipping.
- Низкий Profile Дизайн: Thin-wall design allows for easy insertion into narrow spark plug wells.
- Laser-Etched Markings: Sizes are clearly laser-etched for quick identification.
- Соответствие стандартам: Meets and Exceeds ANSI (The American National Standard Institute) standards.

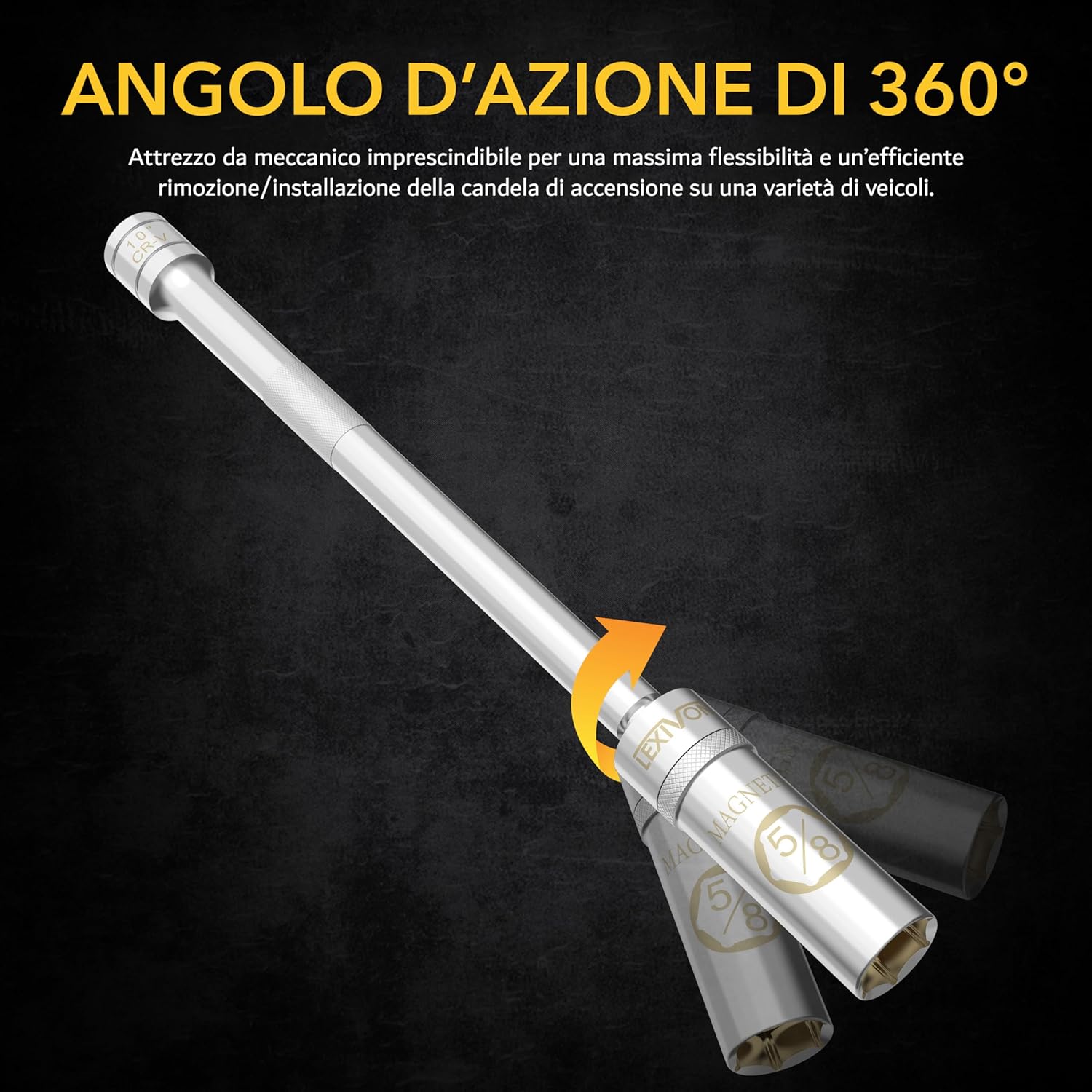

Image: The LEXIVON Magnetic Swivel Spark Plug Socket demonstrating its 360-degree swivel action for flexible access.
Изображение: крупный план view of the robust magnetic core within the socket, designed to securely hold the spark plug.
Image: An innovative design showing a cutaway view of the ball lock mechanism, providing freedom of movement in tight spaces.

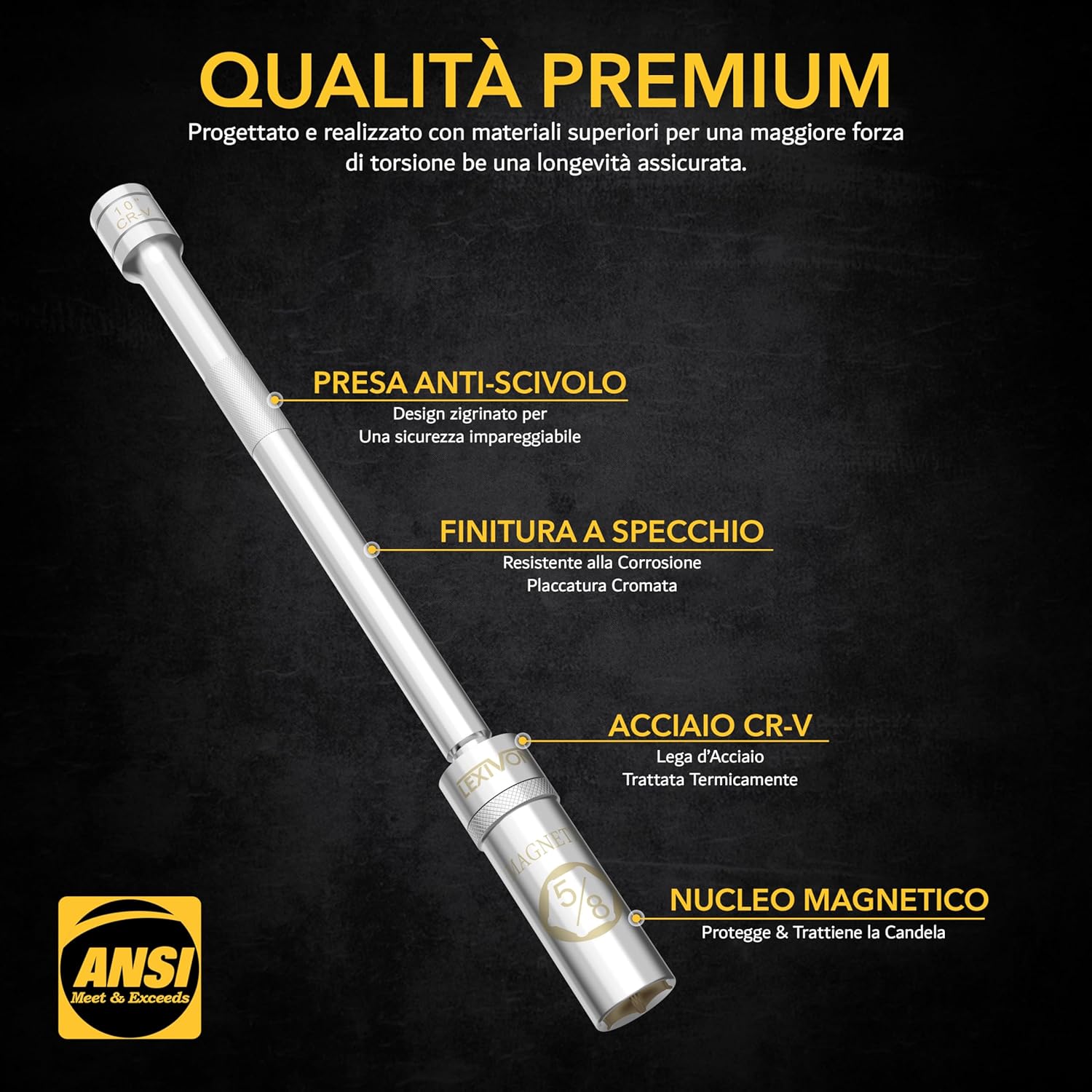

Изображение: Оверview of premium quality features including anti-slip grip, mirror finish, Cr-V steel, and magnetic core, meeting ANSI standards.
Image: The universal socket design with a total length of 25 cm, featuring a hexagonal socket for 5/8" spark plugs and a 3/8" drive connection.
Image: The thin-wall socket design, allowing for easy insertion into narrow spark plug compartments.
3. Настройка
The LEXIVON Magnetic Swivel Spark Plug Socket is designed for use with a 3/8-inch drive ratchet or extension bar. Ensure you have the correct drive size for your existing tools.
- Осмотрите инструмент: Before each use, inspect the spark plug socket for any signs of damage, wear, or corrosion. Ensure the magnetic core is intact and securely holds a spark plug.
- Прикрепить к приводному инструменту: Connect the 3/8-inch drive end of the spark plug socket to a compatible ratchet, breaker bar, or extension. Ensure a secure connection.
- Выберите правильный размер: This specific model is a 5/8" socket. Verify that your spark plugs require a 5/8" socket before proceeding.
Видео: 360-градусный обзор view of the spark plug socket, demonstrating its design and features. This video helps visualize the tool's components and flexibility.
4. Инструкция по эксплуатации
Always ensure the engine is cool before attempting to remove or install spark plugs to prevent damage to the engine or spark plugs.
4.1. Spark Plug Removal
- Подготовьте территорию: Clear any debris or obstructions around the spark plug wells.
- Attach Socket to Spark Plug: Carefully lower the LEXIVON spark plug socket onto the spark plug. The magnetic core will engage and hold the spark plug securely.
- Loosen Spark Plug: Using your ratchet or breaker bar, slowly turn counter-clockwise to loosen the spark plug. The swivel joint allows for angled access in tight spaces.
- Remove Spark Plug: Once loosened, continue to turn counter-clockwise until the spark plug is fully disengaged. The magnetic core will keep the spark plug attached to the socket for easy removal from the engine well.
4.2. Spark Plug Installation
- Insert New Spark Plug: Place the new spark plug into the LEXIVON socket. The magnet will hold it firmly.
- Align and Hand-Tighten: Carefully lower the spark plug and socket into the spark plug well. Ensure the spark plug is properly aligned with the threads. Hand-tighten the spark plug clockwise until it seats. This helps prevent cross-threading.
- Момент затяжки, соответствующий техническим требованиям: Once hand-tightened, use a torque wrench (if available and recommended by your vehicle manufacturer) to tighten the spark plug to the manufacturer's specified torque settings. Avoid over-tightening, as this can damage the spark plug or engine head.
- Удалить гнездо: Once the spark plug is properly tightened, gently pull the socket straight off the spark plug.
5. Техническое обслуживание
- Уборка: After each use, wipe the socket clean with a dry cloth to remove any oil, grease, or debris. The mirror chrome finish is designed for easy cleaning.
- Хранилище: Store the spark plug socket in a dry environment to prevent moisture buildup and potential corrosion. Keep it away from strong magnetic fields that could affect the internal magnet over time.
- Инспекция: Periodically check the swivel joint for smooth operation and ensure all components are secure. Inspect the magnetic core for its holding strength.
- Смазка: The swivel joint may benefit from a small amount of light lubricant if it becomes stiff over time.
6. Поиск Неисправностей
- Spark Plug Not Seating Properly:
- Ensure the spark plug is the correct size and thread for your engine.
- Verify that the spark plug well is clean and free of debris.
- Attempt to hand-tighten the spark plug without the socket first to ensure proper thread engagement, then use the socket for final tightening.
- Socket Not Gripping Spark Plug:
- Check if the spark plug is the correct 5/8" size for the socket.
- Inspect the magnetic core for any damage or debris that might be preventing proper contact.
- Difficulty Accessing Spark Plug:
- Utilize the 360-degree swivel feature to maneuver the socket into the optimal position.
- Consider using a shorter or longer extension bar with your 3/8" drive ratchet if space is extremely limited or too deep.
7. Технические характеристики
| Атрибут | Ценить |
|---|---|
| Номер модели | LX-122 |
| Размер гнезда | 5/8 дюйма |
| Размер диска | 3/8 дюйма |
| Общая длина | 10 дюйма (25.4 см) |
| Материал | Chrome Vanadium (Cr-V) Steel |
| Заканчивать | Зеркальный хром |
| Вес товара | 290 г |
| Особые возможности | Magnetic Core, 360° Swivel Joint, Thin Wall Design, Knurled Grip |
| Согласие | Meets and Exceeds ANSI Standards |
8. Гарантия и поддержка
The LEXIVON Magnetic Swivel Spark Plug Socket (LX-122) is backed by a Пожизненная гарантия, ensuring your complete peace of mind against any manufacturing defects or material failures.
For warranty claims, technical assistance, or any product-related inquiries, please contact LEXIVON customer support through the official LEXIVON website or your point of purchase. Please have your product model number (LX-122) and purchase details ready when contacting support.
