everActive UC-4000 Universal Battery Charger User Manual

Введение

Thank you for choosing the everActive UC-4000 Universal Battery Charger. This advanced microprocessor-controlled charger is designed for safe and efficient charging, discharging, refreshing, and testing of various rechargeable battery types, including Ni-MH (AA, AAA, C, D) and Li-ion (18650, 14500, 16340, 20700, 21700, etc.). Please read this manual thoroughly before operating the device to ensure proper use and maximize battery lifespan.

Важная информация по безопасности

• Use only with compatible rechargeable batteries. Do not attempt to charge non-rechargeable batteries.
• Ensure correct battery polarity (+/-) when inserting batteries into the charging slots.
• Operate the charger in a well-ventilated area, away from direct sunlight, high temperatures, and humidity.
• Не разбирайте и не модифицируйте зарядное устройство. Все работы по обслуживанию должны выполняться квалифицированным персоналом.
• Храните зарядное устройство и аккумуляторы в недоступном для детей и домашних животных месте.
• Отключайте зарядное устройство от источника питания, когда оно не используется или перед чисткой.
• The charger features microprocessor control to prevent overcharging and overheating. However, always monitor the charging process.
• Не подвергайте зарядное устройство воздействию воды или других жидкостей.

Продукт болееview

The everActive UC-4000 is a professional, advanced battery charger designed for versatility and precision. It features four independent charging channels, allowing individual processing for each battery. The large LCD screen provides real-time information on the charging status, voltagе, ток и емкость.

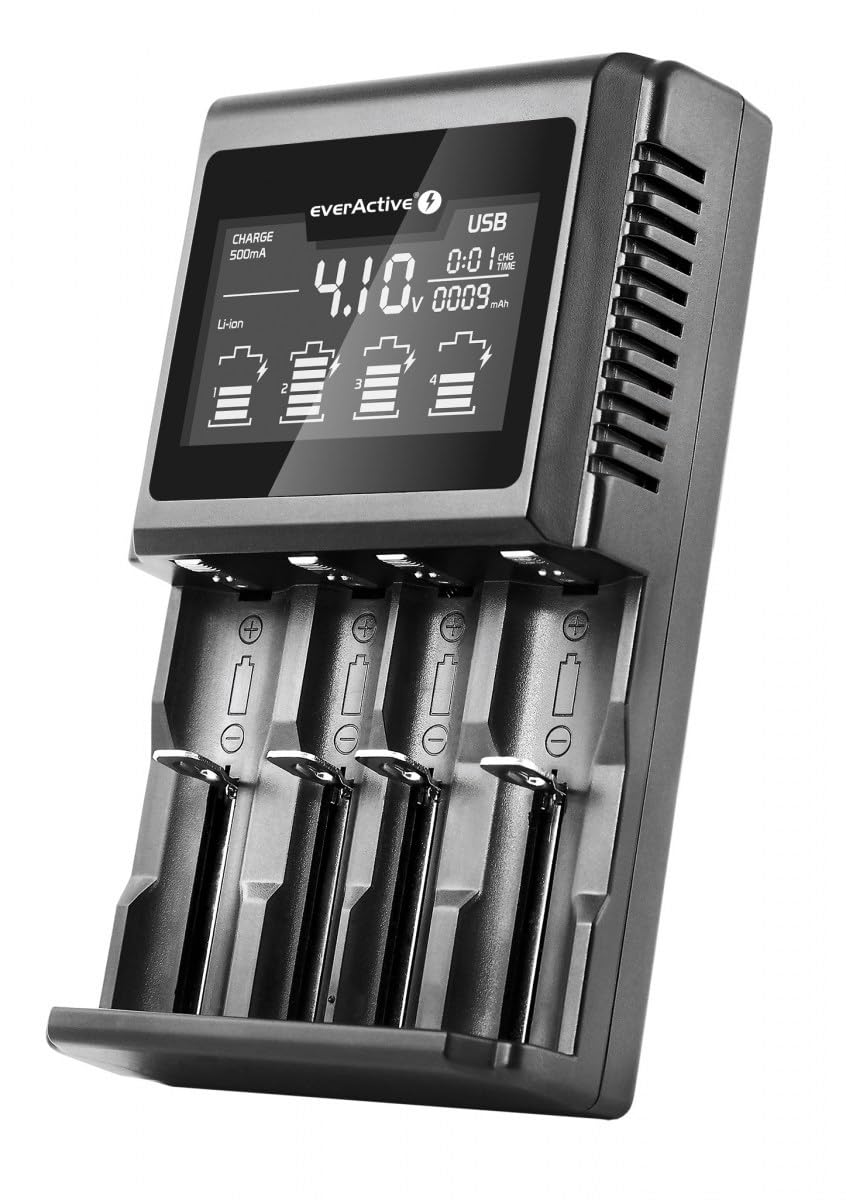

Image: The everActive UC-4000 charger displaying battery status on its LCD screen.

Основные характеристики:

• Микропроцессорное управление: Ensures safe and optimized charging, preventing overcharge and overheating.
• Независимые каналы зарядки: Each of the four slots operates independently, allowing mixed battery types and sizes.
• Большой ЖК-дисплей: Provides detailed information for each channel, including voltage, current, time, and charged capacity.
• Несколько режимов работы: Charge, Discharge, Refresh, Capacity Test, and Quick Test (IR).
• Широкая совместимость с аккумуляторами: Supports Ni-MH (AA, AAA, C, D) and Li-ion (18650, 14500, 16340, 20700, 21700, etc.).
• 0V Battery Reactivation: Capable of reactivating deeply discharged 0V Li-ion batteries.
• USB-выход: 5V DC, 1000mA for charging external devices.

Изображение: подробное view of the charger's LCD screen, displaying charging current, voltage, and capacity for multiple battery slots.

Настройка и первое использование

1. Распакуйте зарядное устройство: Carefully remove the UC-4000 charger and its accessories from the packaging.
2. Подключите питание: Connect the provided AC power adapter to the DC input port on the back of the charger. Plug the adapter into a standard wall outlet (100V-240V). The LCD screen will illuminate.
3. Вставьте батареи: Insert one or more compatible rechargeable batteries into the charging slots. Ensure correct polarity (+ and - terminals match the markings on the charger). The charger will automatically detect the battery type (Ni-MH or Li-ion) and display initial information.
4. Выберите режим (необязательно): By default, the charger will begin charging. To select a different operating mode (Discharge, Refresh, Test), press the corresponding button for the desired slot within a few seconds of inserting the battery.

Image: Contents of the everActive UC-4000 package, including the charger, power adapter, and user manual.

Режимы работы

The UC-4000 offers five distinct operating modes to manage your batteries effectively. Each mode can be selected independently for each charging slot.

1. Режим зарядки

This is the default mode. The charger will automatically detect the battery type and begin charging at a suitable current. You can manually adjust the charging current (200-400-600-800-1000 mA) for Li-ion batteries (up to 1A per slot for 4 batteries, or 500mA if preferred) and Ni-MH batteries. The LCD will display the current, voltage, and charged capacity.

2. Режим разряда

In this mode, the charger discharges the battery before recharging it. This can help reduce the memory effect in Ni-MH batteries. Discharge current can be set (100-200-300-400-500 mA).

3. Refresh Mode

This mode cycles the battery through multiple charge-discharge cycles to optimize its capacity and potentially restore older batteries. This process can take several hours or even days depending on the battery condition.

4. Capacity Test Mode

The charger fully charges the battery, then discharges it to measure its actual capacity, and finally recharges it. This provides an accurate reading of the battery's real capacity.

5. Quick Test (IR) Mode

This mode quickly measures the internal resistance (IR) of the battery. A lower internal resistance generally indicates a healthier battery. This is a rapid diagnostic tool.

Совместимость с батареями

The everActive UC-4000 is a highly versatile charger, compatible with a wide range of rechargeable battery sizes and chemistries. It supports both Ni-MH and Li-ion battery types.

Поддерживаемые типы аккумуляторов:

• Ni-MH / Ni-CD: AA (R6), AAA (R03), C (R14), D (R20) - Note: C and D cells require optional adapters and only 1-2 cells can be charged simultaneously due to size.
• Li-ion / LiFePO4: 10440, 14500, 16340 (RCR123), 17500, 17670, 18350, 18500, 18650, 20700, 21700, 22650, 26500, 26650.

Image: Visual representation of compatible battery types, including Li-ion, LiFePO4, Ni-MH, and various sizes like AA, AAA, 18650, 21700.

The charger's intelligent system automatically identifies the battery chemistry and applies the appropriate charging algorithm.

Обслуживание

• Уборка: Перед чисткой отключите зарядное устройство от источника питания. Протрите корпус мягкой сухой тканью. Не используйте абразивные чистящие средства или растворители.
• Хранилище: Когда зарядное устройство не используется, храните его в прохладном, сухом месте. Избегайте экстремальных температур и влажности.
• Контактные данные: Periodically check the charging contacts for any dirt or corrosion. Clean gently with a cotton swab if necessary.

Поиск неисправностей

Зарядное устройство не включается:

Убедитесь, что адаптер питания надежно подключен как к зарядному устройству, так и к исправной розетке. Проверьте, есть ли в розетке питание.

Аккумулятор не заряжается:

Verify that the battery is inserted with correct polarity. Ensure the battery is a compatible rechargeable type. Try cleaning the battery contacts and charger contacts. If the battery is severely over-discharged (0V), the charger has a reactivation function, but some batteries may be beyond recovery.

Incorrect capacity reading during test:

Ensure the battery has undergone a full charge-discharge-charge cycle (Refresh or Capacity Test mode) for accurate measurement. Battery age and condition can affect actual capacity.

Charger or batteries feel warm:

It is normal for the charger and batteries to become slightly warm during operation. If they become excessively hot, immediately disconnect the power and remove the batteries. Ensure adequate ventilation around the charger.

USB output not working when unplugged from AC:

The USB power bank function of the UC-4000 requires the charger to be connected to its AC power adapter. It does not operate as a portable power bank using only inserted batteries.

Технические характеристики

Гарантия и поддержка

For warranty information and technical support, please refer to the documentation included with your purchase or contact everActive customer service through their official webСохраните чек о покупке для предъявления гарантийных претензий.

Производитель: Baltrade, Poland
