Введение
This manual provides essential instructions for the safe and proper use, assembly, and maintenance of your Badabulle B009009 Booster Seat. Please read all instructions carefully before use and retain this manual for future reference.
The Badabulle B009009 is a versatile booster seat designed for children, featuring a compact folding design, adjustable height, and a removable tray. It can also convert into a floor seat as your child grows.
Важная информация по безопасности
ПРЕДУПРЕЖДЕНИЕ: Несоблюдение этих предупреждений и инструкций может привести к серьезной травме или смерти.
- Всегда используйте удерживающую систему.
- Always use the chair attachment system.
- Ensure the booster seat is securely attached to an adult chair before placing a child in it.
- Никогда не оставляйте ребенка без присмотра.
- Do not use this product on stools or chairs without a backrest.
- The booster seat is suitable for children who can sit unaided, typically from 6 months up to 3 years or a maximum weight of 15 kg.
- Регулярно проверяйте все компоненты на износ, повреждения или отсутствие деталей. Прекратите использование, если какая-либо деталь повреждена.
- Не допускайте детей к изделию во время сборки и разборки.
Содержимое упаковки
Перед сборкой убедитесь в наличии всех компонентов:
- Badabulle B009009 Booster Seat unit
- Removable seat and back cushions
- 3-point safety harness (integrated)
- Chair attachment straps (2 for backrest, 1 for seat)
- Removable feeding tray
Инструкции по установке
1. Attaching to an Adult Chair
Place the booster seat on a stable adult chair. Use the two straps to secure the booster seat to the chair's backrest and the third strap to secure it under the chair's seat. Ensure all straps are pulled tight and the booster seat is stable and does not wobble.

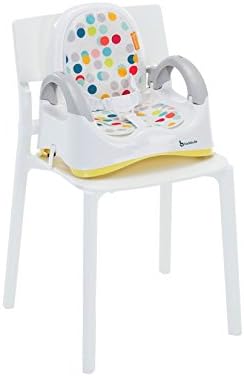

Image: The booster seat positioned and secured on an adult dining chair, ready for use.
2. Регулировка высоты
The booster seat offers 3 adjustable height positions. Locate the adjustment mechanisms on the sides or bottom of the booster seat. Press the release buttons (if present) and slide the seat to the desired height. Ensure both sides are locked into the same position before use.

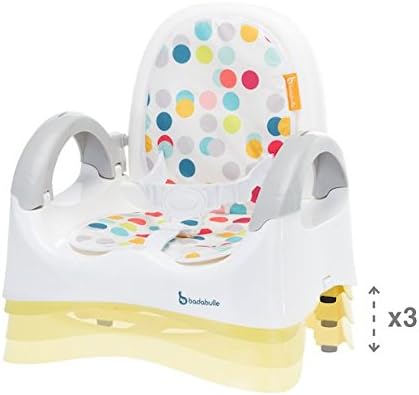

Изображение: Подробный view of the booster seat's base, illustrating the three possible height settings.
3. Attaching the Tray
Align the tray with the slots on the booster seat's armrests. Slide the tray into place until it clicks securely. To remove, press the release tabs (if any) and pull the tray forward.
Инструкция по эксплуатации
1. Размещение и обеспечение безопасности вашего ребенка
Open the 3-point safety harness. Carefully place your child into the booster seat. Fasten the harness straps around your child's waist and between their legs, ensuring a snug but comfortable fit. Adjust the straps as needed.
Image: A child secured in the booster seat, demonstrating proper use during mealtime at a table.
2. Using as a Floor Seat
For older children or for playtime, the booster seat can be used directly on the floor. Ensure the child is supervised and the seat is placed on a flat, stable surface. The tray can be used for activities or removed for more freedom.
Image: A child utilizing the booster seat as a standalone floor seat for play, showcasinг его универсальность.
Чистка и обслуживание
- Cushions: The seat and back cushions are removable and machine washable. Wash on a gentle cycle with mild detergent. Air dry thoroughly before reattaching.
- Пластиковые детали: Wipe down the plastic frame, tray, and straps with a damp Тряпкой и мягким мылом. Тщательно промойте и высушите.
- Хранилище: Store the booster seat in a clean, dry place away from direct sunlight when not in use.
- Инспекция: Periodically inspect all parts for damage, loose fasteners, or excessive wear. Replace damaged parts immediately.
Хранение и портативность
The Badabulle B009009 Booster Seat is designed for ultra-compact folding, reducing its thickness to approximately 20 cm. This makes it ideal for transport and storage.
Складывание для хранения:
- Remove the tray and any child from the seat.
- Disengage any height adjustment locks and collapse the seat to its lowest position.
- Follow the specific folding mechanism instructions (refer to product diagrams if available) to achieve the compact fold.

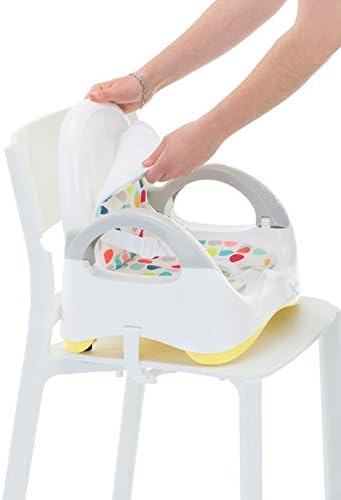

Image: Illustration of the booster seat being folded for compact storage or transport.
Транспорт:
Once folded, the booster seat features a convenient carrying handle for easy portability.
Image: A person demonstrating the portability of the folded booster seat using its carrying handle.
Поиск неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Booster seat feels unstable on adult chair. | Straps are not tight enough or incorrectly attached. | Ensure all three attachment straps are correctly routed and pulled taut. Verify the adult chair is stable. |
| Сложность регулировки высоты. | Adjustment mechanism is stiff or not fully disengaged. | Ensure release buttons are fully pressed. Apply gentle, even pressure. Lubricate moving parts if necessary (use child-safe lubricant). |
| Поднос закреплен ненадежно. | Смещение или препятствие. | Check for any debris in the slots. Ensure the tray is correctly aligned before pushing it into place until it clicks. |
| Ремень безопасности затянут слишком туго или слишком свободно. | Неправильная регулировка ремешка. | Adjust the harness straps to fit snugly around your child without restricting movement. Refer to the operating instructions. |
Технические характеристики
- Модель: Б009009
- Бренд: Бадабулле
- Размеры (в разложенном виде): Приблизительные размеры: 28 x 36 x 40 см (длина x ширина x высота).
- Масса: 2.38 кг
- Рекомендуемый возраст: Suitable for children who can sit unaided (approx. 6 months) up to 3 years.
- Максимально допустимый вес: 15 кг
- Портативность: Yes, ultra-compact folding
- Требуется сборка: Да
- Цвет: Yellow (as per product variant)
Гарантия и поддержка
For warranty information, product support, or to purchase replacement parts, please contact Badabulle customer service. Refer to the product packaging or the official Badabulle webсайт для контактных данных.
Сохраните чек о покупке для предъявления претензий по гарантии.
