1. Введение

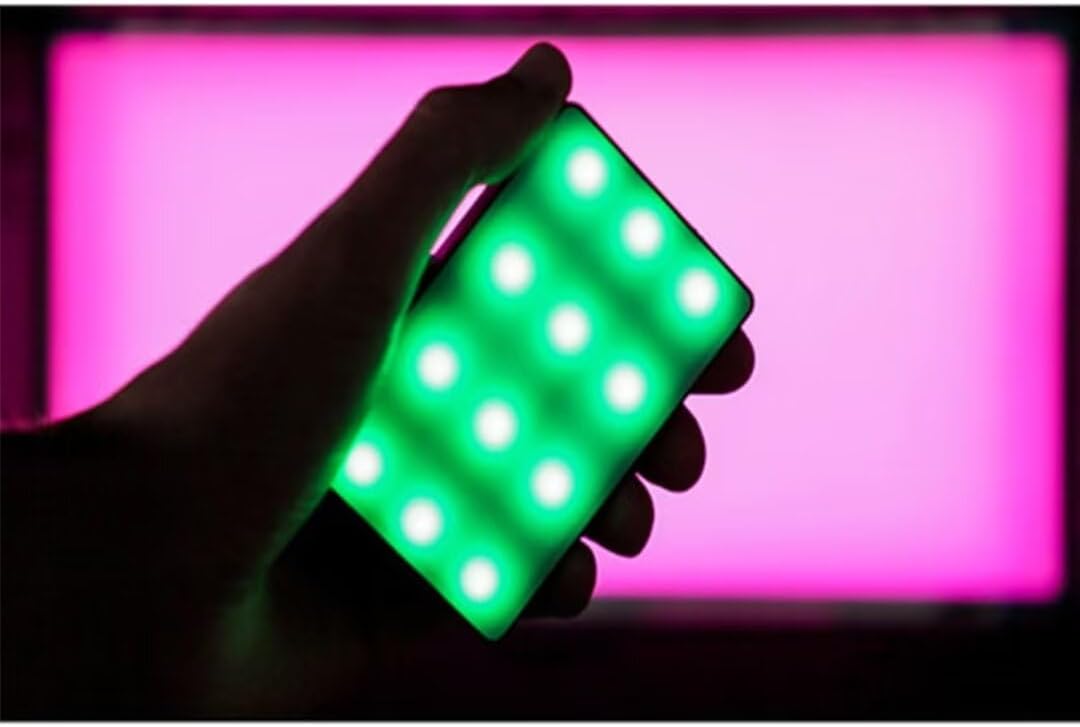

The Aputure Amaran MC is a compact and versatile RGBWW LED on-camera light designed for photographers and videographers. It offers full Hue, Saturation, and Intensity (HSI) color control, adjustable white light in CCT mode, and various built-in lighting effects. With its high color rendition, Sidus Mesh technology for app control, and multiple charging options, the Amaran MC provides flexible lighting solutions for diverse creative needs.
2. Что в коробке
- Aputure MC Light *1
- Зарядный кабель USB Type-C * 1
- Silicone Rubber Diffuser *1
- Adhesive Mounting Tape *2
- Aputure Carrying Bag *1
3. Особенности продукта
- Full HSI Color Control: The Amaran MC offers 360° of hue and 100 levels of saturation adjustment, allowing for convenient reproduction of any color.
- CCT режим: Adjust white light color temperature from 3200K to 6500K.
- FX Lighting Modes: Includes 9 built-in lighting effects: Paparazzi, Fireworks, Faulty bulb, Lightning, TV, Pulsing, Fire, Party, and Cop Car.
- Stellar Color Quality: Achieves high color rendition with CRI and TLCI scores of 96+, and SSI scores of 84 (tungsten) and 74 (daylight).
- Sidus Link Control: Utilizes Sidus Mesh technology for controlling up to 100 lights simultaneously via the Sidus Link mobile app. Features a Color Picker function to match colors from your phone's camera.
- USB Type-C PD Charging & Wireless Charging: Supports 18W USB-C Power Delivery (PD) for a full charge in approximately 90 minutes. Compatible with Qi wireless charging protocols.
4. Настройка
4.1 Зарядка устройства
Before initial use, fully charge your Amaran MC. You have two charging options:
- USB-порт типа C: Connect the provided USB Type-C charging cable to the USB-C port on the side of the Amaran MC and to a compatible USB power adapter (not included). The device supports 18W PD quick charging.
- Беспроводная зарядка: Place the Amaran MC on any Qi-compatible wireless charging pad. Ensure the light is properly aligned for efficient charging.
4.2 Варианты монтажа
The Amaran MC offers several versatile mounting options:
- Крепление винтом 1/4"-20: Use the integrated 1/4"-20 screw mount to attach the light to tripods, light stands, or camera rigs.
- Магнитная адсорбция: The light features built-in magnets, allowing it to be securely attached to metallic surfaces.
- Adhesive Mounting Tape: For non-metallic surfaces, use the included adhesive mounting tapes to create a temporary mounting point for the magnets.
5. Инструкция по эксплуатации
5.1 Включение/выключение питания

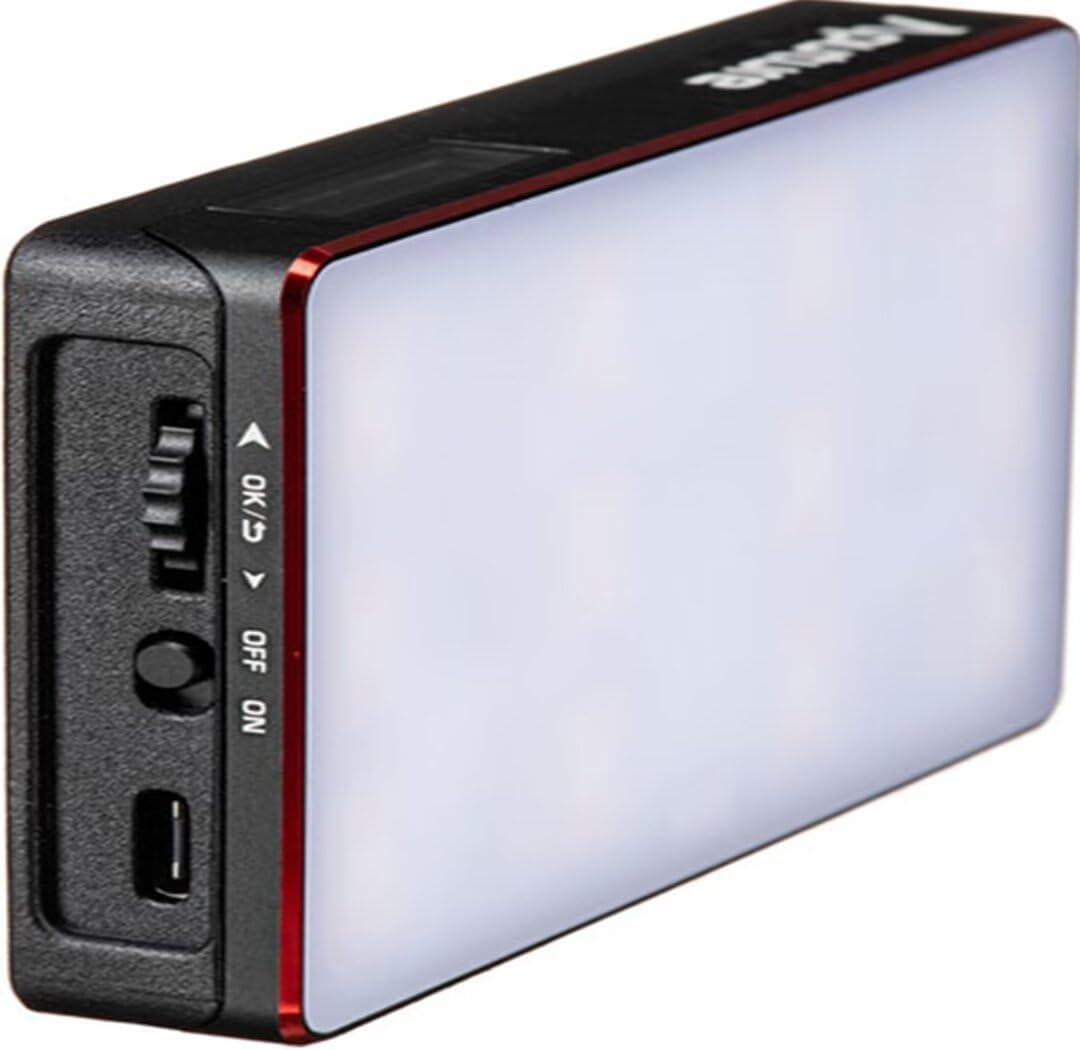

Locate the power switch on the side of the Amaran MC. Slide the switch to the 'ON' position to power on the device. Slide it to 'OFF' to power it down.
5.2 Adjusting Light Settings
The Amaran MC features a function control wheel and an OLED screen for on-device adjustments:
- Выбор режима: Press the control wheel to cycle through different lighting modes: HSI, CCT, and FX.
- Регулировка параметров: Rotate the control wheel to adjust parameters within the selected mode (e.g., Hue, Saturation, Intensity, Color Temperature).
- Интенсивность: In any mode, rotate the wheel to adjust the brightness (0-100% stepless dimming).
5.3 Управление приложением Sidus Link
For advanced control and features, download the Sidus Link mobile app (available on iOS and Android).
- Сочетание: Ensure Bluetooth is enabled on your mobile device. Open the Sidus Link app and follow the on-screen instructions to discover and pair with your Amaran MC.
- Дистанционное управление: Adjust HSI, CCT, and FX functions remotely.
- Выбор цвета: Use your phone's camera to capture a color from your environment, and the Amaran MC will reproduce it instantly.
- Ячеистая сеть: Control multiple Amaran MC lights (up to 100) in a stable network, extending the control range.
6. Техническое обслуживание
- Уборка: Для очистки внешней поверхности светильника используйте мягкую сухую ткань. Не используйте агрессивные химикаты или абразивные материалы.
- Хранилище: Store the Amaran MC in its carrying bag in a cool, dry place away from direct sunlight and extreme temperatures.
- Уход батареи: Для оптимального срока службы батареи избегайте частой полной разрядки. При длительном хранении заряжайте батарею примерно до 50-70%.
7. Поиск Неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Свет не включается | Low battery or power switch off | Charge the battery or ensure the power switch is in the 'ON' position. |
| Cannot connect to Sidus Link app | Bluetooth off, app not updated, or light not in pairing mode | Ensure Bluetooth is on, update the app, and restart the light. Refer to app instructions for pairing. |
| Непостоянная светоотдача | Низкий заряд батареи или помехи | Charge the light fully. Ensure no strong magnetic or electronic interference nearby. |
8. Технические характеристики
| Особенность | Деталь |
|---|---|
| Размеры продукта | 6.22 x 3.43 x 1.34 дюйма (15.8 x 8.7 x 3.4 см) |
| Вес товара | 1.12 фунта (0.51 кг) |
| Номер модели товара | 926308 |
| Аккумуляторы | Требуется 1 нестандартная батарея |
| Производитель | Aputure |
| Технология связи | Bluetooth |
| аппаратный интерфейс | USB, USB тип C |
| СКП | 712350147426 |
9. Гарантия и поддержка
Информацию о гарантии и технической поддержке можно получить на официальном сайте Aputure. webили обратитесь в службу поддержки напрямую. Сохраните чек о покупке для предъявления гарантийных претензий.
Официальное лицо Апутур Webсайт: www.aputure.com
