Samson Go Mic Mobile Wireless System User Manual

Введение

The Samson Go Mic Mobile is a professional digital wireless system designed to deliver high-quality audio directly to your mobile devices, cameras, and other audio inputs. This system eliminates the need for cumbersome adapters, making it ideal for mobile filmmakers, journalists, bloggers, streamers, and videographers who require clear, reliable sound on the go.

Что в коробке?

• Go Mic Mobile Receiver
• PXD2 Beltpack Transmitter
• LM8 Lavalier Microphone
• Lightning Cable (for iOS devices)
• USB Micro B Cable (for Android devices)
• USB-C Cable (for Android devices)
• 1/8" (3.5mm) Audio Cable (for analog inputs)
• Адаптер переменного тока
• Липучка (для крепления)
• Руководство пользователя

Image: All components of the Samson Go Mic Mobile system, including the receiver, transmitter, lavalier microphone, and various cables, neatly arranged in its protective carrying case.

Настраивать

1. Подключение ресивера

The Go Mic Mobile Receiver can be directly attached to your smartphone or camera. Use the appropriate cable for your device:

• Для iOS-устройств: Use the included Lightning cable.
• Для Android-устройств: Use either the USB Micro B or USB-C cable, depending on your phone's port.
• For cameras or other analog inputs: Use the 1/8" (3.5mm) audio cable.

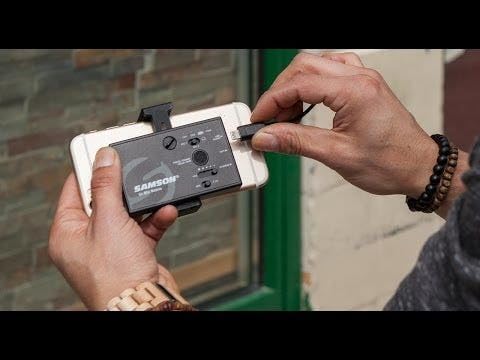

Image: The Go Mic Mobile Receiver securely mounted to an iPhone, connected via the Lightning cable, ready for recording.

Image: The Go Mic Mobile Receiver mounted to an Android smartphone, connected via a USB-C cable, illustrating its compatibility with various mobile devices.

2. Connecting the Transmitter and Lavalier Microphone

Connect the LM8 Lavalier Microphone to the PXD2 Beltpack Transmitter. The transmitter can be clipped onto clothing or a belt for discreet placement.

Image: The PXD2 Beltpack Transmitter with the LM8 Lavalier Microphone plugged in, showing the compact design for wearable use.

Изображение: Задний план view of the PXD2 Beltpack Transmitter, highlighting its integrated belt clip for easy attachment to clothing or a belt.

3. Включение и сопряжение

Turn on both the receiver and the transmitter. The devices should automatically pair. Indicators on the receiver will confirm successful pairing and signal strength.

Image: The Go Mic Mobile Receiver and PXD2 Beltpack Transmitter displayed side-by-side, illustrating their compact size and wireless nature.

Операционная

Dual-Channel Operation

The Go Mic Mobile Receiver supports dual-channel operation, allowing you to pair two transmitters simultaneously. This feature is useful for interviews or multi-person broadcasts. You can mix the two channels for streaming or record them on separate tracks for post-production editing.

Volume Control and Monitoring

Adjust the output volume directly on the receiver using the dedicated volume control. The receiver also includes a headphone output for real-time audio monitoring, ensuring optimal sound levels and clarity during recording.

Обслуживание

Информация о батарее

The system uses a Lithium Polymer battery (included). Ensure the battery is fully charged before use to maximize operating time. Use the provided AC adapter for charging.

Уборка

To clean the devices, use a soft, dry cloth. Avoid using harsh chemicals or abrasive materials, which can damage the finish or internal components.

Поиск неисправностей

• No Audio/Signal Dropouts: Ensure both the transmitter and receiver are powered on and properly paired. Check battery levels. Maintain a clear line of sight between the transmitter and receiver, and avoid obstacles that may interfere with the 2.4 GHz wireless signal. Keep within the recommended operating range of up to 100 feet.
• Плохое качество звука: Verify that the lavalier microphone is securely connected to the transmitter. Adjust the gain settings on the transmitter and the volume on the receiver. Ensure the microphone is positioned correctly to capture clear audio.
• Устройство не распознано: Confirm that the correct USB or Lightning cable is used and securely connected to your mobile device or camera. Some Android devices may require specific camera apps (e.g., Open Camera) to properly utilize external microphones.
• Короткое время работы от батареи: Ensure the battery is fully charged before each use. If battery life significantly degrades over time, consider replacing the battery or contacting support.

Технические характеристики

Гарантия и поддержка

For detailed warranty information and technical support, please refer to the official Samson Technologies webили обратитесь в службу поддержки напрямую. Сохраните чек о покупке для предъявления гарантийных претензий.

Online resources and FAQs may also be available on the Samson product support pages.
