Руководство пользователя радиоуправляемых настенных часов Acctim 74314 Parona

1. Введение

Thank you for choosing the Acctim 74314 Parona Radio Controlled Wall Clock. This clock is designed for precise timekeeping, automatically synchronizing with the UK's atomic clock transmitter (MSF signal) for accurate time and automatic adjustment for daylight saving changes. This manual provides essential information for setting up, operating, and maintaining your new clock.

2. Информация по технике безопасности

• Use only the specified battery type (1 x AA Alkaline battery).
• Не смешивайте старые и новые батареи или батареи разных типов.
• Незамедлительно извлекайте разряженные батареи, чтобы предотвратить утечку и повреждение.
• Храните батареи в недоступном для детей месте.
• Не подвергайте часы воздействию экстремальных температур, прямых солнечных лучей или высокой влажности.
• Избегайте падений и сильных ударов по часам.

3. Содержимое упаковки

Пожалуйста, убедитесь, что ваша посылка содержит следующие предметы:

• Acctim 74314 Parona Radio Controlled Wall Clock
• Руководство пользователя (этот документ)

Примечание: 1 x AA battery is required and not included in the package.

4. Инструкции по настройке

Follow these steps to set up your Acctim Radio Controlled Wall Clock:

1. Вставьте батарею: Locate the battery compartment on the back of the clock. Insert one new AA Alkaline battery, ensuring the correct polarity (+/-). We recommend using Energizer or Panasonic batteries for optimal performance.
2. Initial Hand Movement: Upon battery insertion, the second hand will begin to turn clockwise and stop at the 12 o'clock position. Within a few minutes, the minute and hour hands will also move to the 12 o'clock position.
3. Прием сигнала: The clock will then enter receiving mode to search for the MSF radio signal. This process can take some time. For best results, place the clock near a window and away from electronic devices that might cause interference.
4. Overnight Synchronization: It is highly recommended to leave the clock undisturbed overnight for signal reception. The MSF signal transmission is generally stronger and more reliable during nighttime hours.
5. Автоматическая установка времени: Once the clock successfully receives the signal, it will automatically set itself to the correct time, including adjusting for summer/winter time changes.

Рисунок 1: Сзади view of the clock, highlighting the battery compartment.

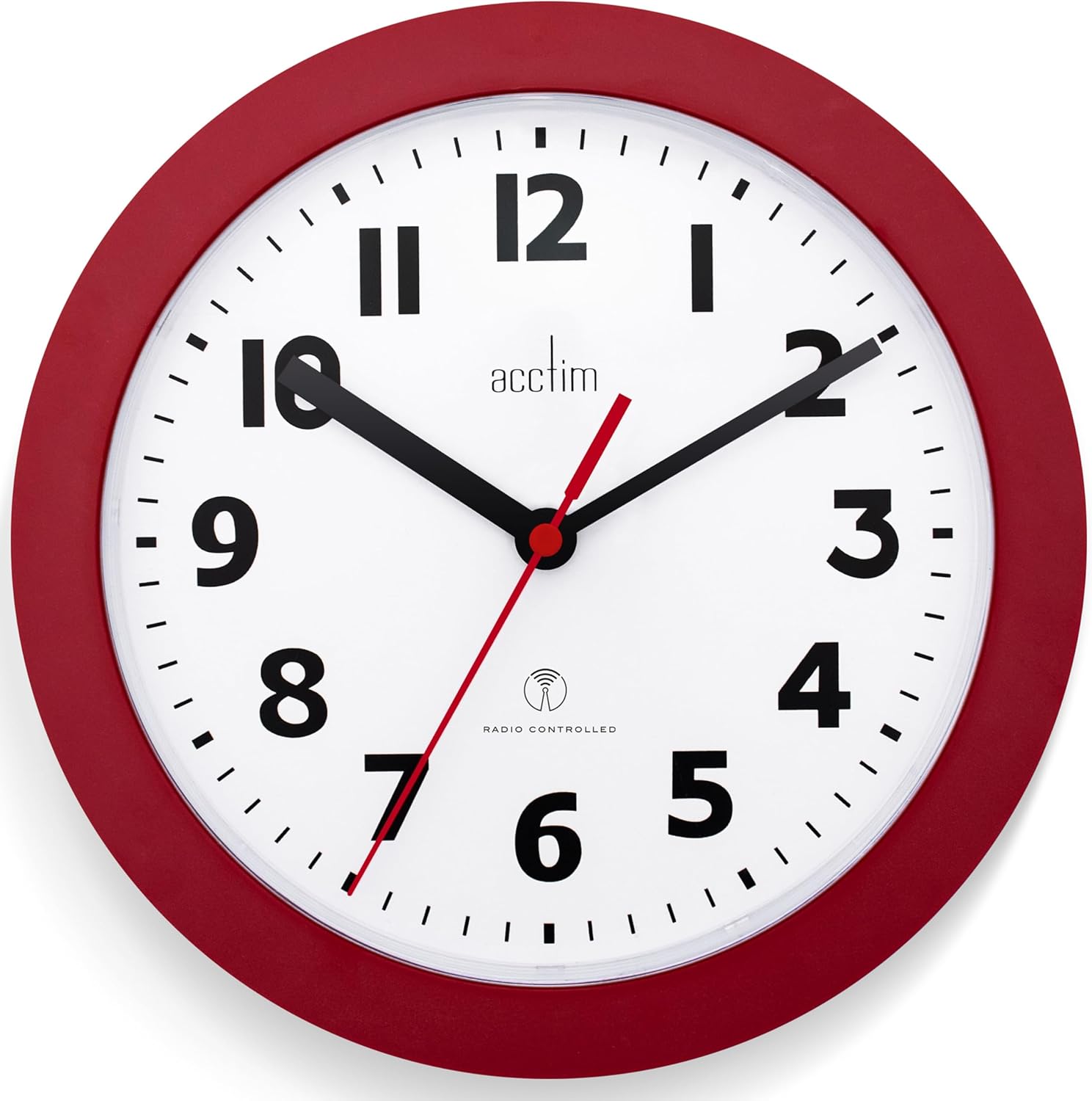

Рисунок 2: Передняя часть view of the Acctim 74314 Parona Wall Clock.

5. Инструкция по эксплуатации

Once successfully set up, your Acctim Radio Controlled Wall Clock operates automatically:

• Автоматическая синхронизация времени: The clock continuously monitors the MSF radio signal to maintain accurate time.
• Переход на летнее время: The clock will automatically adjust for summer and winter time changes, eliminating the need for manual adjustments.
• Regular Signal Checks: To ensure ongoing accuracy, the clock will search for the time signal every second hour, starting at 1 o'clock, 3 o'clock, 5 o'clock, and so on.

6. Техническое обслуживание

• Уборка: Протрите часы мягкой сухой тканью. Не используйте абразивные чистящие средства или растворители, так как они могут повредить покрытие.
• Замена батареи: When the clock stops or the hands move erratically, it is time to replace the battery. Follow the battery insertion steps in the "Setup Instructions" section. Always use a new AA Alkaline battery.
• Хранилище: If the clock will not be used for an extended period, remove the battery to prevent potential leakage.

7. Поиск Неисправностей

Важное примечание: The Radio Controlled signal will be off-air due to scheduled annual maintenance between 3rd and 21st September (8am - 6pm). During this period, the clock may not be able to receive the signal and set itself automatically.

8. Технические характеристики

9. Гарантия и поддержка

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Acctim customer service directly. Contact details can typically be found on the manufacturer's official webсайте или на упаковке продукта.
