Введение
This manual provides essential information for the proper installation, operation, and maintenance of your Hoover Replacement Belt, part number 562535001. This genuine OEM part is designed to ensure optimal performance and compatibility with Hoover vacuum cleaner models UH70400 and UH70405. The belt is a critical component that drives the brush roll, enabling effective cleaning by agitating carpet fibers and picking up debris.
Информация по безопасности
Always observe basic safety precautions when performing maintenance on your vacuum cleaner. Failure to do so may result in electric shock, fire, or serious injury.
- Отключить питание: Always unplug the vacuum cleaner from the electrical outlet before attempting any maintenance, cleaning, or belt replacement.
- Используйте оригинальные детали: Use only genuine Hoover replacement parts to ensure proper fit and function.
- Избегайте движущихся частей: Держите руки, волосы, свободную одежду и все части тела подальше от отверстий и движущихся частей.
- Правильное хранение: Store the vacuum cleaner and replacement parts in a dry, indoor area.
Installation (Belt Replacement)
Follow these steps to replace the drive belt on your Hoover UH70400 or UH70405 vacuum cleaner. Refer to your vacuum's specific user manual for detailed diagrams if available.
- Подготовьте пылесос: Unplug the vacuum cleaner from the wall outlet. Lay the vacuum flat on its front side on a clean, stable surface to access the brush roll area.
- Remove Base Plate: Locate the screws holding the bottom plate (also known as the nozzle guard or brush roll cover) in place. Use a screwdriver to remove these screws and carefully lift off the base plate.
- Снимите валик щетки: Gently lift out the brush roll assembly. The old belt will likely be stretched, broken, or dislodged. Remove the old belt from both the brush roll and the motor shaft.
- Установите новый ремень: Take the new Hoover Belt 562535001. Loop one end of the belt around the motor shaft (the small metal spindle). Then, stretch the other end of the belt around the brush roll. Ensure the belt is centered on both the motor shaft and the brush roll.
- Установите обратно валик щетки: Аккуратно установите щеточный валик обратно в корпус, убедившись, что ремень надежно закреплен как на валу двигателя, так и на щеточном валике. Несколько раз вручную поверните щеточный валик, чтобы убедиться в правильном выравнивании ремня и его свободном перемещении.
- Reattach Base Plate: Position the base plate back onto the vacuum and secure it with the screws removed earlier. Ensure all screws are tightened securely.
- Тестовая операция: Stand the vacuum upright, plug it back into the electrical outlet, and turn it on to test the brush roll operation. The brush roll should spin smoothly.

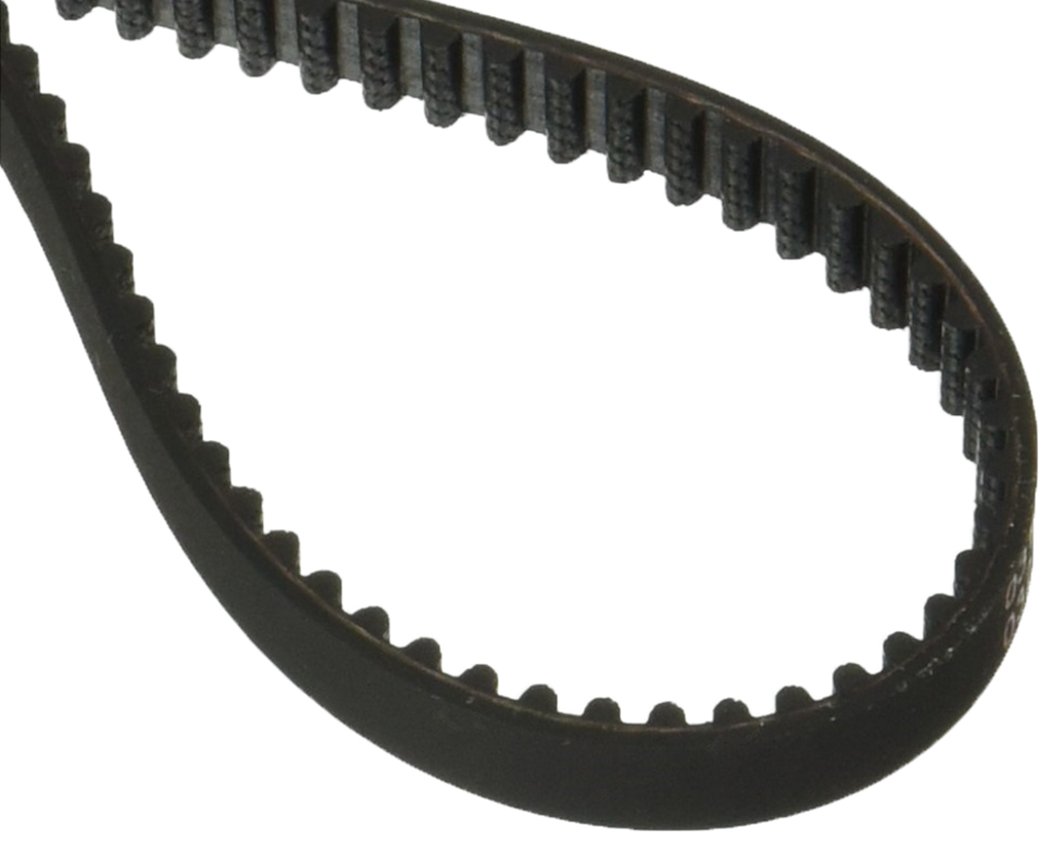

Image: Hoover Vacuum Cleaner Belt 562535001. This image shows the replacement belt, which is a black, rubberized band designed to connect the vacuum's motor to the brush roll for rotation.
Эксплуатационные соображения
Once installed, the belt facilitates the rotation of the brush roll, which is essential for deep cleaning carpets and agitating debris. A properly functioning belt ensures consistent brush roll speed and effective dirt pickup. If the brush roll stops spinning or spins intermittently, it may indicate an issue with the belt or other components.
Обслуживание
Regular inspection of the vacuum belt is crucial for maintaining optimal cleaning performance and extending the life of your vacuum cleaner. Over time, belts can stretch, crack, or break due to normal wear and tear, or if the brush roll becomes jammed.
- Периодическая проверка: Check the belt every 3-6 months, or more frequently if the vacuum is used heavily.
- Признаки износа: Look for signs of stretching, cracking, fraying, or hardening. A loose or worn belt will reduce brush roll effectiveness.
- Замена: Replace the belt immediately if any signs of wear are observed, or if the brush roll stops spinning.
- Clear Brush Roll: Regularly remove hair, threads, and other debris wrapped around the brush roll to prevent strain on the belt and motor.
Поиск неисправностей
If you experience issues with your vacuum cleaner's brush roll, the belt may be the cause. Here are common symptoms and solutions:
| Симптом | Возможная причина | Решение |
|---|---|---|
| Валик щетки не вращается | Broken or dislodged belt; brush roll jammed. | Inspect and replace the belt if broken. Clear any obstructions from the brush roll. Reinstall the belt correctly. |
| Снижение эффективности очистки | Stretched or worn belt; brush roll not spinning effectively. | Replace the belt with a new Hoover 562535001 belt. |
| Burning rubber smell | Belt slipping due to wear or brush roll obstruction. | Immediately unplug the vacuum. Clear any brush roll obstructions. Replace the belt if it shows signs of wear or damage. |
Технические характеристики
- Номер детали: 562535001
- Бренд: Пылесос
- Совместимые модели: Hoover UH70400, UH70405
- Тип: OEM Replacement Belt
- Материал: Прочный резиновый композит
- Размеры продукта: Примерно 1 x 1 x 1 дюймов (размеры упаковки)
- Вес товара: Примерно 1.6 унции
Гарантия и поддержка
This Hoover replacement part is manufactured to high-quality standards. For specific warranty information regarding this part, please refer to the documentation included with your original Hoover vacuum cleaner or visit the official Hoover website. For technical support or further assistance, please contact Hoover customer service directly.
Контактную информацию и дополнительные ресурсы часто можно найти на [ссылка]. Hoover Brand Store on Amazon or the official Hoover webсайт.
