Hoover Handle and Wand Assembly Instruction Manual

Введение

This manual provides essential information for the proper installation and use of your Hoover Handle and Wand Assembly, OEM Part Number 440004055. This assembly is an original equipment manufacturer (OEM) authorized replacement part designed for specific Hoover vacuum cleaner models, including UH72400, UH72409, and UH72401. Please read these instructions carefully before proceeding to ensure correct fitment and operation.

This part is not compatible with model UH74220 or any other model not explicitly listed as compatible.

Важная информация по безопасности

• Always unplug your vacuum cleaner from the electrical outlet before attempting any installation, removal, or maintenance procedures.
• Use only genuine Hoover replacement parts to ensure compatibility and maintain product performance.
• Во время установки держите руки и пальцы подальше от движущихся частей.
• If you are unsure about any step, consult a qualified technician or contact Hoover customer support.

Продукт болееview

The Hoover Handle and Wand Assembly (Part Number 440004055) is a single-piece replacement component. It serves as the primary handle and extension wand for your compatible Hoover vacuum cleaner, providing ergonomic control and reach during cleaning tasks.

Рисунок 1: Болееview of the Hoover Handle and Wand Assembly.

Настройка и установка

This handle and wand assembly is designed for direct replacement. Follow these steps for proper installation:

1. Подготовьте пылесос: Ensure your Hoover vacuum cleaner is unplugged from the power outlet.
2. Удалить старую сборку (если применимо): If replacing an existing handle and wand, carefully detach the old assembly from the vacuum cleaner body. This usually involves pressing a release button or tab and pulling the assembly upwards. Refer to your vacuum's original manual for specific removal instructions.
3. Проверка новой сборки: Examine the new handle and wand assembly for any visible damage before installation.
4. Выровнять и вставить: Align the base of the new handle and wand assembly with the corresponding opening on the vacuum cleaner body. Ensure any electrical connectors or locking mechanisms are properly aligned.
5. Обеспечьте безопасность сборки: Push the assembly firmly downwards until it clicks securely into place. You should hear an audible click, indicating it is locked. Gently pull upwards on the handle to confirm it is securely attached and does not wobble.

Important Fitment Information:

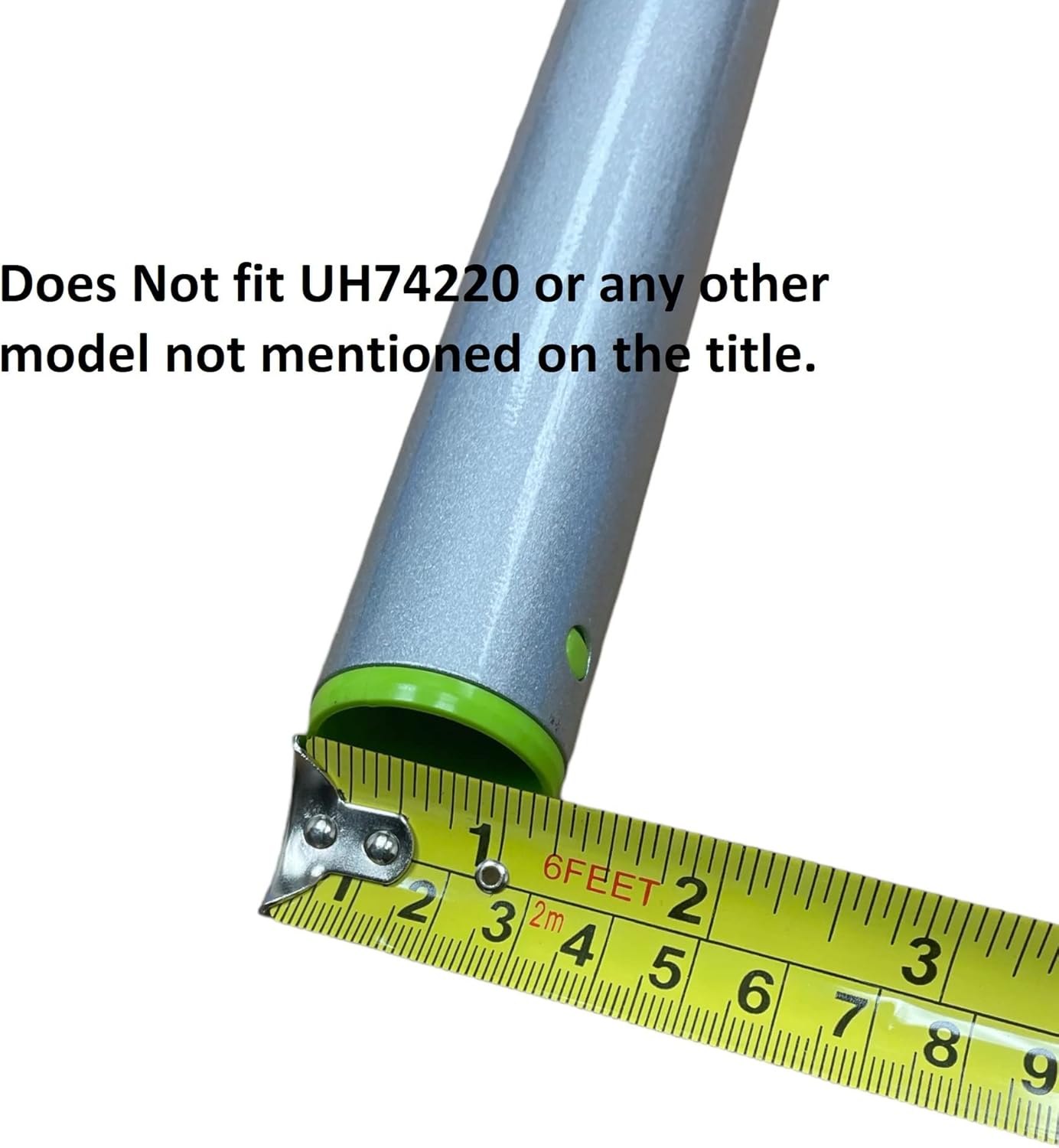

Figure 2: Measurement of the wand's end diameter. This part is not compatible with UH74220 or other unlisted models.

Figure 3: Measurement of the connection point diameter for proper fitment.

Figure 4: Overall length measurement of the handle and wand assembly.

Инструкция по эксплуатации

Once the handle and wand assembly is securely installed, it functions as the primary control and extension for your vacuum cleaner. Operate your vacuum according to its main user manual. The handle provides a comfortable grip for maneuvering the vacuum, and the wand extends your reach for various cleaning tasks.

Обслуживание

• Уборка: Wipe the handle and wand with a damp Протрите поверхность тканью, чтобы удалить пыль и мусор. Избегайте использования едких химикатов или абразивных чистящих средств.
• Инспекция: Periodically inspect the assembly for any signs of wear, cracks, or damage. Check the connection points to ensure they remain secure.
• Замена: If the handle and wand assembly becomes damaged or significantly worn, it should be replaced to maintain safe and effective operation of your vacuum cleaner.

Поиск неисправностей

• Handle does not fit:
  • Verify your vacuum cleaner's model number. This part is specifically designed for UH72400, UH72409, and UH72401. It is not compatible with UH74220.
  • Ensure the assembly is oriented correctly before attempting to insert it.
• После установки ручка кажется расшатанной:
  • Ensure the assembly is pushed down firmly until it clicks into place.
  • Check for any obstructions preventing a full connection.

For other issues related to your vacuum cleaner's performance, please refer to your vacuum cleaner's main user manual.

Технические характеристики

Гарантия и поддержка

As an Original Equipment Manufacturer (OEM) authorized part, this assembly is subject to Hoover's standard warranty policies for replacement parts. For specific warranty details, please refer to the documentation provided with your original Hoover vacuum cleaner or visit the official Hoover webсайт.

For technical assistance or further inquiries, please contact Hoover customer service. You can find contact information on the official Hoover website or through the support resources included with your vacuum cleaner.
