1. Введение
The G-FORCE Multi Warming System G0148 is designed to optimize the performance of small electric RC car tires by maintaining them at an ideal operating temperature. Proper tire temperature management is crucial for achieving consistent lap times and improved grip. This system features individual warming cups with built-in temperature sensors, ensuring precise control for each tire.
2. Информация по технике безопасности
Please read and understand all safety instructions before operating the G-FORCE Multi Warming System G0148. Failure to follow these instructions may result in injury or damage to the product.
- Always use the specified power input (DC 11-18V).
- Не подвергайте устройство воздействию воды или влаги.
- Хранить в недоступном для детей месте.
- Не пытайтесь разбирать или модифицировать устройство.
- Во время использования обеспечьте надлежащую вентиляцию во избежание перегрева.
- Unplug the device from the power source when not in use or before cleaning.
- Avoid touching the warming cups directly when hot.
3. Содержимое упаковки
Убедитесь, что в вашей посылке присутствуют все перечисленные ниже предметы:
- G-FORCE Multi Warming System Main Unit
- 4x Warming Cups with integrated temperature sensors
- 4x Cup Spacers (for smaller tire diameters)
- DC Power Input Cable
- Руководство по эксплуатации (данный документ)

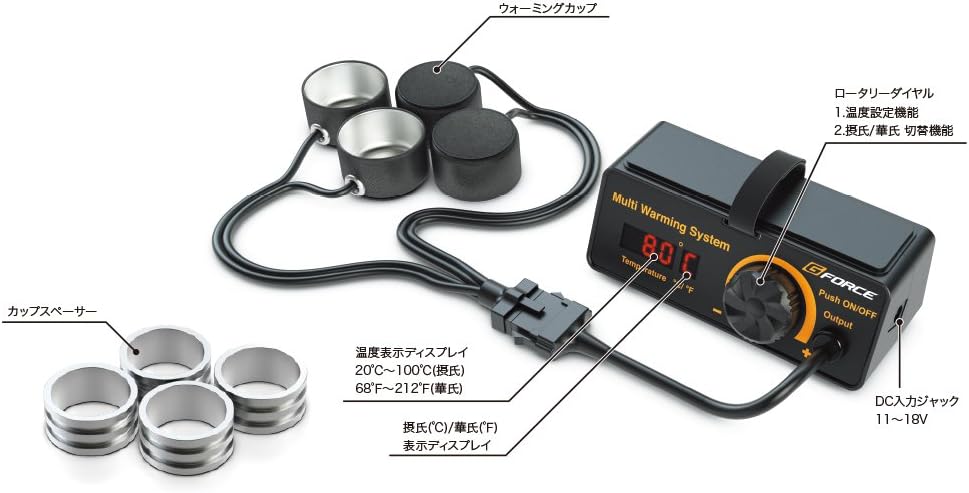

Рисунок 3.1: Надview of the G-FORCE Multi Warming System components. This image displays the main control unit, four black warming cups connected by wires, and four silver cup spacers, along with a power cable.
4. Настройка
- Connect Warming Cups: Plug the connector from the warming cups assembly into the "Output" port on the main unit. Ensure the connection is secure.
- Подключите питание: Connect the DC power input cable to the "DC INPUT: 11-18V" port on the main unit. Then, connect the other end of the power cable to a compatible DC power source (not included).
- Размещение: Place the main unit on a stable, flat surface. Arrange the warming cups as needed for your RC car.
- Using Cup Spacers: If your RC car tires are smaller than the standard warming cup diameter, insert the provided cup spacers into the warming cups to ensure a snug fit and efficient heat transfer.
Рисунок 4.1: The main unit of the G-FORCE Multi Warming System. This image highlights the digital display showing "80 C", the rotary dial for settings, and the DC input and output ports.
5. Операция
- Включение питания: Press and hold the "Push ON/OFF" button (integrated into the rotary dial) for a few seconds to power on the unit. The digital display will illuminate.
- Установить температуру: Rotate the dial to adjust the target temperature. The display will show the set temperature. The temperature range is typically 20°C to 100°C (68°F to 212°F).
- Единицы измерения температуры переключателя: Briefly press the "Push ON/OFF" button to toggle between Celsius (°C) and Fahrenheit (°F) display modes.
- Place Tires: Carefully place your RC car tires into the warming cups. Ensure the tires are fully seated for optimal heat transfer.
- Warming Process: The system will automatically begin heating the cups to the set temperature. The display will show the current temperature of the cups.
- Выключение: After use, remove the tires and press and hold the "Push ON/OFF" button until the unit powers off.
Рисунок 5.1: The G-FORCE Multi Warming System actively warming RC car tires. The main unit displays "45.0 C", indicating the current temperature, with an RC car chassis resting on top and its tires in the warming cups.
6. Техническое обслуживание
- Уборка: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the main unit and warming cups. Do not use abrasive cleaners or solvents.
- Хранилище: Store the system in a cool, dry place away from direct sunlight and extreme temperatures. Keep all components organized to prevent damage.
- Инспекция: Periodically inspect cables and connectors for any signs of wear or damage. If any damage is found, discontinue use and contact support.
7. Поиск Неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Блок не включается. | Нет питания или неправильная громкостьtage. | Ensure the DC power cable is securely connected and the power source provides 11-18V. |
| Warming cups are not heating. | Warming cups not connected or faulty. | Check the connection of the warming cups to the "Output" port. Ensure a temperature is set. |
| Неточные показания температуры. | Sensor issue or improper tire placement. | Ensure tires are fully seated in the cups. If the issue persists, contact support. |
8. Технические характеристики
- Модель: Г0148
- Производитель: G Force
- Страна происхождения: Китай
- Материалы: Metal, resin, cloth
- Body Dimensions (Main Unit): 4.4 x 1.9 x 1.8 дюйма (112 x 47 x 45 мм)
- Warming Cup Inner Diameter: 1.3 дюйма (32.0 мм)
- Cup Spacer Inner Diameter: 1.0 дюйма (26.4 мм)
- Weight (Set): 9.8 унций (280 г)
- Weight (Main Unit Only): 6.1 унций (170 г)
- Item Weight (Overall): 10.2 унции
- Размеры упаковки: 6.65 x 4.8 x 2.2 дюйма
- Входной объем постоянного токаtage: 11-18В
- Диапазон температур: 20°C - 100°C (68°F - 212°F)
9. Гарантия и поддержка
The G-FORCE Multi Warming System G0148 comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or contact your retailer. For technical support, troubleshooting assistance, or replacement parts, please contact G-FORCE customer service through their official webсайт или контактную информацию, предоставленную вместе с вашим продуктом.
