Руководство пользователя цифрового микроскопа Dino-Lite AM4815ZT с USB-подключением

1. Введение

The Dino-Lite AM4815ZT is a USB digital microscope designed for detailed observation and analysis. It features a 1.3-megapixel sensor, 15x-200x optical magnification, and advanced image processing capabilities such as Extended Depth of Field (EDOF) and Extended Dynamic Range (EDR). This manual provides comprehensive instructions for setting up, operating, and maintaining your AM4815ZT microscope.

Figure 1: Dino-Lite AM4815ZT USB Digital Microscope

This image displays the Dino-Lite AM4815ZT USB Digital Microscope, highlighting its compact design and adjustable focus ring. The device connects via USB for power and data transfer.

2. Содержимое упаковки

Убедитесь, что в вашей посылке присутствуют все перечисленные ниже предметы:

• 1 x Dino-Lite AM4815ZT USB Digital Microscope
• 1 x Dino Capture Software CD (Software is also available for download from the official Dino-Lite webсайт)
• 1 x Calibration Target (for measurement calibration)
• 1 x Set of Alternate Front Caps (6 pieces)

3. Настройка

1. Установка программного обеспечения: Insert the Dino Capture Software CD into your computer's optical drive and follow the on-screen instructions to install the software. Alternatively, download the latest software version from the official Dino-Lite website. The software supports Windows XP, Vista, 7, 8, 10, and Mac OS 10.5 and above.
2. Подключите микроскоп: Plug the USB 2.0 cable of the Dino-Lite AM4815ZT into an available USB port on your computer.
3. Первоначальное размещение: For stable observation, place the microscope on a compatible stand (sold separately) or hold it steady over the object you wish to examine.

Figure 2: Dino-Lite AM4815ZT mounted on a stand

This image shows the Dino-Lite AM4815ZT microscope securely mounted on a stand, positioned to examine a small circuit chip. This setup provides stability for precise observation.

4. Инструкция по эксплуатации

4.1 Регулировка увеличения и фокусировки

1. Запустить программное обеспечение: Open the Dino Capture software on your computer.
2. Позиционировать объект: Поместите объект, который вы хотите наблюдать, непосредственно под линзу микроскопа.
3. Отрегулируйте фокус: Rotate the focus wheel on the microscope body until the image appears clear on your computer screen.
4. Отрегулируйте увеличение: The magnification range is 15x to 200x. Adjust the distance between the microscope and the object, then refocus to achieve the desired magnification.

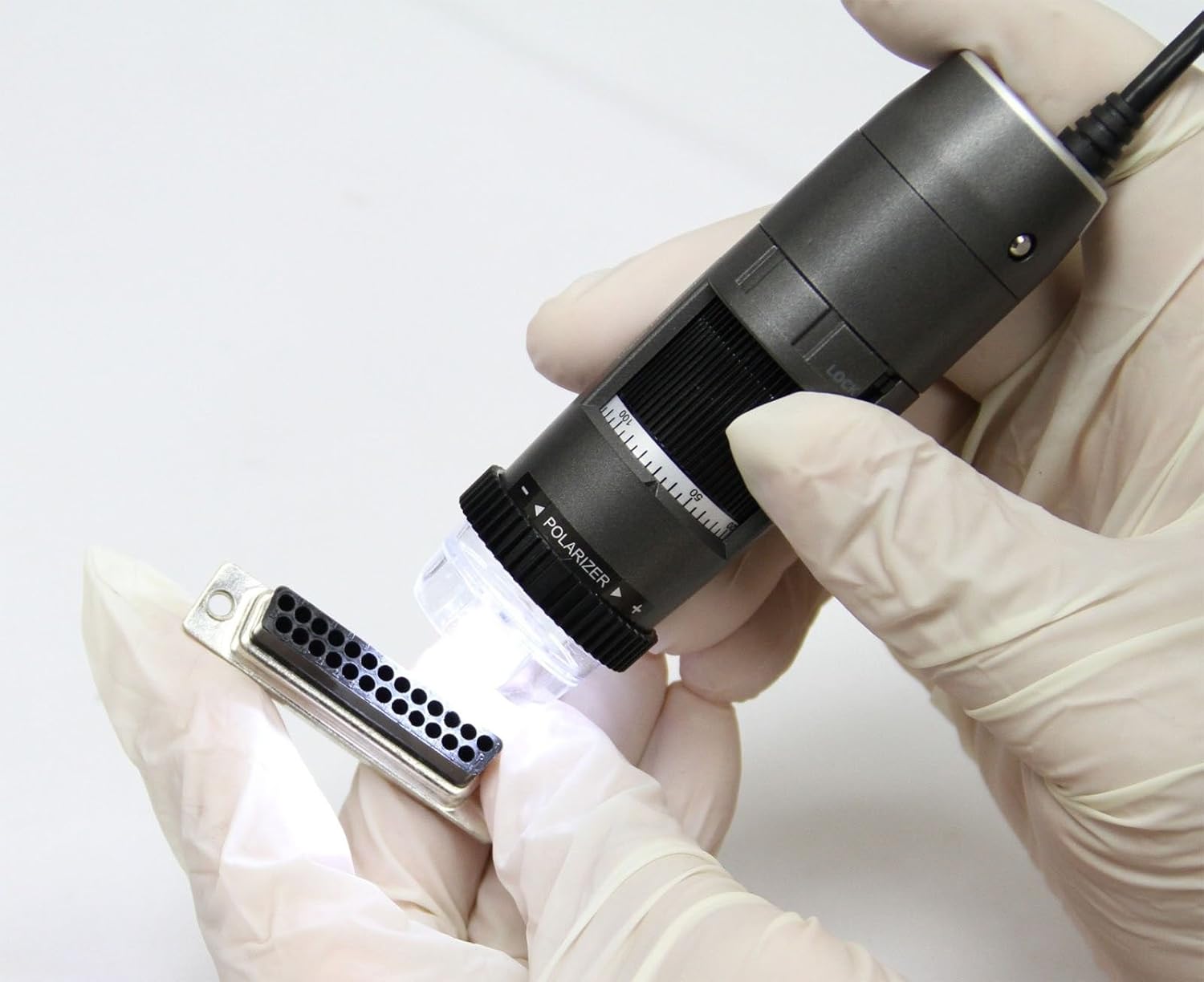

Figure 3: Manual inspection with Dino-Lite AM4815ZT

This image illustrates a user holding the Dino-Lite AM4815ZT to manually inspect a small electronic connector, demonstrating its handheld usability.

4.2 MicroTouch (MT)

The MicroTouch feature allows you to capture still images without physically pressing a button on the computer, reducing image disturbance. Gently touch the MicroTouch sensor on the microscope body to take a snapshot.

4.3 Measurement (MS)

The Dino Capture software includes measurement tools. To use this feature:

1. Откалибровать: Use the provided calibration target to calibrate the measurement tools within the software. This ensures accurate measurements at different magnifications.
2. Apply Tools: Select the desired measurement tool (e.g., line, circle, angle) from the software interface.
3. Мера: Draw on the captured image to measure dimensions. The software supports various units (inch/mil/mm/um).

4.4 Polarization (PZ)

The built-in adjustable polarizer helps reduce glare on reflective surfaces. Rotate the polarizer ring located at the front of the microscope to adjust the polarization level or switch it on/off. This is particularly useful for examining shiny objects like metals or plastics.

Figure 4: Polarizer ring on the Dino-Lite AM4815ZT

This close-up image of the Dino-Lite AM4815ZT highlights the adjustable polarizer ring at the front, which controls glare for improved image clarity.

4.5 Extended Depth of Field (EDOF)

EDOF is a software feature (available for Windows PC users only) that captures multiple images at different focus levels and automatically stacks them to create a single image with a greater depth of field. This results in a more uniformly focused image, especially useful for objects with varying heights.

Figure 5: EDOF comparison (without vs. with)

This image displays a side-by-side comparison of a microscopic view of a gear. The left side shows the image without EDOF, exhibiting limited depth of field, while the right side shows the same gear with EDOF applied, demonstrating significantly improved overall focus.

4.6 Extended Dynamic Range (EDR)

EDR is another software feature (available for Windows PC users only) that enhances image quality by combining multiple exposures to create an image with a wider range of light and shadow detail. This is beneficial for objects with both very bright and very dark areas.

4.7 Interchangeable Caps (IC)

The microscope comes with a set of 6 alternate front caps. These caps can be interchanged to suit different application needs, such as providing different working distances or protecting the lens. Refer to the software documentation for specific cap uses.

5. Software Features and Usage

The Dino Capture software provides a comprehensive suite of tools for image and video capture, annotation, comparison, and analysis.

• Захват изображения: Save images in BMP, GIF, PNG, JPG, TIF, PNM, TGA formats.
• Видеозапись: Record videos in WMV, FLV, SWF formats.
• Аннотация: Add text, arrows, and shapes to captured images for documentation.
• Сравнение: Compare multiple images side-by-side.
• Анализ: Utilize advanced tools for detailed image analysis.

For detailed instructions on using specific software features, refer to the Dino Capture software's built-in help documentation or the official Dino-Lite webсайт.

6. Техническое обслуживание

• Очистка объектива: Для бережной очистки линзы микроскопа используйте мягкую безворсовую ткань, специально предназначенную для оптических линз. Избегайте абразивных материалов и агрессивных химических веществ.
• Очистка тела: Протрите корпус микроскопа мягкой сухой тканью. При необходимости слегка протрите.amp Можно использовать ткань, но следите за тем, чтобы влага не попала внутрь устройства.
• Хранилище: Store the microscope in a clean, dry environment, away from direct sunlight and extreme temperatures. Use the provided caps to protect the lens when not in use.
• Обновления программного обеспечения: Regularly check the Dino-Lite website for software updates to ensure optimal performance and access to the latest features.

7. Поиск Неисправностей

8. Технические характеристики

9. Гарантия и поддержка

The Dino-Lite AM4815ZT USB Digital Microscope comes with a Гарантия 2 год с даты покупки. Данная гарантия распространяется на производственные дефекты и неисправности при нормальном использовании. Сохраните чек о покупке для предъявления гарантийных претензий.

For technical support, warranty service, or further inquiries, please visit the official Dino-Lite webсайте или обратитесь в их отдел обслуживания клиентов.

Note: The Dino-Lite AM4815ZT model has been discontinued. For replacement options, please refer to model AF4915ZT or consult the Dino-Lite webсайт.
