Введение
This manual provides essential information for the safe and effective operation and maintenance of your Superwinch Tiger Shark 9500SR 12V DC Winch. Designed for robust performance, this winch features a 9,500 lb rated line pull, a powerful 5.2 HP motor, and a durable 3-stage planetary gearing system.
Ключевые особенности включают в себя:
- Rated line pull of 9,500 lbs
- Двигатель 5.2 л.с.
- 3-Сtage planetary gearing with 218:1 ratio
- Weather sealed solenoid
- Heat insulated first layer
- Ergonomic pull and turn clutch handle (synthetic rope)
- 80 ft. - 3/8 in. UV coated synthetic rope
- Heavy-duty, clevis pinned, latched hook
- Aluminum hawse fairlead (synthetic rope)
- Rugged handheld remote control
Важная информация по безопасности
WARNING: Read and understand all instructions before operating this winch. Failure to follow these instructions may result in serious injury or property damage.
Always wear appropriate personal protective equipment, including gloves and eye protection, when operating the winch. Ensure all connections are secure and the winch is properly mounted before use. Keep hands and clothing clear of the rope, fairlead, and drum during operation. Never exceed the rated line pull of the winch.
Данный продукт может содержать химические вещества, в том числе свинец, который, согласно законодательству штата Калифорния, вызывает рак, врожденные дефекты или другие нарушения репродуктивной функции. Для получения дополнительной информации перейдите по ссылке: www.P65Warnings.ca.gov.
Components and Packaging
The Superwinch Tiger Shark 9500SR comes with the following components:
Image: All components included in the Superwinch Tiger Shark 9500SR package.
Image: The Superwinch unit alongside its primary accessories and mounting hardware.
В стандартный пакет входят:
- Superwinch Tiger Shark 9500SR Winch Unit
- 80 ft. - 3/8 in. Synthetic Rope
- Алюминий Hawse Fairlead
- Clevis Pinned, Latched Hook
- Corded Handheld Remote Control
- Крепежные элементы (болты, шайбы, гайки)
Руководство по установке
Proper installation is critical for the safe and reliable operation of your winch. While general steps are outlined here, it is highly recommended to consult the comprehensive official user manual for detailed, step-by-step instructions specific to your vehicle and mounting application.
Image: The Superwinch Tiger Shark 9500SR ready for installation.
Установка лебедки
The winch must be securely mounted to a flat, rigid surface capable of withstanding the maximum rated line pull. Use the provided mounting hardware and ensure all bolts are tightened to the specified torque values. Consider the orientation of the clutch handle for easy access.
Электрические соединения
Connect the winch to a 12V DC power source, typically your vehicle's battery. Ensure all electrical connections are clean, secure, and properly insulated. Use appropriate gauge wiring as specified in the full manual to prevent overheating and ensure optimal performance. The weather-sealed solenoid should be mounted in a protected location.
For complete installation instructions, including wiring diagrams and torque specifications, please refer to the official User Manual PDF: Загрузить руководство пользователя (PDF)
Инструкция по эксплуатации
Engaging and Disengaging the Clutch
The winch features an ergonomic pull and turn clutch handle. To disengage the clutch for free-spooling the rope, pull the handle outwards and rotate it to the 'Disengaged' position. To engage the clutch for winching, rotate the handle back to the 'Engaged' position and ensure it is fully seated.
Image: Close-up of the clutch handle, showing engagement and disengagement positions.
Использование пульта дистанционного управления
The winch is operated using the rugged corded handheld remote control. Connect the remote to the winch's control box. The remote typically has 'IN' (winch in) and 'OUT' (winch out) buttons to control the rope direction. Always ensure a clear line of sight to the winch and the load during operation.
Image: The corded handheld remote control for the winch.
Winching Procedures
Before winching, assess the situation and plan your recovery. Ensure the vehicle is stable and secured. Unspool enough synthetic rope to reach the anchor point, leaving at least five wraps on the drum for safety. Attach the heavy-duty, clevis pinned, latched hook securely to the anchor point.

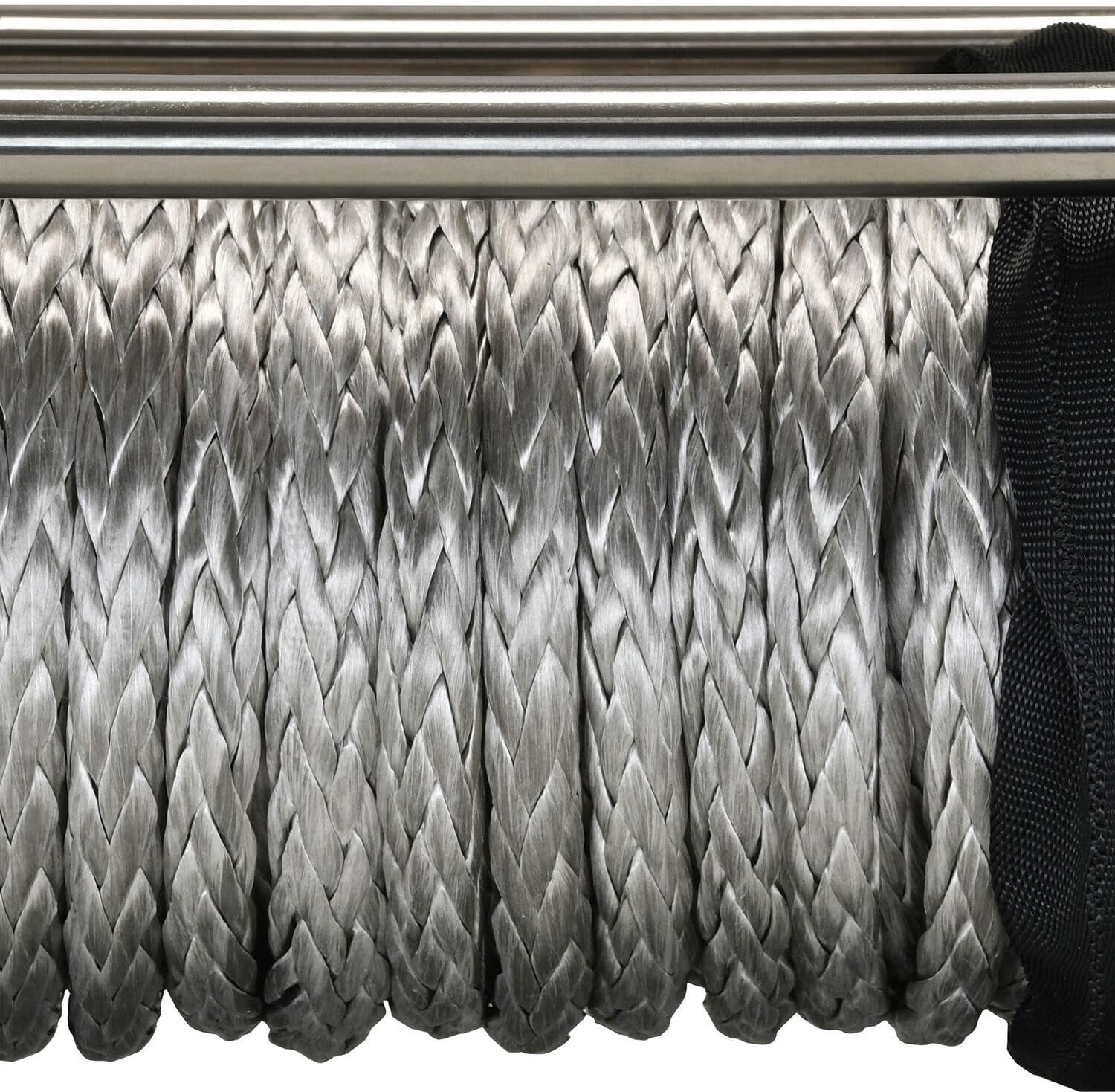

Изображение: подробное view of the 3/8" x 80' UV coated synthetic rope on the winch drum.

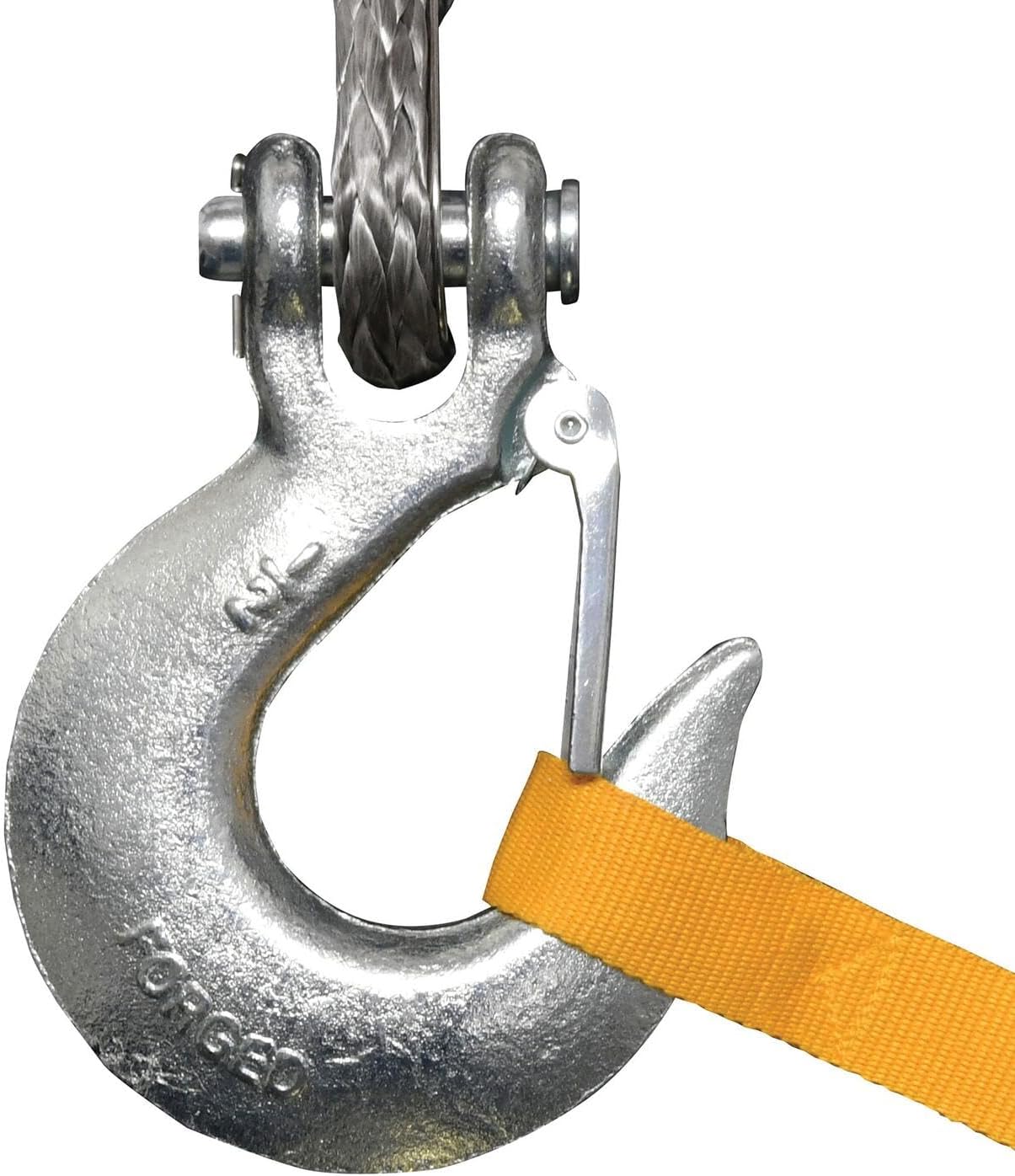

Image: The robust clevis pinned, latched hook for secure attachment.
Operate the winch in short, controlled pulls to avoid overheating the motor. Allow the motor to cool down between heavy pulls. Always respool the rope neatly under tension to prevent damage and tangles.
Обслуживание
Regular maintenance ensures the longevity and reliable performance of your Superwinch. After each use, especially in wet or muddy conditions, clean the winch and rope thoroughly. Inspect the synthetic rope for any signs of fraying, cuts, or damage. Replace the rope if any damage is detected.
Check all electrical connections for corrosion and tightness. Periodically inspect the mounting hardware to ensure it remains secure. Lubricate moving parts as recommended in the full user manual. Store the winch in a dry environment when not in use.
Поиск неисправностей
This section addresses common issues you might encounter with your winch. For more complex problems, refer to the detailed troubleshooting guide in the official user manual or contact Superwinch customer support.
Winch Not Operating
- Check battery connections: Ensure they are clean and tight.
- Verify remote control connection: Make sure the remote is securely plugged in.
- Check for tripped circuit breaker or blown fuse: Inspect the electrical system.
- Ensure clutch is engaged: The clutch must be fully engaged for the winch to operate.
Slow Winch Speed or Reduced Power
- Низкий уровень заряда батареиtage: Recharge or replace the vehicle battery.
- Overheating: Allow the winch motor to cool down.
- Excessive load: Reduce the load or use a snatch block to multiply pulling power.
Технические характеристики
| Спецификация | Ценить |
|---|---|
| Производитель | Superwinch |
| Бренд | Superwinch |
| Модель | 1595201 |
| Вес товара | 61 фунта |
| Размеры продукта | 20.83 x 6.3 x 9.23 дюйма |
| Номер модели товара | SUP1595201 |
| Внешняя отделка | Покрытый порошком |
| Номер детали производителя | 1595201 |
| Номер детали OEM | 1595201 |
| Позиция | Задний |
| ASIN | B00KPP6GTY |
| Дата первой доступности | 2 июня 2014 г. |
Гарантия и поддержка
For detailed warranty information, please refer to the official Superwinch documentation included with your product or available on the Superwinch webсайт. Рекомендуется зарегистрировать ваш продукт, чтобы обеспечить полную гарантию.
For further assistance, technical support, or to access the complete user manual, please visit the official Superwinch website or refer to the downloadable PDF manual:
