Omron Z-15GW2-B7-K Industrial Snap Switch User Manual

1. Введение

This manual provides essential information for the safe and efficient use of the Omron Z-15GW2-B7-K Industrial Snap Switch. Please read these instructions thoroughly before installation, operation, or maintenance to ensure proper function and prevent potential hazards.

2. Информация по технике безопасности

ВНИМАНИЕ: Опасность поражения электрическим током и травм.

• Always disconnect power before installing, wiring, or servicing the switch.
• Монтаж и электромонтажные работы должны выполняться квалифицированным персоналом в соответствии со всеми местными и национальными электротехническими нормами.
• Не превышайте указанные значения тока и напряжения.tagе рейтинги.
• Обеспечьте правильное заземление во избежание поражения электрическим током.
• Avoid exposing the switch to environments outside its specified operating temperature and IP rating.

3. Продукт закончилсяview

The Omron Z-15GW2-B7-K is an industrial snap switch designed for reliable operation in various control applications. It features a Single Pole Double Throw (SPDT) contact form and a hinge roller lever actuator, providing precise detection of mechanical movement.

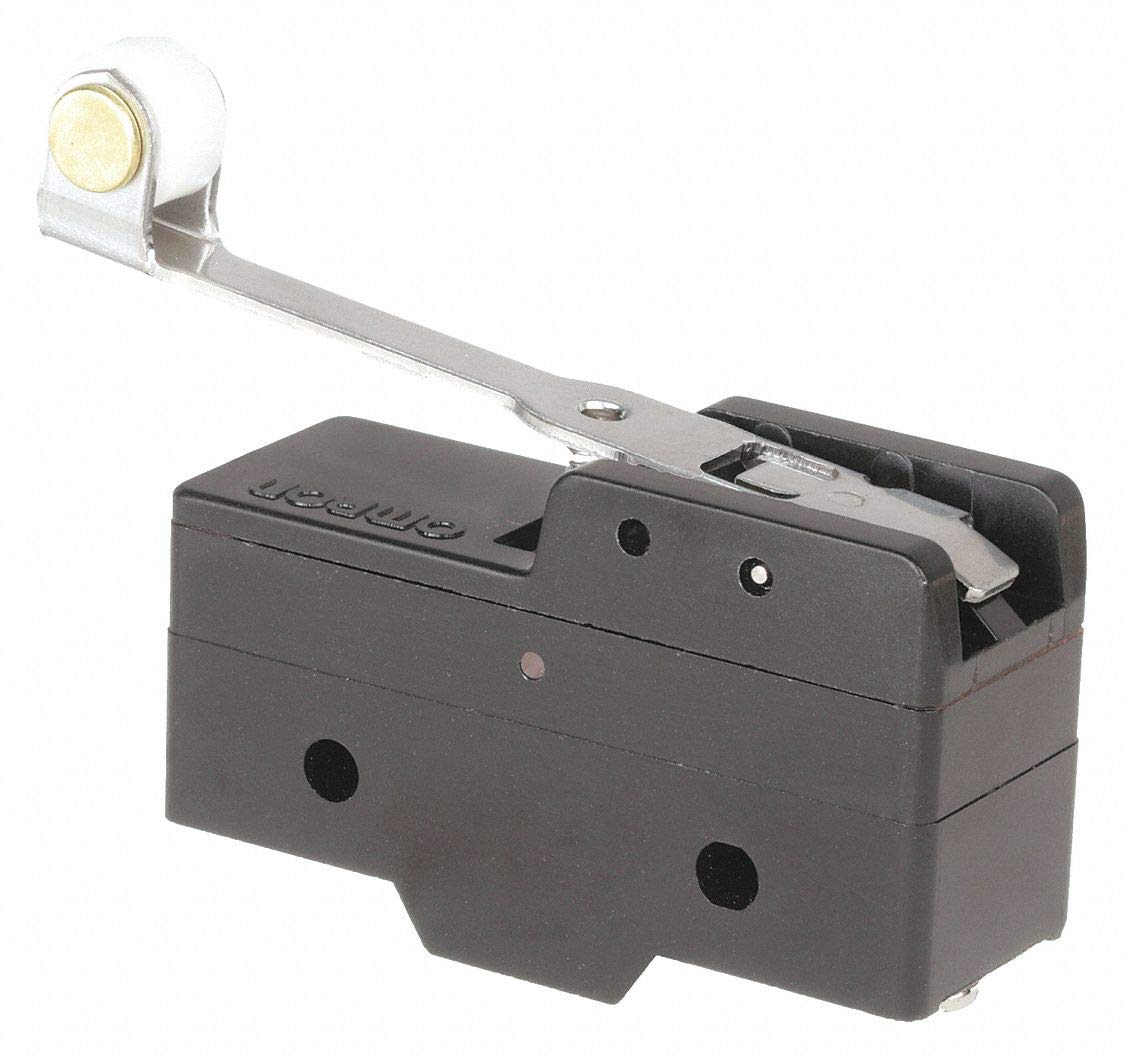

Рисунок 1: Omron Z-15GW2-B7-K Industrial Snap Switch. This image shows the Omron Z-15GW2-B7-K Industrial Snap Switch, featuring a hinge roller lever actuator and screw terminals. The compact design is suitable for various industrial applications.

Основные характеристики:

• Тип привода: Hinge Roller Lever
• Контактная форма: SPDT (однополюсный двухпозиционный переключатель)
• Текущий рейтинг: 15 Amps
• Томtagе Рейтинг: 480 В переменного тока
• Тип терминала: Винт
• Материал корпуса: Пластик
• Международный рейтинг защиты: IP65

4. Настройка и установка

Follow these steps for proper installation of the Omron Z-15GW2-B7-K snap switch:

1. Отключение питания: Перед началом установки убедитесь, что цепь обесточена. Проверьте с помощью вольтметра.tagе тестер.
2. Монтаж: The switch is designed for snap-in mounting. Secure the switch using the mounting dimensions of 1.03 inches centers. Ensure the mounting surface is stable and free from excessive vibration.
3. Проводка:
   • Identify the screw terminals. The SPDT contact form typically includes Common (C), Normally Open (NO), and Normally Closed (NC) terminals. Refer to the wiring diagram on the switch body if available.
   • Connect the appropriate wires to the screw terminals. Ensure connections are tight and secure to prevent loose contacts and overheating.
   • Use wire gauges suitable for the 15A current rating.
4. Actuator Alignment: Position the hinge roller lever actuator so that it can be reliably engaged by the target mechanism. Ensure the mechanism provides sufficient over travel (0.157 In.) and does not exceed the maximum pretravel (0.157 In.) for consistent operation.
5. Экологические соображения: Install the switch in an environment within its specified operating temperature range (-25°C to 80°C) and where its IP65 rating is sufficient for protection against dust and water ingress.
6. Тестирование: After installation, carefully restore power and test the switch's operation to confirm correct functionality and wiring.

5. Инструкция по эксплуатации

The Omron Z-15GW2-B7-K snap switch operates based on the physical displacement of its hinge roller lever actuator. When the actuator is depressed, the internal contacts switch state.

• Приведение в действие: The switch requires an operating force of approximately 3.5 oz. to actuate. The hinge roller lever is designed to be engaged by a moving part of machinery or equipment.
• Contact Function (SPDT):
  • In its normal (unactuated) state, the Common (C) terminal is connected to the Normally Closed (NC) terminal.
  • When the hinge roller lever is depressed, the Common (C) terminal switches connection to the Normally Open (NO) terminal.
  • The switch maintains this state as long as the actuator is depressed. Upon release, the contacts return to their normal state.
• Режим работы: The switch functions in an OFF-NONE-ON mode, meaning it has a stable OFF state, a transient ON state when actuated, and returns to OFF when released.

6. Техническое обслуживание

Regular maintenance helps ensure the longevity and reliable performance of your Omron snap switch.

• Инспекция: Periodically inspect the switch for any signs of physical damage, wear on the hinge roller lever, or loose wiring connections.
• Уборка: Keep the switch free from dust, dirt, and debris. Use a soft, dry cloth for cleaning. Do not use harsh chemicals or abrasive materials.
• Проверка привода: Verify that the mechanism actuating the hinge roller lever is operating smoothly and consistently, without excessive force or misalignment.
• Охрана окружающей среды: Ensure that the environmental conditions remain within the specified IP65 rating. If the housing is damaged, the protection level may be compromised.
• Отключение питания: Перед проведением любых работ по техническому обслуживанию или осмотру всегда отключайте питание.

7. Поиск Неисправностей

If you encounter issues with your Omron Z-15GW2-B7-K snap switch, refer to the following common problems and solutions:

If problems persist after attempting these solutions, contact Omron technical support or a qualified electrician.

8. Технические характеристики

Technical specifications for the Omron Z-15GW2-B7-K Industrial Snap Switch:

9. Гарантия и поддержка

For warranty information and technical support regarding your Omron Z-15GW2-B7-K Industrial Snap Switch, please refer to the official Omron webили обратитесь к авторизованному дистрибьютору Omron. Сохраните чек о покупке для предъявления гарантийных претензий.

Омрон Webсайт: www.omron.com

For specific product inquiries or troubleshooting assistance not covered in this manual, Omron's customer service team is available to help.
