1. Введение
This manual provides detailed instructions for the setup, operation, and maintenance of your Memorex MD6451 Portable CD Player. Please read this manual thoroughly before using the device to ensure proper function and to maximize your listening experience. Keep this manual for future reference.
2. Содержимое упаковки
Убедитесь, что в вашей посылке присутствуют все перечисленные ниже предметы:
- Memorex MD6451 Portable CD Player
- Стерео наушники
- In-line Remote Control
- Power Cord (for DC jack)
3. Продукт закончилсяview
The Memorex MD6451 is a portable CD player designed for personal audio playback. It supports standard audio CDs, CD-R, and CD-RW discs. Key features include 60-second skip protection, programmable CD memory, and a bass boost system for enhanced audio.

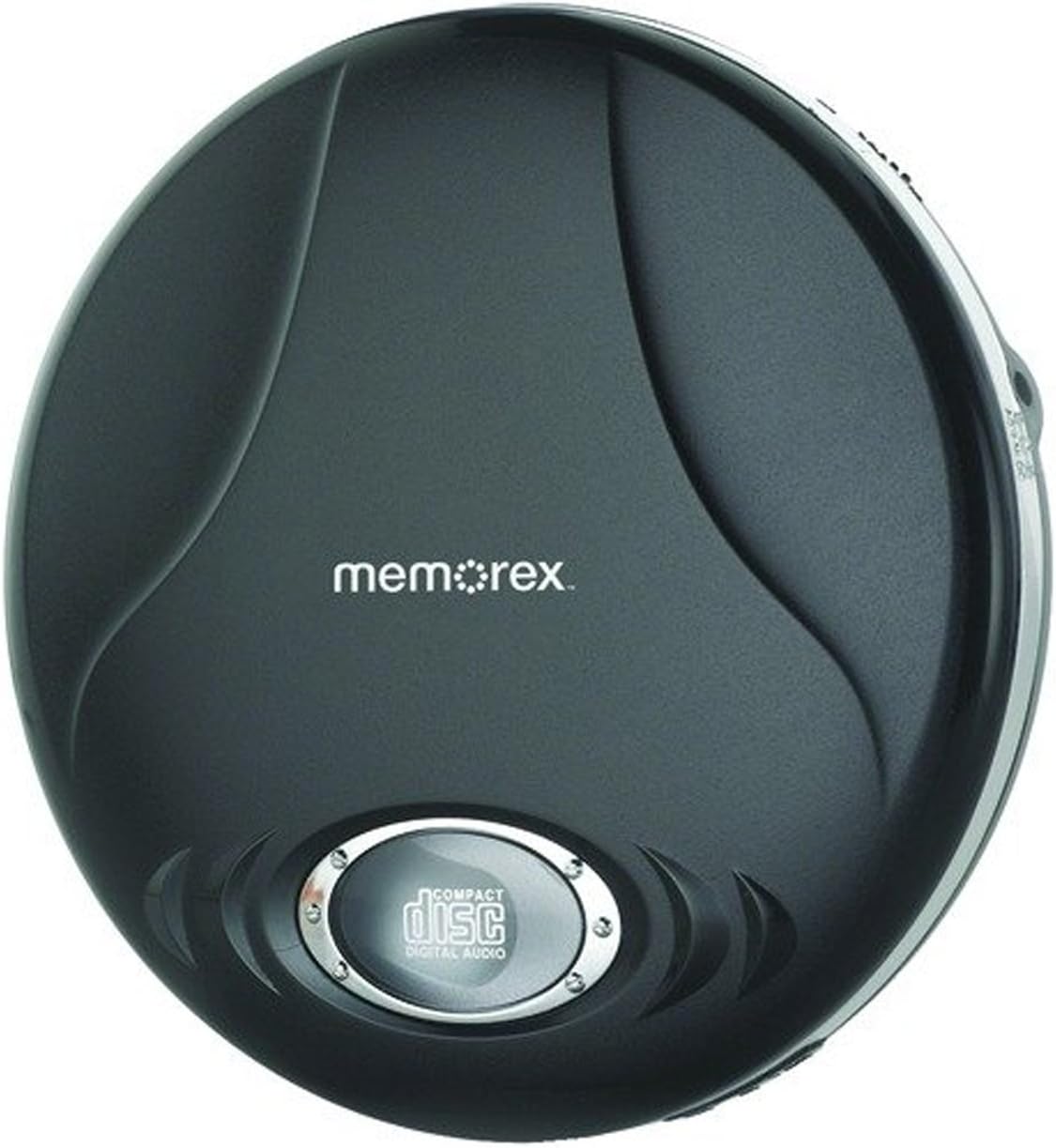

Figure 3.1: Memorex MD6451 Portable CD Player. This image displays the Memorex MD6451 Portable CD Player in its closed, black casing. The 'memorex' logo is centered on the top surface, and a circular window at the bottom shows the 'compact disc digital audio' emblem, indicating the disc tray area.
3.1. Органы управления и подключения
Familiarize yourself with the various controls and connection points on your CD player:
- Отделение для компакт-дисков: Для вставки аудио-CD.
- Кнопка воспроизведения/паузы: Initiates or pauses disc playback.
- Кнопка остановки: Halts disc playback.
- Кнопки «Пропустить»/«Поиск»: Позволяет переключаться между треками или перематывать треки вперед/назад.
- Регулятор громкости: Регулирует уровень выходного звука.
- Bass Boost Switch: Включает или выключает усиление басов.
- Программная кнопка: Used for programming track order.
- Кнопка режима: Selects playback modes (e.g., repeat, random).
- Разъем для наушников 3.5 мм: Connects stereo earbuds or headphones.
- Порт линейного выхода: Connects to external audio systems (e.g., home stereo, car audio).
- Разъем постоянного тока: For connecting the external power cord.
4. Настройка
4.1. Powering the CD Player
The Memorex MD6451 can be powered by batteries or an external power adapter.
- Установка аккумулятора: Open the battery compartment on the underside of the player. Insert two (2) AA-size batteries (not included), ensuring correct polarity (+/-). Close the compartment securely.
- Питание переменного тока: Connect the provided power cord to the DC jack on the player and plug the other end into a standard electrical outlet.
4.2. Connecting Earbuds/Headphones
Insert the stereo earbuds or your preferred headphones into the 3.5mm headphone jack on the side of the player.
4.3. Вставка компакт-диска
- Gently press the OPEN button or slide the latch to open the CD compartment lid.
- Place an audio CD (CD, CD-R, or CD-RW) onto the center spindle with the label side facing up.
- Аккуратно нажмите на центр диска, пока он не зафиксируется со щелчком.
- Плотно закройте крышку отсека для компакт-дисков до щелчка.
5. Операция
5.1. Базовое воспроизведение
- Ensure the player is powered and a CD is inserted.
- Нажмите ВОСПРОИЗВЕДЕНИЕ/ПАУЗА button to begin playback. The track number and elapsed time will display.
- Отрегулируйте громкость с помощью регулятора громкости.
- Чтобы приостановить воспроизведение, нажмите кнопку ВОСПРОИЗВЕДЕНИЕ/ПАУЗА Нажмите кнопку ещё раз. Нажмите её ещё раз, чтобы продолжить.
- Чтобы остановить воспроизведение, нажмите кнопку ОСТАНАВЛИВАТЬСЯ кнопка.
5.2. Navigating Tracks
- Нажмите ПРОПУСТИТЬ ВПЕРЕД кнопка (>> |) to advance to the next track.
- Нажмите ПРОПУСТИТЬ НАЗАД кнопка (|<) once to restart the current track, or twice to go to the previous track.
- Нажмите и удерживайте >> | to fast-forward within a track.
- Нажмите и удерживайте |< to rewind within a track.
5.3. Programmable CD Memory
You can program the player to play tracks in a specific order.
- While the player is stopped, press the ПРОГРАММА button. The display will show "P01".
- Используйте ПРОПУСТИТЬ ВПЕРЕД or ПРОПУСТИТЬ НАЗАД buttons to select the desired first track.
- Нажимать ПРОГРАММА again to confirm the selection. The display will show "P02".
- Repeat steps 2 and 3 to add more tracks to your program list.
- После программирования всех желаемых треков нажмите кнопку ВОСПРОИЗВЕДЕНИЕ/ПАУЗА button to start playback of the programmed sequence.
5.4. Bass Boost System
To enhance the bass frequencies, locate the УСИЛЕНИЕ БАСОВ switch on the player and slide it to the ON position. Slide it to OFF to disable the feature.
5.5. 60-Second Skip Protection
The player features a 60-second electronic skip protection system. This buffer stores audio data to prevent interruptions during minor shocks or vibrations. While effective, severe or prolonged movement may still cause playback to skip.
5.6. Using the Line Out Port
The Line Out port allows you to connect your MD6451 to an external audio system, such as a home stereo receiver or car audio input, using a standard 3.5mm audio cable (not included). This bypasses the player's internal amplifier and volume control, relying on the external system's controls for volume adjustment.
5.7. Using the In-line Remote Control
The included in-line remote control provides convenient access to basic playback functions without needing to access the player directly. Connect the remote to the headphone jack, then plug your earbuds into the remote's jack. The remote typically includes buttons for Play/Pause, Stop, and Skip/Search.
6. Техническое обслуживание
6.1. Очистка устройства
Wipe the exterior of the player with a soft, dry cloth. Do not use abrasive cleaners or solvents. For the optical lens inside the CD compartment, use a specialized CD lens cleaning kit if necessary, following its instructions carefully.
6.2. Уход за аккумулятором
- Если плеер не будет использоваться в течение длительного времени, извлеките батарейки, чтобы предотвратить протечку.
- Не смешивайте старые и новые батареи или батареи разных типов.
- Утилизируйте использованные батареи ответственно в соответствии с местными правилами.
6.3. Уход за дисками
Handle CDs by their edges. Clean discs with a soft, lint-free cloth, wiping from the center outwards. Avoid scratching the disc surface.
7. Поиск Неисправностей
If you encounter issues with your Memorex MD6451, refer to the following common problems and solutions:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Плеер не включается. | No batteries or dead batteries. Power cord not connected or faulty. | Insert fresh AA batteries with correct polarity. Ensure power cord is securely connected to both player and outlet. |
| Ни звука. | Volume too low. Headphones not connected properly. Faulty headphones. | Increase volume. Ensure headphones are fully plugged into the 3.5mm jack. Test with different headphones. |
| Disc skips frequently. | Disc is dirty or scratched. Player is subjected to excessive movement. Batteries are low. | Clean the disc with a soft cloth. Ensure the player is on a stable surface. Replace with fresh batteries or use AC power. |
| Компакт-диск не воспроизводится. | Disc inserted incorrectly. Disc is not an audio CD (e.g., data CD). Disc is severely damaged. | Ensure disc is inserted label-side up and compartment is closed. Verify the disc is a standard audio CD, CD-R, or CD-RW. Try a different, known-good audio CD. |
8. Технические характеристики
| Особенность | Деталь |
|---|---|
| Номер модели | MD6451 |
| Поддерживаемые форматы дисков | CD, CD-R, CD-RW |
| Skip Protection | 60 секунд |
| Связность | 3.5mm Headphone Jack, Line Out Port, DC Jack |
| Источник питания | 2 x AA Batteries (not included), External DC Power (via power cord) |
| Размеры (Д x Ш x В) | 5 х 5 х 2 дюйма (приблизительно) |
| Вес товара | 8.8 унции (приблизительно) |
| Особые возможности | Portable, Bass Boost System, Programmable CD Memory |
| Включенные компоненты | Stereo Earbuds, In-line Remote, Power Cord |
9. Гарантия и поддержка
For warranty information or technical support, please refer to the documentation included with your purchase or contact Memorex customer service directly. Keep your proof of purchase for warranty claims.
Примечание: Конкретные условия гарантии могут различаться в зависимости от региона и продавца.
