1. Введение
This manual provides detailed instructions for the setup, operation, and maintenance of your Sharp VC-H965U 4-Head Hi-Fi VCR. The VC-H965U is designed for recording and playback of VHS videocassettes, offering features such as a 4-head design for clear still-frame and slow-motion playback, hi-fi stereo sound, and Sharp Super Picture technology for enhanced image details. Please read this manual thoroughly before using your VCR to ensure proper operation and to maximize its performance.
2 Важная информация по безопасности
Соблюдайте следующие меры предосторожности, чтобы предотвратить поражение электрическим током, возгорание или повреждение устройства.
- Риск поражения электрическим током: Do not open the VCR casinг. По всем вопросам обслуживания обращайтесь к квалифицированному персоналу.
- Источник питания: Connect the VCR only to an AC 120V, 60Hz power supply.
- Вентиляция: Обеспечьте достаточную вентиляцию вокруг устройства. Не закрывайте вентиляционные отверстия.
- Влага: Do not expose the VCR to rain or moisture.
- Analog Broadcast Tuner: This television receiver has only an analog broadcast tuner. After February 17, 2009, it requires a converter box to receive over-the-air broadcasts with an antenna due to the U.S. transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, and DVD players.

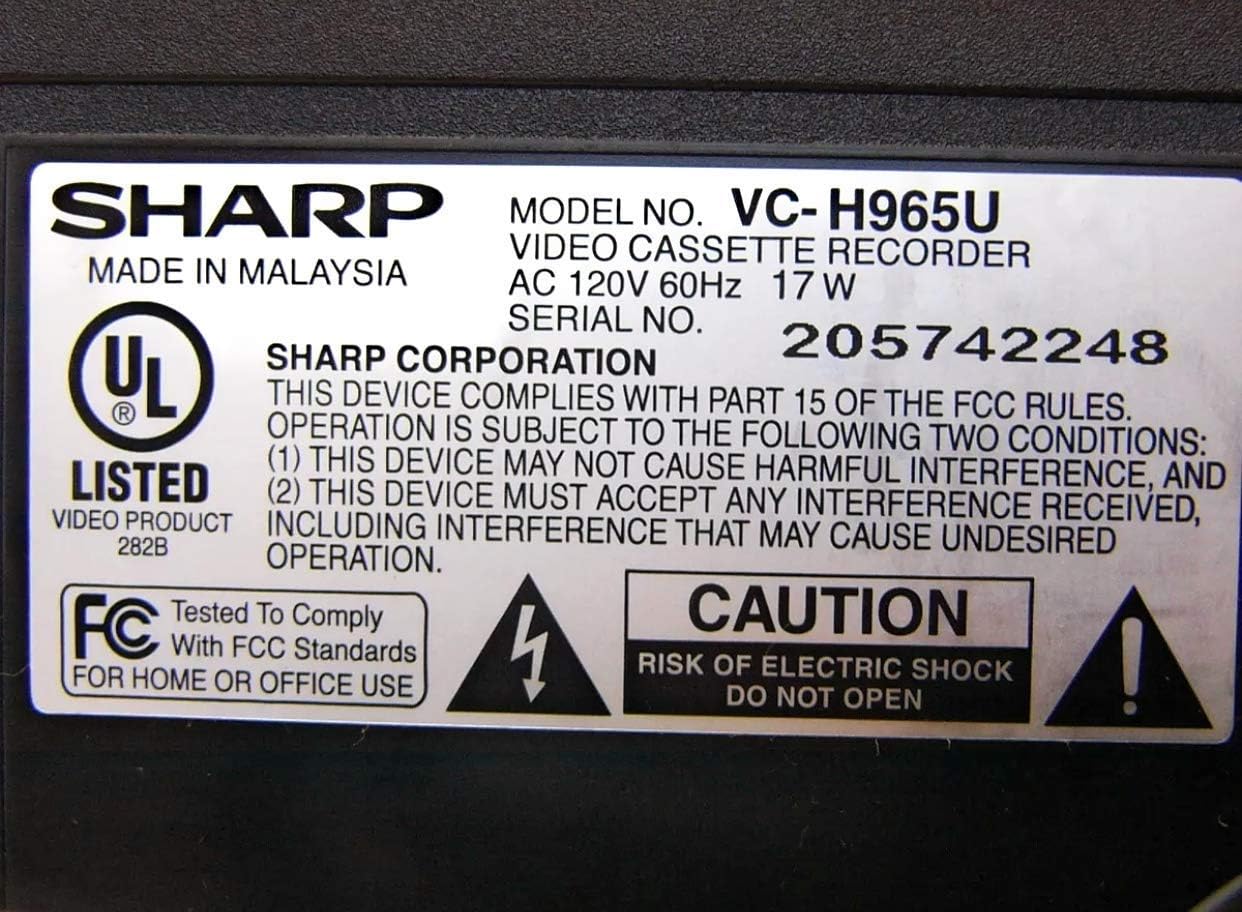

Figure 2.1: Product label with safety warnings and specifications.
3. Настройка
3.1 Распаковка и размещение
Carefully remove the VCR from its packaging. Place the unit on a stable, flat surface, ensuring proper ventilation around all sides.
Figure 3.1: Front panel of the Sharp VC-H965U VCR.
3.2 Connecting to a Television and Other Devices
Connect the VCR to your television using appropriate audio/video cables. For optimal sound, use the stereo audio outputs to an AV receiver if available. The VCR also features front-panel AV inputs for easy connection of camcorders or gaming consoles.
- Видео соединение: Connect the yellow VIDEO OUT jack on the VCR to the VIDEO IN jack on your TV.
- Аудио соединение: Connect the white AUDIO L OUT and red AUDIO R OUT jacks on the VCR to the corresponding AUDIO IN jacks on your TV or AV receiver.
- Подключение антенны/кабеля: Connect your antenna or cable TV line to the VHF/UHF/CATV IN jack on the VCR. Then, connect the VHF/UHF/CATV OUT jack on the VCR to the antenna input on your TV.
- Front AV Inputs: For temporary connections like a camcorder, use the yellow VIDEO IN, white AUDIO L IN, and red AUDIO R IN jacks located on the front panel.
Figure 3.2: Rear panel connections of the Sharp VC-H965U VCR.
Рисунок 3.3: Подробная информация view of rear AV and antenna connections.
3.3 Initial Setup and Channel Tuning (EZ Set Up)
The VC-H965U features an "EZ Set Up" function that automatically tunes and stores available channels. Follow these steps:
- Ensure the VCR is connected to your antenna or cable source.
- Включите видеомагнитофон и телевизор.
- Access the VCR's menu system (refer to your remote control for the "MENU" button).
- Select the "EZ Set Up" or "Auto Channel Search" option.
- The VCR will automatically scan and store all available air and cable channels, and set the clock.
Примечание: If you experience issues with picture loss after setting up cable channels, especially if you have a live signal on channel 3, consult the troubleshooting section or contact customer support for specific guidance.
4. Инструкция по эксплуатации
4.1 Базовое воспроизведение
- Insert a VHS videocassette into the VCR.
- Нажмите ИГРАТЬ кнопка на видеомагнитофоне или пульте дистанционного управления.
- Чтобы остановить воспроизведение, нажмите кнопку ОСТАНАВЛИВАТЬСЯ кнопка.
- Чтобы приостановить воспроизведение, нажмите кнопку ПАУЗА/СТОП кнопка. Нажмите еще раз, чтобы возобновить.
4.2 Запись программ
- Insert a recordable VHS videocassette.
- Tune the VCR to the desired channel.
- Нажмите РЕК button to begin recording. Press ОСТАНАВЛИВАТЬСЯ чтобы закончить запись.
- For timed recordings, use the VCR's timer programming function (refer to the remote control and on-screen menu for detailed steps).
4.3 Расширенные функции воспроизведения
- Slow-Motion Playback: The 4-head design allows for smooth slow-motion playback in both forward and reverse. Use the ПАУЗА/СТОП кнопку и затем FF or РЭВ buttons to adjust speed.
- Clear Still-Frame: Achieve clear still images by pressing the ПАУЗА/СТОП кнопку во время воспроизведения.
- Пропустить поиск: Во время воспроизведения нажмите кнопку ПРОПУСТИТЬ ПОИСК button (if available on remote) to advance the tape in 30-second intervals, useful for bypassing commercials.
- Мгновенное воспроизведение: Нажмите МГНОВЕННЫЙ ПОВТОР button (if available on remote) to quickly rewind the tape in 20-second intervals and then resume playback.
- Fast Rewind/Forward: The VCR rewinds a T-120 tape in approximately 54 seconds. Note that rewind speed may vary for other tape lengths.
5. Техническое обслуживание
5.1 Очистка видеомагнитофона
Для поддержания оптимальной производительности и внешнего вида:
- Протрите корпус видеомагнитофона мягкой сухой тканью.
- Do not use liquid or aerosol cleaners, as they may damage the finish or internal components.
- Avoid inserting cleaning tapes frequently, as some can cause excessive wear on the video heads. Use only when necessary and follow the cleaning tape manufacturer's instructions.
5.2 Уход за лентой
Store videocassettes in their cases, away from direct sunlight, extreme temperatures, and magnetic fields, to preserve tape quality.
6. Поиск Неисправностей
If you encounter problems with your VCR, refer to the following common issues and solutions before seeking service.
| Проблема | Возможная причина/решение |
|---|---|
| Нет электричества | Ensure the power cord is securely plugged into the VCR and a working electrical outlet. |
| Нет изображения или звука |
|
| Poor picture quality (noisy, ghosty, dark) |
|
| VCR is noisy during rewind | This model may exhibit a slightly louder rewind function compared to some other VCRs. This is generally normal operation. |
| Picture loss after cable channel setup | If you have a live signal on channel 3, this can sometimes interfere with the auto-set process. Refer to the manual's specific section on channel tuning or contact Sharp customer service for assistance. |
7. Технические характеристики
- Бренд: Острый
- Номер модели: VC-H965U (Internal Model: VCA965U)
- Тип: 4-Head Hi-Fi VCR
- Источник питания: 120 В переменного тока, 60 Гц, 17 Вт
- Вес товара: Примерно 5 фунтов
- Размеры упаковки: Приблизительно 14.1 х 8.3 х 3.6 дюйма
- Rewind Speed (T-120 tape): Примерно 54 секунды
- Функции: Sharp Super Picture, 19 Micron Exact-Track heads, EZ Set Up, Skip Search, Instant Replay, Front-panel AV inputs.
- ASIN: B00006FXF5
- Дата первой доступности: 29 сентября 2005 г.
8. Гарантия и поддержка
Информацию о гарантии см. в документации, прилагаемой к вашей покупке, или на официальном сайте Sharp. website. If you require technical assistance or have questions not covered in this manual, please contact Sharp customer service. Previous users have noted the customer service staff to be very polite and helpful.
Контактную информацию службы поддержки обычно можно найти на официальном сайте производителя. website or by searching for "Sharp customer support" online.
