Руководство по эксплуатации мобильной любительской радиостанции AnyTone AT-588Max VHF

1. Продукт закончилсяview

The AnyTone AT-588Max is a professional mobile ham radio designed for reliable communication in various environments. It features a powerful 70W VHF output, 510 programmable channels, and advanced AI noise cancelling technology for clear audio transmission and reception. Its robust design and wireless PTT functionality make it suitable for use in cars, trucks, off-road vehicles, and emergency situations.

Рисунок 1.1: Передняя часть view of the AnyTone AT-588Max Mobile Ham Radio with attached microphone.

2. Что в коробке

Убедитесь, что все перечисленные ниже предметы включены в ваш пакет:

• УКВ радиостанция AT-588MAX
• Микрофон
• Кабель питания постоянного тока с держателем предохранителя
• BT Wireless PTT
• Руководство пользователя

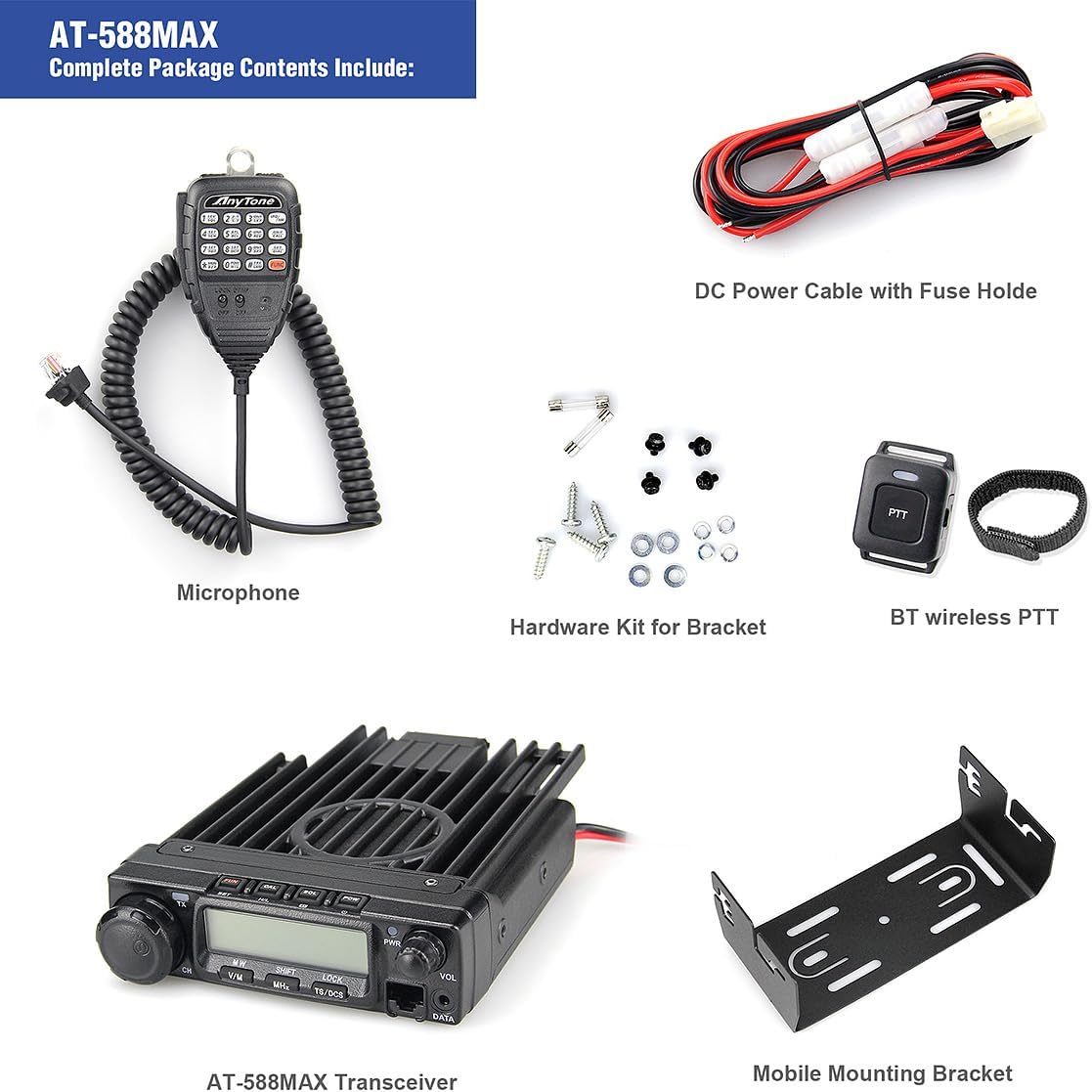

Figure 2.1: All components included in the AnyTone AT-588Max package.

3. Настройка и установка

3.1 Подключение питания

Connect the supplied DC Power Cable with Fuse Holder to the radio's power input. Ensure correct polarity (red to positive, black to negative) and connect to a stable 13.8V power source. The fuse holder provides protection against overcurrent.

3.2 Подключение антенны

Attach a suitable VHF antenna to the SO-239 connector on the rear of the radio. Ensure the antenna is properly tuned for the operating frequency range (144-148MHz) to prevent damage to the transceiver.

Рисунок 3.1: Сторона view of the radio highlighting the antenna connector.

3.3 Microphone and Wireless PTT

Connect the microphone to the front panel RJ45 port. The included BT Wireless PTT can be paired for hands-free operation. Refer to the pairing instructions in the full user manual for detailed steps.

3.4 Монтаж

Use the provided mobile mounting bracket and hardware kit to securely install the radio in your vehicle or at a base station. Ensure adequate ventilation around the heat sink and fan for optimal performance.

Рисунок 3.2: Example of the AnyTone AT-588Max installed in a vehicle.

4. Инструкция по эксплуатации

4.1 Включение/выключение питания и громкость

Press the PWR button to turn the radio on or off. Rotate the VOL knob to adjust the audio output level.

4.2 Выбор канала и частоты

Use the large rotary knob on the left to select channels or adjust frequency. The V/M button switches between VFO (Frequency Mode) and Memory Mode. The MHz button allows for larger frequency steps.

4.3 AI Noise Cancelling

The AT-588Max features AI-powered noise cancellation for both transmit (TX) and receive (RX) paths. This function helps to maintain clear communication even in noisy environments. The noise reduction level can be adjusted through the radio's menu settings.

Video 4.1: Demonstration of the AM function on the AT-588Max.

4.4 Wireless PTT Operation

The included BT Wireless PTT allows for convenient hands-free communication. Ensure the PTT is paired with the radio. Press the PTT button to transmit and release to receive.

Видео 4.2: Оверview of Bluetooth PTT, Earpiece, and Microphone accessories.

5. Особенности

5.1 High Power Output (70W)

The AT-588Max delivers a robust 70W output on VHF, ensuring extended communication range and strong signal penetration, even in challenging terrain or dense foliage.

Figure 5.1: Visual representation of the radio's 70W high power output and 510 channels.

5.2 510 Programmable Channels

With 510 customizable channels, the radio offers extensive flexibility for various communication needs, from personal use to team coordination and emergency services.

5.3 Air Band (AM) Reception

The radio supports Air Band (AM) reception, allowing users to monitor aviation communications for enhanced situational awareness.

5.4 Efficient Cooling System & LCD Display

An integrated fan and heat sink ensure the radio remains cool during prolonged operation. The large LCD screen features 32 adjustable brightness levels for clear visibility in any lighting condition.

Figure 5.2: The radio's efficient cooling fan and large, bright LCD display.

6. Технические характеристики

7. Техническое обслуживание

Regularly inspect all cables and connectors for wear or damage. Keep the radio clean and free from dust and moisture. Ensure the cooling fan is unobstructed to prevent overheating.

8. Поиск Неисправностей

8.1 Нет питания

• Check power cable connections and fuse.
• Проверьте напряжение источника питания.tagе (13.8 В).

8.2 Плохое качество звука

• Отрегулируйте уровень шумоподавления.
• Ensure AI Noise Cancelling is properly configured.
• Проверьте подключение микрофона.

8.3 Ограниченный диапазон

• Verify antenna connection and tuning.
• Check power output setting (ensure it's set to 70W for maximum range).
• Ensure clear line-of-sight to other stations or repeaters.

9. Гарантия и поддержка

The AnyTone AT-588Max comes with an 18-Month Warranty. For technical support, programming software, or warranty claims, please contact AnyTone customer service through their official channels. The programming cable is not included and must be purchased separately.
