1. Введение
The Qiilu Industrial Grade Isolated USB to 4-Channel RS232 Converter provides a robust solution for connecting multiple RS232 serial devices to a computer via a single USB port. Designed for industrial environments, it features advanced isolation and protection mechanisms to ensure stable and reliable data communication. This manual provides detailed instructions for the proper setup, operation, and maintenance of your device.

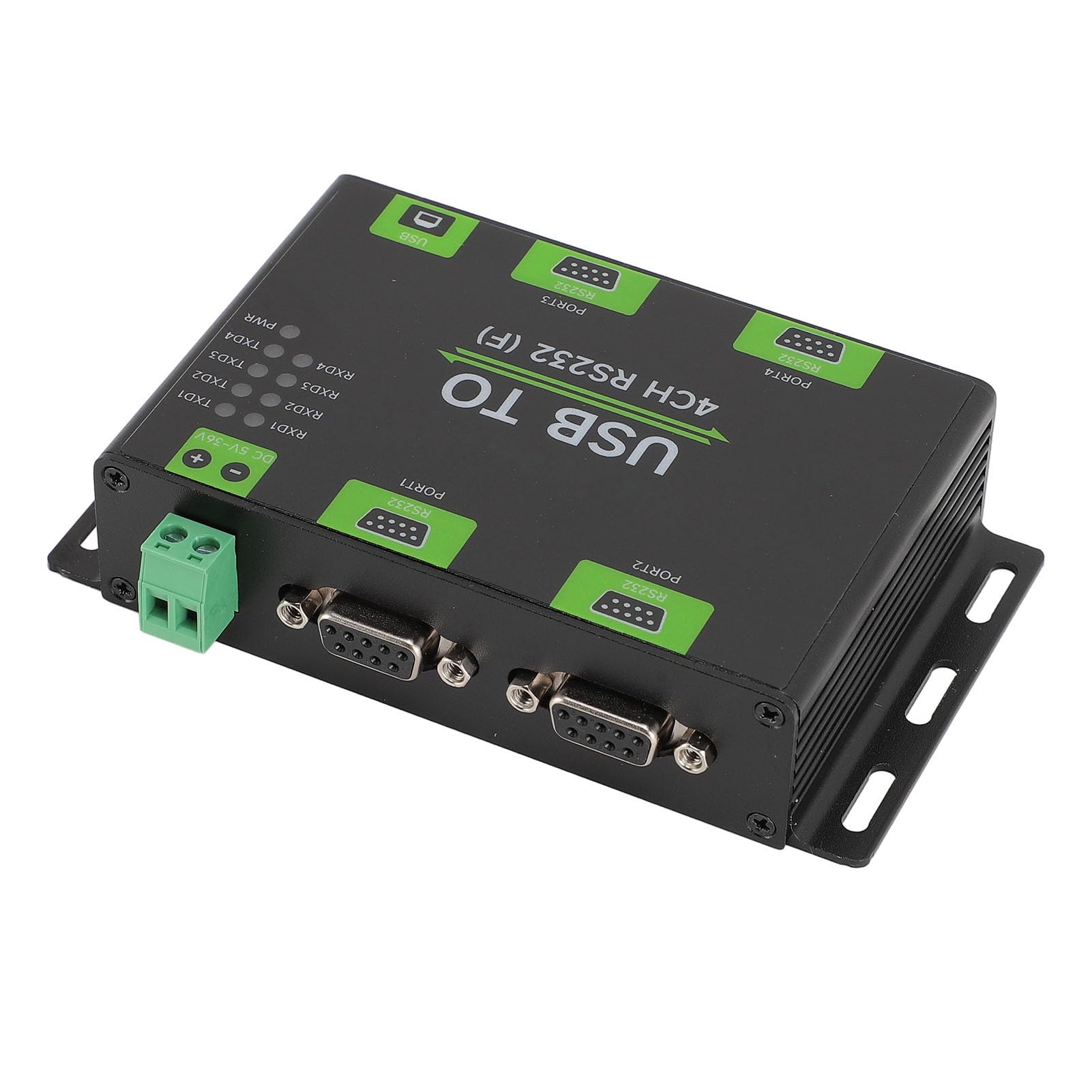

Рисунок 1: Сверху вниз view of the Qiilu USB to 4-Channel RS232 Converter, showing USB, power, and RS232 ports with LED indicators.
2. Особенности продукта
- Высокая скорость работы: Utilizes the original FT4232HL chip for stable and high-speed telecommunication, ensuring compatibility with various RS232 industrial devices.
- Advanced Isolation: Incorporates digital and power isolation mechanisms, offering low power consumption and strong anti-interference capabilities.
- Всплеск VoltagЭлектронная защита: Equipped with Transient Voltage Suppression (TVS) design to effectively mitigate surge and transient spike voltages, providing superior thunder and static protection.
- Текущий и томtage Guard: Features a self-resetting fuse and diode to maintain stable output current and voltage, safeguarding the device from overcurrent and overvoltagе условия.
- Удобные для пользователя индикаторы: Includes external LED indicators for power supply and data transmission statuses (TXD/RXD), simplifying operation and monitoring.
3. Содержимое упаковки
В комплект входят следующие предметы:
- 1 x USB to RS232 Converter
- 1 x Power Adapter (for DC 5-36V input)
- 1 х USB-кабель

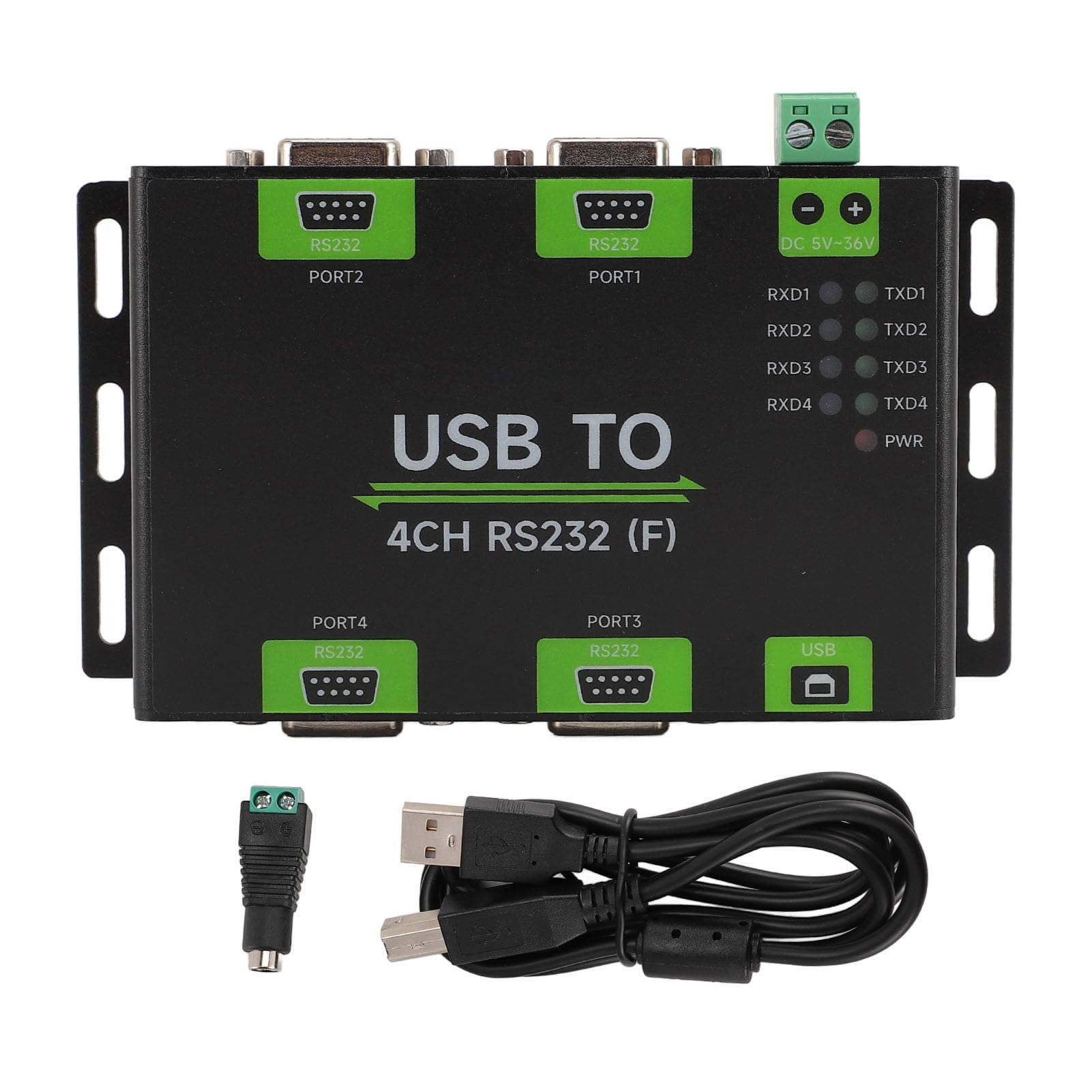

Figure 2: The converter unit shown with its accompanying power adapter and USB cable.
4. Технические характеристики
| Особенность | Описание |
|---|---|
| Тип товара | Industrial Grade Isolated USB to RS232 Converter |
| Материал | Алюминиевый сплав |
| Host Interface | USB |
| Интерфейс устройства | RS232 (4-channel) |
| Telecommunication Range | 300 бит/с ~ 921600 бит/с |
| USB Interface Working Level | 5V |
| Тип разъема USB | USB-порт B |
| USB Interface Guard | 200mA Self-Restoring Fuse, Isolated Output |
| USB Output Distance | Approximately 5m (16.4ft) |
| Электропитание Voltage | 5–36 В постоянного тока |
| Power Supply Terminals Interface Guard | Защита от обратного подключения |
| RS232 Interface Form | DB9 Female Head |
| RS232 Interface Guard | TVS Tube Guard, Static Protection |
| RS232 Distance | Approximately 15m (49.2ft) |
| Диапазон рабочих температур | -40℃ ~ 85℃ |
| Диапазон рабочей влажности | 5% ~ 95% относительной влажности |
| Совместимость с операционными системами | For OS X, for Linux, for Android |
| Бренд | Цюйлу |
| Номер модели | Qiilu4a27tudq0n |
| Вес товара | 293 грамм |
5. Инструкции по настройке
- Подключите питание: Connect the provided power adapter to the DC 5-36V power input terminal on the converter. Ensure the power source matches the specified voltagе диапазон.
- Connect USB Host: Connect one end of the USB cable to the USB B port on the converter and the other end to an available USB port on your computer (host device).
- Установите драйверы: Your operating system may automatically install necessary drivers. If not, please refer to the manufacturer's website for driver downloads specific to the FT4232HL chip.
- Connect RS232 Devices: Connect your RS232 serial devices to the DB9 female head ports (PORT1, PORT2, PORT3, PORT4) on the converter.

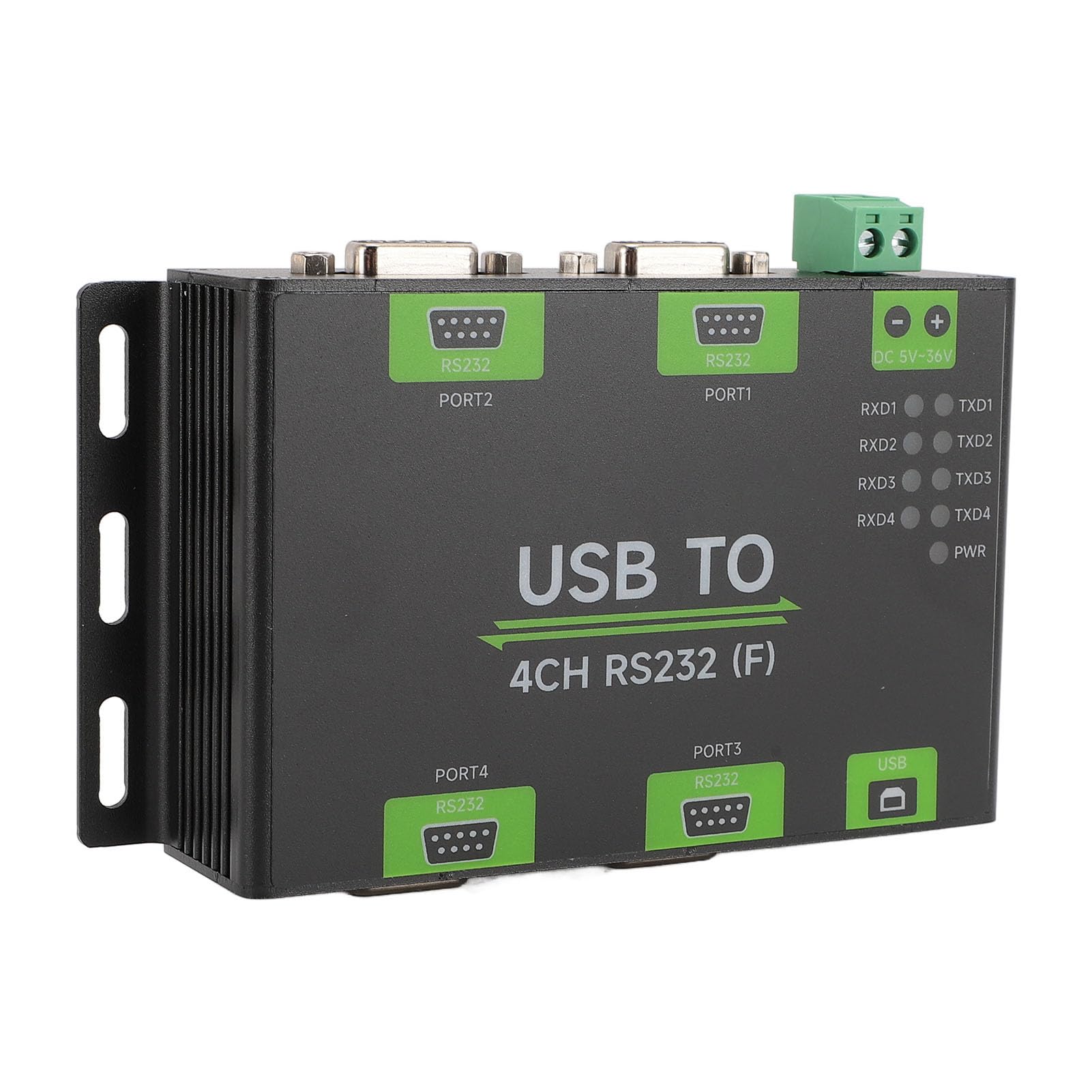

Рисунок 3: Наклонный view highlighting the USB, power input, and RS232 ports for connection.
6. Инструкция по эксплуатации
Once connected and powered, the converter will begin operation. Monitor the LED indicators for status:
- PWR (индикатор мощности): This LED turns red when the USB is connected and voltage is detected, indicating the device is powered on.
- TXD (Send Indicator): This LED turns green when data is being sent from the RS232 interface.
- RXD (Receiving Indicator): This LED turns blue when data is being received by the RS232 interface.

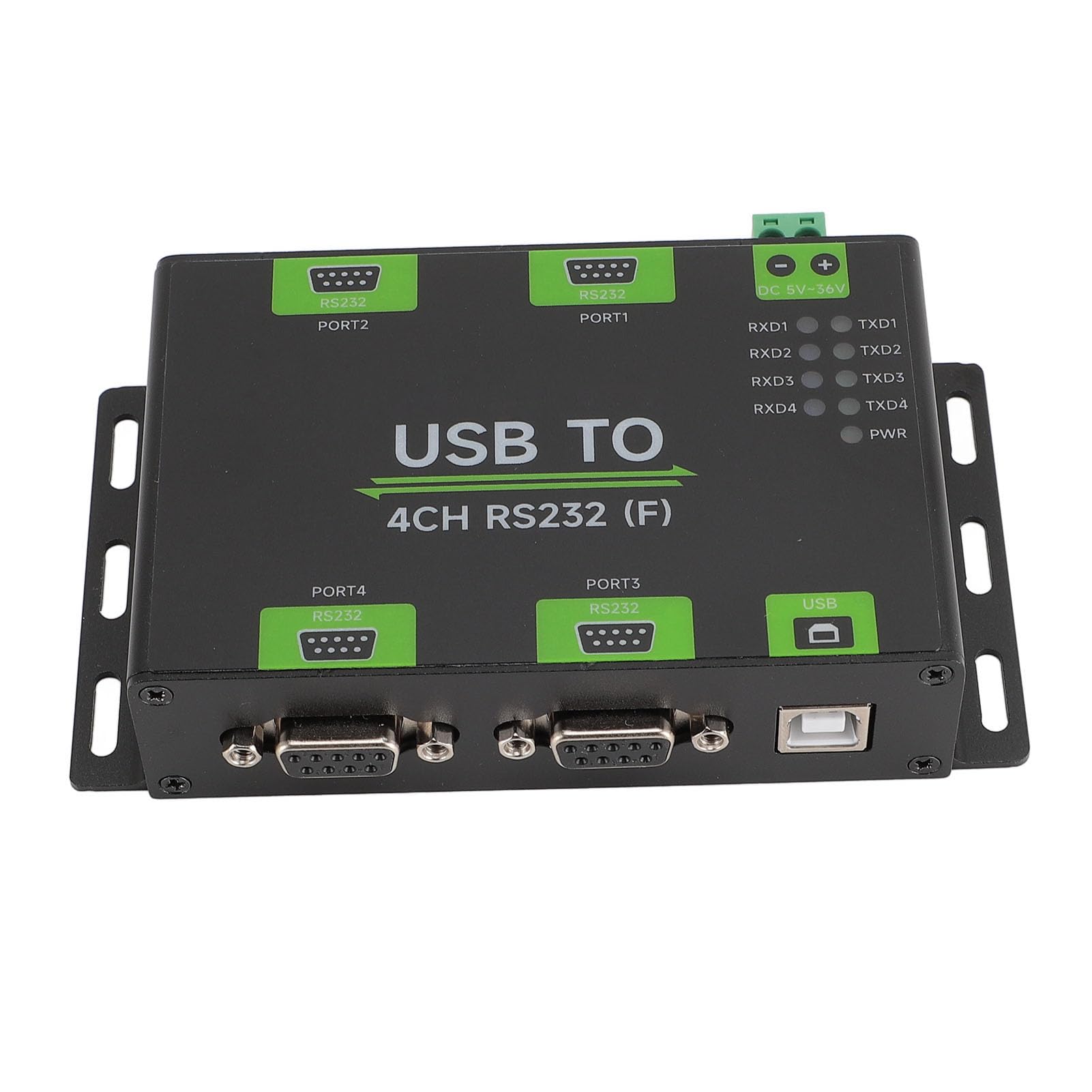

Рисунок 4: Крупный план view of the PWR, TXD, and RXD LED indicators on the converter.
7. Техническое обслуживание
- Keep the converter in a clean, dry environment.
- Avoid exposing the device to extreme temperatures or humidity outside the specified operating range.
- Не пытайтесь открыть сasing or modify the internal components, as this will void the warranty and may damage the device.
- Протрите внешнюю поверхность мягкой сухой тканью. Не используйте жидкие чистящие средства.
8. Поиск Неисправностей
- Нет питания (светодиод PWR не горит):
- Check if the USB cable is securely connected to both the converter and the host device.
- Verify that the host device's USB port is functional.
- Ensure the power adapter is correctly connected and providing power within the 5-36V range.
- No Data Transmission (TXD/RXD LEDs off during communication):
- Confirm that the RS232 devices are properly connected to the converter's DB9 ports.
- Verify that the RS232 devices are powered on and configured correctly.
- Check your software settings on the host computer to ensure the correct COM port is selected and communication parameters (baud rate, data bits, parity, stop bits) match those of the RS232 device.
- Ensure the drivers for the FT4232HL chip are correctly installed.
- Прерывистое соединение:
- Проверьте надежность всех кабельных соединений.
- Ensure the USB and RS232 cable lengths do not exceed the recommended distances (5m for USB, 15m for RS232).
- Сведите к минимуму электромагнитные помехи от других электронных устройств.
9. Информация о гарантии
This product comes with a manufacturer's warranty for 90 days from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
10 Поддержка
For further assistance or technical support, please contact Qiilu customer service. When seeking support, please refer to the product model number Qiilu4a27tudq0n.
