Lumisilk Luminia IPL Epilator User Manual

1. Введение

Thank you for choosing the Lumisilk Luminia IPL Epilator. This device utilizes advanced Intense Pulsed Light (IPL) technology to provide a safe, effective, and convenient solution for permanent hair reduction and skin rejuvenation in the comfort of your home. With regular use, you can achieve smooth, hair-free skin and an improved complexion.

Please read this manual thoroughly before first use to ensure proper operation, maximize results, and minimize risks. Keep this manual for future reference.

2 Важная информация по безопасности

Always follow these safety precautions to reduce the risk of injury or damage to the device.

Общие предупреждения:

• This device is intended for hair reduction and skin rejuvenation. Do not use it for any other purpose.
• Хранить в недоступном для детей месте.
• Do not use on damaged or irritated skin, open wounds, moles, tattoos, or permanent makeup.
• Consult a doctor before use if you have any underlying medical conditions, are pregnant, breastfeeding, or taking photosensitive medications.
• Не используйте устройство рядом с водой или вamp среды.
• Always wear the provided protective glasses during treatment to protect your eyes from the intense pulsed light.
• Do not look directly into the light window when the device is flashing.
• Ensure the skin is clean, dry, and free of any lotions, creams, or deodorants before treatment.

Совместимость по тону кожи и цвету волос:

IPL technology is most effective on lighter skin tones with darker hair. It is not suitable for very dark skin tones or very light (white, grey, blonde, red) hair, as it may not be effective or could cause skin damage. Refer to the skin tone chart in the full manual for detailed compatibility.

Areas Not to Treat:

• Around the eyes (eyebrows, eyelids).
• Genitals (male).
• Nipples, inner labia.
• Any areas with skin conditions, infections, or recent sun exposure/tanning.

3. Компоненты продукта

Your Lumisilk Luminia IPL Epilator kit includes the following items:

• Lumisilk Luminia IPL Epilator Device
• Адаптер питания
• Защитные очки
• Руководство пользователя (этот документ)

Image: The complete Lumisilk Luminia IPL Epilator kit, showing the device, power adapter, protective glasses, and a storage pouch.

4. Настройка

1. Распакуйте устройство: Аккуратно извлеките все компоненты из упаковки. Осмотрите устройство и аксессуары на наличие повреждений.
2. Подключите питание: Plug the power adapter into the device's power port, then plug the adapter into a suitable electrical outlet. The device will enter standby mode.
3. Надевайте защитные очки: Before turning on the device, put on the provided protective glasses to shield your eyes from the intense light flashes.

5. Инструкция по эксплуатации

5.1. Preparation for Treatment

• Побрейте этот участок: For hair removal, shave the desired treatment area thoroughly before each session. Do not wax, pluck, or use depilatory creams, as the hair follicle needs to be intact for IPL to be effective.
• Чистая и сухая кожа: Ensure the skin is clean, dry, and free of any lotions, oils, or makeup.

5.2. Включение/выключение питания

• Включение питания: Press and hold the power button (usually located on the handle) for a few seconds until the display screen illuminates.
• Выключение: Нажмите и удерживайте кнопку питания еще раз, пока устройство не выключится.

5.3. Selecting Intensity Levels

The device features 6 adjustable intensity levels to suit different skin sensitivities and treatment areas. Always start with the lowest intensity level (Level 1) and gradually increase it as your skin tolerates it, ensuring comfort and avoiding irritation.

• Press the power button briefly to cycle through the intensity levels (1 to 6). The selected level will be displayed on the screen.
• Level 1 is the lowest intensity, suitable for sensitive areas or first-time users.
• Level 6 is the highest intensity, for areas with thicker hair or higher tolerance.

Image: Diagram illustrating the six adjustable intensity levels (gears) of the IPL epilator, ranging from low to high intensity.

5.4. Treatment Modes (HR/SR)

Your device offers two primary modes:

• HR (Hair Removal) Mode: This is the standard mode for targeting hair follicles to reduce hair growth.
• SR (Skin Rejuvenation) Mode: This mode uses a different light spectrum to stimulate collagen production and improve skin elasticity, leading to skin rejuvenation.

To switch between modes, press the mode button (often labeled 'HR'/'SR' or a similar icon) briefly. The active mode will be indicated on the LCD screen.

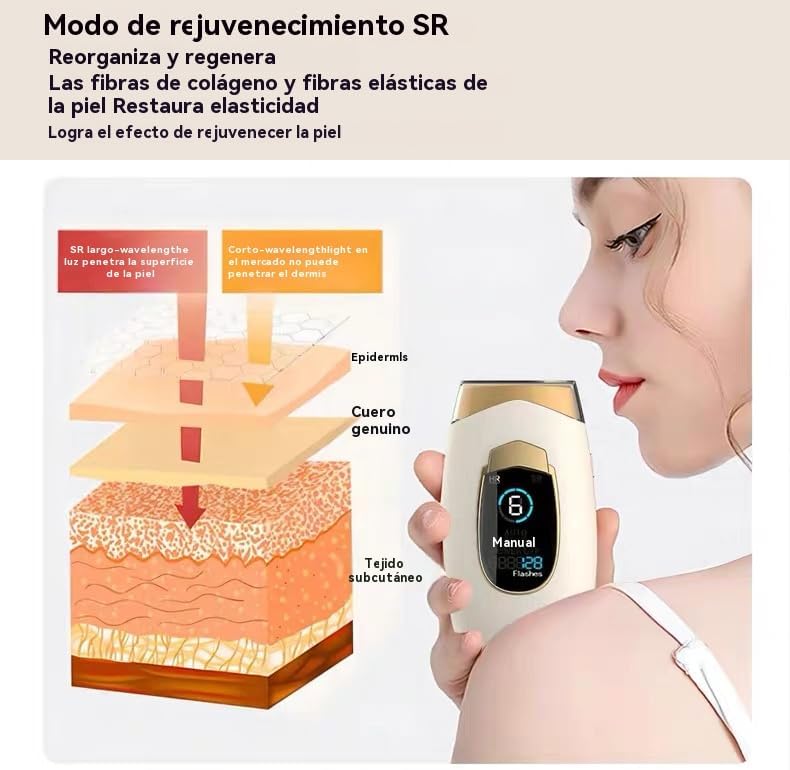

Image: Diagram illustrating the Skin Rejuvenation (SR) mode, explaining how long-wavelength light penetrates the skin to reorganize and regenerate collagen and elastic fibers, restoring skin elasticity.

5.5. Техника применения

• Позиционирование: Place the light window firmly against your skin, ensuring full contact. The device will not flash if there is insufficient skin contact.
• Мигает: Once the device detects full skin contact, press the flash button to emit a pulse of light.
• Manual vs. Auto Mode:
  • Ручной режим: Press the flash button for each pulse. Ideal for small or curved areas like the face, underarms, or bikini line.
  • Автоматический режим: Press and hold the flash button for a few seconds to activate auto mode. The device will automatically emit continuous flashes when in full contact with the skin. This mode is suitable for larger areas like legs or arms. Move the device slowly and continuously over the skin.
• Охват: Treat each area once per session. Avoid overlapping flashes to prevent excessive exposure.

5.6. Recommended Treatment Schedule

For optimal hair reduction results, follow this general schedule:

• Недели 1-4: Использовать 2-3 раза в неделю.
• Недели 5-8: Использовать 1-2 раза в неделю.
• После 8-й недели: Use once every 2-4 weeks for maintenance, or as needed, until desired results are achieved.

Visible hair reduction can be observed within 3-4 weeks, with permanent reduction typically achieved after 8-12 sessions.

Image: The Lumisilk Luminia IPL Epilator demonstrating its use on various body areas: arms, legs, underarms, bikini line, and face.

6. Техническое обслуживание

6.1. Очистка устройства.

• Всегда отключайте устройство от сети перед очисткой.
• Для протирки корпуса устройства используйте мягкую сухую ткань.
• Gently clean the light window with a cotton swab or a soft cloth dampened with a small amount of alcohol. Ensure no liquid enters the device.
• Do not use abrasive cleaners, brushes, or harsh chemicals.
• Перед хранением или последующим использованием убедитесь, что устройство полностью высохло.

6.2. Хранение

• Храните устройство в прохладном, сухом месте, вдали от прямых солнечных лучей и влаги.
• Храните устройство в оригинальной упаковке или защитном чехле, чтобы предотвратить повреждения.

7. Поиск Неисправностей

8. Технические характеристики

• Модель: B0F53PC537
• Бренд: Genérico
• Технология: Интенсивный импульсный свет (IPL)
• Уровни интенсивности: 6 регулируемых уровня
• Режимы: HR (Hair Removal), SR (Skin Rejuvenation)
• Flash Count: Approximately 888,828 flashes (as indicated on device display)
• Власть: 99 Вт
• Длина волны: 550-1200 нм
• Lamp Тип: кварц лamp
• Отображать: ЖК-экран

Изображение: Оверview of the multifunctional configuration, highlighting features like 6-speed energy adjustment, 99W power, 550-1200nm wavelength, HR/SR modes, and LCD display.

9. Гарантия и поддержка

Информацию о гарантии и поддержке клиентов можно найти в документации, прилагаемой к товару, или напрямую у продавца/производителя. Сохраните чек на случай предъявления гарантийных претензий.
