Инструкция по эксплуатации чертежного стула Misolant без подлокотников

Важная информация по безопасности

Внимательно прочтите все инструкции перед сборкой и использованием. Сохраните это руководство для дальнейшего использования.

• Ensure all parts are present and undamaged before assembly. Do not use the chair if any parts are missing or damaged.
• Do not use power tools for assembly as this may overtighten screws and damage the chair components.
• Do not stand on the chair. Use it only for seating purposes.
• Не превышайте максимально допустимый вес в 300 фунтов (136 кг).
• Regularly check all bolts and screws to ensure they are tight. Retighten as necessary to maintain stability.

Содержимое упаковки

Verify that all components are included in your package before beginning assembly.

Image: All chair components are laid out on the floor, including the seat, backrest, gas lift, footrest ring, base, and wheels, ready for assembly.

• Подушка сиденья (1)
• Спинка (1)
• Gas Lift Cylinder (1) - SGS Certified Class-4
• Chair Base (1) - Steel
• Колеса-ролики (5)
• Кольцо подножки (1)
• Монтажные комплектующие (винты, шайбы, шестигранный ключ)

Настройка и сборка

Assembly typically takes approximately 25 minutes. Follow these steps carefully.

1. Прикрепите роликовые колеса: Push the five caster wheels firmly into the holes at the end of each leg on the chair base until they click into place.
2. Вставьте газлифт: Insert the gas lift cylinder into the center hole of the assembled chair base.
3. Установка кольца подставки для ног: Slide the footrest ring onto the gas lift cylinder. Adjust its height to your preference and secure it by tightening the knob on the side of the ring.
4. Прикрепите подседельную пластину: Secure the seat plate to the underside of the seat cushion using the provided screws. Ensure the front of the seat plate aligns with the front of the cushion.
5. Занять место: Carefully place the assembled seat onto the top of the gas lift cylinder.
6. Прикрепите опору для спинки: Connect the backrest support frame to the back of the seat cushion using the designated screws.
7. Secure Backrest Cushion: Attach the backrest cushion to the backrest support frame.

Image: A fully assembled Misolant drafting chair in khaki color, positioned next to a standing desk in an office environment, demonstrating its intended use.

Инструкция по эксплуатации

Регулировка высоты

To adjust the chair's height, use the lever located under the seat:

• Чтобы поднять сиденье: While standing, lift the lever. The seat will rise automatically.
• Чтобы опустить сиденье: While seated, lift the lever. Apply slight pressure to the seat, and it will lower to your desired height.

Footrest Ring Adjustment

The footrest ring can be adjusted to provide optimal leg support and comfort.

• Loosen the knob on the side of the footrest ring.
• Slide the footrest ring up or down to your desired height.
• Tighten the knob securely to lock the footrest in place.

Image: A visual guide demonstrating how to use the lever for seat height adjustment (up/down) and the knob for footrest ring height adjustment.

Мобильность

The chair features 360-degree swivel and wear-resistant caster wheels, allowing for easy movement across various floor types without causing damage.

Video: This video demonstrates the Misolant Armless Drafting Chair in use, showcasing its height adjustment, footrest adjustment, and mobility features in an office setting.

Обслуживание

Уборка

• For daily cleaning, wipe the faux leather surfaces with a soft, damp ткань.
• For stubborn stains, use a mild soap solution and a soft cloth. Wipe dry immediately to prevent water damage.
• Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the faux leather and other materials.

Общий уход

• Periodically check and tighten all screws and bolts to ensure the chair remains stable and safe.
• Avoid prolonged exposure to direct sunlight to prevent fading and material degradation of the faux leather.
• Keep sharp objects away from the chair's upholstery to prevent punctures or tears.

Поиск неисправностей

Стул не регулируется по высоте.

• Ensure the gas lift lever is fully engaged.
• If lowering, ensure you are seated on the chair to activate the gas lift mechanism.
• If raising, ensure you are standing off the chair.

Chair is unstable or wobbly

• Check that all assembly screws are securely tightened, especially those connecting the seat plate and backrest.
• Ensure the chair base is properly seated on the gas lift cylinder.
• Verify that the caster wheels are fully inserted into the base.

Колеса не катятся плавно.

• Check for any debris (such as hair, dust, or small objects) caught in the caster wheels and remove them.
• Ensure the wheels are properly installed and fully seated in the chair base.

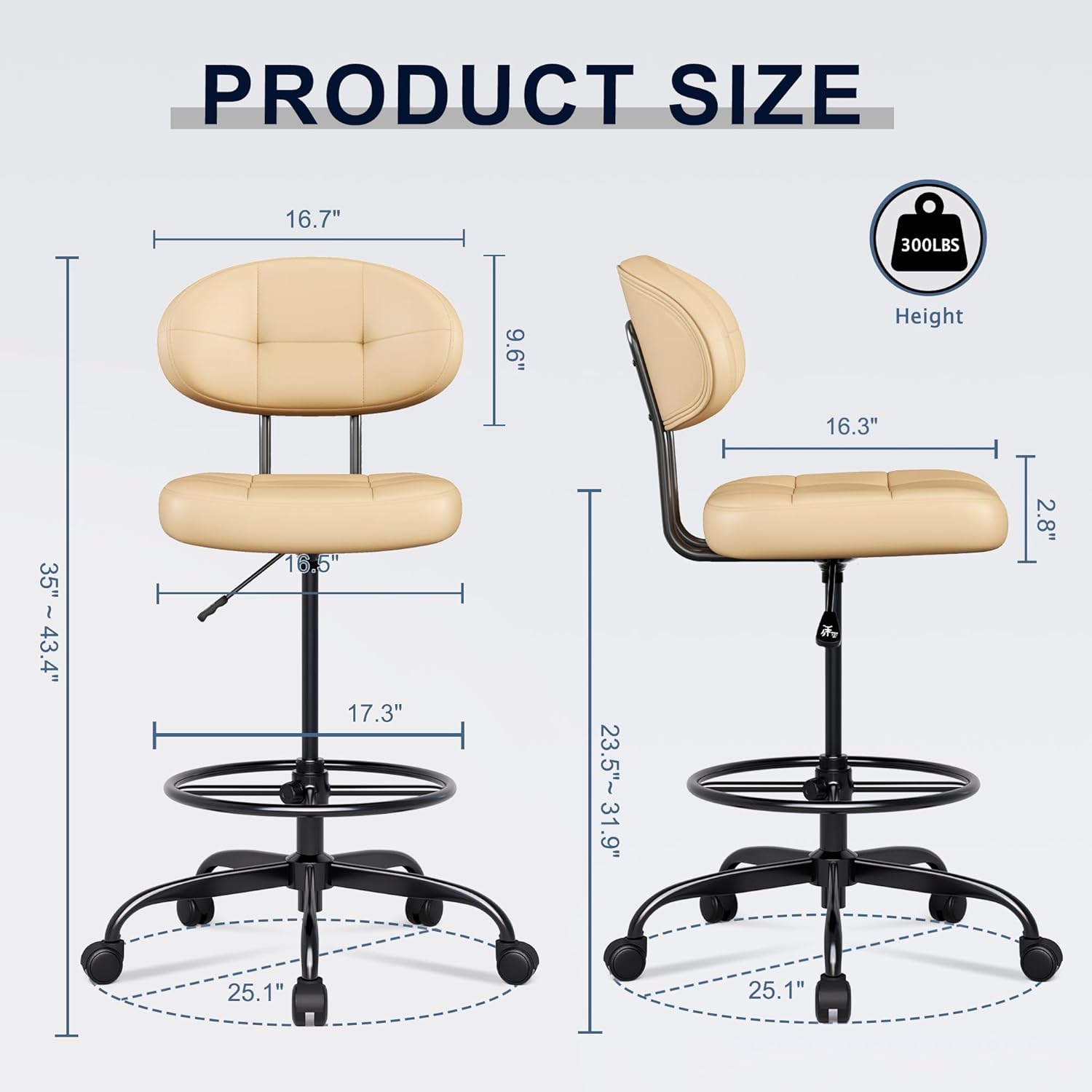

Технические характеристики

Гарантия и поддержка

The Misolant Drafting Chair comes with a one-year warranty for your peace of mind. This warranty covers manufacturing defects and ensures the quality of your product.

For any questions, concerns, or to utilize your warranty, please contact Misolant customer service. We are committed to providing exceptional service and are always here to assist you.

Для получения поддержки посетите, пожалуйста, Misolant Store on Amazon или обратитесь к контактной информации, указанной на упаковке вашего продукта.
