Generic RST-15K-115 Switching Power Supply

1. Введение

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Generic RST-15K-115 Switching Power Supply. Please read this manual thoroughly before using the product and retain it for future reference. This power supply is designed for industrial applications requiring a stable and high-power DC source.

2. Информация по технике безопасности

WARNING: Risk of Electric Shock. This unit operates at high voltages and currents. Improper installation or operation can result in serious injury or death. Only qualified personnel should install, operate, or service this equipment.

• Перед выполнением любых работ по установке, техническому обслуживанию или устранению неполадок всегда отключайте все источники питания.
• Ensure proper grounding of the unit according to local and national electrical codes.
• Не эксплуатируйте устройство в сырых илиamp условия.
• Проверить ввод томtage and current ratings match the power supply specifications before connection.
• Do not block ventilation openings. Adequate airflow is crucial for proper operation and to prevent overheating.

3. Продукт закончилсяview

The RST-15K-115 is a robust, enclosed switching power supply designed to deliver 15 kW of power. It features a single 115 VDC output at 130A, making it suitable for demanding industrial applications. The unit accepts a 3-phase AC input ranging from 196 VAC to 305 VAC.

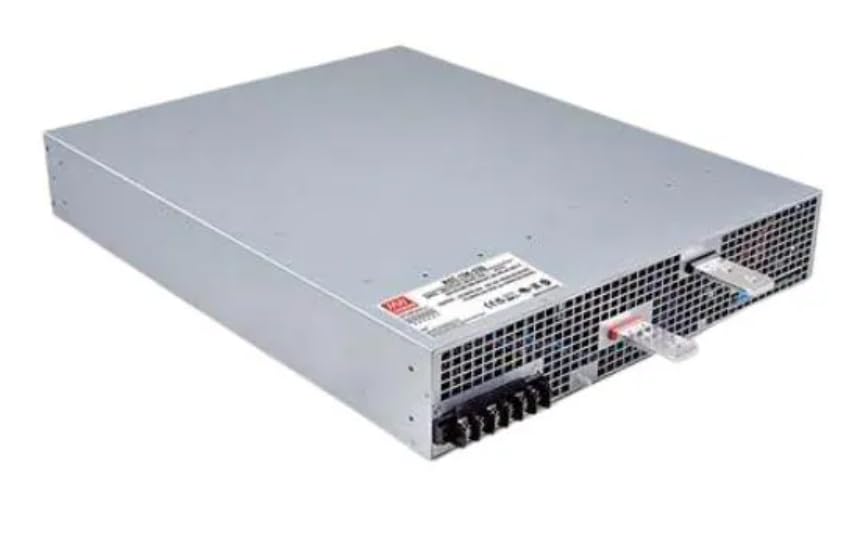

This image displays the enclosed unit of the RST-15K-115 Switching Power Supply, showcasing its robust design suitable for industrial applications.

Ключевые особенности включают в себя:

• Output Power: 15,000W (RST-15K)
• Input: 3-phase, 4-wire AC input with 196V to 305V wide range
• Высокая эффективность: до 95%
• Cooling: Water or forced-air cooling types selectable
• Mounting Style: Chassis

4. Настройка и установка

Installation of the RST-15K-115 power supply should only be performed by a qualified electrician or technician. Adhere to all local and national electrical codes.

1. Монтаж: Securely mount the enclosed unit to a stable surface using appropriate hardware. Ensure adequate clearance around the unit for proper ventilation, especially for forced-air cooling models. If using water cooling, ensure the optional cooling plate (HS-684) is correctly installed for water-cooled models (RST-7K5L, if applicable).
2. Входная проводка: Connect the 3-phase, 4-wire AC input to the designated terminals. Double-check phase rotation and neutral connections. Ensure the input voltage is within the specified range of 196-305 VAC.
3. Выходная проводка: Connect the DC output terminals to your load. Observe correct polarity (+ and -). Use appropriately sized cables capable of handling 130A.
4. Заземление: Connect the protective earth ground terminal to a reliable earth ground.
5. Первоначальная проверка: Before applying power, visually inspect all connections for tightness and correctness. Ensure no loose wires or foreign objects are present.

5. Инструкция по эксплуатации

Once the unit is properly installed and all connections are verified:

1. Включение питания: Apply AC input power to the unit. The power supply should initiate its startup sequence.
2. Output Verification: Use a multimeter to verify the output voltage at the DC output terminals. It should be approximately 115 VDC.
3. Подключение нагрузки: Connect your load to the power supply. Monitor the load current to ensure it does not exceed the maximum rated output of 130A.
4. Мониторинг: Continuously monitor the power supply's performance, including temperature and output stability, during operation.
5. Выключение: To shut down the unit, first disconnect the load, then remove the AC input power.

6. Техническое обслуживание

Regular maintenance helps ensure the longevity and reliable operation of your RST-15K-115 power supply.

• Уборка: Periodically clean the exterior of the unit and ventilation openings to prevent dust buildup. Use a soft, dry cloth. For forced-air cooled units, ensure fan grilles are clear.
• Соединения: Ежегодно проверяйте все электрические соединения на надежность крепления и наличие признаков коррозии. При необходимости подтяните их.
• Экологическая проверка: Убедитесь, что рабочая среда находится в указанном диапазоне температуры и влажности.
• Система охлаждения: For water-cooled models, regularly check the water cooling system for leaks and ensure proper flow.

Перед выполнением любого технического обслуживания всегда отключайте питание.

7. Поиск Неисправностей

If the power supply is not operating as expected, refer to the following common issues and solutions:

If troubleshooting steps do not resolve the issue, do not attempt to repair the unit yourself. Contact qualified service personnel.

8. Технические характеристики

9. Гарантия

This product is covered by a standard manufacturer's limited warranty. Please refer to the warranty card included with your purchase or contact the manufacturer directly for specific terms and conditions. The warranty typically covers defects in materials and workmanship under normal use and service for a specified period from the date of purchase. Damage resulting from improper installation, misuse, unauthorized modification, or environmental conditions outside the product's specifications is generally not covered.

10 Поддержка

For technical assistance, service, or inquiries regarding the RST-15K-115 Switching Power Supply, please contact your distributor or the manufacturer, Mean Well. When contacting support, please have your product model number (RST-15K-115) and purchase information readily available.

Manufacturer: Mean Well
