Руководство пользователя мини-ПК GEECOM A6

1. Введение

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your GEEKOM A6 Mini PC. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

The GEEKOM A6 is a compact and powerful mini PC designed for various applications, from office productivity and multimedia consumption to light gaming and creative tasks. It features an AMD Ryzen 7 6800H processor, Radeon 680M graphics, 16GB DDR5 RAM, and a 1TB SSD, running on Windows 11 Pro.

2. Что в коробке

Carefully unpack your GEEKOM A6 Mini PC and check for the following items:

Мини-ПК GEEKOM A6
Адаптер питания
HDMI-кабель
Крепление VESA с винтами
Руководство пользователя
Благодарственная открытка

Contents of the GEEKOM A6 Mini PC box, including the mini PC, power adapter, HDMI cable, VESA mount, and documentation.

Рисунок 2.1: Содержимое упаковки

3. Настройка

3.1 Физические соединения

Перед включением мини-ПК подключите все необходимые периферийные устройства:

Подключиться к дисплею: Use the provided HDMI cable to connect the Mini PC to your monitor or TV. The device supports up to four 4K displays via its two USB4 ports and two HDMI ports.
Подключите периферийные устройства: Подключите клавиатуру, мышь и другие USB-устройства к имеющимся USB-портам.
Подключение к сети: Для проводного подключения подключите кабель Ethernet к порту LAN 2.5 Гбит/с. Для беспроводного подключения убедитесь, что ваша сеть Wi-Fi доступна.
Подключение питания: Подключите адаптер питания к разъему DC-in на мини-ПК, затем вставьте адаптер в розетку.

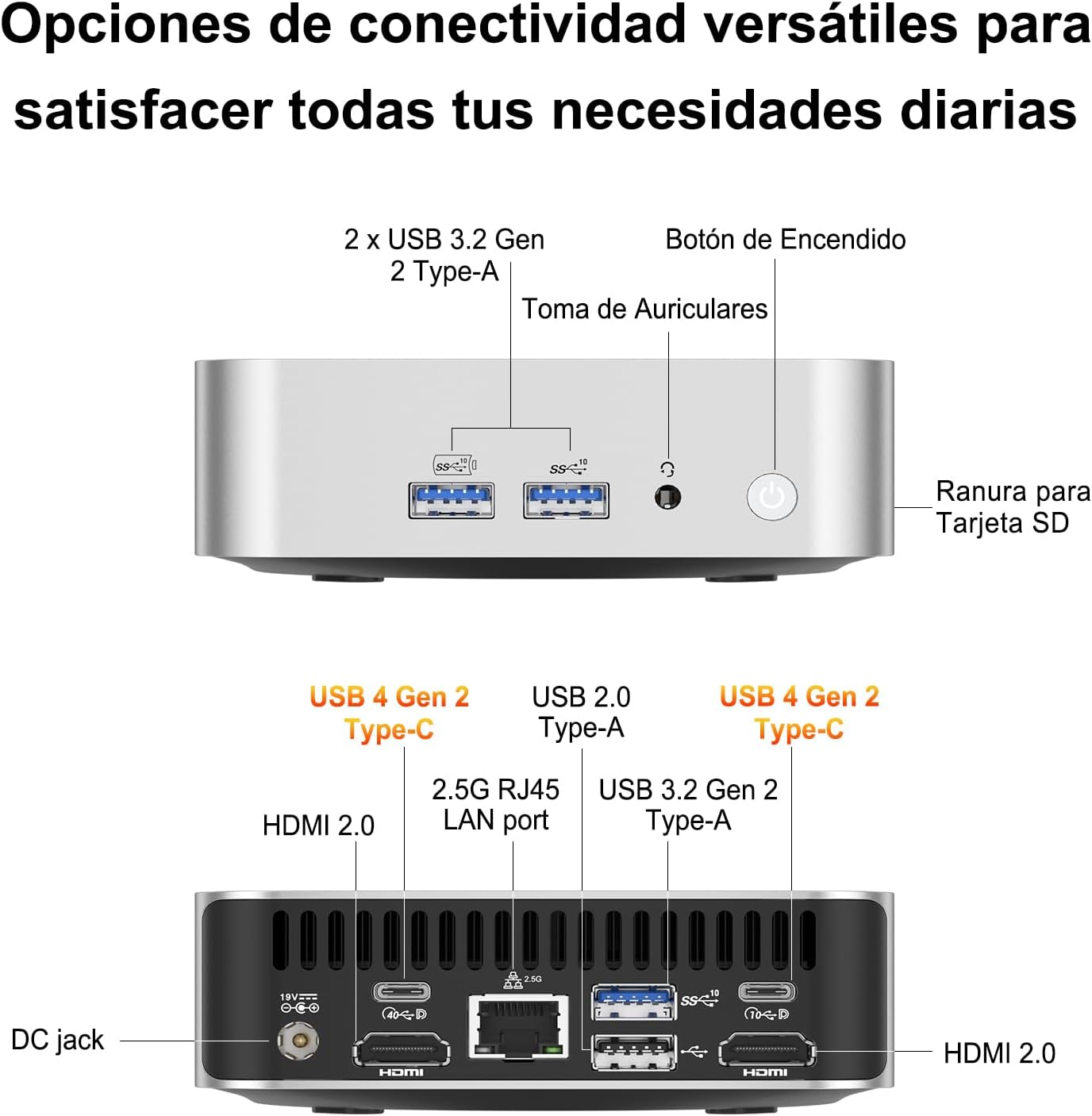

Diagram showing the front and rear ports of the GEEKOM A6 Mini PC, including USB, HDMI, LAN, USB4 Type-C, headphone jack, and SD card slot.

Рисунок 3.1: Схема расположения портов

3.2 Установка крепления VESA

The GEEKOM A6 Mini PC includes a VESA mount for flexible installation behind a monitor or on a wall. This helps save desk space and keeps your workspace tidy.

Attach the VESA mount bracket to the back of your monitor using the provided screws. Ensure the mount is securely fastened.
Slide the GEEKOM A6 Mini PC onto the VESA mount until it clicks into place.

Illustration of the GEEKOM A6 Mini PC being mounted to the back of a monitor using a VESA bracket.

Рисунок 3.2: Установка крепления VESA

3.3 Включение

Press the power button located on the front of the Mini PC. The system will boot up, and Windows 11 Pro will load. Follow the on-screen instructions for initial Windows setup if it's your first time using the device.

4. Операционная

4.1 Операционная система

The GEEKOM A6 comes with Windows 11 Pro pre-installed, offering a secure and efficient computing experience. It also supports other operating systems like Linux, providing flexibility for various user needs.

Image showing Windows 11 Pro, Linux, and Ubuntu logos, indicating multi-OS compatibility for the GEEKOM A6.

Рисунок 4.1: Совместимость операционных систем

4.2 Конфигурация с несколькими дисплеями

The GEEKOM A6 supports up to four displays simultaneously, with resolutions up to 8K via USB4 and 4K via HDMI. This capability enhances productivity for multitasking and provides an immersive entertainment experience.

Four monitors connected to the GEEKOM A6 Mini PC, displaying different applications, demonstrating multi-screen support.

Figure 4.2: Multi-Display Setup

4.3 Связь

The Mini PC offers comprehensive connectivity options:

USB-порты: Multiple USB 3.2 Gen 2 Type-A ports and two USB4 Gen 2 Type-C ports for high-speed data transfer and peripheral connections.
Порты HDMI: Two HDMI 2.0 ports for display output.
Порт локальной сети: A 2.5Gbps RJ45 LAN port for high-speed wired network access.
Беспроводная связь: Integrated Wi-Fi 6E for fast and reliable wireless internet, and Bluetooth 5.2 for connecting wireless peripherals.
Устройство чтения SD-карт: A built-in SD card slot for easy access to photos and videos.

Diagram illustrating Wi-Fi 6E and Bluetooth 5.2 connectivity with various devices like keyboard, mouse, headphones, and game controller.

Рисунок 4.3: Беспроводное подключение

4.4 Производительность вышеview

The GEEKOM A6 is equipped with high-performance components:

Процессор: AMD Ryzen 7 6800H with 8 cores, 16 threads, and a max boost clock of 4.7 GHz, providing robust processing power.
Графика: Integrated AMD Radeon 680M GPU, capable of handling demanding visual tasks and light to medium gaming.
Память: 16GB of high-speed DDR5 RAM, expandable up to 64GB, ensuring smooth multitasking.
Хранилище: 1TB PCIe Gen4x4 SSD for rapid boot times and quick application loading.

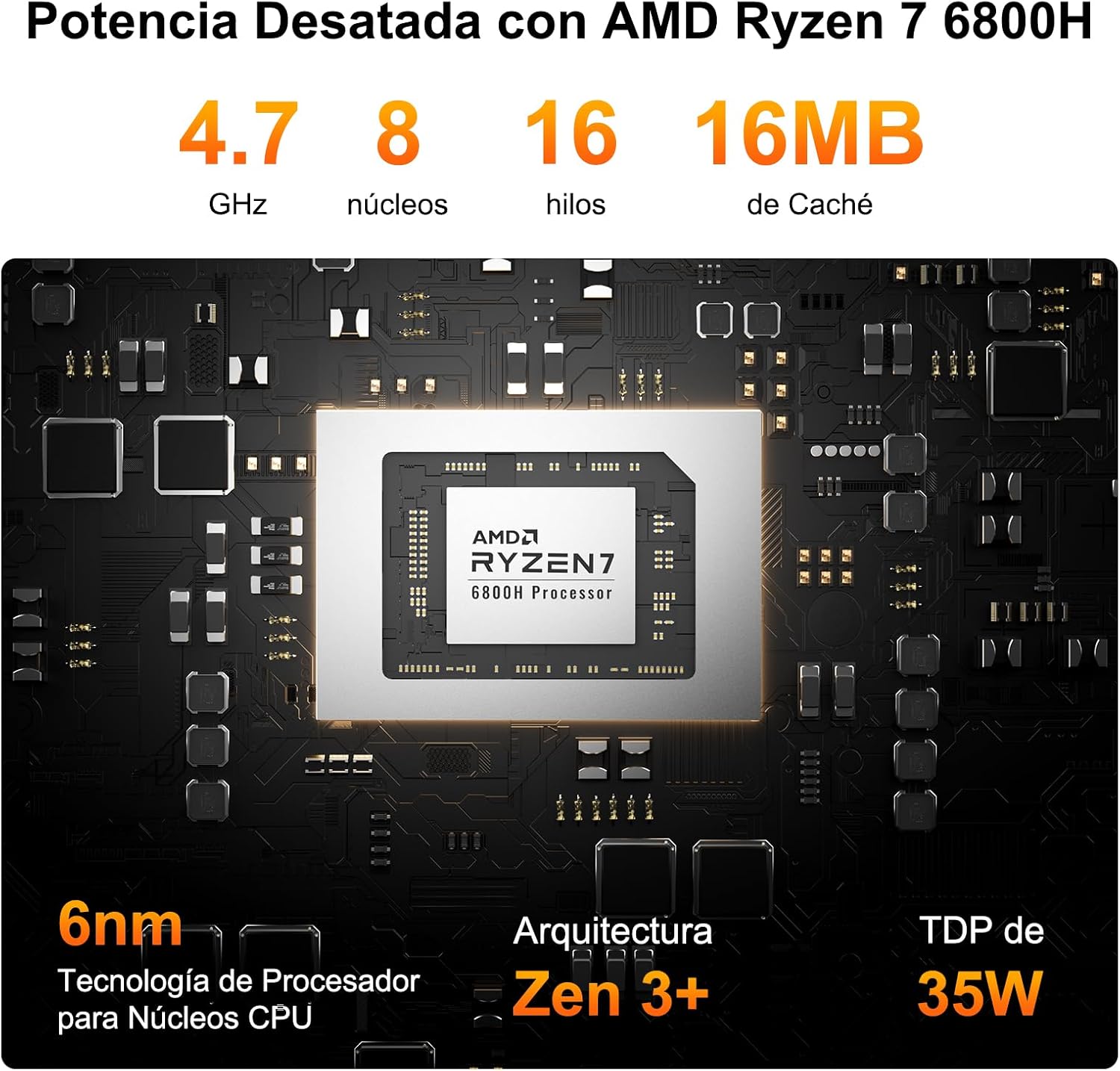

Diagram detailing the AMD Ryzen 7 6800H processor specifications, including 4.7 GHz speed, 8 cores, 16 threads, and 16MB cache.

Figure 4.4: AMD Ryzen 7 6800H Processor Details

Диаграмма показываетasing the AMD Radeon 680M graphics, highlighting its capabilities for smooth streaming and immersive gaming with example FPS for various games.

Рисунок 4.5: Производительность графической карты AMD Radeon 680M

4.5 Система охлаждения

The GEEKOM A6 features IceBlast 2.0 cooling technology, designed to maintain optimal operating temperatures and ensure stable performance even under heavy workloads. The system utilizes large fan blades and copper heat sinks for efficient heat dissipation, resulting in quiet operation.

Взорвался view of the GEEKOM A6 cooling system, showing large fan blades and double copper heat pipes for efficient heat transfer.

Figure 4.6: IceBlast 2.0 Cooling System

5. Техническое обслуживание

5.1 Обновление оперативной памяти и SSD

The GEEKOM A6 is designed for user-friendly upgrades. It features two DDR5 memory slots, with one 16GB module pre-installed and one slot free for expansion up to 64GB. The 1TB PCIe Gen4x4 SSD can also be upgraded or expanded.

Выключение: Убедитесь, что мини-ПК полностью выключен и отключен от источника питания.
Доступ к внутренним компонентам: Carefully remove the bottom panel of the Mini PC. Refer to the exploded view Схема расположения компонентов.
Upgrade RAM: Locate the DDR5 memory slots. Gently press the clips on either side of the RAM module to release it. Insert new RAM modules, ensuring they are seated correctly.
Upgrade/Add SSD: Locate the M.2 2280 NVMe PCIe 4.0 SSD slot. If upgrading, remove the existing SSD. Insert the new SSD at an angle and secure it with the retaining screw.
Собрать заново: Carefully replace the bottom panel and secure it.

Diagram showing DDR5 RAM modules and an SSD, highlighting the upgradability and speed benefits over LPDDR.

Figure 5.1: RAM and SSD Upgrade Options

Взорвался view of the GEEKOM A6 Mini PC, showing internal components like the metal casing, fan, copper tubes, motherboard, M.2 SSD, and DDR5 RAM.

Рисунок 5.2: Внутренние компоненты

5.2 Очистка

To maintain optimal performance and prevent overheating, regularly clean your Mini PC:

Для протирания внешней поверхности устройства используйте мягкую сухую ткань.
Use compressed air to clear dust from the ventilation grilles and ports. Do not insert any objects into the vents.
Перед чисткой убедитесь, что устройство выключено и отсоединено от сети.

6. Поиск Неисправностей

Если у вас возникли проблемы с мини-ПК GEEKOM A6, ознакомьтесь со следующими распространенными проблемами и решениями:

Проблема	Возможная причина	Решение
Нет питания/Устройство не включается	Не подключен адаптер питания, неисправна розетка, проблема с кнопкой включения/выключения.	Check power connections, try a different outlet, ensure power adapter is functional.
Нет вывода на дисплей	Incorrect cable connection, monitor input not selected, faulty cable/monitor.	Verify HDMI/USB4 cable connections, select correct input on monitor, test with another cable/monitor.
Intermittent Wi-Fi/Bluetooth connection	Driver issues, interference, weak signal.	Update Wi-Fi/Bluetooth drivers from GEEKOM's official webсайт или AMD website. Ensure no physical obstructions or interference sources.
Unexpected reboots or shutdowns	Overheating, software conflicts, power supply issues, outdated drivers (e.g., AMD ERP Mode related).	Ensure proper ventilation. Update all system drivers, especially chipset and graphics drivers. Check for Windows updates. If issues persist, contact support.
USB peripherals not recognized	Driver issues, faulty port, incompatible device.	Try different USB ports. Update USB drivers. Test peripherals on another computer.

7. Технические характеристики

Особенность	Деталь
Процессор	AMD Ryzen 7 6800H (8 ядер, 16 потоков, до 4.7 ГГц)
Графика	AMD Radeon 680M (интегрированная)
Память (ОЗУ)	16GB DDR5 (4800 MHz), 2 SO-DIMM slots, expandable up to 64GB
Хранилище	1TB PCIe Gen4x4 SSD (expandable up to 4TB)
Операционная система	Windows 11 Pro (pre-installed), Linux compatible
Видеовыход	2x HDMI 2.0, 2x USB4 (supports up to 4 displays, 8K resolution)
USB-порты	2x USB4 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 1x USB 2.0 Type-A
Сеть	2.5Gbps RJ45 LAN, Wi-Fi 6E
Bluetooth	Блютус 5.2
Другие порты	SD Card Reader, 3.5mm Headphone Jack, DC-in
Размеры	11.18 х 11.18 х 3.56 см
Масса	500 г
Охлаждение	IceBlast 2.0 Technology (Air Cooling)
Функции безопасности	Windows Defender, Windows Hello, BitLocker, TPM 2.0

8. Гарантия и поддержка

The GEEKOM A6 Mini PC comes with a comprehensive warranty and dedicated customer support:

3-летняя гарантия качества: Covers defects in design and manufacturing.
Бесплатная замена в течение 1 года: For eligible issues within the first year.
2-Years Free Maintenance: For eligible issues within the first two years.
Круглосуточная онлайн-поддержка клиентов: Professional assistance is available at all times.

For any inquiries or support, please contact GEEKOM customer service through your Amazon account (Order History > Get Help) or via email at pan.he@geekom.tw. You will receive a response within 24 hours.

GEEKOM post-sale support details, showing 3 years quality warranty, 1 year free replacement, 2 years free maintenance, and 24/7 online customer service.

Рисунок 8.1: Информация о гарантии и поддержке
