1. Продукт закончилсяview
The LUVODI Smart LED Bathroom Mirror is an arched, wall-mounted vanity mirror designed to enhance your bathroom experience. It features integrated Bluetooth speakers, a time and temperature display, dimmable LED lighting (front and back-lit), and an anti-fog function. This manual provides detailed instructions for installation, operation, and maintenance.

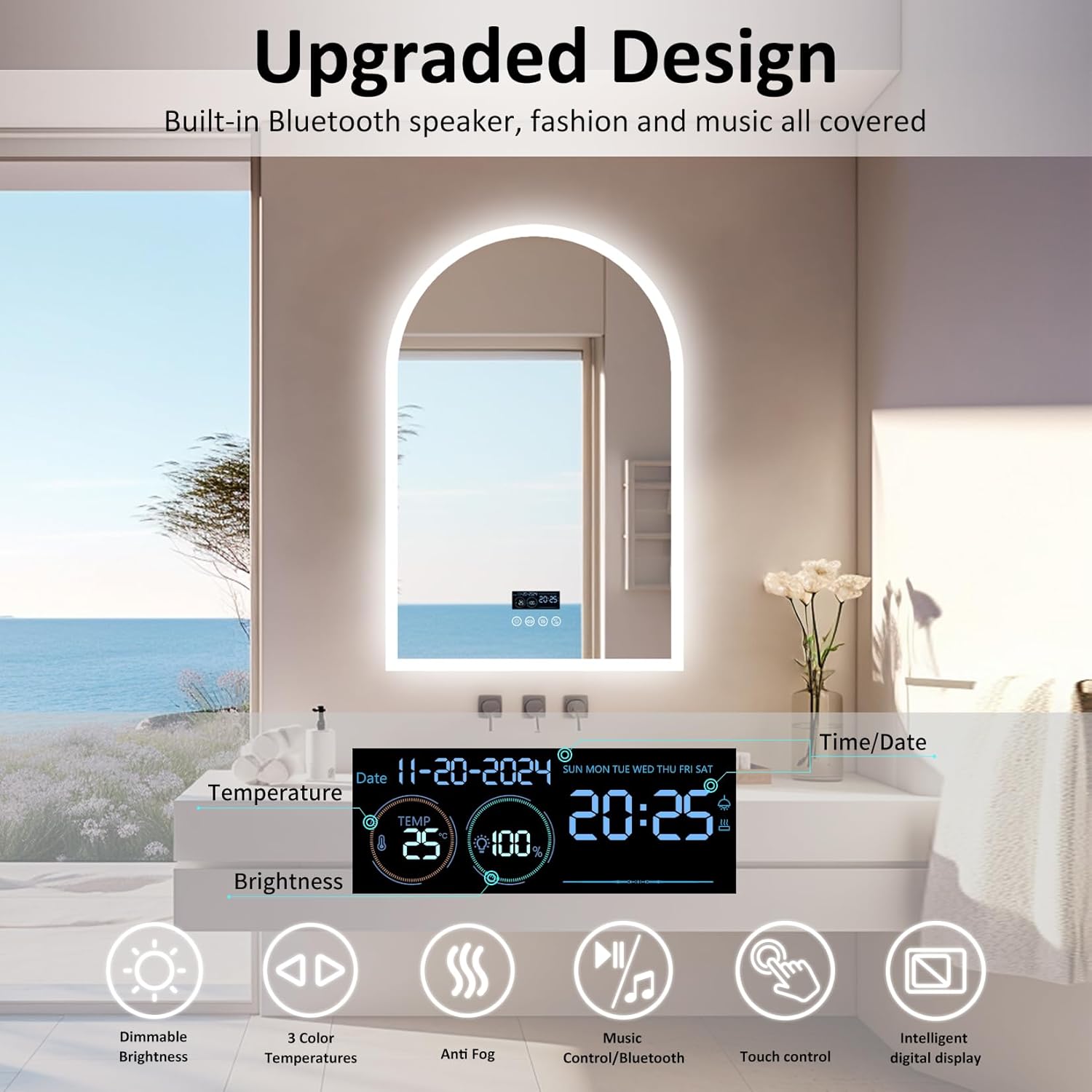

Figure 1: LUVODI Smart LED Bathroom Mirror with integrated display showing time, date, temperature, and humidity, along with touch controls for lighting, anti-fog, and Bluetooth audio.
2. Информация по технике безопасности
- Всегда отключайте питание перед установкой или обслуживанием.
- Installation should be performed by a qualified electrician if hardwiring is chosen.
- Handle the mirror with care to prevent breakage.
- Ensure the mounting surface is strong enough to support the mirror's weight (approximately 26 pounds).
- Do not spray cleaning agents directly onto the mirror's electrical components.
3. Содержимое упаковки
Перед началом установки убедитесь, что все компоненты присутствуют:
- LUVODI Smart LED Bathroom Mirror
- Монтажное оборудование (винты, дюбели)
- Руководство по эксплуатации
4. Установка
The mirror can be installed using a standard plug or hardwired for wall switch control. Ensure proper measurements are taken for optimal placement.
4.1 Варианты монтажа
The mirror is designed for wall mounting. It features keyhole slots on the back for secure attachment. The anodized aluminum frame provides durability and resistance to wear.
Рисунок 2: Сзади view of the mirror, illustrating the mounting points and the power cable management groove.
4.2 Подключение питания
The mirror can be powered via a standard electrical plug or hardwired directly into your electrical system. The mirror includes a cable entry on the backside for organized wiring.
4.3 Размеры
The mirror dimensions are 35.43 inches (L) x 23.62 inches (W) with a thickness of 1.77 inches. The demister area measures approximately 11.81 inches x 11.81 inches.

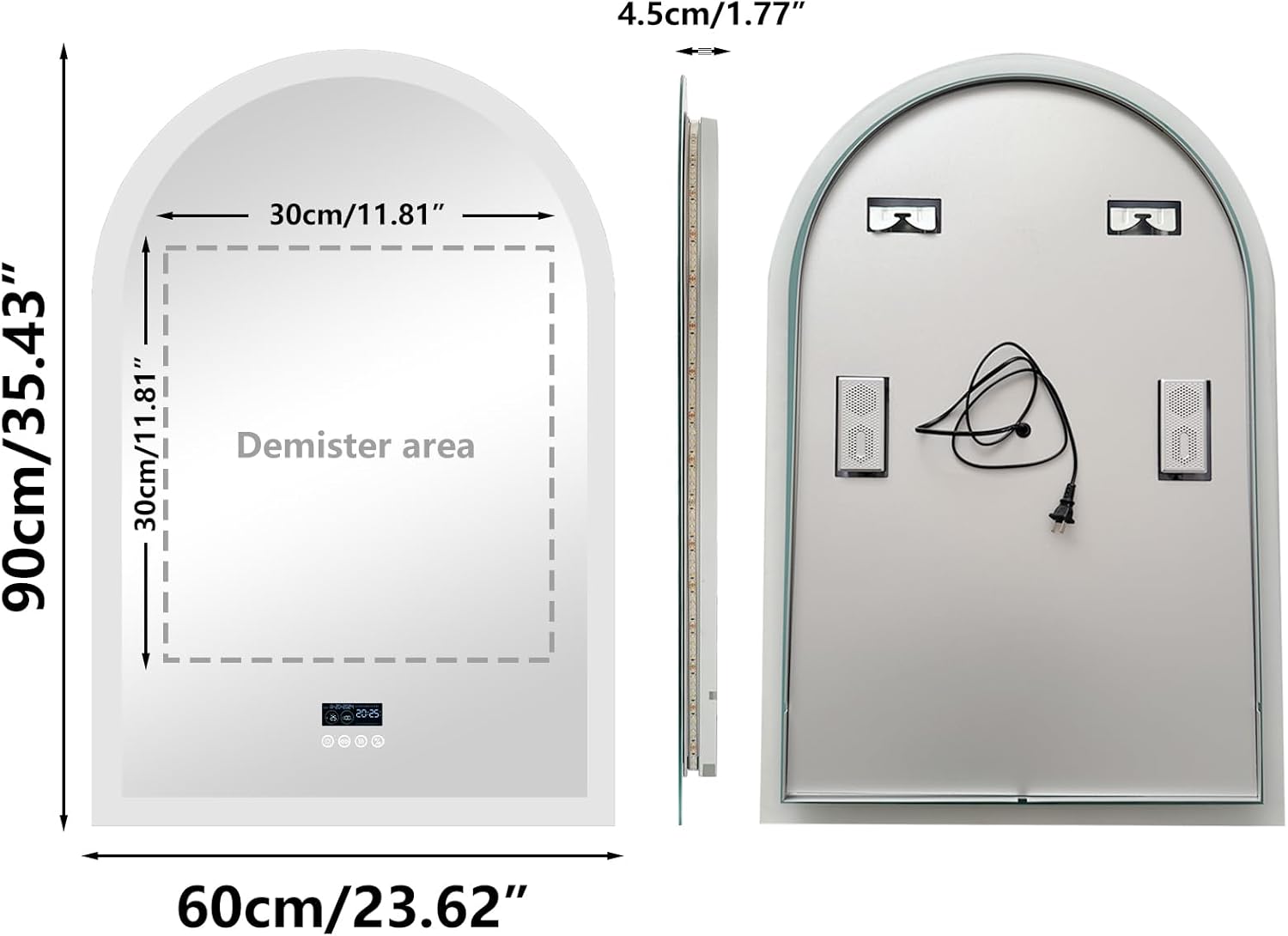

Figure 3: Detailed diagram showing the mirror's length, width, thickness, and the internal demister pad area.
5. Инструкция по эксплуатации
The LUVODI Smart LED Bathroom Mirror features intuitive touch controls located on the mirror surface. These controls allow you to manage lighting, anti-fog, and Bluetooth audio functions.
6. Эксплуатация Bluetooth-динамика
The mirror integrates NdFeB loudspeakers for high-performance audio. Connect your smartphone or other Bluetooth-enabled devices to stream music or podcasts.
6.1 Сопряжение вашего устройства
- Убедитесь, что на вашем устройстве включен Bluetooth.
- Press the Bluetooth icon on the mirror's touch panel to activate pairing mode.
- Искать 'LUVODI Mirror' on your device's Bluetooth settings and connect.
- Once paired, audio will play through the mirror's speakers.

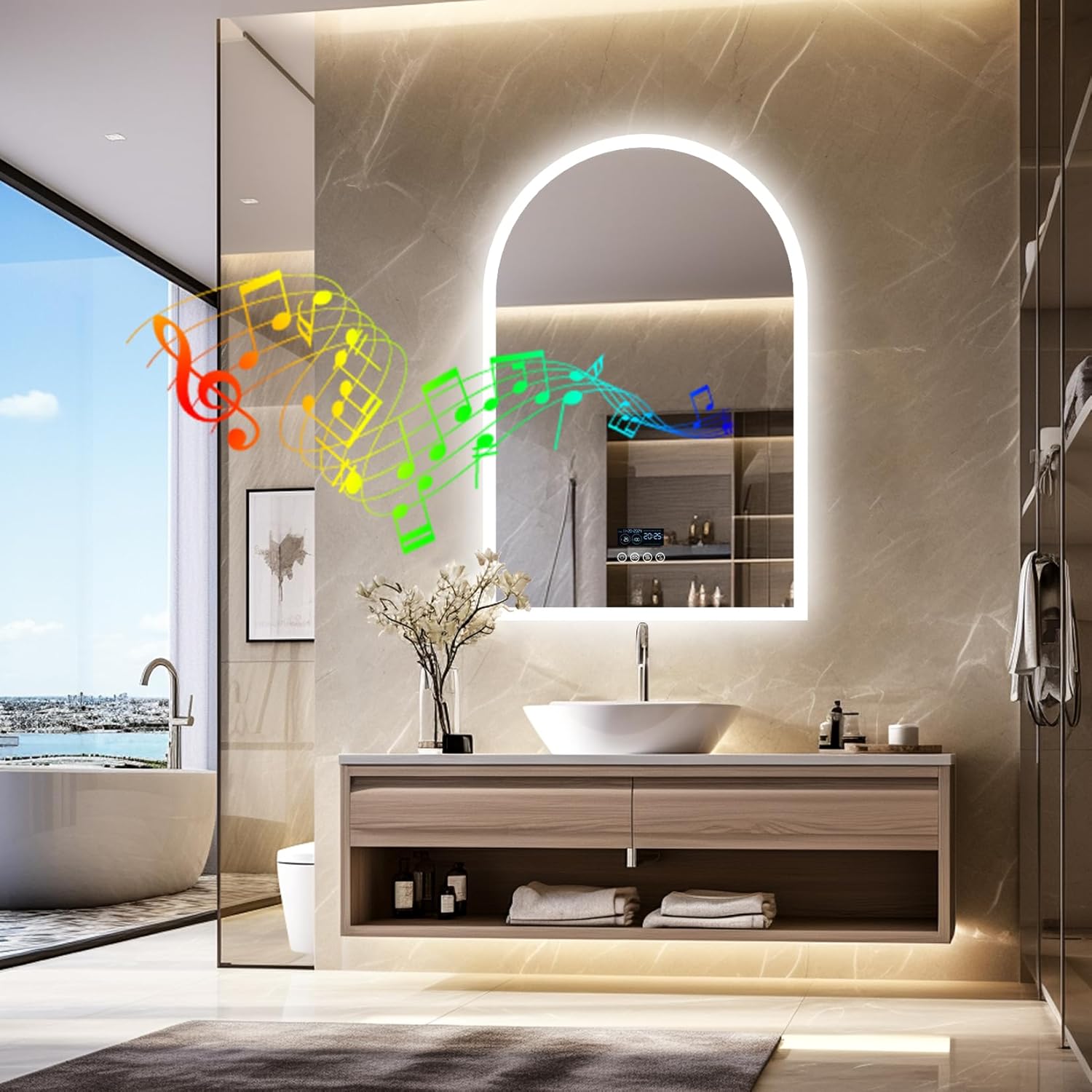

Video 1: Demonstration of the LUVODI Smart LED Bathroom Mirror's Bluetooth speaker functionality, showing a user interacting with the mirror while music plays.
Рисунок 4: Крупный план view of the customized NdFeB speaker, highlighting its design for excellent sound quality.
7. Управление освещением
The mirror features dual LED light strips (front-lit and back-lit) with three color temperature options and dimmable brightness.
7.1 Регулировка яркости
Long press the designated brightness control button on the touch panel to adjust the light intensity from 20% to 100%.
7.2 Изменение цветовой температуры
Press the light color button to cycle through three color temperatures: warm (3000K), neutral (4500K), and white light (6000K). The mirror has a Color Rendering Index (CRI) of 95.
Figure 5: Illustration of the Smart Touch Sensor for brightness control and the three available lighting colors (warm, neutral, white).
7.3 Dual LED Light Strips
The mirror features both front-lit and back-lit LED strips for comprehensive illumination. These cannot be controlled separately.
Figure 6: Visual comparison highlighting the dual LED light strips (front-lit + back-lit) of the LUVODI mirror compared to single-lit alternatives.
8. Функция защиты от запотевания
The built-in demister pads effectively eliminate steam, keeping the mirror clear during showers. The anti-fog function typically works within 3-4 minutes.
8.1 Activating Anti-Fog
Press the anti-fog icon on the touch panel to activate the demister. It is recommended to turn on the demisting function a few minutes before showering for optimal results.
Figure 7: Diagram showing the anti-fog function in action, with a clear area on the mirror after activation.
9. Отображение времени и температуры
The mirror features an intelligent display that shows the current date, time, and temperature. This allows for convenient access to information while getting ready.
9.1 Установка времени и даты
Refer to the detailed instructions provided in the full product manual for setting the time and date. The display also shows humidity levels.
10. Техническое обслуживание
To ensure the longevity and optimal performance of your LUVODI Smart LED Bathroom Mirror, follow these maintenance guidelines:
- Уборка: Используйте мягкий, damp cloth and a mild, non-abrasive glass cleaner. Do not spray cleaner directly onto the mirror surface, especially near electrical components. Apply cleaner to the cloth first.
- Уход за рамой: The anodized aluminum frame is anti-rust and resistant to wear. Wipe with a soft, dry cloth to maintain its finish.
- Электрические компоненты: Avoid exposing electrical components to excessive moisture. Ensure all connections are secure.
11. Поиск Неисправностей
If you encounter any issues with your LUVODI Smart LED Bathroom Mirror, please refer to the following common troubleshooting steps:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Свет не включается | No power, loose connection, faulty LED strip | Check power supply. Ensure plug is secure or hardwiring is correct. Contact customer service if issue persists. |
| Bluetooth не подключается | Mirror not in pairing mode, device too far, interference | Activate Bluetooth pairing on mirror. Move device closer. Restart both devices. |
| Anti-fog not working | Anti-fog function not activated, excessive steam | Ensure anti-fog button is pressed. Allow 3-4 minutes for full effect. |
| Time/Temperature display incorrect | Settings not configured, sensor issue | Refer to the full manual for time/date setting instructions. Contact support if sensor appears faulty. |
12. Технические характеристики
| Особенность | Деталь |
|---|---|
| Бренд | ЛЮВОДИ |
| Номер модели | XM183-B173-US-XY |
| Размеры продукта | 35.43 дюйма (Д) x 23.62 дюйма (Ш) |
| Форма | Semicircular (Arched) |
| Материал рамы | Алюминий |
| Тип крепления | Настенное крепление |
| Особые возможности | Built-in Bluetooth Speaker, Color Temperature Adjustment, Defogger, Dimmable LED Lighting, Time/Temperature Display |
| Параметры цветовой температуры | Warm 3000K, Neutral 4500K, White Light 6000K |
| CRI | 95 |
| Материал зеркала | Copper-free silver plated mirror |
| Вес товара | 26 фунта |
| Требуется сборка | Да |
13. Гарантия и поддержка
LUVODI is committed to providing high-quality products and excellent customer service. All electronic components comply with national certification standards, and the mirror is engineered with an anodized aluminum frame for durability.
For any product-related issues, technical assistance, or warranty claims, please contact LUVODI customer service. Our team is ready to assist you with any problems you may encounter.
Для получения более подробной информации посетите LUVODI Store on Amazon.
