Gevi Espresso Machine 20 Bar User Manual

Введение

This user manual provides comprehensive instructions for the safe and efficient operation of your Gevi 20 Bar Espresso Machine. Designed for home use, this semi-automatic espresso maker allows you to brew rich espresso and create perfectly frothed milk for a variety of coffee beverages.

Основные характеристики:

• Система давления 20 бар: Extracts rich flavors and oils for authentic espresso.
• Терморегулятор NTC: Ensures balanced coffee flavor and stable milk froth.
• Powerful Milk Frother: Equipped with a steam wand for cappuccinos, lattes, and flat whites.
• Компактный дизайн: Fits easily in any kitchen.
• Легко чистить: Detachable water tank and drip tray for hassle-free maintenance.

Настраивать

1. Распаковка и первоначальная подготовка

Carefully remove all components from the packaging. Ensure all accessories are present: Espresso Machine, Portafilter, 1-Cup Single Wall Filter, 2-Cup Single Wall Filter, Spoon & Tamper, User Manual, and Stainless Steel Milk Frothing Pitcher.

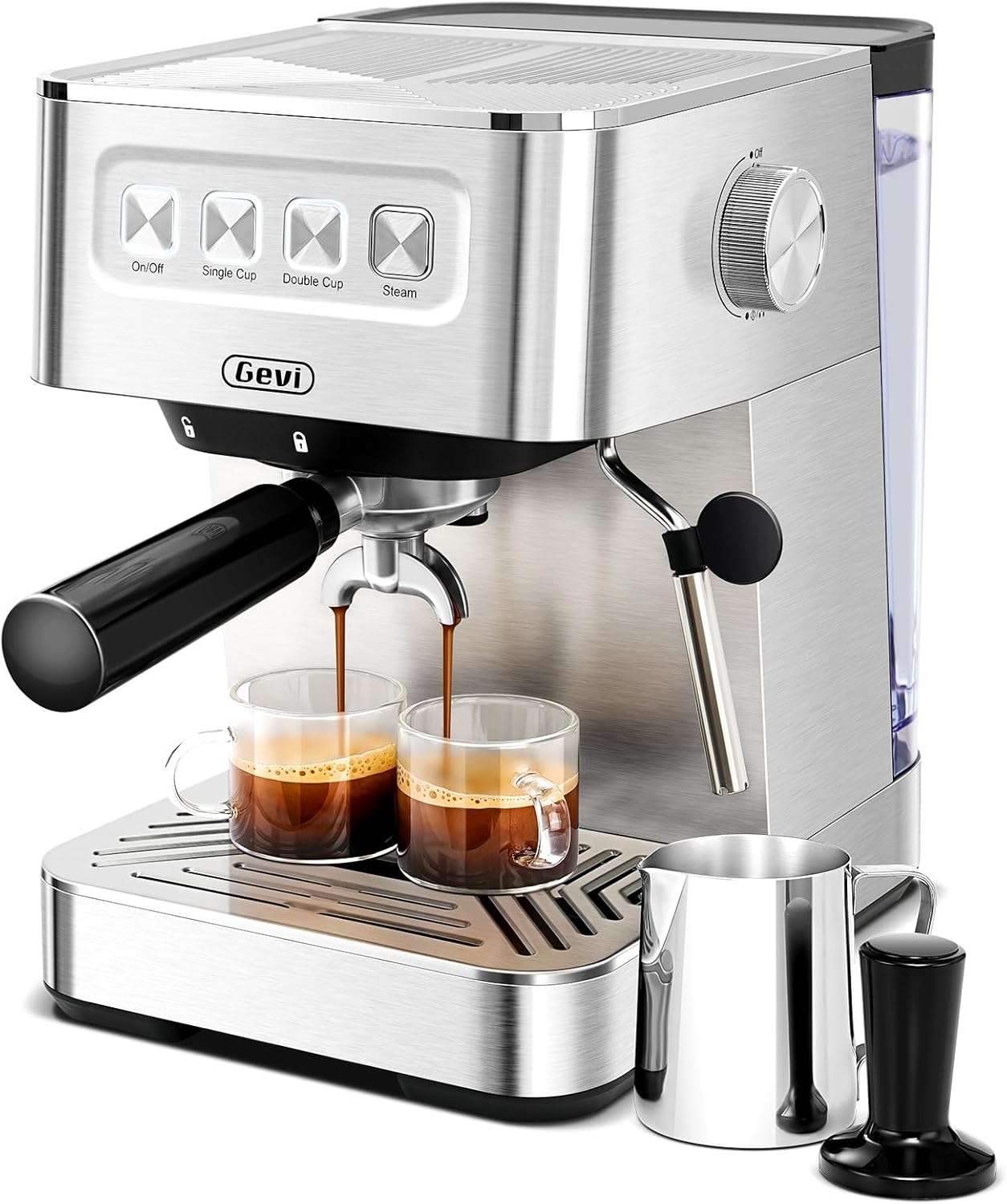

Figure 1: Gevi Espresso Machine with all included accessories.

Начальная очистка:

1. Remove the water tank from the back of the machine. Remove the red seal from the bottom of the tank.
2. Снимите поддон для сбора капель.
3. Rinse all accessories (portafilter, filters, spoon, tamper, milk pitcher) and the drip tray with clean water. Allow them to air dry completely before reassembling.
4. Reinsert the drip tray and water tank, ensuring it clicks into position.
5. Fill the water tank with clean drinking water, ensuring it is above the MIN line and below the MAX line.

Инструкция по эксплуатации

1. Основные операции

The Gevi Espresso Machine features intuitive button controls for easy operation.

Figure 2: Control panel with On/Off, Single Cup, Double Cup, and Steam buttons.

Приготовление эспрессо:

1. Убедитесь, что устройство подключено к электросети и резервуар для воды заполнен.
2. Нажмите Вкл/Выкл button. The lights will flash as the machine preheats. Once preheating is complete, the lights will stay solid.
3. Add desired amount of fine coffee grounds to the portafilter (approx. 13g for single, 19g for double). Tamp равномерно.
4. Insert the portafilter into the brew head and lock it into place.
5. Place your cup(s) under the portafilter.
6. Нажмите Одинарная чашка or Двойной кубок кнопку, чтобы начать заваривание.

2. Customizing Single Shot Volume

You can customize the volume of your single espresso shot.

1. After plugging in the machine, press the Вкл/Выкл button. Wait until the machine finishes preheating and enters standby mode (lights stay solid).
2. Place a cup under the group head.
3. Нажмите и удерживайте Одинарная чашка button for about 3 seconds. The light on the button will start flashing, and coffee will begin to flow.
4. Release the button when the desired amount of espresso has been dispensed. The machine will save this custom volume.

Resetting Single Shot Volume to Factory Default:

• With the machine in standby mode, press and hold both the Вкл/Выкл и Одинарная чашка buttons simultaneously for about 3 seconds. The volume will be reset to the factory default.

3. Вспенивание молока

The integrated steam wand allows you to create creamy milk froth for various beverages.

1. Из режима ожидания нажмите Пар button to start preheating the steam wand.
2. Pour cold milk into the frothing pitcher, ensuring not to fill past the spout level.
3. Swing the steam wand over the drip tray and turn the steam knob to release any residual water until you see steady steam (approx. 5-10 seconds). Then turn the knob back to the off position.
4. Insert the pitcher under the steam wand, ensuring the milk covers the tip by about 1 cm with the pitcher tilted around 15 degrees. Hold the top and base of the pitcher with your left hand.
5. Turn the steam knob to the steam position with your right hand to begin frothing. Keep the steam tip just below the surface of the milk.
6. When the milk reaches 60-65°C (or the pitcher feels too hot to touch for more than 3 seconds), your froth is ready. Return the steam knob to the off position.
7. Wipe the steam wand and tip with a clean, damp ткань сразу после использования.
8. Turn the steam knob to the steam position again and let it run for about 5 seconds to purge any milk residue. Then return the knob to the off position.

Обслуживание

1. Уборка

Регулярная чистка обеспечивает оптимальную производительность и долговечность вашей эспрессо-машины.

• Поддон для сбора капель: Регулярно опорожняйте и промывайте поддон для сбора капель.
• Portafilter & Filters: После каждого использования удаляйте кофейную гущу и промывайте портафильтр и фильтрующие корзины под проточной водой.
• Паровая палочка: Always wipe the steam wand immediately after frothing to prevent milk residue from drying. Use the purge function (as described in Milk Frothing section) to clear any internal residue.
• Экстерьер: Протрите внешнюю часть машины средством для мытья посуды.amp ткань. Не используйте абразивные чистящие средства или губки для мытья посуды.

2. Удаление накипи

Descaling is crucial to remove mineral buildup and maintain machine efficiency. It is recommended to descale every 2-3 months, or more frequently if you have hard water.

1. Prepare the descaling solution by mixing citric acid descaling powder with water according to the descaler's instructions. Pour the solution into the water tank up to the MAX line.
2. Place a container (capacity > 900ml) under the group head.
3. While in standby mode, press and hold both the Одинарная чашка и Двойной кубок buttons for more than 4 seconds to start the descaling cycle.
4. The group head will begin dispensing the solution. Once the water flow stops, move the container under the steam wand.
5. Нажмите Пар button, then turn the steam knob to the hot water position. Allow hot water to flow until the tank is empty.
6. Turn the steam knob back to the off position. The machine will heat up again and start the second round.
7. Refill the tank with descaling solution up to the MAX line. Place the container under the group head.
8. Нажмите Двойной кубок button. The group head will flush out clean water. Once complete, move the container under the steam wand.
9. Нажмите Пар button, then turn the steam knob to the hot water position. Allow hot water to flow until the tank is empty.
10. Turn the steam knob back to the off position.
11. Remove the water tank, pour out any remaining descaling solution, and rinse the tank thoroughly. Reattach the tank and refill with clean drinking water.
12. Place a container under both the group head and steam wand. Press the Двойной кубок button to flush out clean water from the group head.
13. Нажмите Пар button, then turn the steam knob to the hot water position. Allow hot water to flow from the steam wand until the tank is empty.
14. Turn the steam knob back to the off position.
15. Протрите внешнюю часть машины средством для мытья посуды.amp ткань.

Поиск неисправностей

В этом разделе вы найдете информацию о распространенных проблемах и способах их решения.

1. No Steam from Steam Wand

• Проверьте наличие засоров: The steam nozzle might be clogged with milk residue or limescale. Remove the steam nozzle, soak it in heated descaling solution for 30 minutes, and use a sharp metal tool to clear any blocked holes. Wipe off residue with a damp cloth and reattach.
• Предварительный нагрев: Ensure the machine has fully preheated. A solid indicator light means it's ready; a slow flashing light means it's still heating.
• Ручка пара: Turn the steam knob to the steam position to initiate steam flow.

2. Low Coffee Temperature

• Coffee Grounds Temperature: Ensure coffee grounds are at room temperature. Take chilled grounds out in advance.
• Preheating Portafilter: Insert the portafilter (without coffee grounds) into the brew head and press the Double Cup button to preheat it with hot water. Place your cup under the portafilter to warm it up simultaneously.

3. No Crema on Espresso

• Coffee Grounds Fineness: Ensure coffee grounds are fine and uniform (sandy texture). Coarse or too powdery grounds can affect crema.
• Количество кофе: Use appropriate coffee quantity (approx. 13g for single, 19g for double).
• TampДавление: Tamp the grounds firmly and evenly (10-15 kg pressure) to create a flat, level surface. Avoid tilting.

Технические характеристики

Гарантия и поддержка

Gevi values your satisfaction. All Gevi products bought through official channels come with a Гарантия 12 месяца and lifetime technical support.

For any issues with your Gevi espresso machine, please contact Gevi Official customer support.
