FOCHEW 200W GaN IV 6-Port USB C Charging Station

Введение

Thank you for choosing the FOCHEW 200W GaN IV 6-Port USB C Charging Station. This powerful and compact charging hub is designed to efficiently charge up to six devices simultaneously, utilizing advanced GaN IV technology for faster and safer power delivery. This manual provides essential information for the proper setup, operation, and maintenance of your charging station.

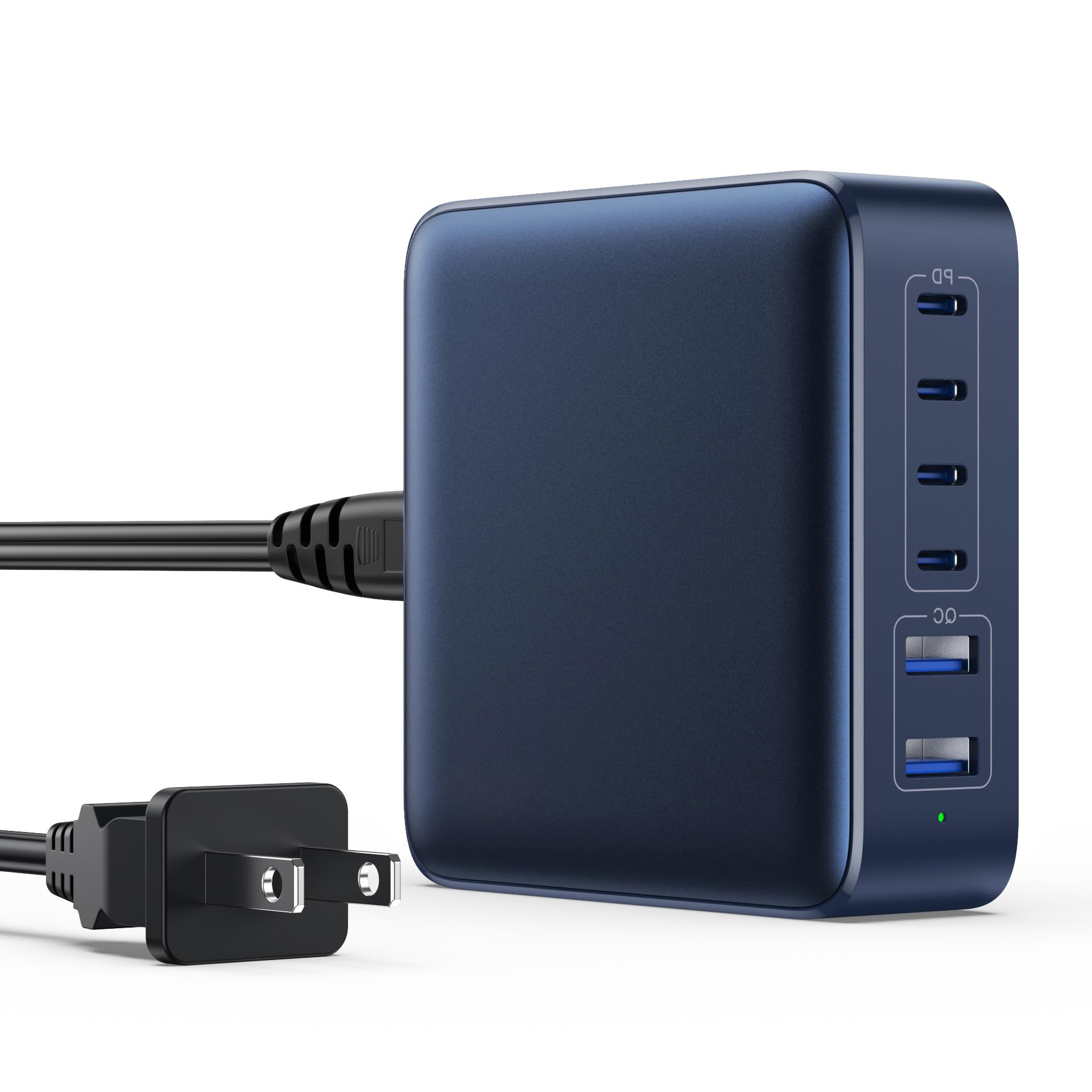

Болееview of the FOCHEW 200W GaN IV 6-Port USB C Charging Station, showcasinг его компактный дизайн.

Что в коробке?

• 1 × USB C Charger Block (FOCHEW 200W GaN IV 6-Port USB C Charging Station)
• 1 × Power Cord (1.5M / 5Ft)
• 1 × Product Instruction (User Manual)

Характеристики продукта

• 6-in-1 Multi-Port Charging: Equipped with 4 USB-C ports and 2 USB-A ports, allowing simultaneous charging of up to 6 devices with a total output of 200W.
• Upgraded 65W Laptop Charging: The dedicated USB-C1 port delivers up to 65W, capable of fast charging laptops such as MacBook Pro/Air, Microsoft Surface, Dell XPS, and HP models.
• GaN IV Technology: Utilizes advanced Gallium Nitride (GaN) IV generation chip technology for higher energy efficiency, reduced size and weight, and improved heat dissipation, making the charger safer and more powerful.
• Компактная и портативная конструкция: Ideal for home, office, and travel, its small footprint and detachable 5ft power cord offer convenience and reduce cable clutter.
• Multi-Protect Safety Systems: Features comprehensive safety protections including over-voltage, over-current, over-charge, over-temperature, static electricity, and short-circuit protection, ensuring device safety. UL, CE, and FCC certified.

This image illustrates the charger's compact and portable design, showing it connected to a laptop, tablet, smartphone, and smartwatch, along with a visual of its small dimensions for easy travel.

This image clearly demonstrates the charger's ability to power up to six devices simultaneously, featuring four USB-C ports and two USB-A ports, all connected to various electronic gadgets.

Инструкции по установке

1. Распакуйте зарядное устройство: Carefully remove the charging station, power cord, and user manual from the packaging.
2. Подключите шнур питания: Insert the detachable 5ft power cord into the AC input port on the back of the charging station.
3. Подключите к розетке: Connect the other end of the power cord to a standard AC 100-240V wall outlet. The LED indicator on the charger will illuminate, signifying it is powered on and ready for use.
4. Расположите зарядное устройство: Place the charging station on a stable, flat surface, away from direct sunlight, heat sources, and liquids. The 5ft power cord allows for flexible placement on a desk, nightstand, or counter.

Инструкция по эксплуатации

The FOCHEW 200W GaN IV 6-Port USB C Charging Station features intelligent power distribution to optimize charging speeds for connected devices.

1. Подключите свои устройства: Use appropriate USB-C to USB-C or USB-A to USB-C/Lightning/Micro USB cables (not included) to connect your devices to the available ports on the charging station.
2. USB-C Ports (C1, C2, C3, C4):
   • USB-C1 (макс. 65 Вт): This port is optimized for high-power devices like laptops (e.g., MacBook Pro/Air, Dell XPS) and tablets, providing up to 65W for rapid charging.
   • USB-C2, C3, C4 (25W Max Each): These ports are suitable for fast charging smartphones, smaller tablets, and other USB-C powered devices.
3. USB-A Ports (A1, A2):
   • USB-A1, A2 (30W Max Each): These ports support Quick Charge (QC) and are ideal for charging a wide range of USB-A compatible devices, including older smartphones, smartwatches, and accessories.
4. Одновременная зарядка: The charger intelligently distributes the total 200W output across all connected devices. While individual port outputs are maximized, the total power will be shared. For optimal fast charging of a single high-power device (like a laptop), it is recommended to use the USB-C1 port with fewer other devices connected.

The image demonstrates the fast charging capability of the USB-C1 port, delivering 65W to a laptop, and also shows a smartphone charging simultaneously. Key features like GaN4 technology, PD 3.0 & QC 4.0, and 6 ports are highlighted.

A detailed diagram illustrating the power output of each port: USB-C1 (65W), USB-C2/C3/C4 (25W each), and USB-A1/A2 (30W each), totaling 200W. It also shows the input voltagе диапазон.

Совместимость

The FOCHEW 200W GaN IV 6-Port USB C Charging Station offers broad compatibility with a wide range of electronic devices:

• Laptops & Tablets: MacBook Air M2/M1, MacBook Pro 13"/14"/15"/16", DELL Latitude/XPS, ASUS ROG/Zenbook, HP Envy/x360, Chromebook, iPad Pro 12.9"/11"/10.5", iPad Air 4, iPad mini 6, Microsoft Surface.
• Смартфоны: iPhone 16/15/14/13/12/11/XS/XR/X/8/7/6 series, iPhone SE2, Samsung Galaxy S24/S23/S22/S21/S20/S10/S9/S8 series, Note 20/10/9/8 series, A73/A72/A53/A52/A33/A32/A03, Google Pixel 6/5/4a/4/3a/3/2, LG V60/V50/G8/G7, Moto G series.
• Другие устройства: AirPods Pro, Nintendo Switch, Steam Deck, Rog Ally, Apple Watch 6/SE/3, Bluetooth headphones, speakers, fitness trackers, smartwatches, Oculus, and other USB-C/USB-A electronic devices.

This visual guide displays the wide range of devices compatible with the charging station, including iPhone series, Samsung Galaxy, Google Pixel, MacBook Pro, Dell, Microsoft Surface, iPad, AirPods, Nintendo Switch, and smartwatches.

Информация по безопасности

Your safety and the safety of your devices are paramount. The FOCHEW 200W GaN IV 6-Port USB C Charging Station is built with multiple protection systems and high-quality materials to ensure a secure charging experience.

• Технология смарт-чипа: Integrated smart chips manage power delivery and protect against potential hazards.
• Мультизащитная система: Включает меры защиты от:
• Повышенная громкостьtagЭлектронная защита
• Защита от перегрузки по току
• Защита от перезарядки
• Защита от перегрева
• Защита от короткого замыкания
• Защита от статического электричества
• Сертифицированная безопасность: The charger has passed UL safety certification and complies with CE and FCC standards.
• Прочные материалы: Constructed from high-quality ABS and PC fireproof materials, with an aluminum alloy shell for enhanced durability and heat dissipation.

Always use the charger in a well-ventilated area and avoid covering it during operation. Do not expose the charger to water or extreme temperatures.

Иллюстрация шоуasing the internal GaN4 technology and the reliable multi-protection systems, including over-charge, short-circuit, over-temp protection, and UL, CE, FCC approvals.

Обслуживание

• Уборка: Перед чисткой отключите зарядное устройство от сети. Протирайте поверхность мягкой сухой тканью. Не используйте жидкие чистящие средства или аэрозоли.
• Хранилище: When not in use, store the charger in a cool, dry place, away from direct sunlight and moisture.
• Уход за кабелем: Avoid bending or crimping the power cord and charging cables excessively. Always grasp the plug, not the cable, when disconnecting.
• Инспекция: Periodically inspect the charger and cables for any signs of damage. If damage is found, discontinue use immediately.

Поиск неисправностей

If you encounter issues with your FOCHEW Charging Station, please refer to the following common solutions:

1. Устройство не заряжается:
   • Убедитесь, что зарядная станция правильно подключена к работающей розетке.
   • Убедитесь, что зарядный кабель надежно подключен как к зарядному устройству, так и к вашему устройству.
   • Чтобы исключить неисправность кабеля или разъема, попробуйте использовать другой зарядный кабель или разъем.
   • Check if your device is compatible with the charger's output specifications.
2. Медленная зарядка:
   • Убедитесь, что вы используете высококачественный кабель, поддерживающий быструю зарядку.
   • For laptops, use the USB-C1 port (65W).
   • If multiple devices are connected, the total 200W power is shared. Disconnecting other devices may increase charging speed for a single device.
   • Some devices may limit charging speed when their battery is nearly full to protect battery health.
3. Перегрев зарядного устройства:
   • It is normal for the charger to feel warm during operation, especially when charging multiple devices at high power.
   • Убедитесь, что зарядное устройство размещено в хорошо проветриваемом месте и не накрыто.
   • If the charger becomes excessively hot, disconnect it from the power outlet and all devices immediately. Contact customer support if the issue persists.

Технические характеристики

Гарантия и поддержка

FOCHEW is committed to providing high-quality products and excellent customer service.

• Гарантия: This product comes with a 2-year maintenance warranty and a 1-year replacement warranty.
• Служба поддержки клиентов: If you have any questions, suggestions, or encounter any issues with your FOCHEW 200W GaN IV 6-Port USB C Charging Station, please do not hesitate to contact our customer service team. We are dedicated to providing satisfactory support.
