RBROHANT Matte Black Shower System with Tub Spout

1. Введение

This manual provides detailed instructions for the installation, operation, and maintenance of your RBROHANT Matte Black Shower System with Tub Spout, Model JK0300. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your shower system.

2. Информация по технике безопасности

Важный: Always turn off the main water supply before beginning any plumbing work. It is recommended that installation be performed by a qualified plumber to ensure proper function and compliance with local codes. Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation. Inspect all components for damage before installation. Do not use harsh chemicals or abrasive cleaners on the matte black finish.

3. Содержимое упаковки

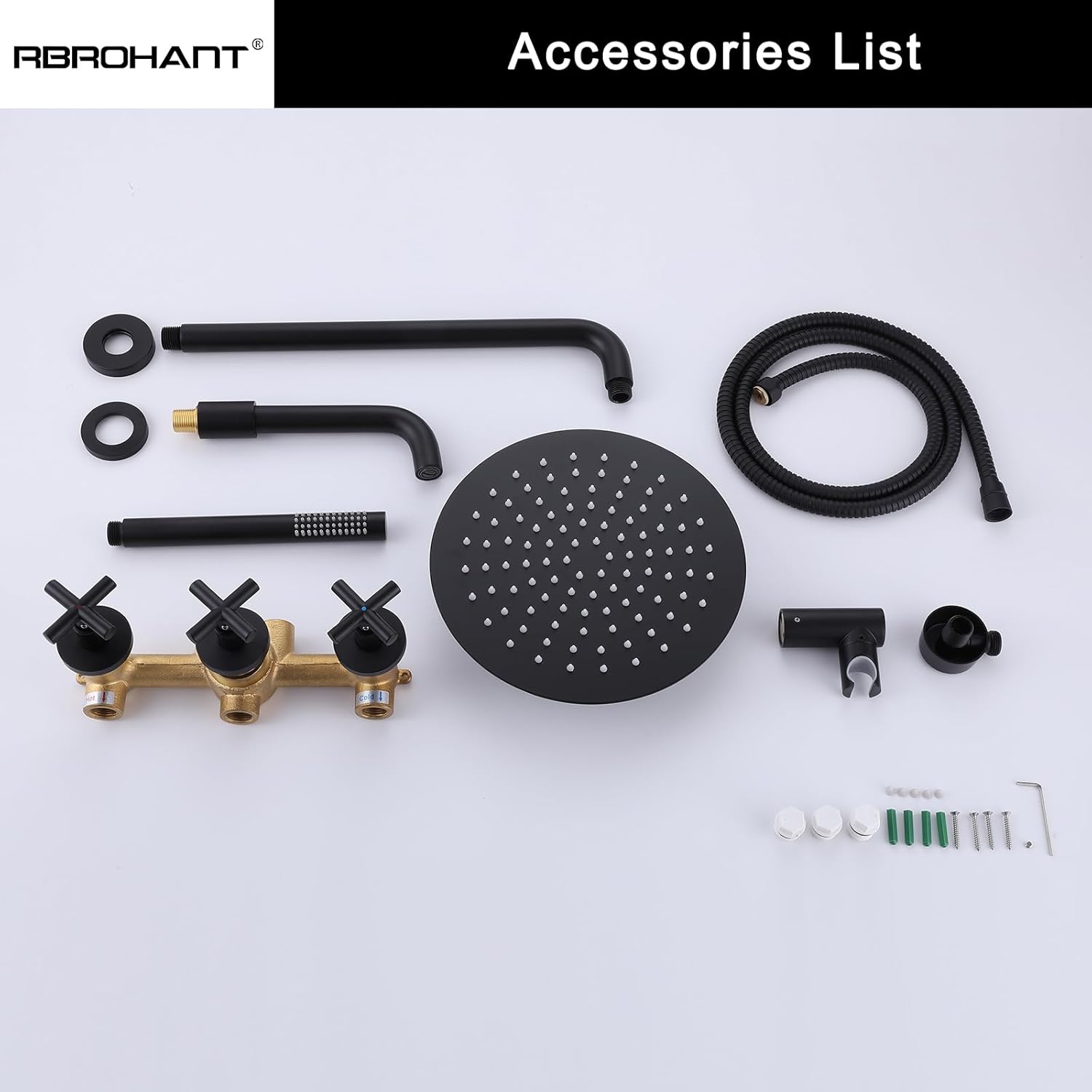

Убедитесь, что в вашей упаковке присутствуют все перечисленные ниже компоненты:

• 10-inch Round Rain Shower Head (304 stainless steel)
• 13 3/4-inch Shower Arm (solid brass, Flange Included)
• Handheld Sprayer and Holder (solid brass)
• 59-inch Shower Hose (304 stainless steel)
• Wall Supply Elbow (brass)
• Shower Mixer Rough-in Valve (solid brass)
• Handle Trim Kit (Zinc Alloy)
• 7 1/2-inch Tub Spout (solid brass, Flange Included)
• Necessary Screws Tool Kit
• Руководство пользователя (этот документ)

4. Технические характеристики

5. Руководство по установке

This section outlines the steps for installing your RBROHANT shower system. Ensure you have all necessary tools and have turned off the main water supply before proceeding.

5.1. Предустановка

• Confirm that your plumbing is compatible with standard NPT 1/2 inch connectors.
• Clear the installation area and protect the surrounding surfaces.
• Распакуйте все компоненты и сверьте их со списком содержимого упаковки.

5.2. Установка клапана грубой очистки

The solid brass rough-in valve is the core of your shower system, controlling water flow and temperature. It features separate hot and cold water cartridges and a 3-in-1 water diverter.

1. Position the rough-in valve within the wall according to your desired shower layout and local plumbing codes.
2. Connect the hot and cold water supply lines to the designated inlets on the valve.
3. Connect the outlets for the rain shower head, handheld shower, and tub spout to their respective lines. Ensure all connections are secure and watertight.

5.3. Shower Arm and Rain Shower Head Installation

1. Thread the shower arm into the wall outlet, ensuring it is securely tightened. Apply plumber's tape to threads for a watertight seal.
2. Attach the flange to cover the wall opening.
3. Screw the 10-inch round rain shower head onto the shower arm. The shower head features 360-degree adjustability for flexible positioning.

5.4. Handheld Sprayer and Wall Supply Elbow Installation

1. Install the wall supply elbow to the designated outlet from the rough-in valve. This elbow allows the handheld sprayer to reach farther and offers flexibility.
2. Connect one end of the 59-inch shower hose to the wall supply elbow.
3. Connect the other end of the shower hose to the handheld sprayer.
4. Mount the handheld sprayer holder to the wall at a convenient height. The holder is angle adjustable.

5.5. Tub Spout Installation

1. Thread the 7 1/2-inch tub spout onto its designated outlet from the rough-in valve. Ensure it is securely tightened and properly aligned.
2. Attach the flange to cover the wall opening.

Проверка после установки: Once all components are installed, slowly turn on the main water supply and check for any leaks. Operate each function (rain shower, handheld, tub spout) to ensure proper water flow and temperature control.

6. Операция

Your RBROHANT shower system offers three functional outputs: a rain shower head, a handheld sprayer, and a tub spout. The system is controlled by three handles on the trim kit.

6.1. Контроль температуры

The two outer handles control the hot and cold water supply. Turn the left handle for hot water and the right handle for cold water. Adjust both handles to achieve your desired water temperature. The ergonomic cross-knob design provides a secure grip.

6.2. Water Mode Selection (Diverter)

The center handle acts as a 3-way diverter, allowing you to switch between the rain shower head, handheld sprayer, and tub spout. Rotate the center handle to select the desired water outlet.

6.3. Rain Shower Head

The 10-inch rain shower head utilizes Air-in technology to mix air and water, providing a high-pressure, full-body shower experience while conserving water. The shower head is 360-degree adjustable for optimal positioning.

6.4. Handheld Sprayer

The handheld sprayer with its 59-inch hose offers versatility for targeted rinsing, cleaning, or showering without wetting your hair. The holder allows for angle adjustment.

6.5. Излив ванны

The 7 1/2-inch tub spout is designed for quickly filling a bathtub. It features a 360-degree rotatable design for convenience.

7. Техническое обслуживание и уход

To maintain the matte black finish and ensure the longevity of your RBROHANT shower system, follow these care instructions:

• Уборка: Clean the surface with a soft cloth and mild soap or a non-abrasive liquid cleaner. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
• Избегайте агрессивных чистящих средств: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any cleaners containing bleach, acids, or alcohol, as these can damage the finish.
• Silicone Nozzles: The rain shower head features silicone nozzles. To remove mineral buildup, gently rub the nozzles with your finger or a soft brush.
• Регулярный осмотр: Периодически проверяйте все соединения на надежность затяжки и наличие признаков износа.

8. Поиск Неисправностей

В этом разделе рассматриваются распространенные проблемы, с которыми вы можете столкнуться при использовании душевой системы.

9. Гарантия и поддержка клиентов

RBROHANT stands behind the quality of its products. Your shower system is covered by a Пожизненная гарантия.

• Бесплатная замена: In case of any manufacturing defects or functional issues, RBROHANT offers free replacement parts.
• Изготовление деталей на заказ: For specific needs, parts customization may be available.
• Отзывчивая поддержка: If you encounter any problems with your shower tub combo set, please do not hesitate to contact RBROHANT customer service. We aim to respond within 24 hours.

For assistance, please refer to the contact information provided with your purchase or visit the official RBROHANT webсайт.
