Misolant Ergonomic Office Chair MI500-14 Instruction Manual

Введение

This manual provides detailed instructions for the assembly, operation, and maintenance of your Misolant Ergonomic Office Chair, model MI500-14. Please read these instructions carefully before use to ensure proper function and longevity of your chair.

Информация по безопасности

Важный:

• Ensure the chair is used by individuals weighing less than 300 pounds. The chair has passed BIFMA testing and is SGS certified for safety and durability within this weight limit.
• Always follow assembly instructions carefully to prevent injury or damage to the product.
• Во время сборки держите мелкие детали в недоступном для детей месте.

Список компонентов

Перед началом сборки убедитесь в наличии всех компонентов:

• Подголовник: 1 шт.
• Armrest: 2pc
• Спинка: 1 шт.
• Seat Cushion: 1pc
• Chair Base: 5pc
• Base Plate: 1pc
• Gas Lift: 1pc
• Casters: 5pc
• Винты: 19 шт.
• Allen Wrench: 1pc
• Side Caps: 6pc

Инструкция по сборке

Assembly typically takes approximately 20 minutes. An Allen wrench is included for your convenience.

1. Attach Casters to Chair Base: Insert each of the 5 casters into the openings at the end of the chair base legs. Ensure they are securely fitted.
2. Установите газовый подъемник: Вставьте цилиндр газлифта в центральное отверстие собранного основания стула.
3. Прикрепите основание к подушке сиденья: Align the base plate with the pre-drilled holes on the underside of the seat cushion. Secure it using the provided screws and Allen wrench. Ensure the 'FRONT' indicator on the base plate aligns with the front of the seat cushion.
4. Прикрепите спинку к подушке сиденья: Attach the backrest to the seat cushion using the designated screws.
5. Прикрепите подлокотники: Secure the two armrests to the sides of the seat cushion and backrest using the provided screws.
6. Установка подголовника: Insert the headrest into the top of the backrest and secure it.
7. Подсоедините узел сиденья к газлифтному механизму: Осторожно поместите собранное сиденье и спинку на цилиндр газлифта, убедившись, что они надежно закреплены.

Инструкция по эксплуатации

Your Misolant Ergonomic Office Chair offers several adjustable features for personalized comfort:

• Регулировка высоты: Use the lever located under the seat on the right side to adjust the chair's height. Pull the lever up while seated to lower the chair, or pull it up while standing to raise it.
• Регулируемый подголовник: The headrest can be adjusted up and down by pulling it to your desired height. It also features a 45° recline function for neck support.


  Image: Adjustable headrest with lifting and reclining functions.

• Откидные подлокотники: The armrests can be rotated 90 degrees upwards to save space or allow closer access to your desk.


  Image: Flip-up armrests for space-saving and flexibility.

• Three Tilt Back Postures: The chair offers three recline positions: 90° for work, 105° for relaxation, and 115° for napping. Use the adjustable handle and tilt tension knob under the seat to select and lock your preferred angle.


  Image: Three back tilt angle adjustments for various activities.
• Эргономичная поясничная поддержка: The double-back structure provides integrated support for the backrest and lumbar region, promoting proper posture and balancing pressure. The breathable mesh material enhances air circulation.

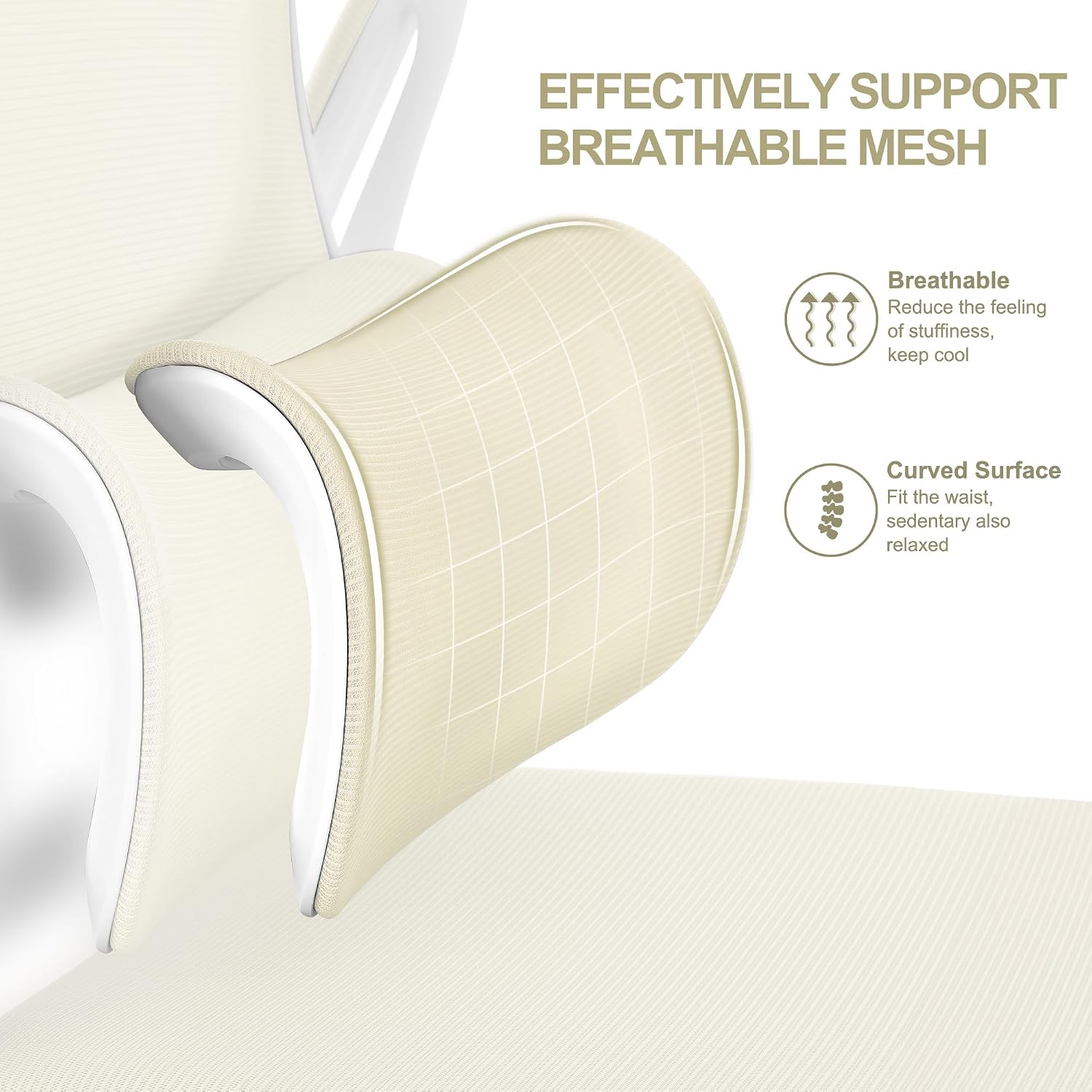

  Image: Ergonomic lumbar support and breathable mesh design.

• Поворот на 360°: The chair features 360° PU casters, allowing for smooth movement and rotation in any direction.

Обслуживание

To maintain the appearance and functionality of your Misolant Ergonomic Office Chair, wipe it clean with a damp Протирайте тканью по мере необходимости. Избегайте использования агрессивных химикатов или абразивных чистящих средств.

Поиск неисправностей

If you encounter any issues with your chair, please refer to the assembly instructions to ensure all parts are correctly installed. For further assistance, contact Misolant customer service.

Технические характеристики

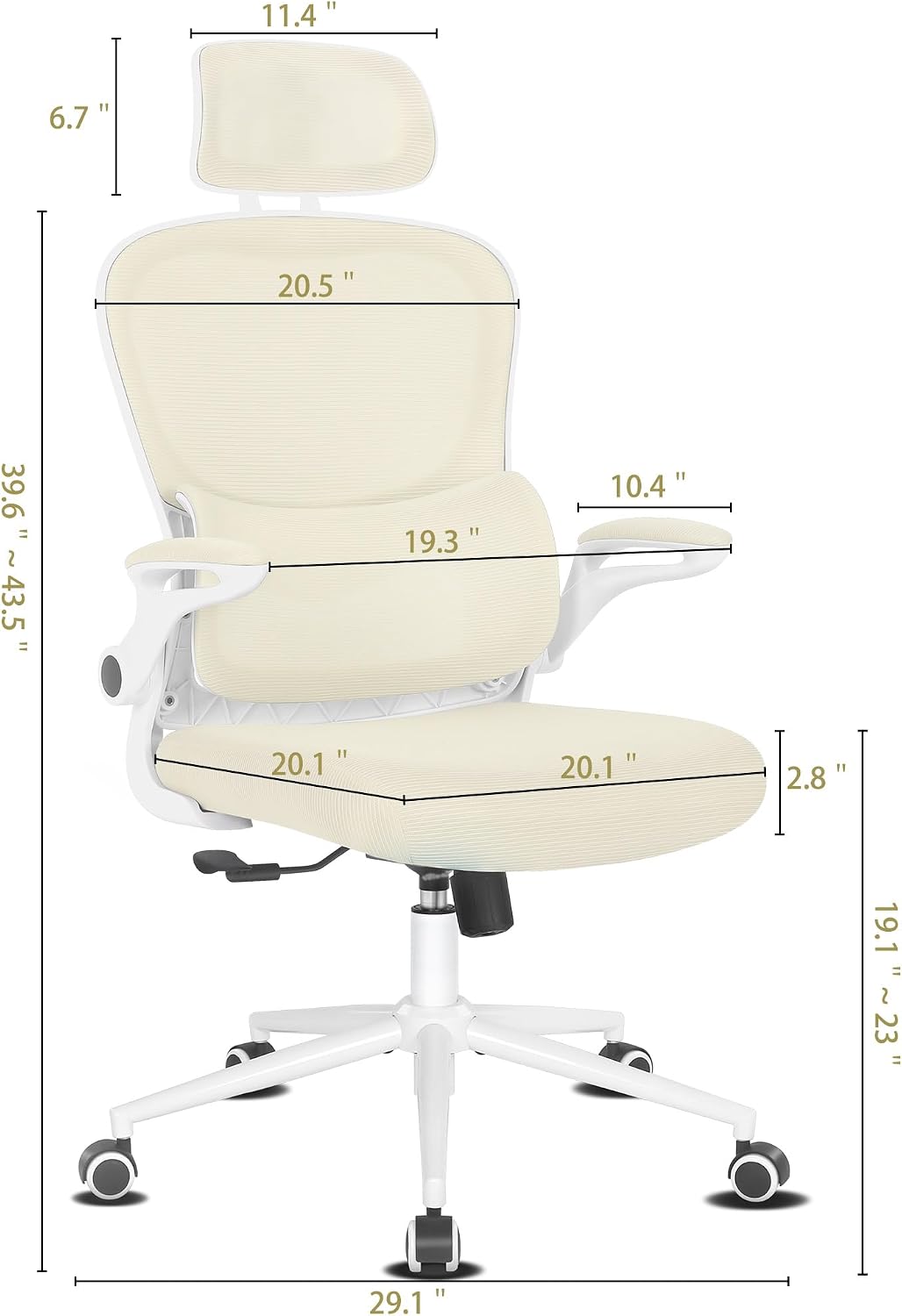

Image: Product dimensions overview.

Гарантия и поддержка

Misolant provides a one-year quality guarantee on this ergonomic desk chair. For any questions, needs, or replacement parts, please contact Misolant customer service. We are available 24/7 via email to assist you.
