Hofstein Victorine Pendant Lamp with Shelf - Instruction Manual

Введение

Спасибо за покупкуasing the Hofstein Victorine Pendant Lamp with Shelf. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

Важные инструкции по технике безопасности

• Электробезопасность: Always disconnect power at the main circuit breaker before installation, maintenance, or bulb replacement. Installation should be performed by a qualified electrician if you are unsure.
• Томtage: This fixture is designed for 230 Volt electrical systems. Ensure your household voltage соответствует этому требованию.
• Тип лампы: Use only E27 base bulbs. Do not exceed the maximum wattagЕмкость каждой лампочки составляет 60 Вт.
• Только для использования в помещении: This product is rated IP20 and is intended for indoor use in dry locations only. Do not expose to moisture or direct water.
• Умение обращаться: справиться с лamp Будьте осторожны. Не допускайте падений и сильных ударов.
• Уборка: Чистите только сухой мягкой тканью. Не используйте абразивные чистящие средства или растворители.

Содержимое упаковки

Перед началом установки убедитесь, что все компоненты присутствуют и не повреждены.

• 1x Hofstein Victorine Pendant Lamp fixture (metal frame with shelf, 5 E27 sockets)
• Mounting hardware (ceiling bracket, screws, wall anchors)
• Руководство по эксплуатации
• Note: E27 bulbs are not included and must be purchased separately.

Изображение: All components of the Hofstein Victorine Pendant Lamp laid out, including the metal frame, electrical wiring, ceiling rose, and mounting bracket. This image helps to identify all parts included in the package.

Инструкция по установке

Необходимые инструменты (не включены): Screwdriver, wire strippers, drill, pencil, measuring tape, ladder.

1. Подготовьтесь к установке:
   • Безопасность прежде всего: Turn off the power supply at the main circuit breaker before starting any electrical work.
   • Распакуйте все компоненты и проверьте их на наличие повреждений.
2. Позиция крепления метки:
   • Determine the desired location for the lamp на потолке.
   • Hold the ceiling bracket (part of the mounting hardware) against the ceiling and mark the drilling points with a pencil.
3. Установка потолочного кронштейна:
   • Drill holes at the marked positions. Insert wall anchors if necessary (e.g., for plasterboard ceilings).
   • Secure the ceiling bracket to the ceiling using the provided screws. Ensure it is firmly attached.
4. Adjust Height (if desired):
   • Лamp's height is adjustable up to a maximum of 137 cm. Adjust the suspension cables to your preferred length before wiring.
   • The adjustment mechanism is typically located at the ceiling rose or where the cables enter the fixture.


   Изображение: A diagram illustrating the dimensions of the Hofstein Victorine Pendant Lamp, including its length (120cm), width (20cm), and maximum adjustable height (137cm). The ceiling rose diameter is also shown as 10cm.
5. Электрическое подключение:
   • Connect the household electrical wires to the corresponding wires of the lamp (Live to Live, Neutral to Neutral, Earth to Earth). If unsure, consult a qualified electrician.
   • Убедитесь, что все соединения надежны и надлежащим образом изолированы.
6. Attach Fixture to Ceiling:
   • Осторожно поднимите л.amp fixture and attach it to the installed ceiling bracket, securing it with the provided screws or fasteners.
   • Ensure the fixture is stable and flush against the ceiling.
7. Установите лампы:
   • Screw E27 base bulbs (not included) into the five sockets. Do not overtighten.
   • Ensure the bulbs do not exceed 60 Watts each.
8. Восстановить мощность:
   • Once installation is complete, turn the power supply back on at the main circuit breaker.
   • Проверьте лamp чтобы убедиться, что он работает правильно.

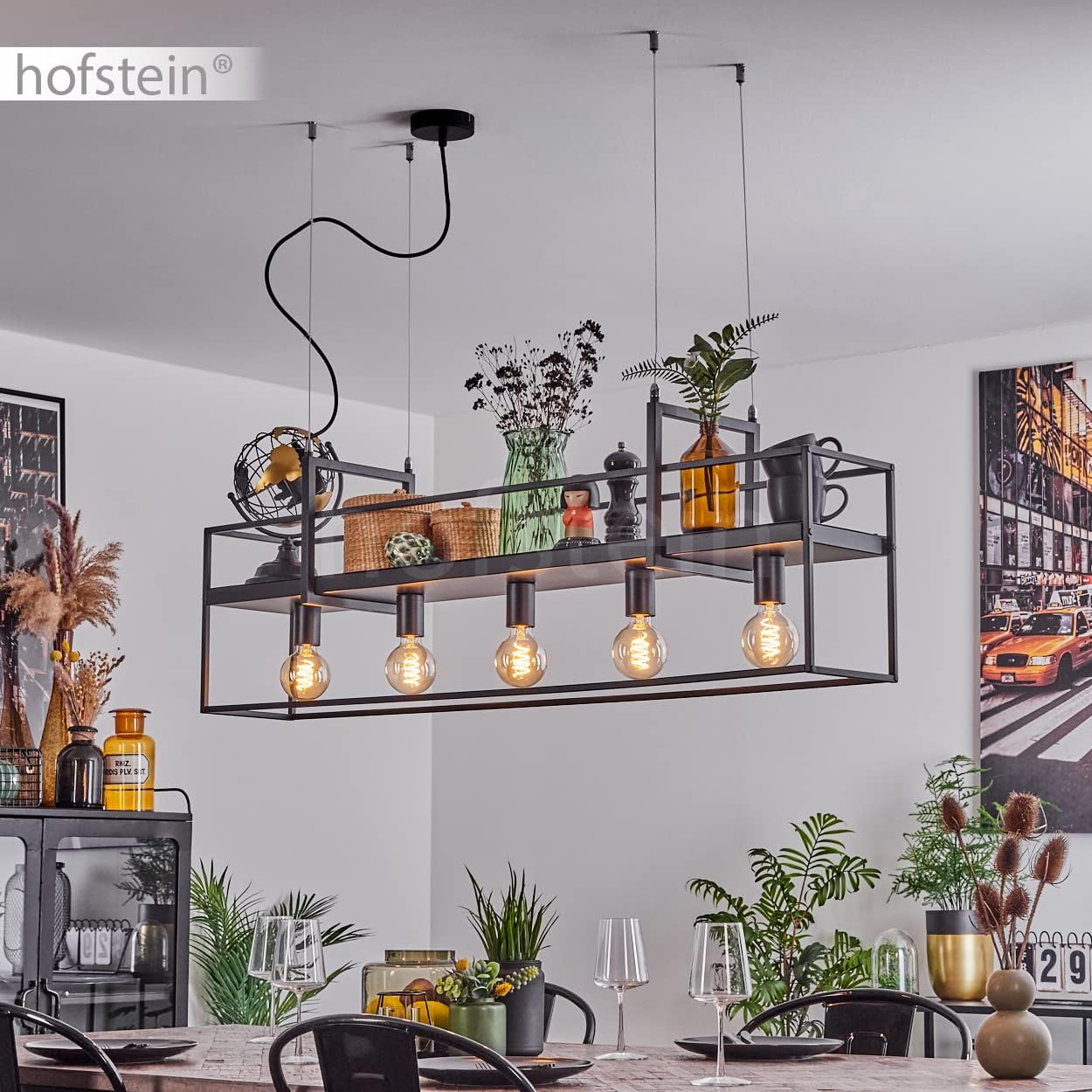

Изображение: The Hofstein Victorine Pendant Lamp installed above a dining table, showcasing its black metal frame, five exposed E27 bulbs, and integrated shelf decorated with small plants and decorative items. This image demonstrates the lamp's appearance in a typical home setting.

Инструкция по эксплуатации

The Hofstein Victorine Pendant Lamp is operated via a standard wall switch connected to your household electrical system. It does not feature an integrated switch.

• Включение/выключение: Используйте настенный выключатель, чтобы включить свет.amp включено или выключено.
• Функциональность затемнения: Это лamp is dimmable if connected to an external dimmer switch (not included) and if dimmable E27 bulbs are used. Consult a qualified electrician for dimmer installation.
• Использование полки: The integrated shelf can be used for lightweight decorative items. Do not overload the shelf to avoid damage to the fixture or injury.

Обслуживание

• Уборка:
  • Всегда отключайте питание перед очисткой.
  • Wipe the metal surfaces with a soft, dry, lint-free cloth.
  • Do not use abrasive cleaners, solvents, or polishes as these may damage the finish.
• Замена лампы:
  • Убедитесь, что lamp is turned off and has cooled down before replacing bulbs.
  • Carefully unscrew the old E27 bulb and screw in a new one.
  • Use only E27 base bulbs with a maximum of 60 Watts.
• Периодическая проверка:
  • Периодически проверяйте все соединения и точки крепления, чтобы убедиться в их надежности.
  • Inspect the electrical cord for any signs of wear or damage. If damage is found, discontinue use and consult a qualified electrician.

Поиск неисправностей

Технические характеристики

Гарантия и поддержка

Hofstein products are manufactured with quality and durability in mind. For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Hofstein webсайт.

If you encounter any issues or require technical assistance, please contact Hofstein customer support. Contact details can typically be found on the product packaging or the brand's official webсайт.
