Инструкция по эксплуатации высокоскоростного фена Chocovision my30

1. Продукт закончилсяview

The Chocovision my30 is a high-performance hair dryer designed for efficient and gentle hair drying. It features a powerful 1300W motor, generating a high-speed airflow of 22m/s and a large air volume of 6.7m³/min for rapid drying. Equipped with 200 million negative ions, it helps to neutralize static, close hair cuticles, and enhance hair moisture and shine. The dryer offers constant temperature hair care and a unique hot/cold rhythm mode for optimal styling and hair health. Its compact and lightweight design (407g) ensures comfortable handling, while its quiet operation (59dB) provides a pleasant user experience.

Figure 1.1: Chocovision my30 Hair Dryer and included nozzle.

Рисунок 1.2: Болееview of the Chocovision my30 Hair Dryer's key features.

2. Настройка

2.1 Распаковка и осмотр

Carefully remove all components from the packaging. Ensure the package contains the hair dryer unit and the magnetic styling nozzle. Inspect the dryer for any visible damage. If any damage is found, do not use the product and contact customer support.

2.2 Установка сопла

The styling nozzle attaches magnetically to the front of the dryer. Simply align the nozzle with the air outlet and it will snap into place. The nozzle can be rotated 360 degrees to direct airflow as needed.

Figure 2.1: Magnetic attachment of the styling nozzle.

2.3 Подключение питания

Plug the power cord into a standard 110V AC electrical outlet. Ensure the outlet is compatible with the dryer's power requirements.

3. Инструкция по эксплуатации

3.1 Включение/выключение питания и регулировка скорости вентилятора

Locate the power switch on the handle. Slide the switch to turn the dryer on or off. This switch also controls the fan speed:

• ВЫКЛЮЧЕННЫЙ: Dryer is off.
• I (Low Speed): Activates low fan speed.
• II (High Speed): Activates high fan speed.

3.2 Настройки температуры

Press the temperature control button to cycle through the available heat settings. The LED ring around the air outlet will change color to indicate the current temperature mode:

• Cold Air (Blue LED): Approximately 25°C. Ideal for setting hairstyles and closing hair cuticles.
• Warm Air (Orange LED): Approximately 55°C. Suitable for gentle drying and everyday use.
• Hot Air (Red LED): Approximately 75°C. For rapid drying of wet hair.

3.3 Hot/Cold Rhythm Mode (Smart Cycle Mode)

To activate the hot/cold rhythm mode, press and hold the temperature control button. The LED ring will cycle between red and blue, indicating alternating hot and cold airflow. This mode helps to dry hair quickly while simultaneously closing cuticles for enhanced shine and reduced frizz.

Figure 3.1: Control buttons for power, fan speed, and temperature.

Figure 3.2: Visual representation of temperature settings via LED ring.

3.4 Технология отрицательных ионов

The Chocovision my30 hair dryer continuously releases 200 million negative ions during operation. These ions help to reduce static electricity, smooth hair cuticles, and lock in moisture, resulting in softer, shinier, and healthier-looking hair.

Figure 3.3: Negative ion technology for enhanced hair care.

4. Техническое обслуживание

4.1 Очистка воздушного фильтра

To maintain optimal performance and prevent dust and hair from entering the motor, regularly clean the air filter located at the bottom of the handle. The dryer features a 0.2mm high-density metal filter.

1. Убедитесь, что сушилка отключена от сети и полностью остыла.
2. Чтобы снять крышку фильтра, аккуратно поверните или потяните её.
3. Use a soft brush or a dry cloth to remove any accumulated dust or lint from the filter mesh. Do not use water.
4. Replace the filter cover, ensuring it is securely fastened.

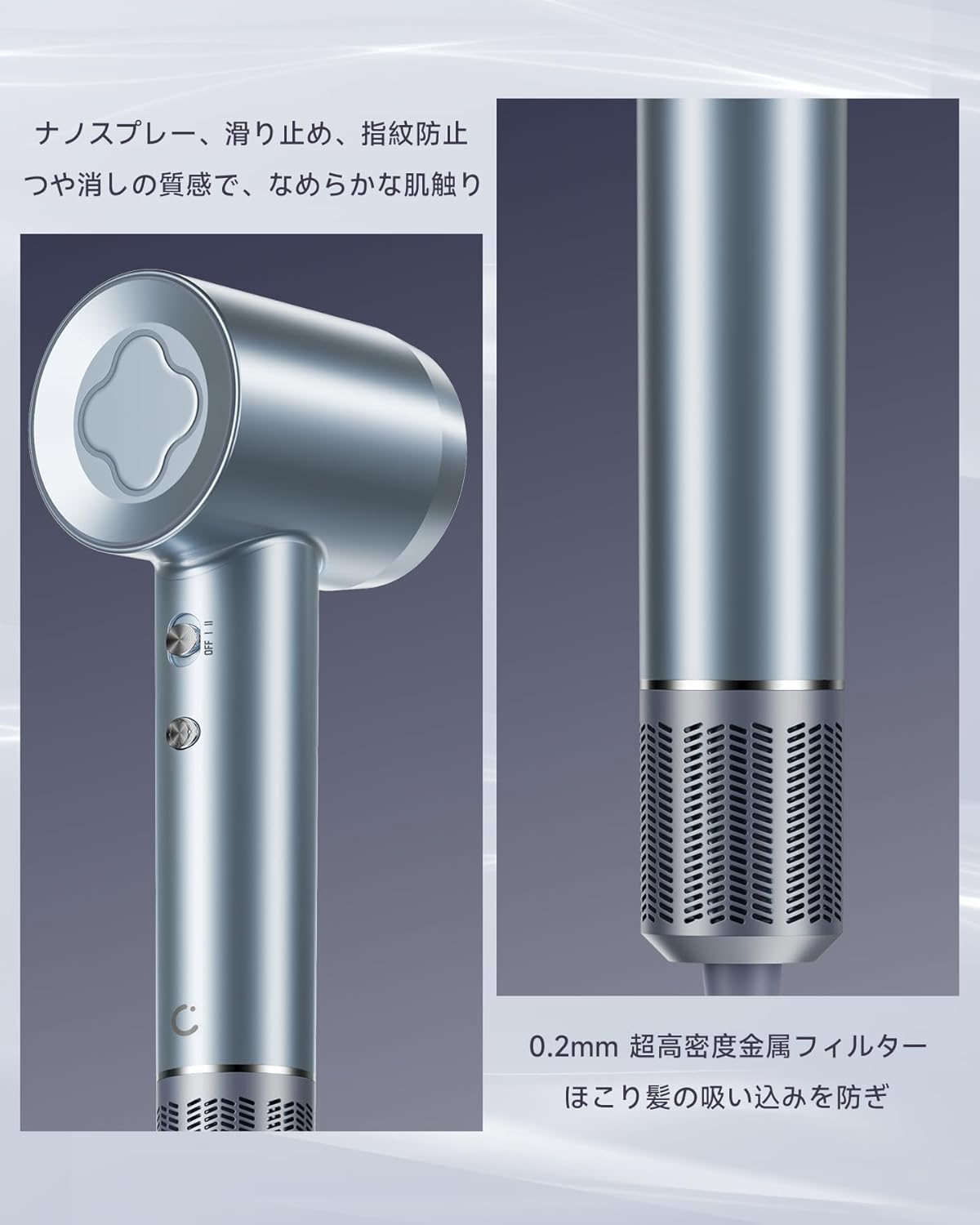

Figure 4.1: Location of the 0.2mm high-density metal filter for easy cleaning.

4.2 Генеральная уборка

Протрите внешнюю поверхность сушильной машины мягкой тряпкой.amp cloth. Do not use abrasive cleaners or immerse the dryer in water. Ensure the dryer is completely dry before plugging it in again.

4.3 Хранение

Store the dryer in a cool, dry place, away from direct sunlight and moisture. Avoid wrapping the power cord tightly around the dryer, as this can damage the cord.

5. Поиск Неисправностей

If you encounter any issues with your Chocovision my30 hair dryer, please refer to the following common problems and solutions:

The Chocovision my30 is equipped with multiple safety features, including NTC temperature detection, overheat protection, and fuse protection, to ensure safe operation.

Figure 5.1: Built-in safety mechanisms for user protection.

6. Технические характеристики

Figure 6.1: Key specifications compared to other models.

Рисунок 6.2: Размеры изделия и прилагаемые аксессуары.

7. Официальные видеоролики о продукте

Watch these official product videos for a visual guide on using your Chocovision my30 Hair Dryer.

8. Гарантия и поддержка

For information regarding the product warranty, please refer to the warranty card included in your product packaging or consult the retailer from whom you purchased the product. Warranty terms and conditions may vary by region and retailer.

For technical support, product inquiries, or service requests, please contact Chocovision customer support through their official webсайт или контактную информацию, указанную в документации к вашему продукту.

Сохраните чек о покупке для предъявления претензий по гарантии.
