DICTAC Folding Bed 90x200 with 13cm Memory Foam Mattress

1. Введение

Thank you for choosing the DICTAC Folding Bed 90x200 with 13cm Memory Foam Mattress. This product is designed to provide a comfortable and convenient sleeping solution, ideal for guests, small apartments, or temporary use. Its robust metal frame and supportive memory foam mattress ensure both durability and comfort, while integrated wheels allow for easy portability and storage. Please read this manual thoroughly before assembly and use to ensure proper operation and safety.

2. Инструкции по технике безопасности

• Не превышайте максимальную грузоподъемность в 200 кг (приблизительно 440 фунтов).
• Перед использованием убедитесь, что все компоненты правильно собраны и затянуты.
• Keep hands and fingers clear of moving parts during folding and unfolding to prevent pinching or injury.
• Always lock the wheels when the bed is in use or stored in an upright position to prevent accidental movement.
• Do not wet the metal frame. Clean with a dry or slightly damp ткань.
• Keep children away from the bed during assembly and folding/unfolding operations.
• Place the bed on a flat, stable surface to ensure stability.

3. Содержимое упаковки

Перед началом сборки убедитесь в наличии всех необходимых деталей:

• Folding Metal Bed Frame (with Rhombus Base)
• 13 cm Memory Foam Mattress
• Крепежные элементы и инструменты для сборки (например, шестигранный ключ)

4. Настройка и сборка

The DICTAC Folding Bed is designed for quick and simple assembly, typically taking about 5 minutes. No complex tools are required as necessary tools are included.

4.1 Initial Unfolding

1. Аккуратно извлеките кровать из упаковки.
2. Place the folded bed in an open area.
3. Release any securing straps or buckles holding the bed in its folded position.
4. Gently pull the two halves of the bed apart until the frame is fully extended.
5. Ensure all support legs are fully deployed and locked into place.

Image: A person gently unfolding the DICTAC folding bed. The bed is shown partially unfolded, demonstrating the ease of setup.

4.2 Размещение матраса

The 13 cm memory foam mattress comes pre-installed. Allow the mattress to fully expand for 24-48 hours after initial unboxing for optimal comfort.

Image: The DICTAC folding bed fully extended with its 13cm memory foam mattress. The bed is ready for use.

5. Инструкция по эксплуатации

5.1 Folding the Bed for Storage

The bed can be easily folded in four steps for compact storage:

1. Снимите с матраса все постельное белье.
2. Lift one end of the bed frame, allowing it to fold inward.
3. Continue folding until the two halves meet.
4. Secure the folded bed with the integrated buckle or strap to prevent it from unfolding.

Image: A visual guide showing the four steps to fold the bed, from fully open to compact storage.

Image: The DICTAC folding bed shown in its compact, folded position, ready for storage.

5.2 Moving the Bed

The bed is equipped with 4 swivel casters that rotate 360 degrees, allowing for easy transport. To move the bed:

1. Ensure the bed is in its folded position and secured.
2. Разблокируйте все четыре колеса, отключив их блокировочные механизмы.
3. Gently push or pull the bed to its desired location.
4. Once in place, lock all four wheels to ensure stability.

Изображение: крупный план view of the bed's 360-degree swivel casters, highlighting the locking mechanism for stability.

6. Техническое обслуживание

6.1 Mattress Care

The mattress cover is removable and washable. Clean the mattress cover with a mild detergent according to the care label instructions. Do not machine wash the memory foam core.

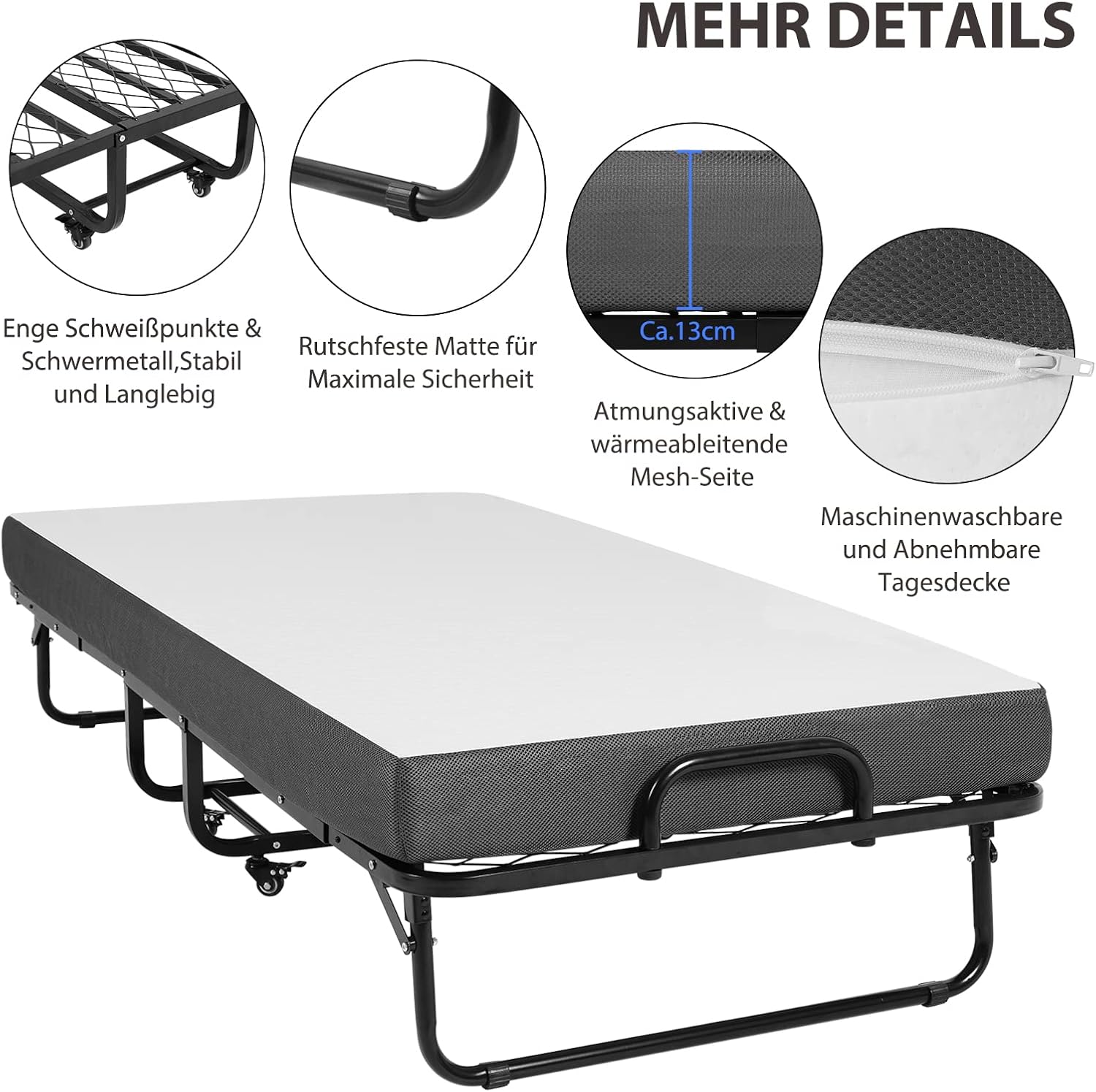

Изображение: крупный план view of the mattress, highlighting the zipper for easy removal of the washable cover.

6.2 Уход за рамой

Wipe the metal frame with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and dry immediately. Do not use abrasive cleaners or harsh chemicals. Regularly check all bolts and connections and tighten if necessary to maintain structural integrity.

7. Поиск Неисправностей

• Кровать кажется неустойчивой: Ensure all support legs are fully extended and locked. Verify that all assembly bolts are tightened. Lock the wheels when the bed is in use.
• Сложность складывания/раскладывания: Check for any obstructions or misaligned parts. Ensure the mattress is properly seated on the frame. Follow the folding/unfolding steps carefully.
• Mattress not fully expanded: Memory foam mattresses require 24-48 hours to fully expand after being compressed in packaging. Ensure it is laid flat in a well-ventilated room.
• Скрипучие звуки: Check and tighten all frame connections. Apply a small amount of lubricant to hinge points if necessary.

8. Технические характеристики

Image: A diagram illustrating the key dimensions of the DICTAC folding bed in both its unfolded and folded states.

Image: An illustration emphasizing the robust metal frame and its capacity to support up to 200 kg.

Изображение: Детальный поперечный разрез view of the 13cm memory foam mattress, showing its different layers for comfort and support.

9. Гарантия и поддержка

DICTAC is committed to providing quality products and customer satisfaction. This product comes with a 30-day return policy. If you encounter any problems with your DICTAC Folding Bed, please do not hesitate to contact our customer service team. We are always available to provide the most satisfactory solution.

For support, please refer to the contact information provided with your purchase or visit the official DICTAC webсайт.
