Бествей 58671E

Bestway Flowclear 2,500 Gallon Transparent Filter Pump User Manual

Модель: 58671E

Введение

The Bestway Flowclear 2,500 Gallon Transparent Filter Pump is an essential component for maintaining clean and clear water in your above ground swimming pool. This pump is designed for efficient filtration, removing debris and impurities to ensure a hygienic swimming environment. Its transparent design allows for easy visual inspection of the filter cartridge, simplifying maintenance. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to help you get the most out of your filter pump.

Bestway Flowclear 2,500 Gallon Transparent Filter Pump

Image: The Bestway Flowclear 2,500 Gallon Transparent Filter Pump, showcasing its transparent filter housing and hose connections.

Информация по безопасности

Перед установкой и использованием данного изделия, пожалуйста, внимательно ознакомьтесь со всеми предупреждениями и инструкциями по технике безопасности. Несоблюдение этих инструкций может привести к повреждению имущества, серьезным травмам или смерти.

  • Always disconnect the pump from the electrical outlet before performing any maintenance, cleaning, or servicing.
  • The pump must be supplied by a ground-fault circuit interrupter (GFCI) with a tripping current not exceeding 30 mA.
  • Не закапывайте электрический шнур в землю. Разместите шнур в таком месте, где он не будет поврежден газонокосилками, кусторезами или другим оборудованием.
  • To reduce the risk of electric shock, do not use extension cords to connect the unit to electric supply; provide a properly located outlet.
  • Не используйте насос, если поврежден шнур питания или вилка. В случае повреждения их должен заменить производитель, его сервисный агент или лица, обладающие аналогичной квалификацией, во избежание опасности.
  • Данным прибором могут пользоваться дети в возрасте от 8 лет и старше, а также лица с ограниченными физическими, сенсорными или умственными возможностями или с недостатком опыта и знаний, если они находятся под присмотром или получили инструкции по безопасному использованию прибора и понимают связанные с этим опасности.
  • Необходимо следить за детьми, чтобы они не играли с прибором.

Содержимое упаковки

Verify that all components are present and in good condition before beginning assembly.

  • Flowclear Filter Pump Unit
  • Filter Cartridge (Type IV-B)
  • Hoses (1.5-inch)
  • Adaptor Valves (1.25-inch)
  • Шланг Clamps
  • Руководство по эксплуатации
Bestway Flowclear Filter Pump Packaging

Image: The retail packaging for the Bestway Flowclear 2,500 Gallon Transparent Filter Pump, illustrating the product and its key features.

Инструкции по установке

Follow these steps to properly set up your filter pump.

  1. Размещение: Position the filter pump on a solid, level surface at least 6.5 feet (2 meters) away from the pool. Ensure the pump is lower than the pool's water level to allow for proper priming.
  2. Подсоедините шланги: Connect one end of a hose to the pump's inlet port (marked with an arrow pointing towards the pump) and the other end to the pool's outlet fitting (usually the lower fitting). Connect the second hose to the pump's outlet port (marked with an arrow pointing away from the pump) and the pool's inlet fitting (usually the upper fitting). Secure all hose connections with the provided clamps. If your pool has smaller fittings, use the included 1.25-inch adaptor valves.

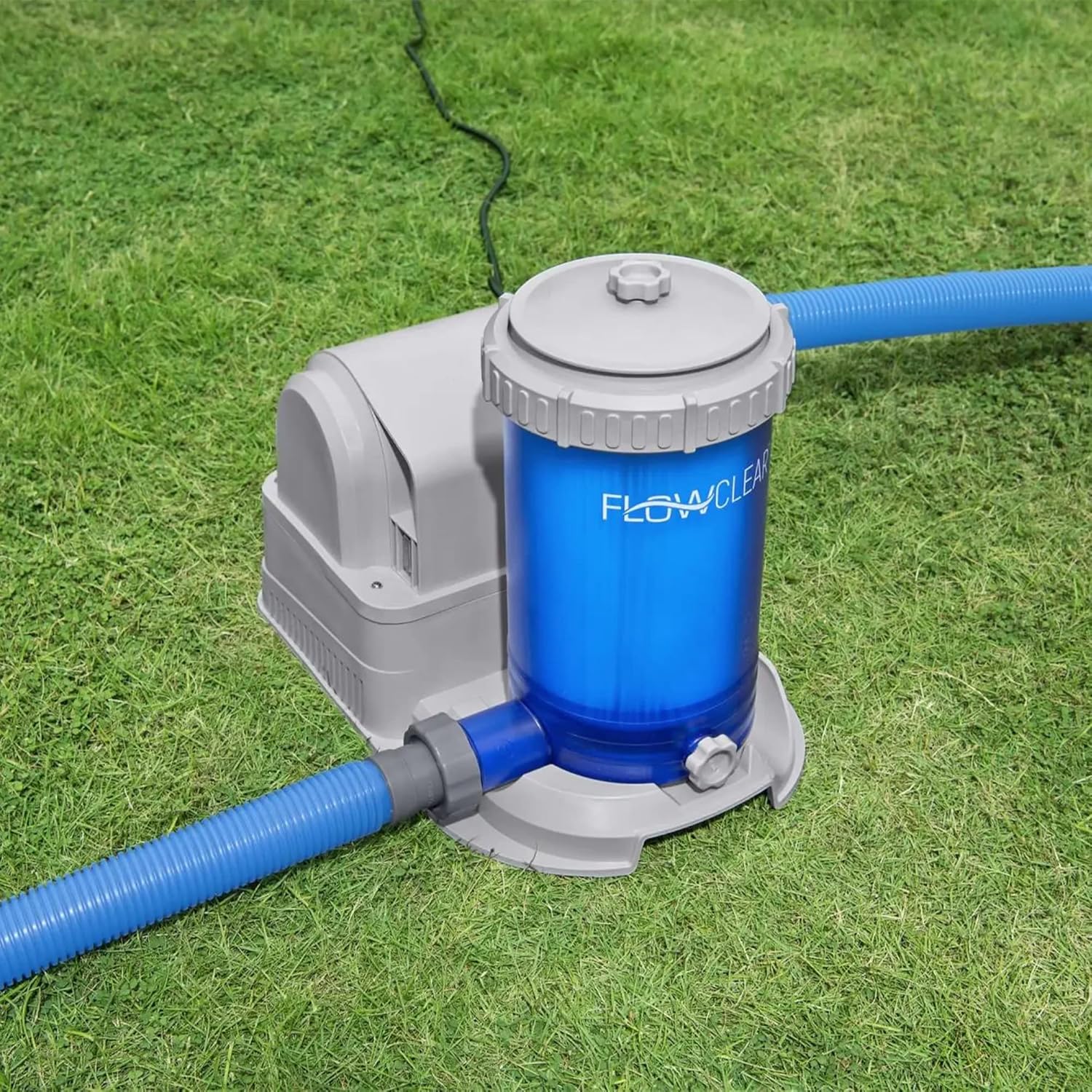

  3. Bestway Flowclear Pump connected to pool

    Image: The Bestway Flowclear pump positioned next to an above ground pool, with hoses connected to the pool's inlet and outlet fittings.

  4. Установка фильтрующего картриджа: Unscrew the filter cap from the top of the transparent filter housing. Insert the Type IV-B filter cartridge into the housing. Ensure it is seated correctly. Replace the filter cap and tighten it securely.
  5. Installing filter cartridge step 1

    Image: A person demonstrating the initial step of inserting the filter cartridge into the transparent housing of the Flowclear pump.

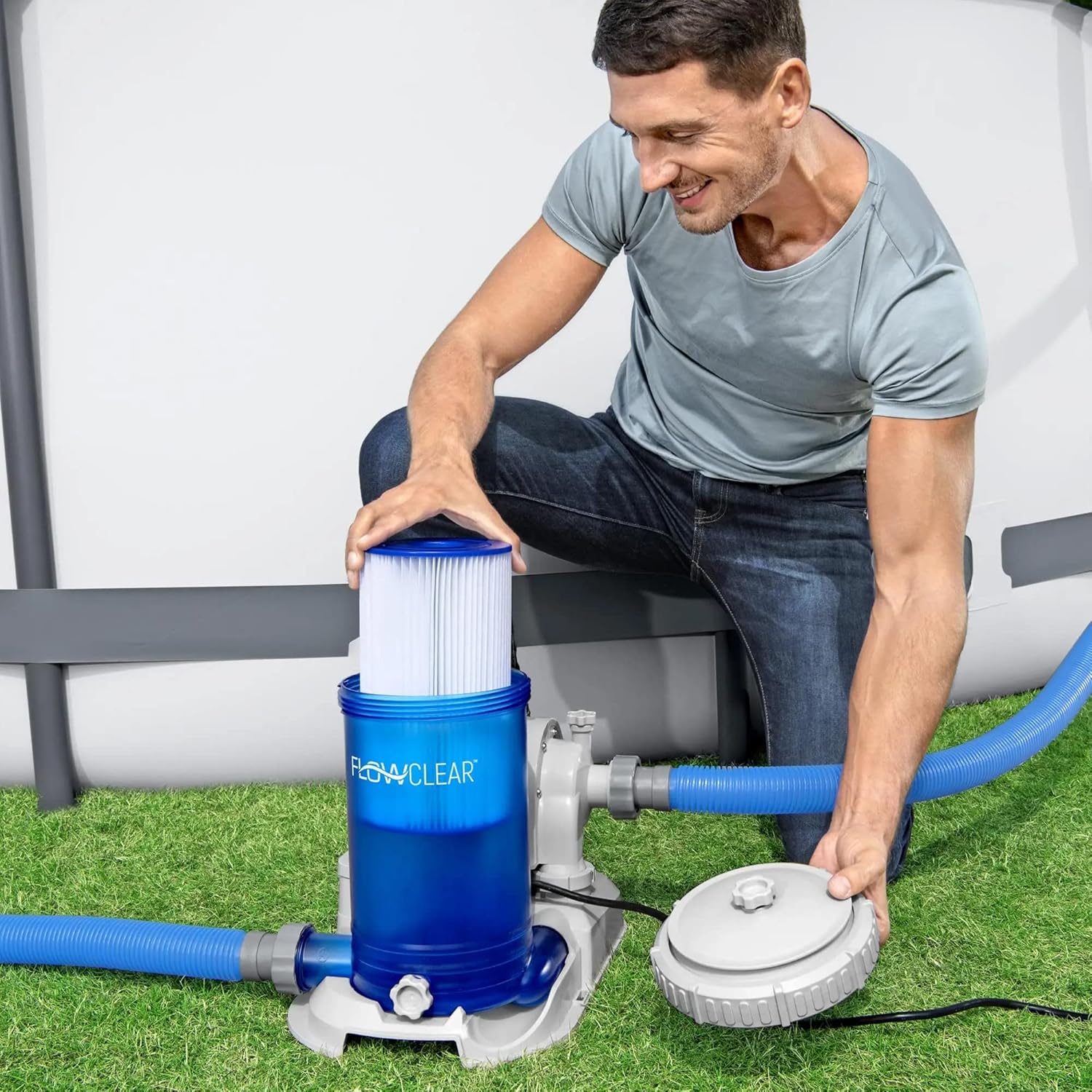

    Installing filter cartridge step 2

    Изображение: более близкое view of the filter cartridge being placed into the pump's transparent housing, ensuring proper alignment.

    Installing filter cartridge step 3

    Image: The filter cartridge fully inserted into the pump, ready for the top cap to be secured.

    Installing filter cartridge step 4

    Image: The final step of filter cartridge installation, with the top cap being tightened onto the pump housing.

  6. Fill Pool and Prime Pump: Ensure the pool is filled to the appropriate level. Open any necessary valves on the pool to allow water to flow into the pump. The transparent housing will show water filling the pump. Once filled, the pump is primed.
  7. Электрическое подключение: Plug the pump into a properly grounded 110-120 volt GFCI outlet. Do not plug in until all connections are secure and the pump is primed.

Инструкция по эксплуатации

Once the pump is set up and primed, you can begin operation.

  • Включение/выключение: Locate the power switch on the side of the pump. Flip the switch to the 'ON' position to start the pump. Flip it to the 'OFF' position to stop the pump.
  • Bestway Flowclear Pump Power Switch

    Изображение: крупный план view of the power switch located on the side of the Bestway Flowclear filter pump.

  • Время выполнения: For optimal water clarity, run the filter pump for a sufficient duration each day. The recommended run time depends on your pool size and usage, but typically 8-12 hours per day is sufficient.
  • Автоматическое отключение: This pump features an automatic shut-off function to save energy. Refer to the specific timer settings or operational modes in your pump's detailed manual for programming this feature.

Обслуживание

Regular maintenance is crucial for the longevity and efficiency of your filter pump.

  • Очистка картриджа фильтра: The transparent housing allows you to easily see when the filter cartridge is dirty. When the water flow decreases or the cartridge appears discolored, it's time to clean it. Disconnect the pump from power, remove the filter cap, take out the cartridge, and rinse it thoroughly with a garden hose.
  • Замена фильтрующего картриджа: Filter cartridges should be replaced every 2-4 weeks, or more frequently depending on pool usage and water quality. Always use genuine Bestway Type IV-B replacement cartridges.
  • Подготовка к зиме: Before winter, disconnect the pump, drain all water from it, and store it in a dry, frost-free location. Disconnect all hoses and store them properly.

Поиск неисправностей

Вот некоторые распространенные проблемы и их решения:

ПроблемаВозможная причинаРешение
Насос не работаетNo power; GFCI tripped; Motor overheatedCheck power connection; Reset GFCI; Allow pump to cool down
Низкий расход водыDirty filter cartridge; Air in system; Clogged hosesClean/replace filter; Bleed air from pump; Check hoses for blockages
Насос издает необычный шумAir in system; Debris in impeller; Pump not primedBleed air; Disconnect power and check impeller for debris; Ensure pump is fully primed
Утечка воды из соединенийСвободный clamps; Damaged O-rings/gasketsЗатяните шланг cl.amps; Inspect and replace O-rings/gaskets if damaged

Технические характеристики

Detailed technical specifications for the Bestway Flowclear 2,500 Gallon Transparent Filter Pump.

ОсобенностьСпецификация
Номер модели58671E
БрендBestway
Скорость потока2,500 Gallons Per Hour (GPU)
Совместимый объем бассейнаот 300 до 16,400 галлонов
Тип фильтрующего картриджаТип IV-B
ТомtageВольт 110-120
Источник питанияПроводной электрический
МатериалПластик
ЦветЧерный
Вес товара23.9 фунта
СКП821808041183
Pump Flow Rate and Pool Compatibility

Image: A graphic illustrating the pump's flow rate of 2,000 gal./h and its compatibility with pools ranging from 300 to 12,000 gallons.

Система фильтрацииview

Image: A graphic explaining the filtration process, showing the pump connected to a pool and emphasizing the importance of proper care for clear water.

Гарантия и поддержка

Bestway products are manufactured under strict quality control standards. For specific warranty information, including terms and conditions, please refer to the warranty card included with your product or visit the official Bestway website. If you encounter any issues or require technical assistance, please contact Bestway customer service. Have your model number (58671E) and UPC (821808041183) ready when contacting support.

For further assistance, you may visit the Bestway Store online: Магазин Bestway

© 2024 Bestway. Все права защищены.
